100,000 Litre 304 Stainless Steel Insulated Storage Tanks

Technical Summary

Capacity: Approx. 100,000–120,000 Litres (estimated based on dimensions)

Quantity: 2 units

Orientation: Vertical

Material: AISI 304 Stainless Steel

Diameter: Ø 3,350 / 3,600 mm

Total Height: 13,500 mm

Insulation: 100 mm insulated (cladded with white TRP plates)

Top Type: Conical top with ventilation

Bottom Type: Flat sloping bottom

Outlet: 4” outlet

Specification

Vertical cylindrical insulated tank design

Conical top fitted with ventilation

Flat sloping base for controlled drainage

4” outlet connection

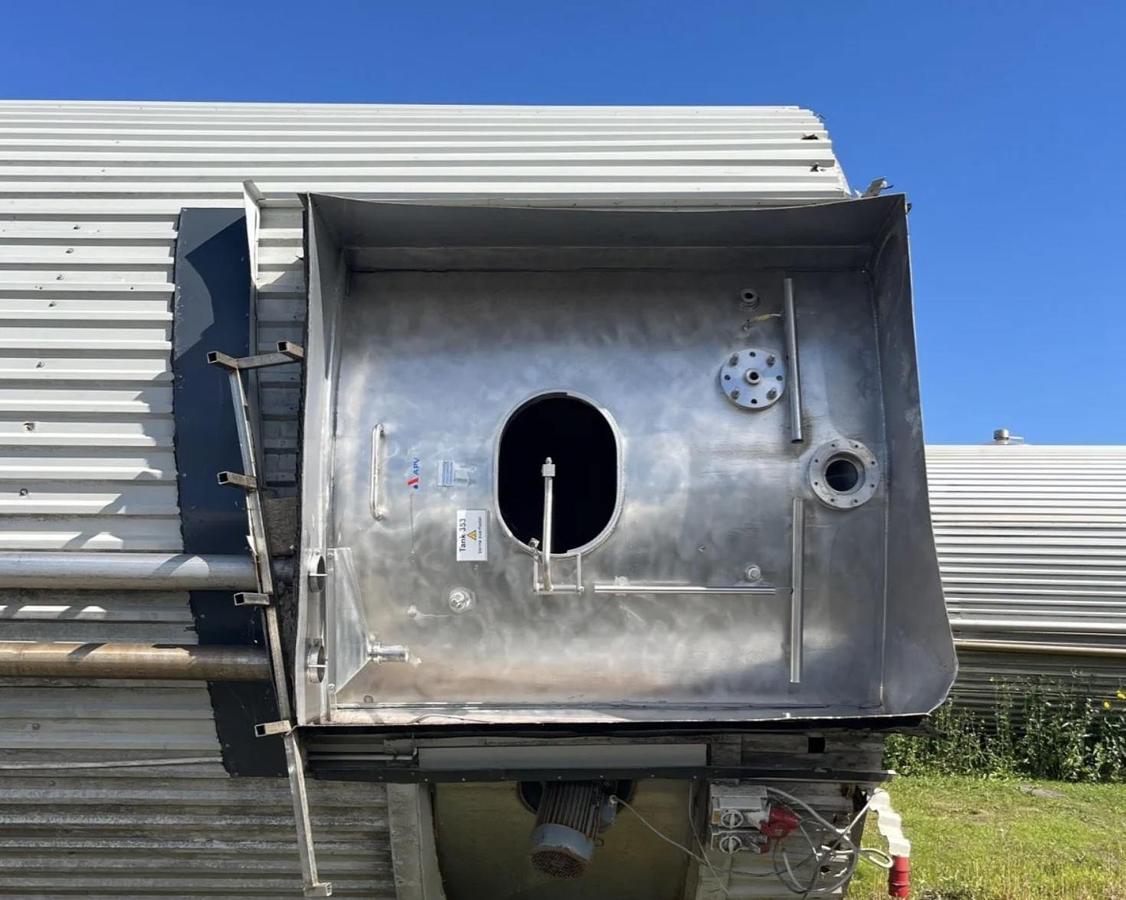

Manhole located on lower section of cylinder

Equipped with 2 side-mounted agitators

100 mm insulation with external white TRP cladding

Suitable for temperature-controlled storage and process applications

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
