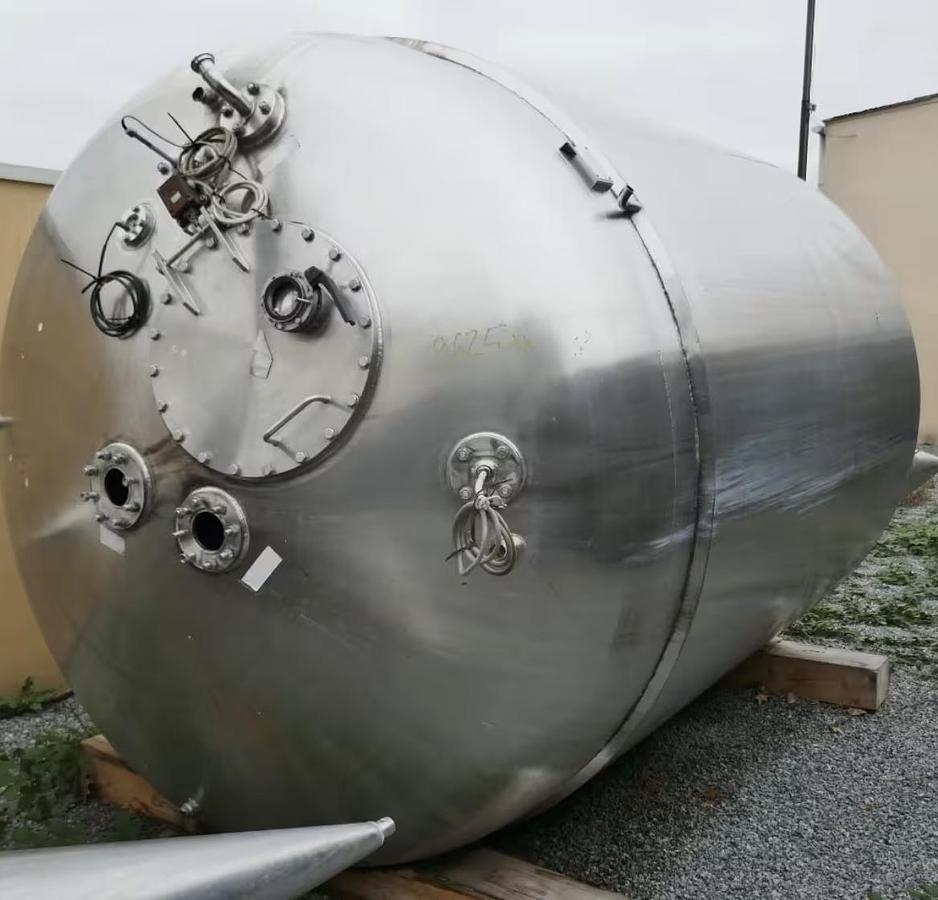

16,000 Litre 316 Stainless Steel Pressure Tanks with Jet Stream Agitator

Technical Summary

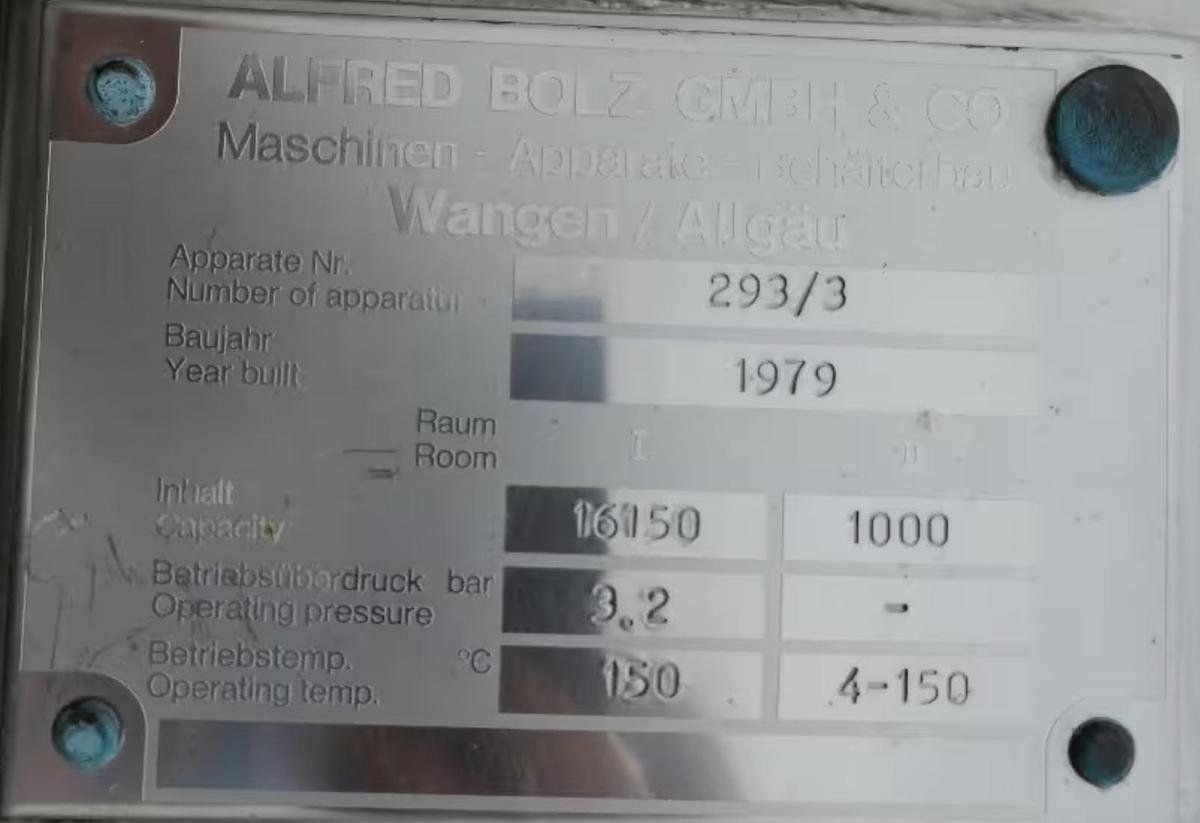

Manufacturer: Alfred Bolz Apparatebau

Condition: Used

Capacity: 16,150 Litres

Orientation: Vertical (standing on legs – 3 supports)

Material (Product Contact): AISI 316Ti (1.4571)

Material (Jacket): AISI 316 (V4A) (1.4571)

Design Pressure (Vessel): 3.2 bar

Max Temperature: 150°C

Diameter (Internal): 2,490 mm

Diameter (External): 2,580 mm

Cylindrical Height: 2,500 mm

Total Height: 5,000 mm

Wall Thickness:Cylinder: 8 mm, Bottom: 6 mm

Outlet: 80 mm

Jacket:

Double jacket (trickle ring type)

Jacket volume: 1,000 Litres

Max temperature: 150°C

Suitable for unpressurised temperature control

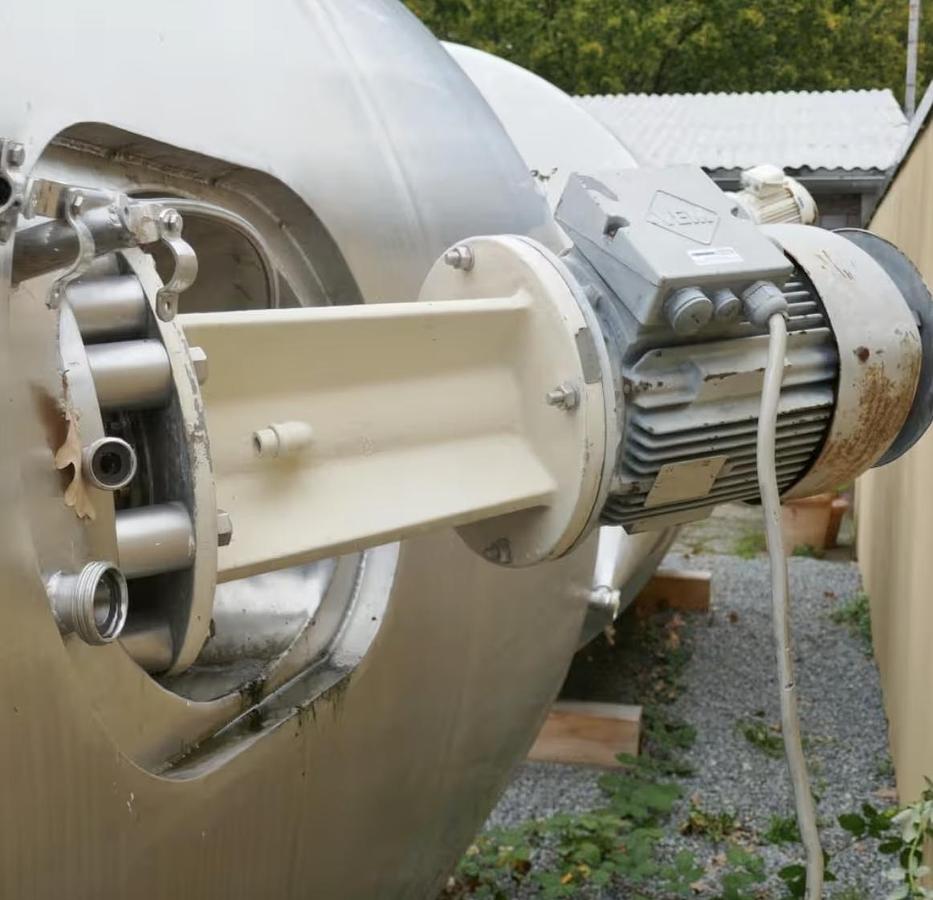

Agitation:

Manufacturer: Ystral

Type: Jet stream mixer (side-mounted)

Power: 1.7 / 6.8 kW

Speed: 720 / 1460 rpm

Voltage: 380 V

Note: One unit has a slightly different motor specification

Specification

Vertical cylindrical tank mounted on 3 legs

Double jacketed vessel for temperature control (cylinder and bottom)

Trickle ring jacket system for controlled heating/cooling

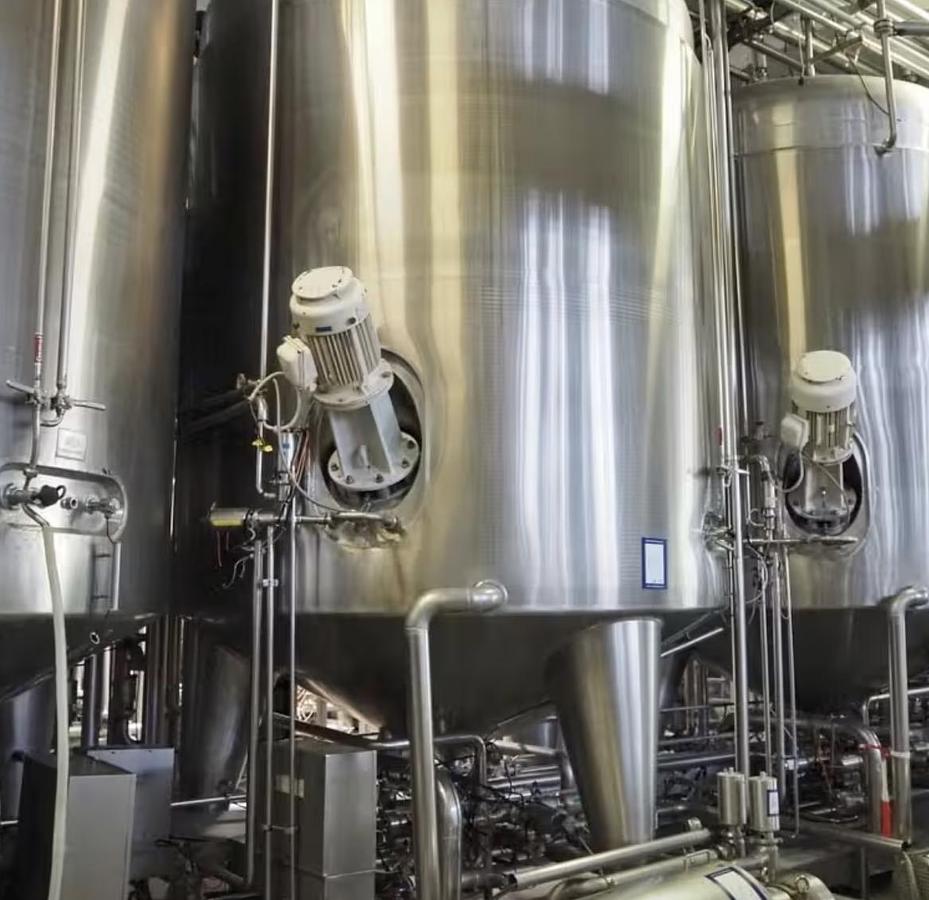

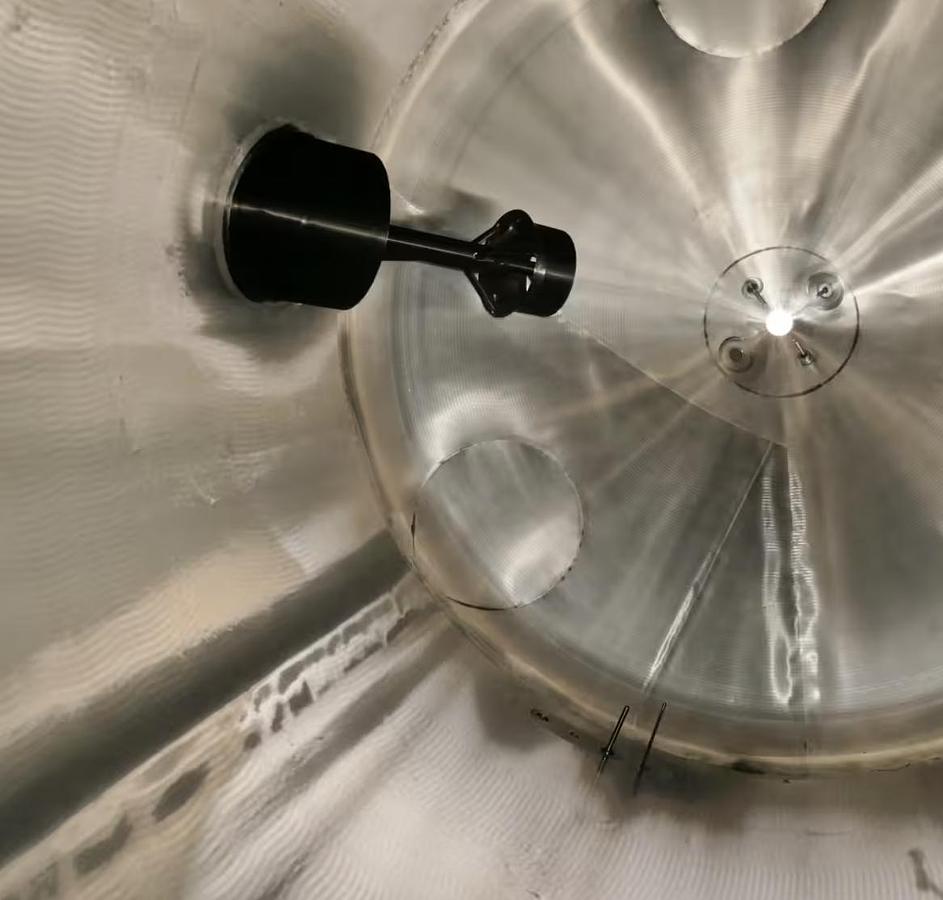

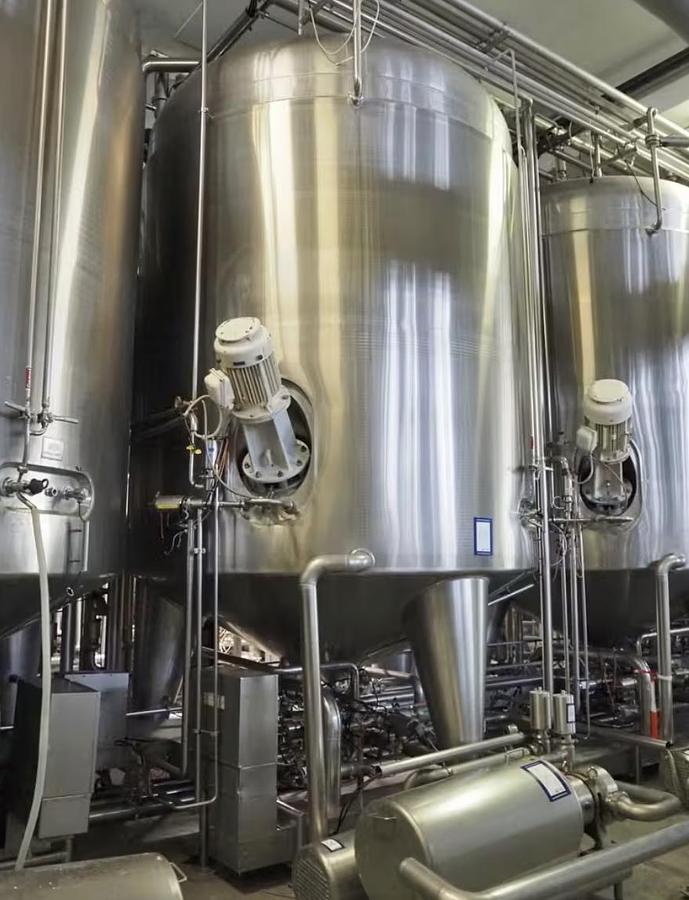

Side-mounted jet stream agitator for effective mixing

Manhole located on upper section (Ø 500 mm)

80 mm outlet connection

Suitable for dairy and hygienic process applications

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
