Beverage Can Filling Line – 355ml (20,000 LPH Hot Fill / 13,800 LPH CSD)

Beverage Can Filling Line – 355ml (20,000 LPH Hot Fill / 13,800 LPH CSD)

Used beverage canning line designed for hot-filled beverages and carbonated drinks in standard 355ml cans.

The line is currently in operation and was originally installed in 1994. It includes filling, seaming, secondary packaging, and auxiliary systems. Designed for fruit-based beverages (hot fill) and carbonated products, the system is supplied with a carbonator but does not include a pasteuriser.

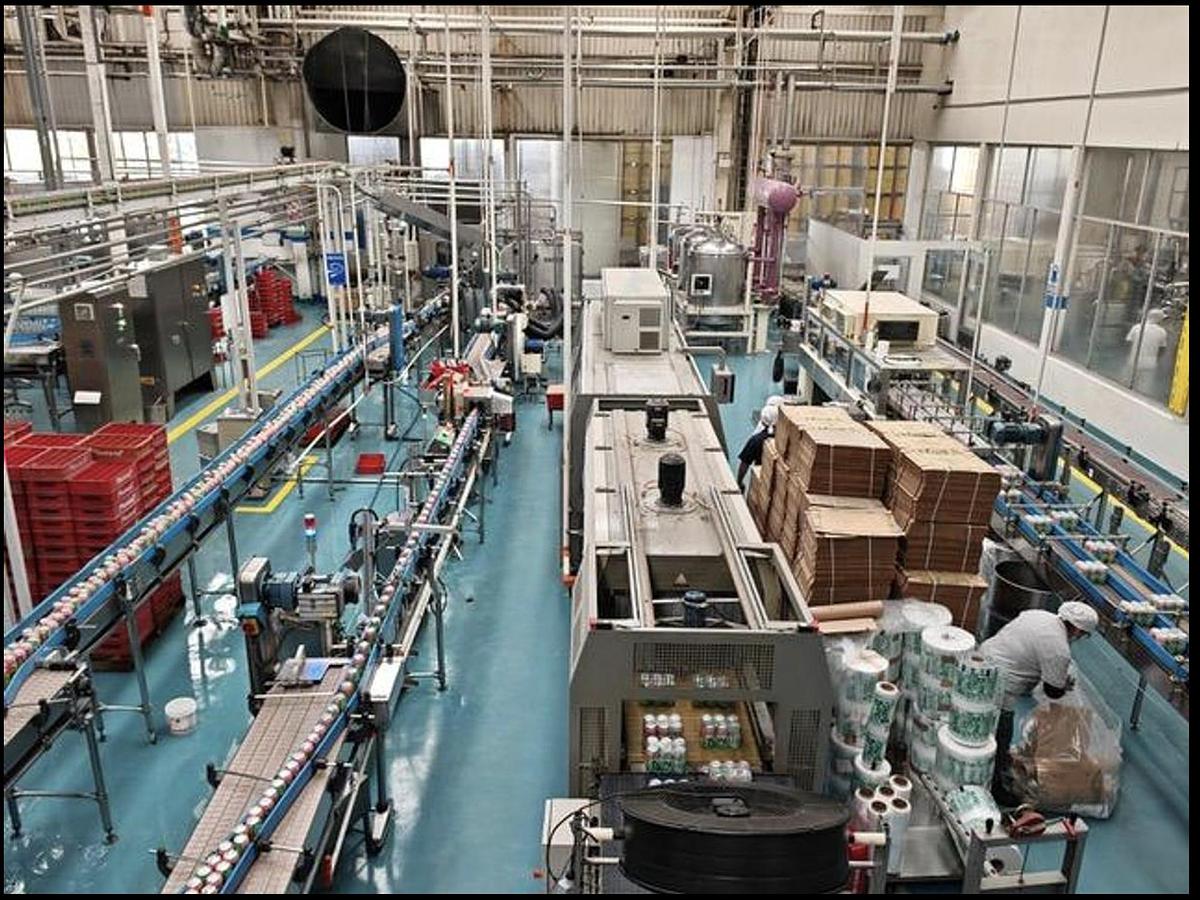

Line Overview

Complete canning line covering all main production stages:

Can depalletising and feeding

Can filling and seaming

Level detection and dosing

Secondary packaging (multipack and tray packing)

Manual palletising and outfeed handling

Integrated conveyor systems

Key Equipment

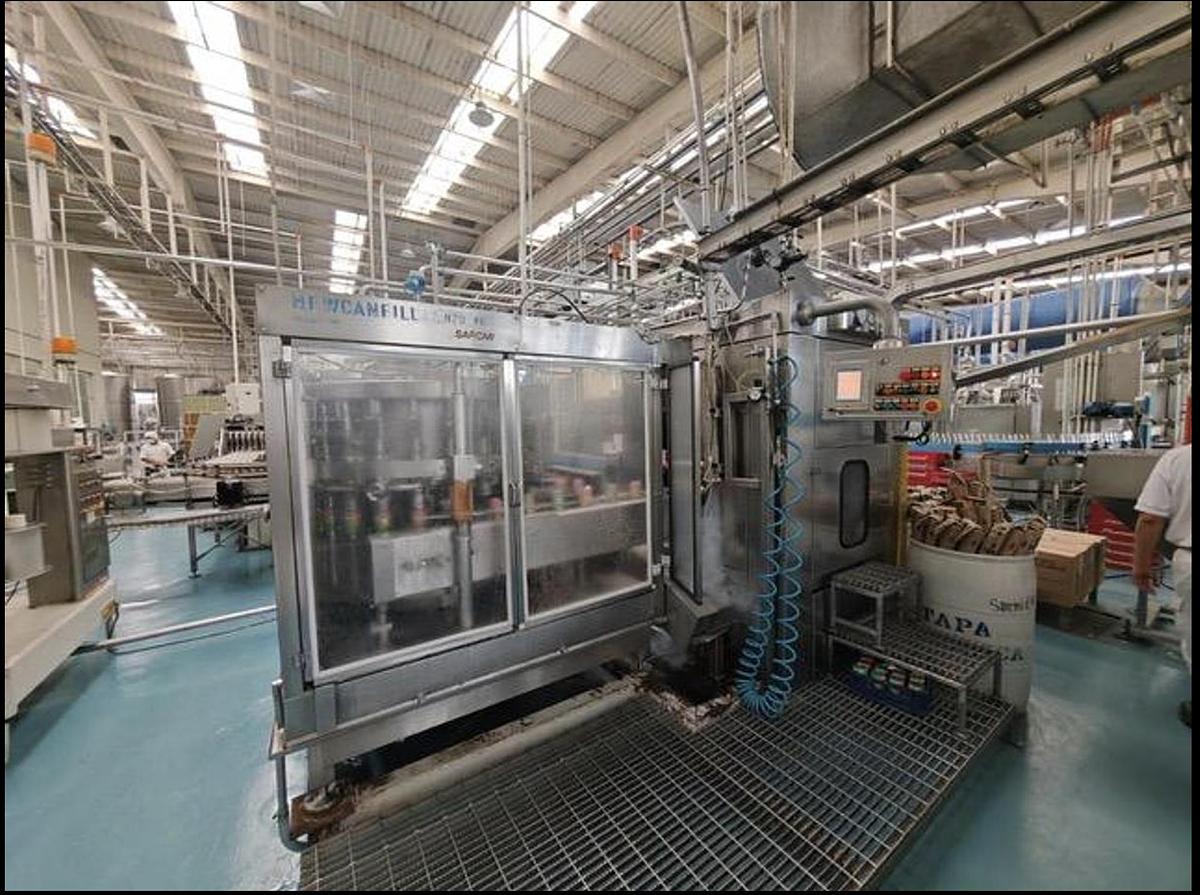

Filler – SACMI 20 valve can filler (Model 20-P.150.78, 1994) suitable for hot fill (with pulp) and carbonated products

Seamer – COMACO 4 head can seamer (2007, for 202 end)

Depalletiser – Manzini Comaco bulk can depalletiser (3 layers per minute)

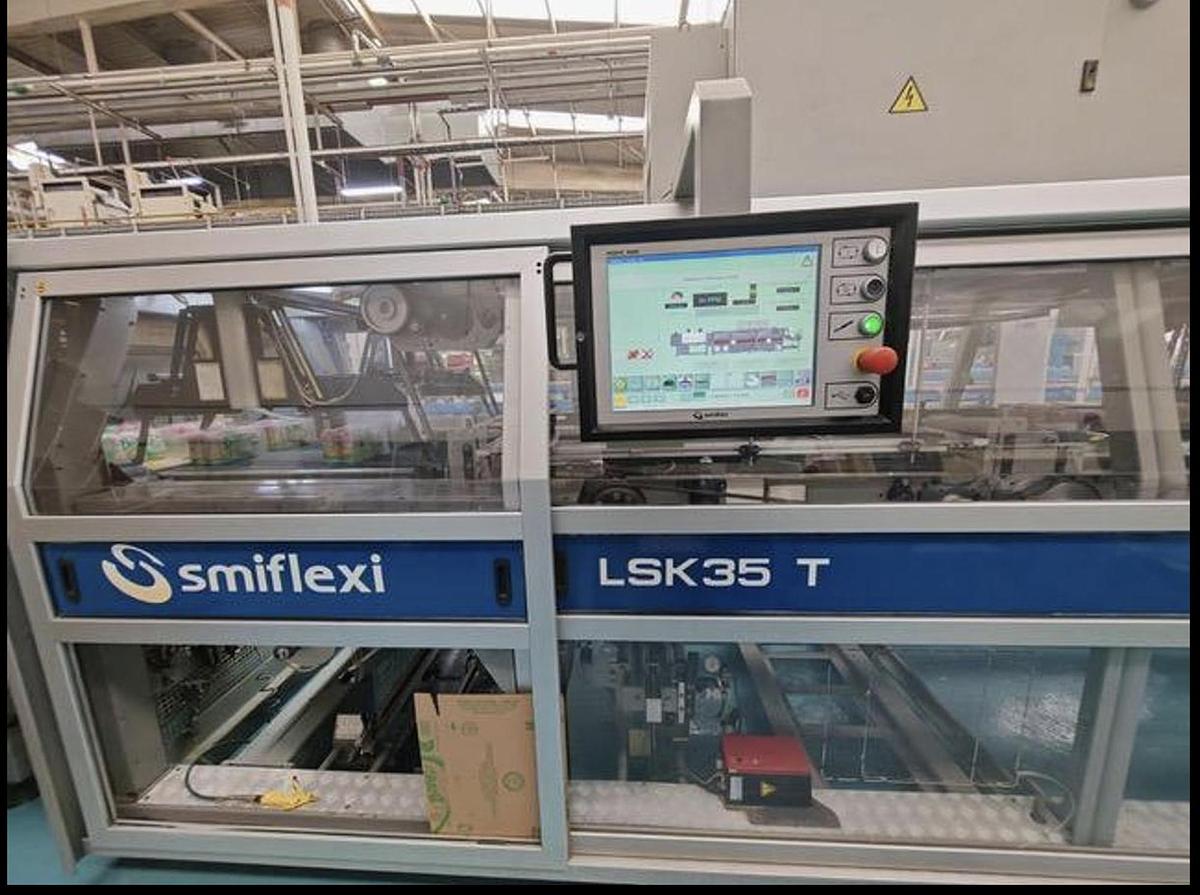

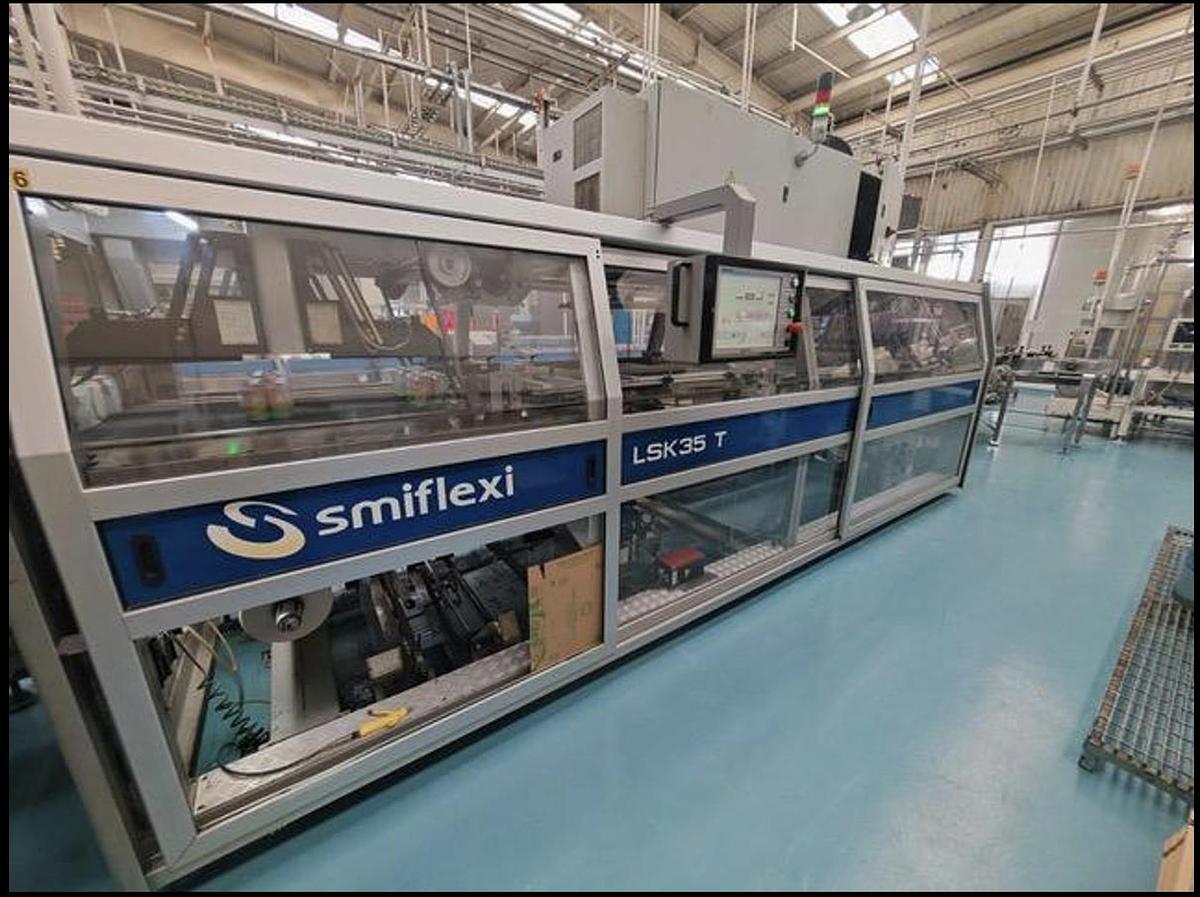

Multipacker – SMI Group FLEXI (2010, approx. 35 packs/min, double lane, polyethylene film)

Tray Packer – SMI (1994, approx. 25 cases/min)

Inspection & Dosing

Level Detector – Tap Tone (2012)

Nitrogen Doser – NITRODOSE (2012)

Process Equipment

Carbonator – Exactomex (supplied, non 5:1 mixing system)

Refrigeration System – Complete ammonia-based system with compressors and receiver tank

Material Handling

Conveyor Systems – Full interconnecting conveyors

Outfeed – Gravity roller conveyor for manual stacking

Technical Summary

Container type: 355ml cans

Hot fill capacity: approx. 20,000 LPH at ~67°C

Carbonated capacity: approx. 13,800 LPH

Cap type: 202 end

Line efficiency: approx. 92% (as reported)

Condition & Availability

Built: 1994 (with later upgrades: seamer 2007, packaging 2010, dosing 2012)

Condition: Used, currently in operation

Status: Available

Location: Mexico

Availability: Immediate (subject to confirmation)

The line is complete from depalletising through to packaging and ready for relocation and reinstallation.

Additional Support

Technical documentation and further details available on request.

Optional support can be provided for:

Dismantling and transportation

Installation and commissioning
