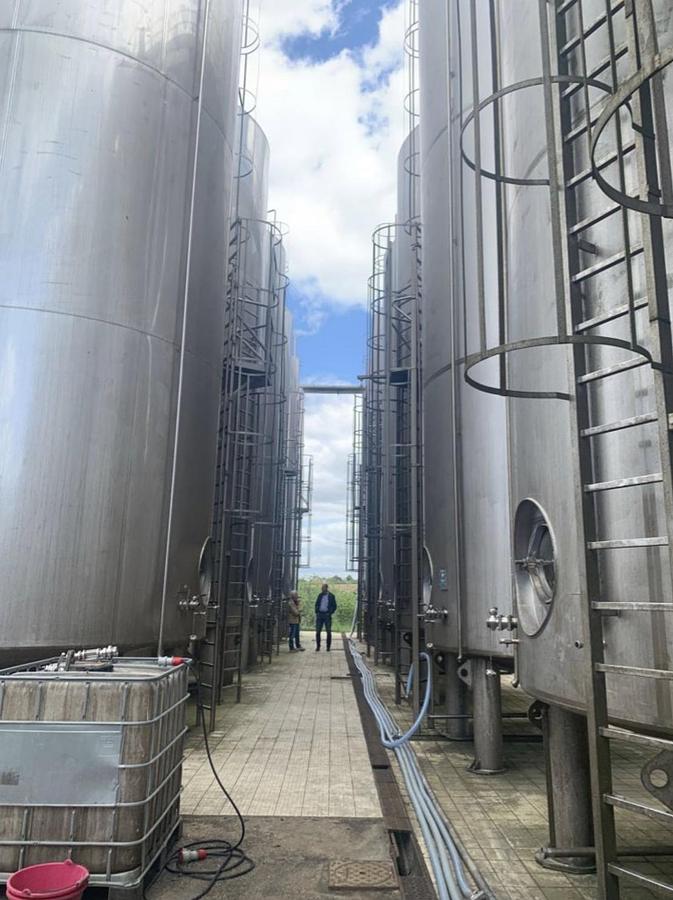

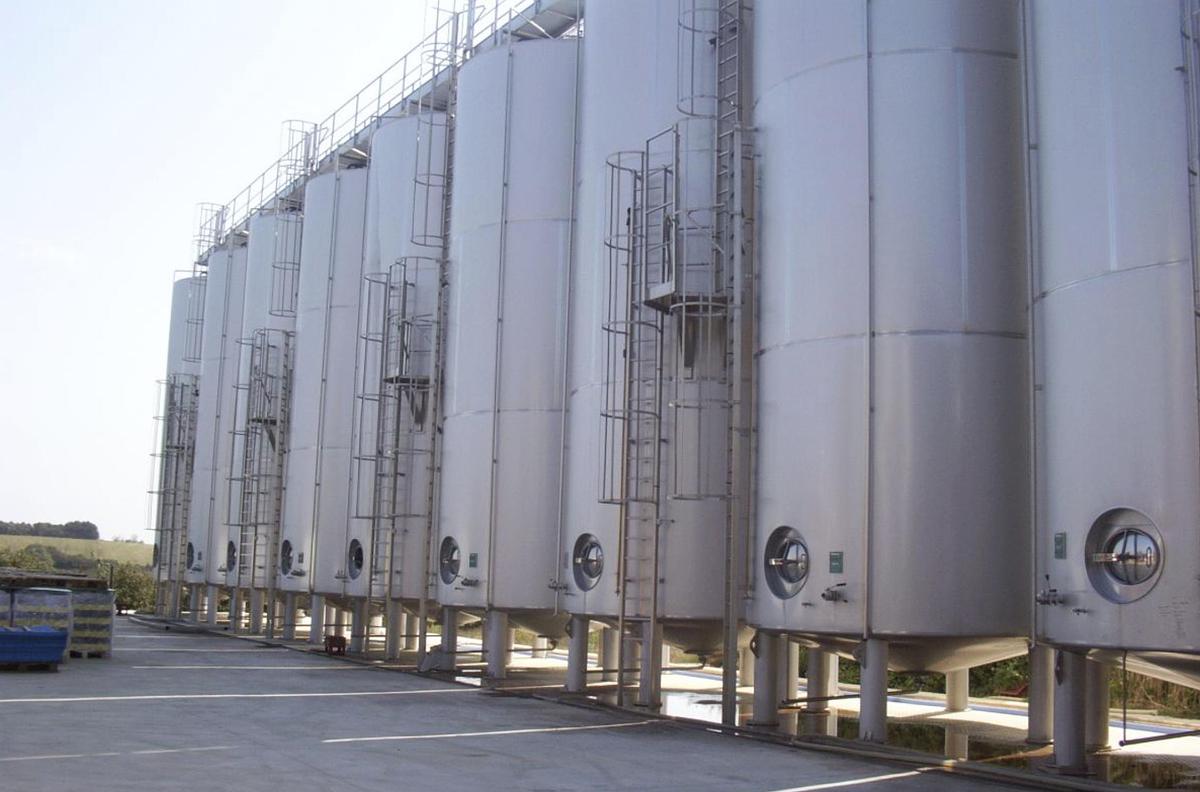

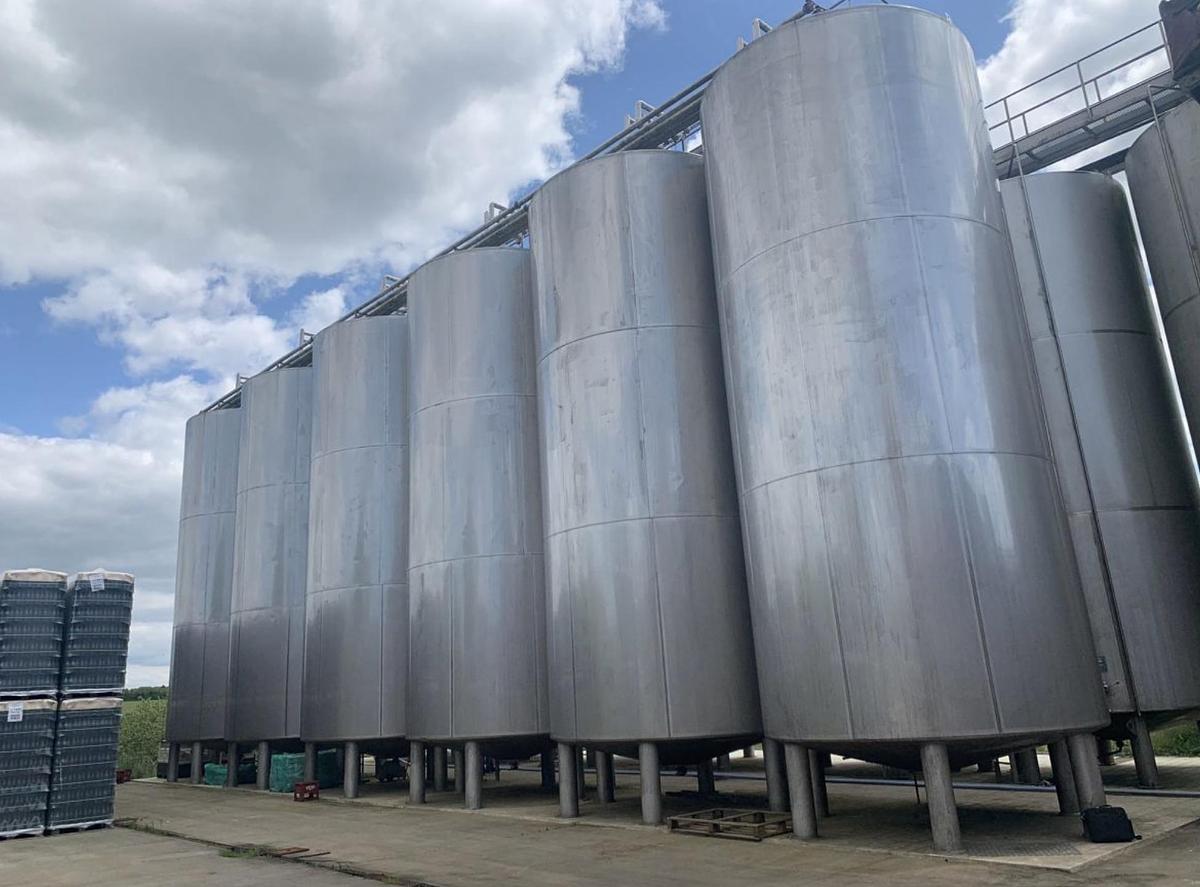

100,000 Litre Insulated Stainless Steel Storage Tanks

Technical Summary

Capacity: 100,000 Litres

Orientation: Vertical

Configuration: Insulated

Material (Wet Parts): SS AISI 316L (V4A)

Outer Jacket: RVS 304L

Insulation: Rockwool (80 mm)

Pressure: Atmospheric (ATM)

Shape: Cylindrical

Top Type: Conical

Bottom Type: Conical (full discharge)

Internal Diameter: 3,788 mm

Outer Diameter: 3,900 mm

Cylinder Height: 8,750 mm

Total Height: 10,700 mm

Outlet Height: 500 mm

Weight: 8,000 kg

Fixation: 6 non-adjustable feet

Specification

• Vertical cylindrical insulated storage tank
• Conical top and conical bottom for complete discharge
• Fully insulated with 80 mm Rockwool and welded outer jacket
• Constructed in AISI 316L for product contact surfaces
• Outer cladding in RVS 304L

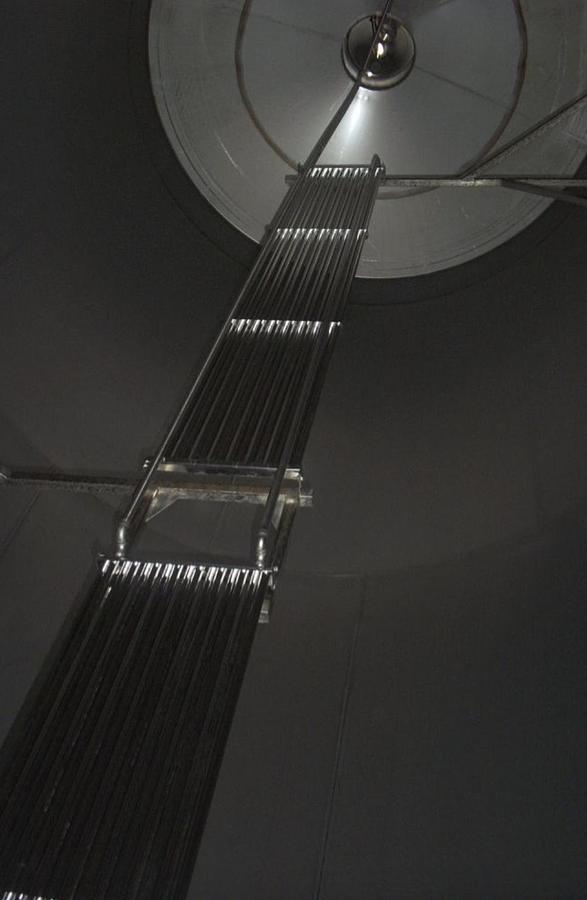

• Two manways located:
• Top of vessel
• Cylinder side
• EPDM manway gaskets
• No heat exchanger installed
• Suitable for food industry applications
• Technical drawings available

Availability & Project Support

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
