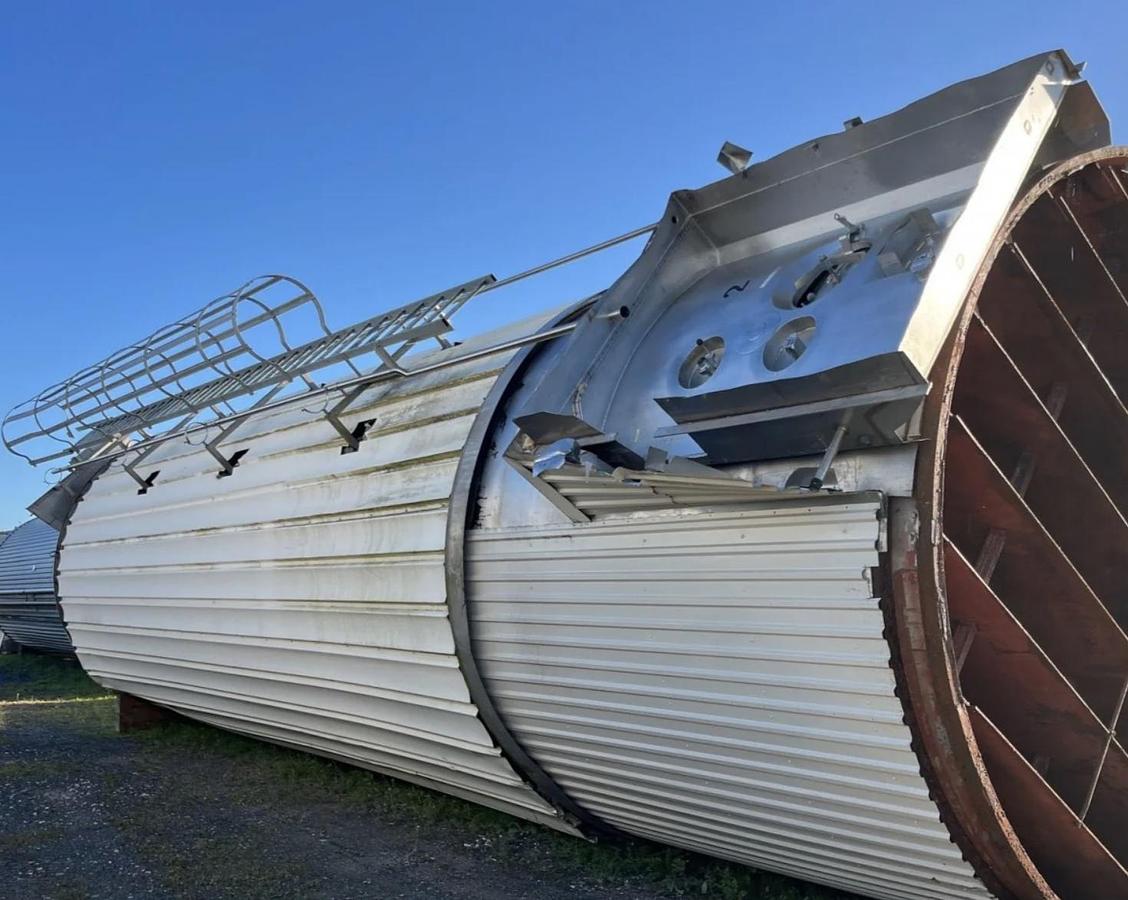

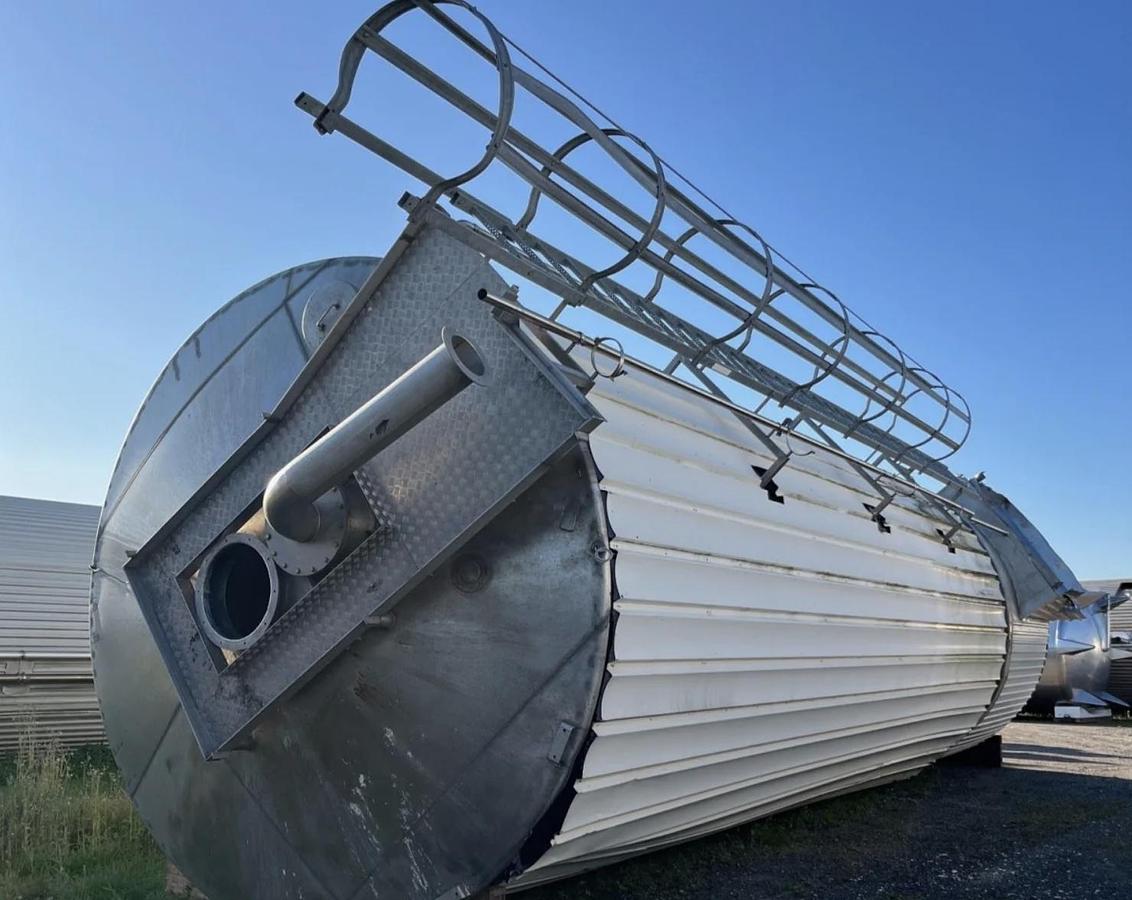

120,000 Litre 304 Stainless Steel Insulated Storage Tanks

Technical Summary

Capacity: Approx. 140–150 m³ (estimated based on dimensions)

Quantity: 2 units (identical)

Orientation: Vertical

Material: AISI 304 Stainless Steel

Configuration: Insulated

Insulation: 100 mm (trapezoidal plate cladding)

Diameter: Ø 3,700 / 3,950 mm

Total Height: 14,000 mm

Cylinder Height: 13,000 mm

Top Type: 15° conical top

Bottom Type: Flat sloping bottom

Outlet: 4” outlet

Specification

Vertical cylindrical insulated tank design

15° conical roof construction

Flat sloping base for controlled discharge

4” outlet connection

Manholes located on lower section of cylinder

Fully insulated with 100 mm insulation and external trapezoidal cladding

Suitable for bulk storage and process applications

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
