New ArrowPET 20/40/8 ISO EPV Rinser-Filler-Capper

Technical Summary

New ArrowPET 20/40/8 ISO EPV Rinser-Filler-Capper

New PET bottle filling triblock

Year: 2026

Application: Still and sparkling water

Capacity: Up to 9,000 bph, depending on bottle size

Manufacturer standard: CE marked, manufactured in the EU

Availability: Build to order

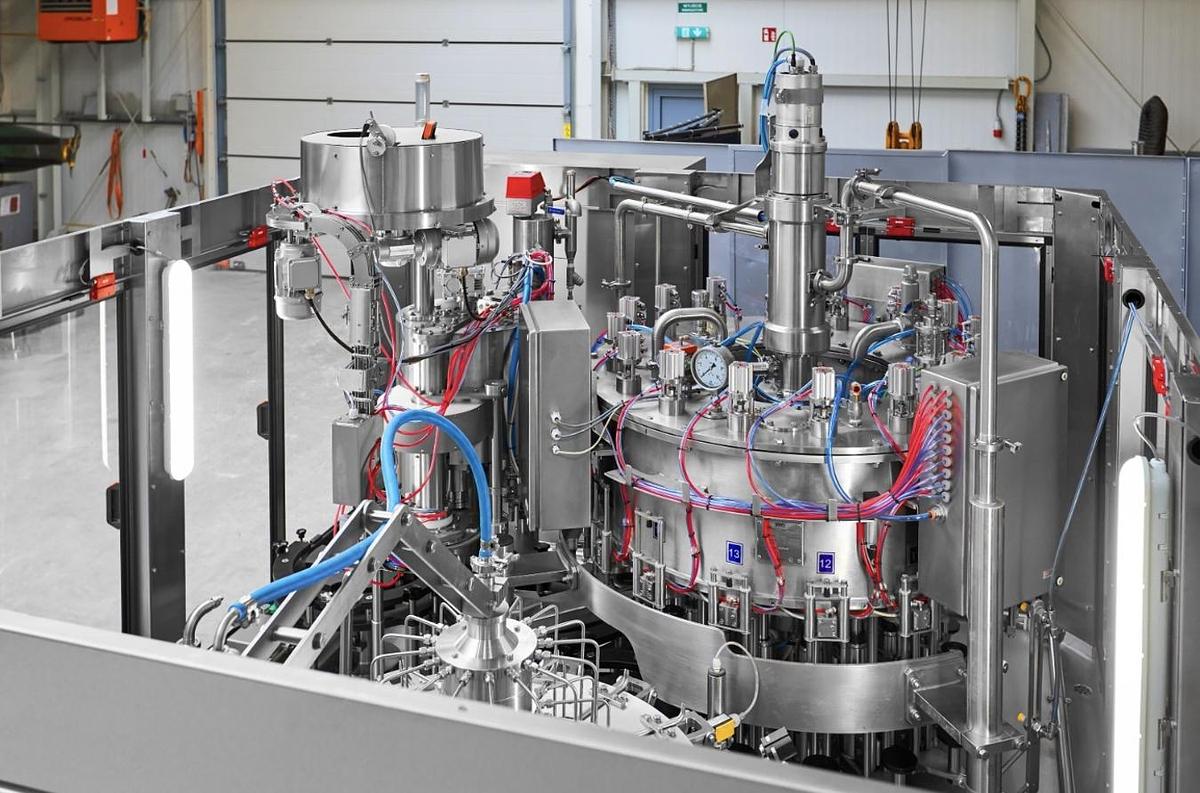

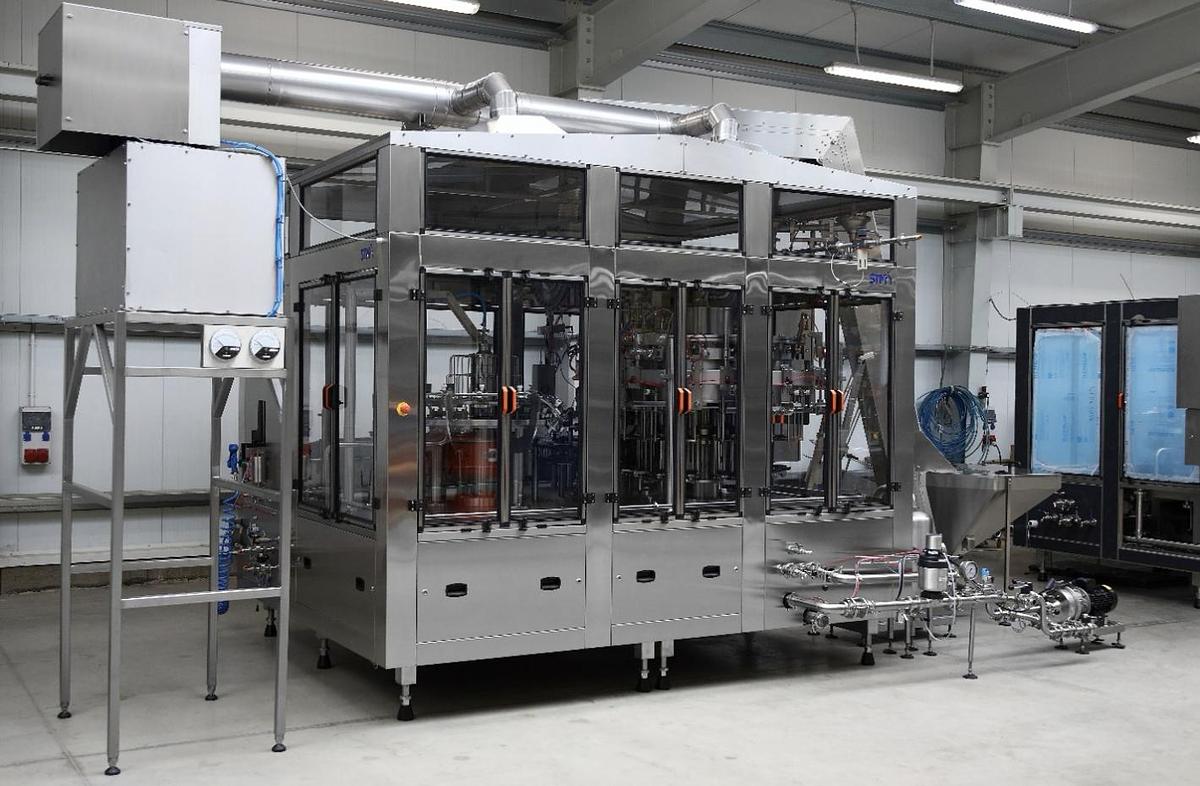

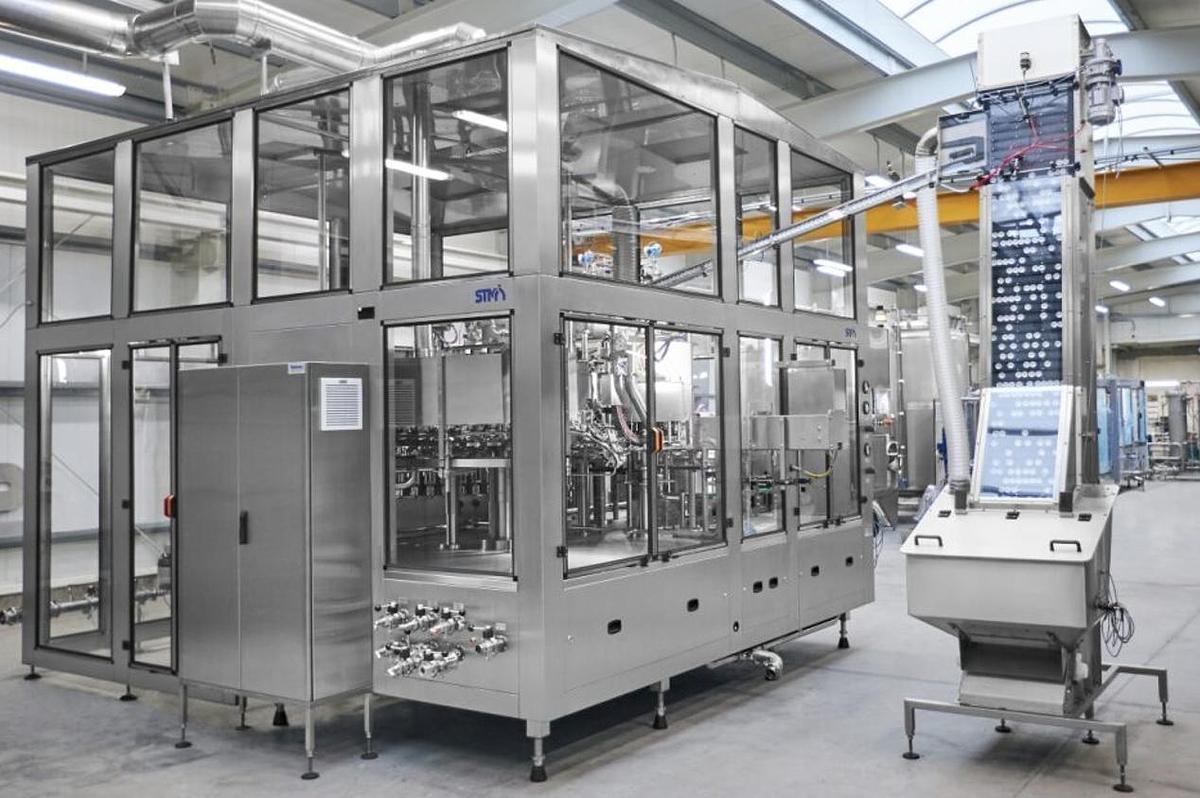

The ArrowPET 20/40/8 ISO EPV is a new rotary triblock machine designed for rinsing, isobaric filling and capping of PET bottles. The machine is suitable for still and carbonated beverages, including still and sparkling water, and is equipped with electro-pneumatic EPV filling valves for controlled counter-pressure filling.

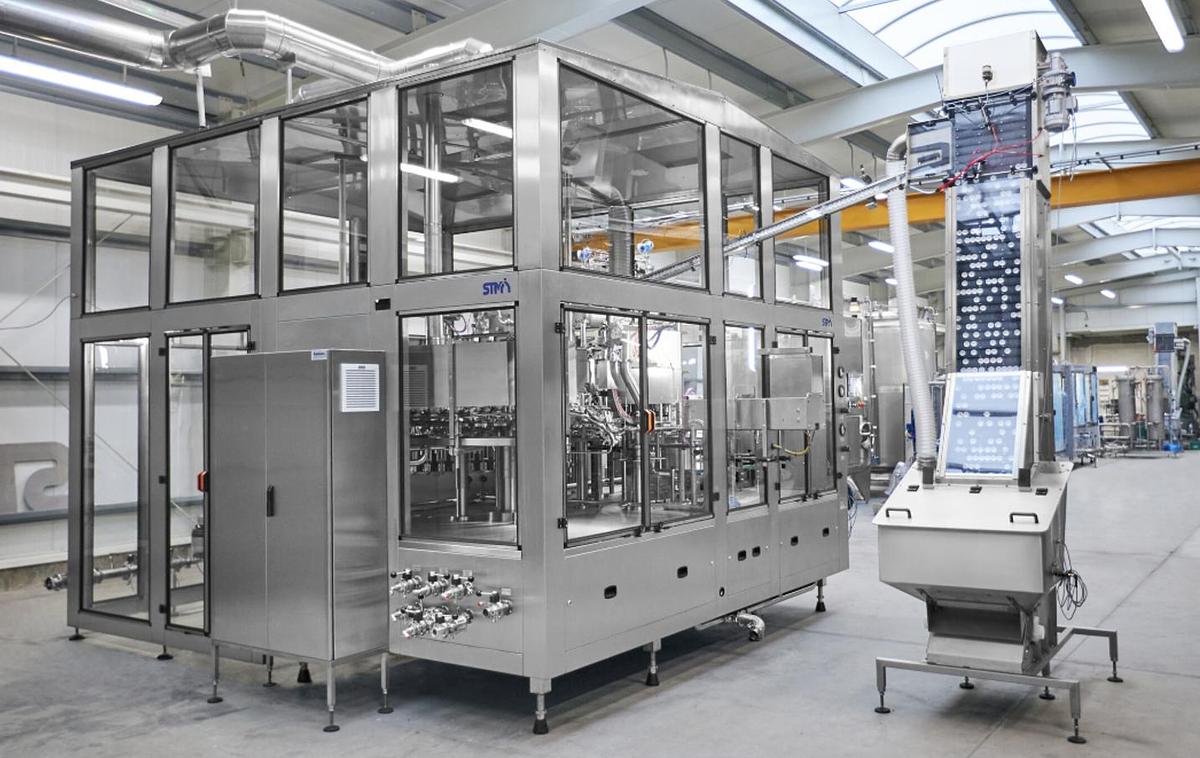

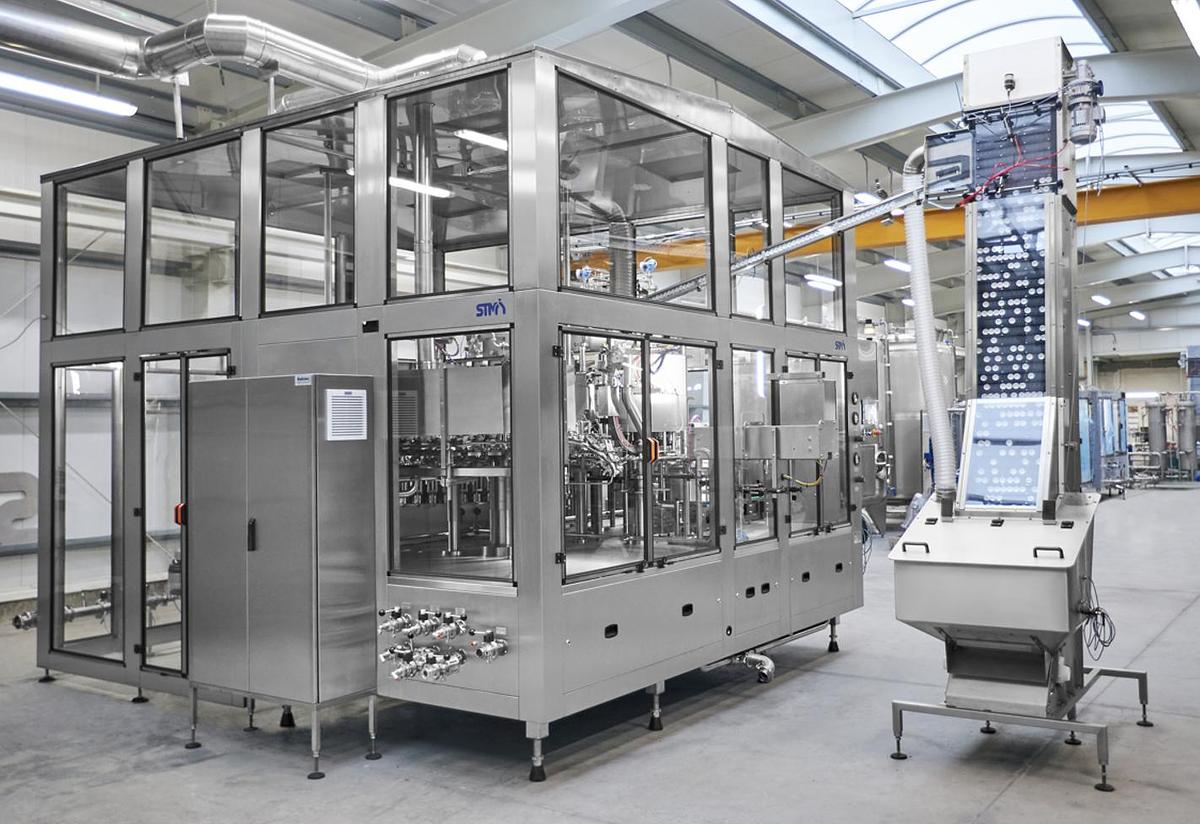

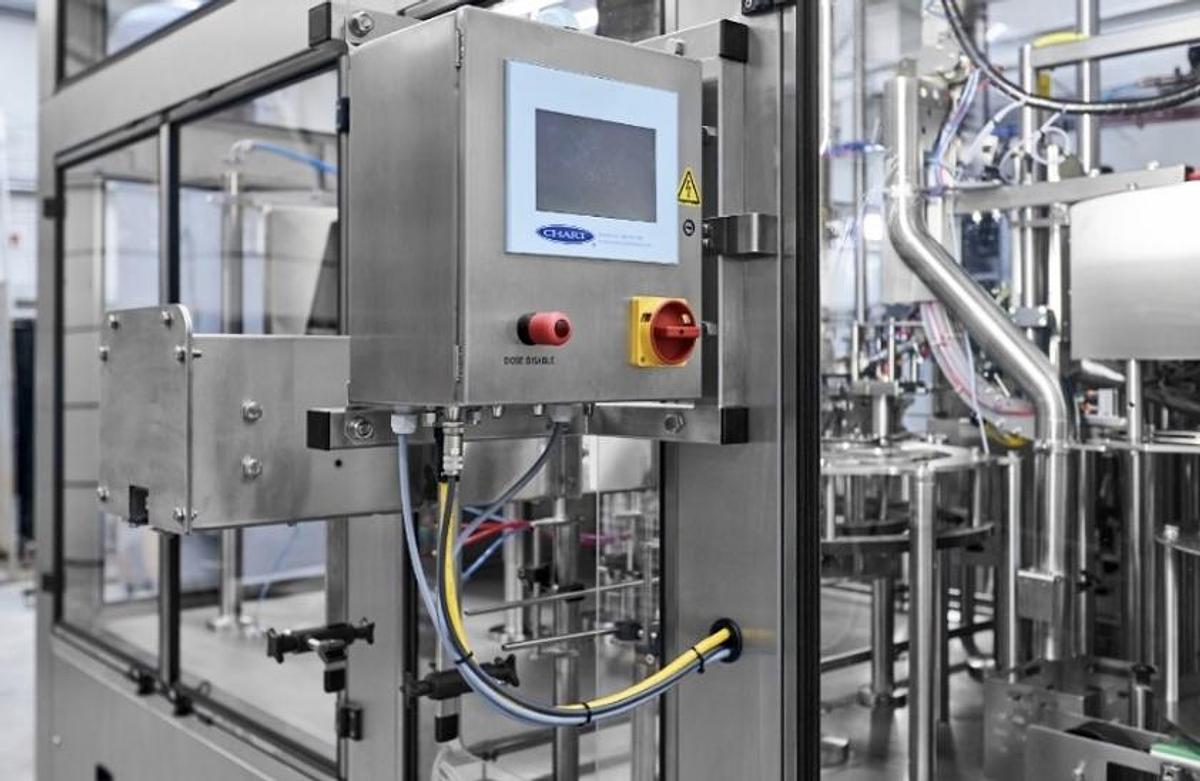

The machine includes CIP-ready construction, AISI 316L product-contact parts, protective enclosure, PLC control and touch-screen HMI operation.

Specification

Bottle formats: 500ml, 1,000ml and 1,500ml PET bottles

Neck finish: PCO 28mm

Cap type: Screw cap

Bottle shape: Round

Filling temperature: Approx. +5°C

Performance:

500ml — up to 9,000 bph

1,000ml — up to 8,000 bph

1,500ml — up to 6,000 bph

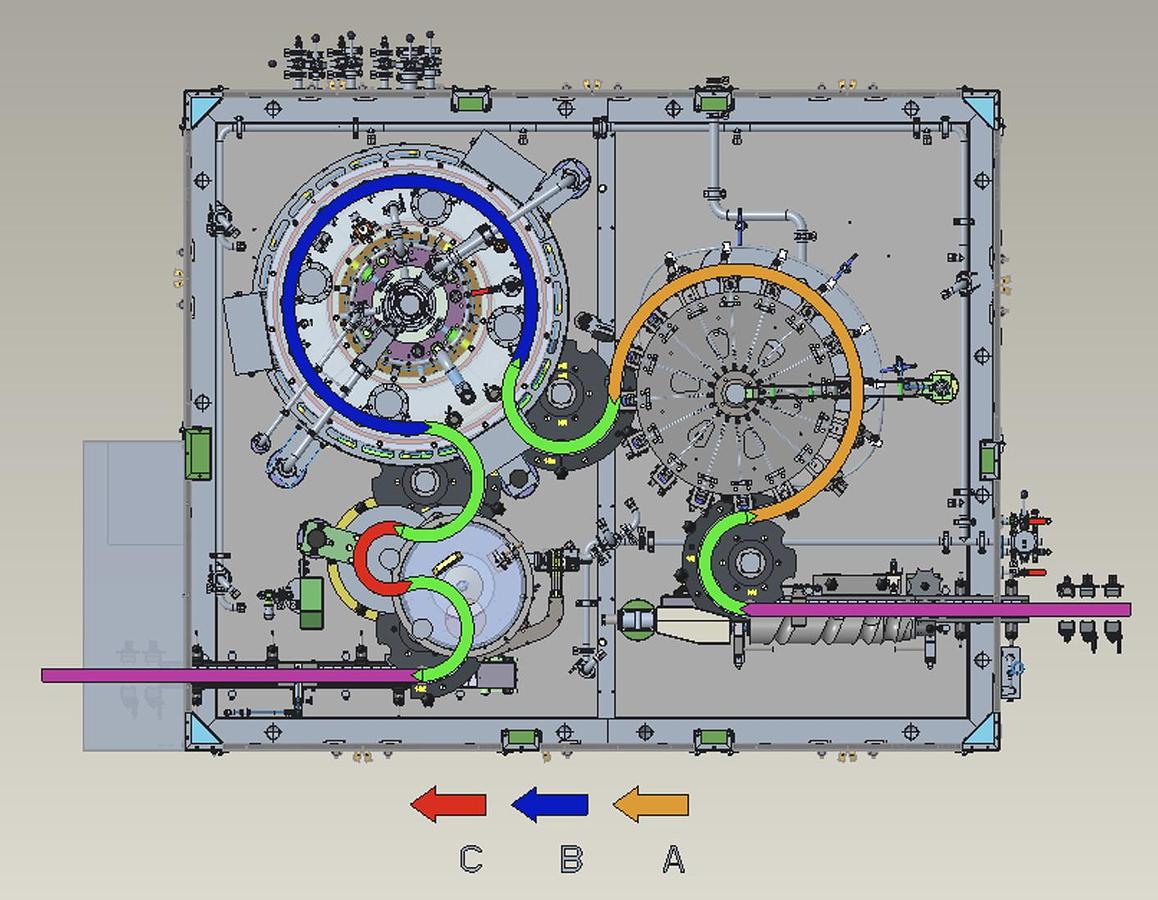

Machine configuration:

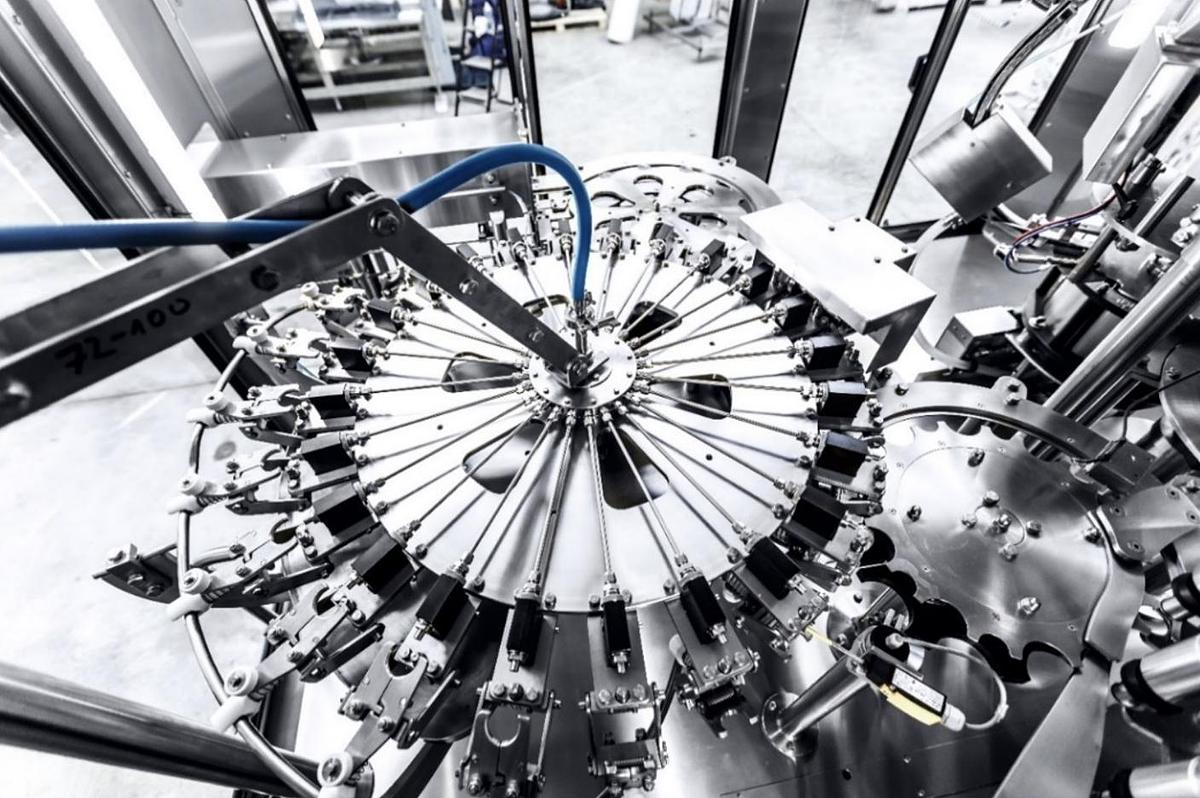

20 rinsing valves

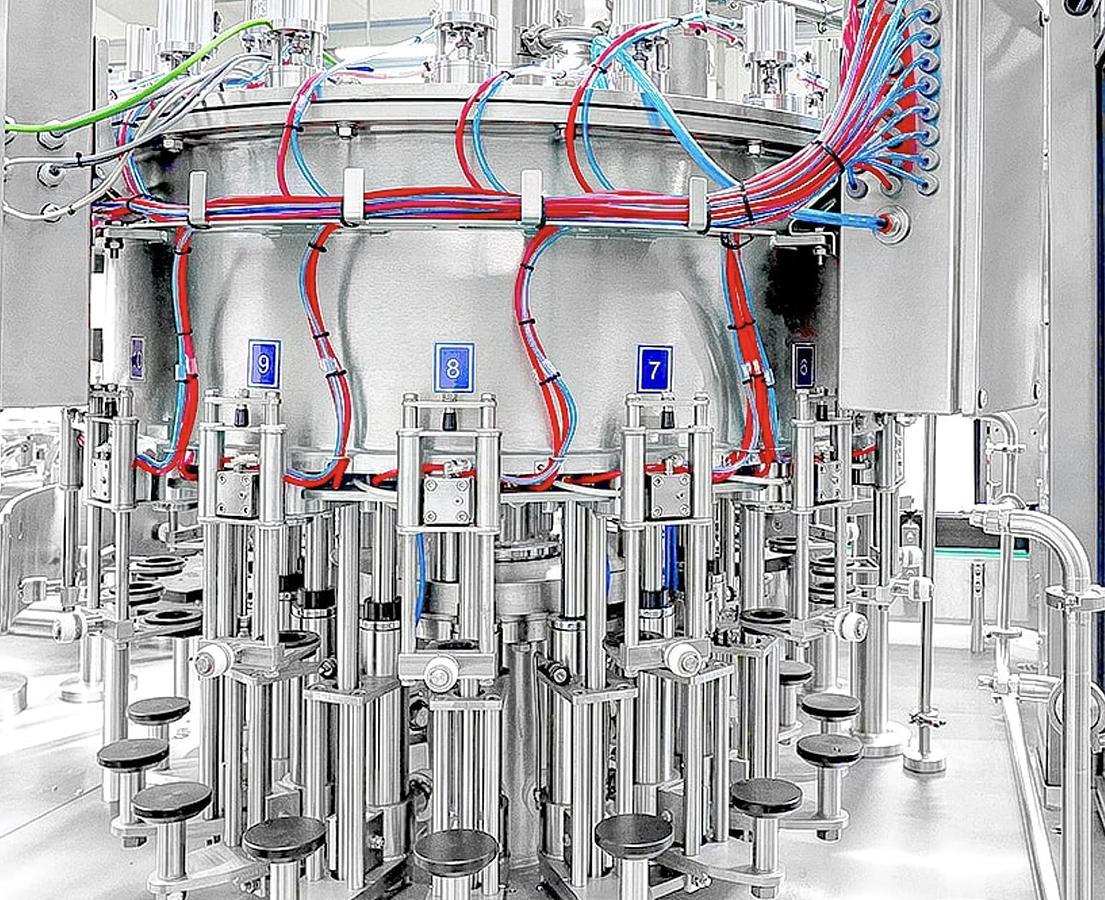

40 filling valves

8 capping heads

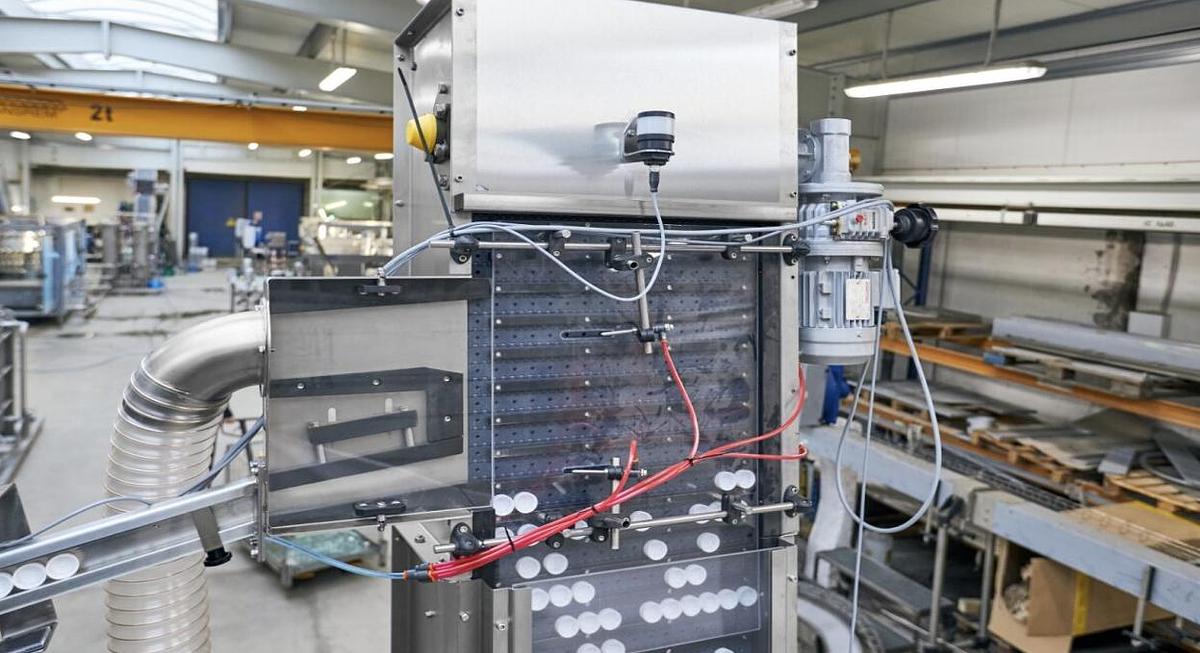

Waterfall cap feeder with orientation

One set of PET bottle format parts included

Two additional changeover part sets included

Utilities / technical data:

Installed power: 5.5 kW

Power supply: 3-400 V + N + PE

CO₂ consumption: 35 kg/h

Air consumption: 30 m³/h

Water consumption: 0.6 m³/h

Approx. dimensions: 3500 / 3700 / 4000 mm

Approx. weight: 6,500 kg

Availability & Project Support

The machine is offered as a new 2026-built system, with delivery estimated up to 35 weeks from contract conclusion and receipt of prepayment, subject to final technical confirmation.

Vertex can support with project management, erection, commissioning and operator training. Final specification is subject to bottle, cap and layout confirmation.
