Palletising Robot – KUKA KR 120 R3200 PA (120 kg Payload, 2021)

Description

Palletising Robot – KUKA KR 120 R3200 PA (120 kg Payload, 2021)

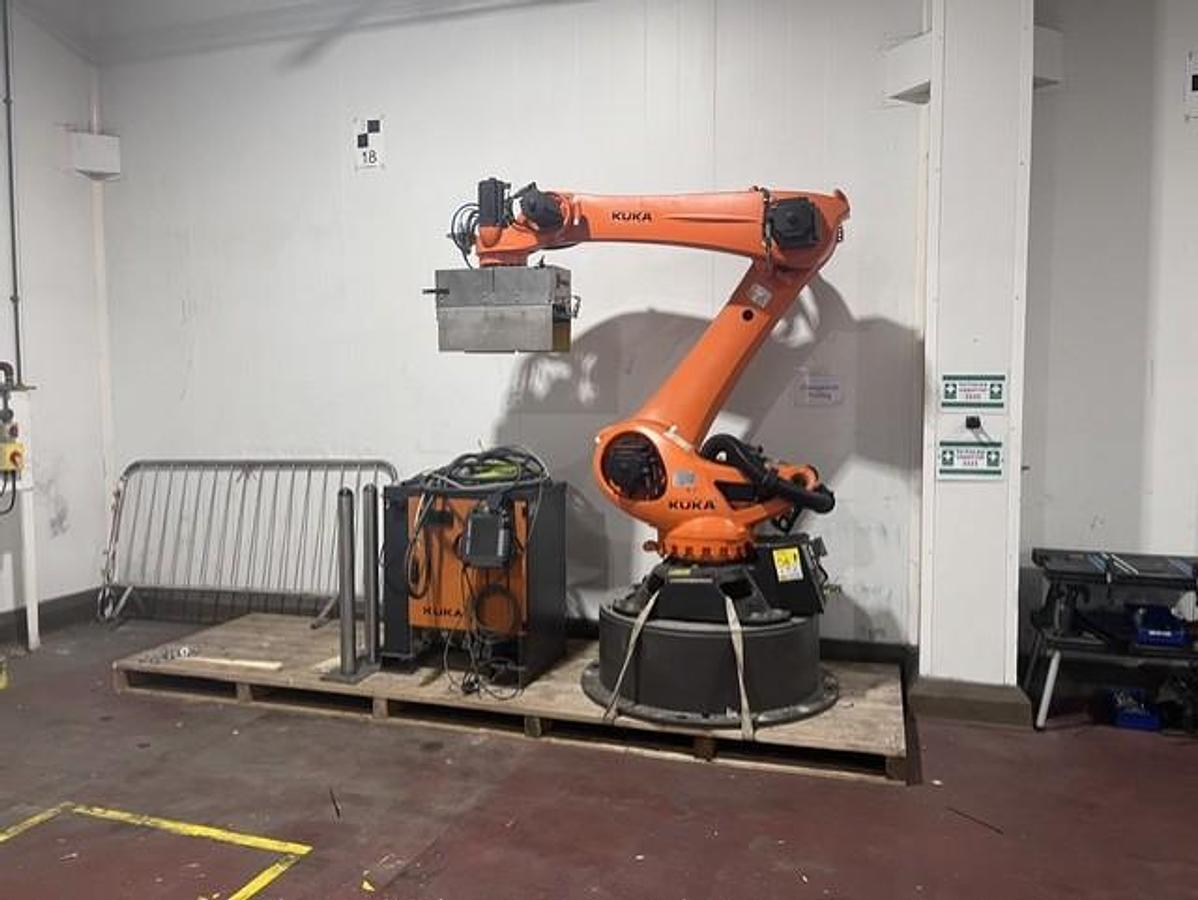

Used KUKA KR 120 R3200 PA palletising robot from the KR QUANTEC PA series, built in 2021 and supplied complete with its KR C4 controller. A 5-axis, hollow-shaft palletising robot with a 120 kg payload and 3,195 mm reach, suited to end-of-line palletising of cases, bags, trays and wrapped packs.

Supplied as a complete, ready-to-integrate package robot, controller, teach pendant, cabling and gripper

Machine Overview

5-axis palletising robot for end-of-line stacking to full pallet height:

Case, bag, tray and wrapped-pack handling

Hollow-shaft wrist for clean cable routing

Compact footprint with large working envelope

Suited to food, beverage and chilled-environment duty

Key Equipment

Robot – KUKA KR 120 R3200 PA

Controller – KUKA KR C4 – Included

Teach Pendant – KUKA smartPAD – Included

Cables – Robot-to-controller – Included

Gripper – Kensal, box / case handling – Included

Technical Summary

Maximum payload: 120 kg

Maximum reach: 3,195 mm

Configuration: 5-axis palletising robot, hollow-shaft wrist

Controller: KUKA KR C4

Mounting: Floor-mounted

Robot weight: 1,102 kg

Condition & Availability

Built: 2021

Condition: Used (ex-production)

Status: Available

Availability: Immediate (subject to confirmation)

Operating hours: Not formally recorded; available for verification on inspection.

Additional Support

Technical documentation and further details available on request. Inspection welcome.

Optional support can be provided for:

Dismantling and transportation

Installation and commissioning
