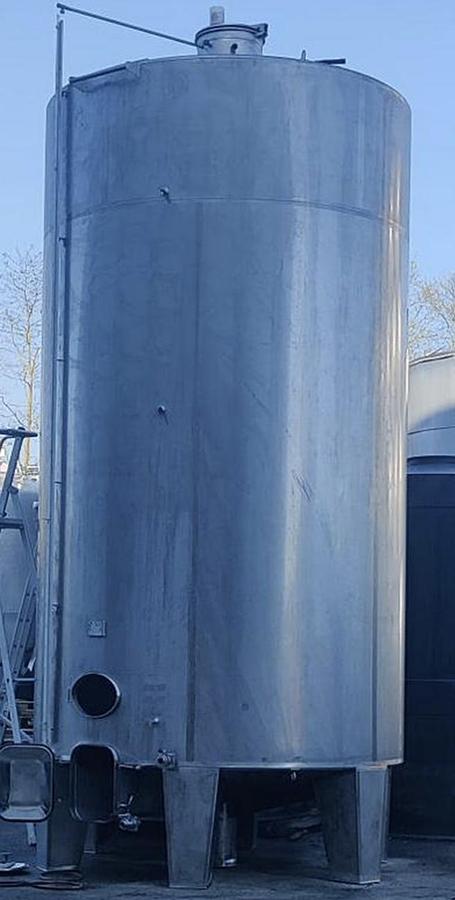

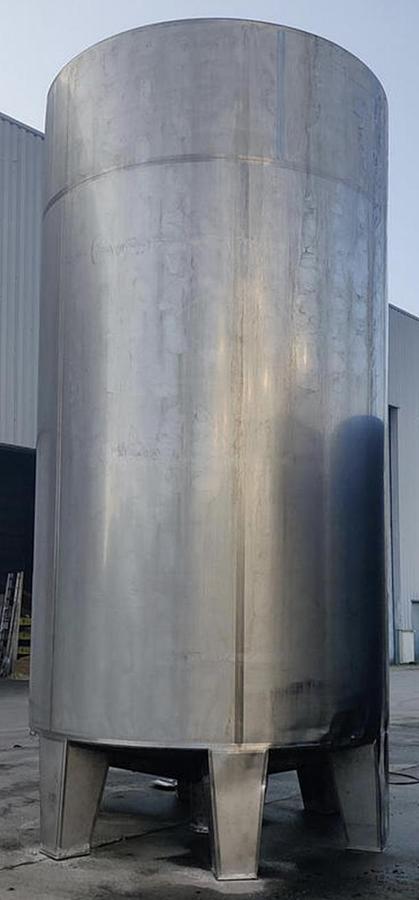

33,000 Litre 316 Stainless Steel Storage Tanks

Technical Summary

Article Type: Second-hand storage tank

Availability: Immediate, subject to prior sale, 3 available

Capacity: 33,000 L

Material: AISI 316 stainless steel

Manufacturer: PRULHO

Year Built: 1994

Previous Application: Food industry

Specification

Capacity: 33,000 L

Material: AISI 316 Stainless Steel

Configuration: Vertical, single-wall

Tank Shape: Cylindrical

Support: 7 legs

Bottom Design: Conical bottom

Total Discharge: Yes

Dimensions:

• Diameter: 2,860 mm
• Width: 2,865 mm
• Overall Length: 2,965 mm
• Cylindrical Height: 5,000 mm
• Cone Height: 400 mm
• Total Height: 6,700 mm
• Circumference: 9,000 mm

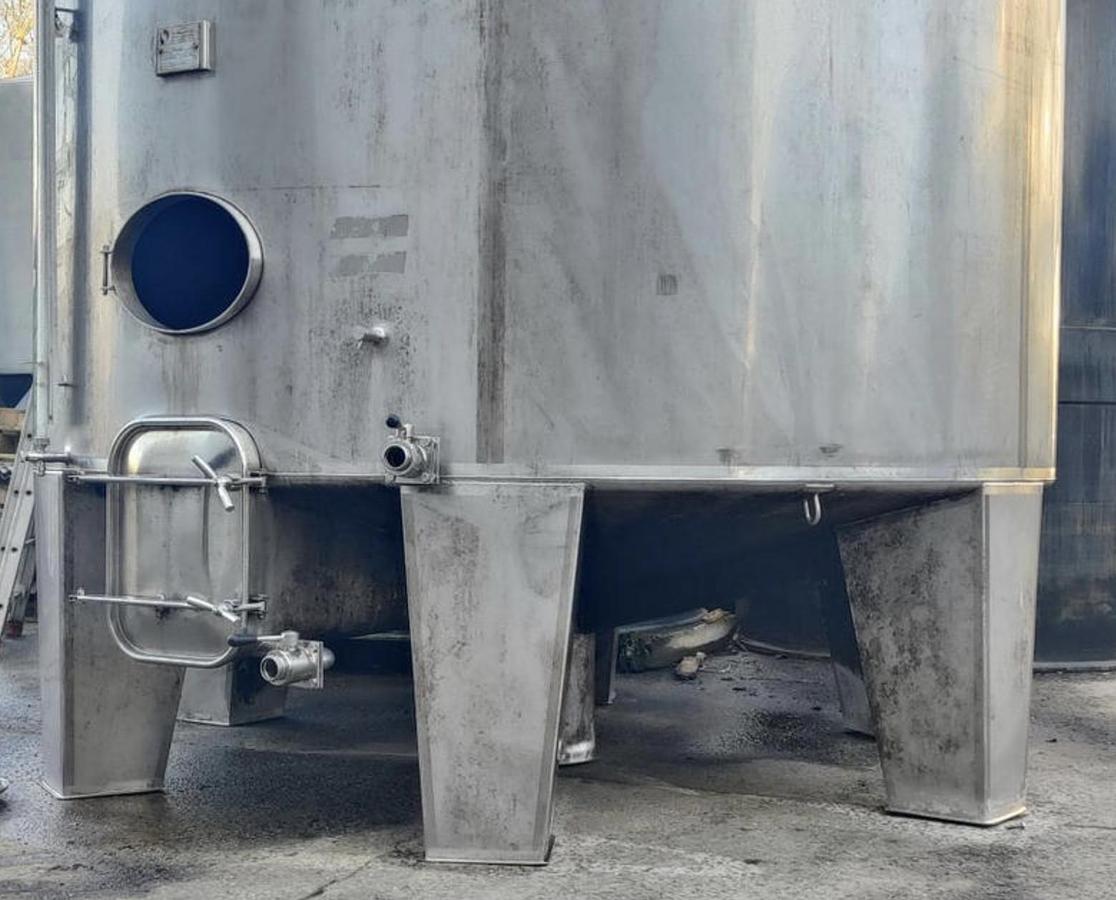

Manways:

• 2 manways fitted
• Top manway: Ø500 mm
• Side manway: 305 x 430 mm

Outlet:

• Rectangular outlet/manway
• 400 x 540 mm

Additional Features:

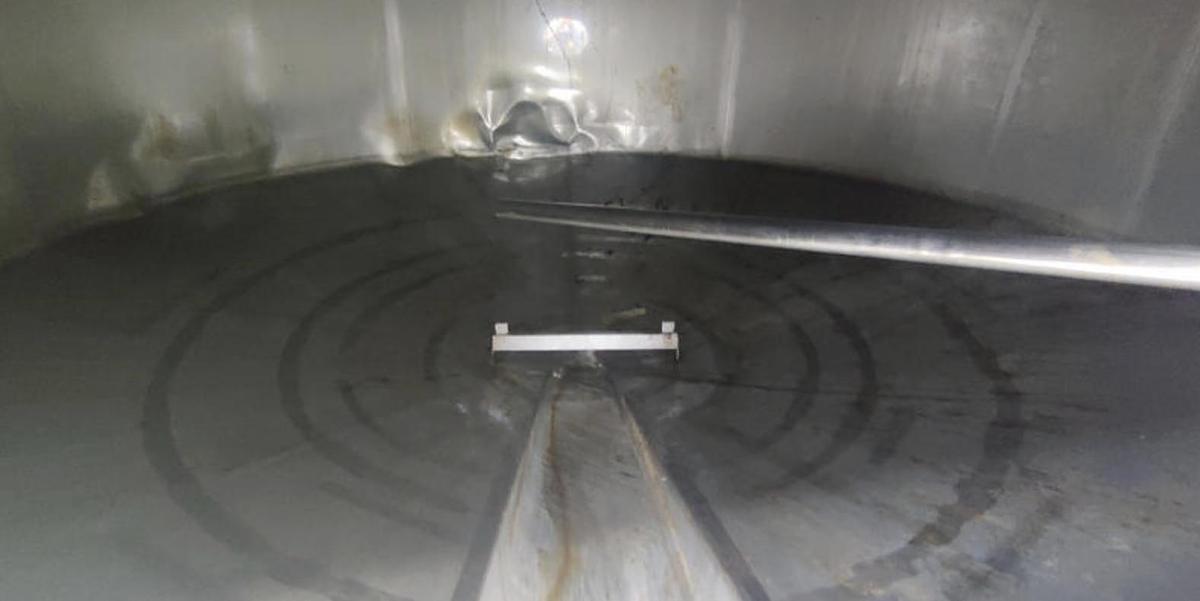

• Ground internal weld finish
• CIP spray ball installed
• 4 lifting lugs

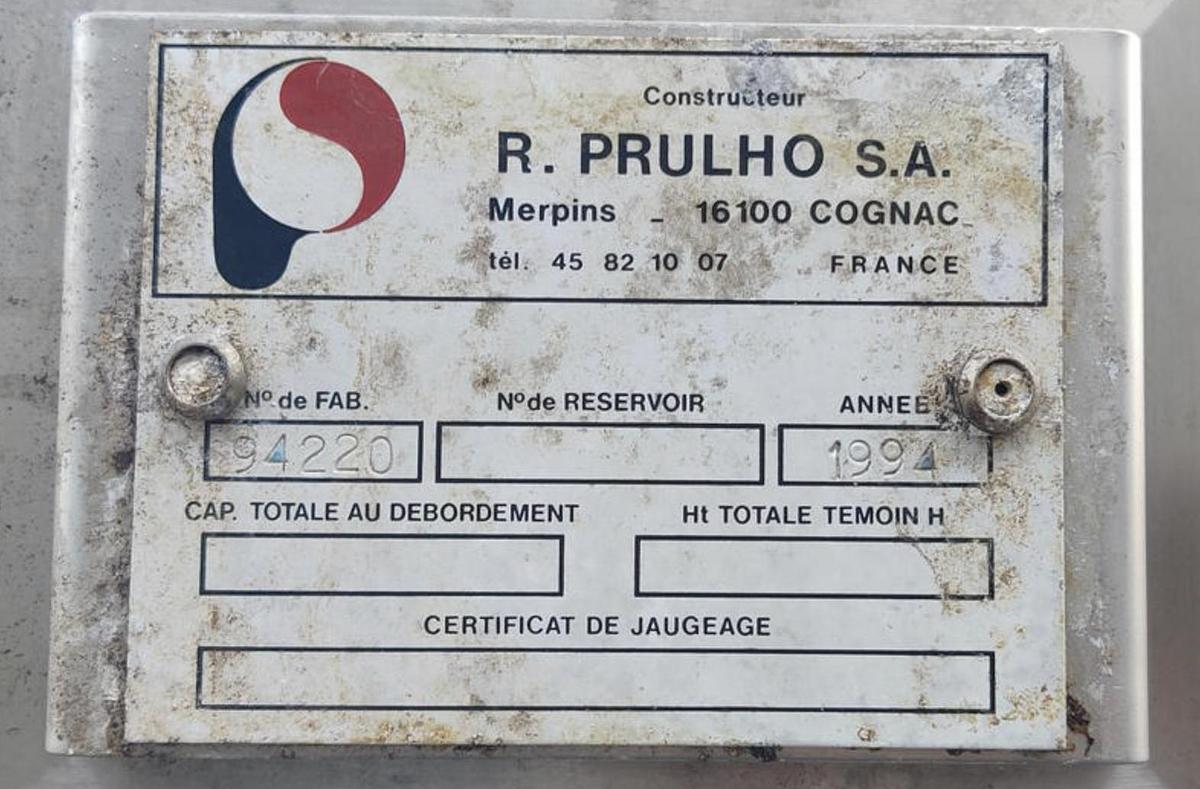

• Manufacturer's identification plate present

Weight: Approx. 2,200 kg

Availability & Project Support

Vertex can support with inspection, dismantling, transportation, refurbishment, installation, and integration into existing production facilities. Additional modifications or cleaning services can also be arranged to suit project requirements.
