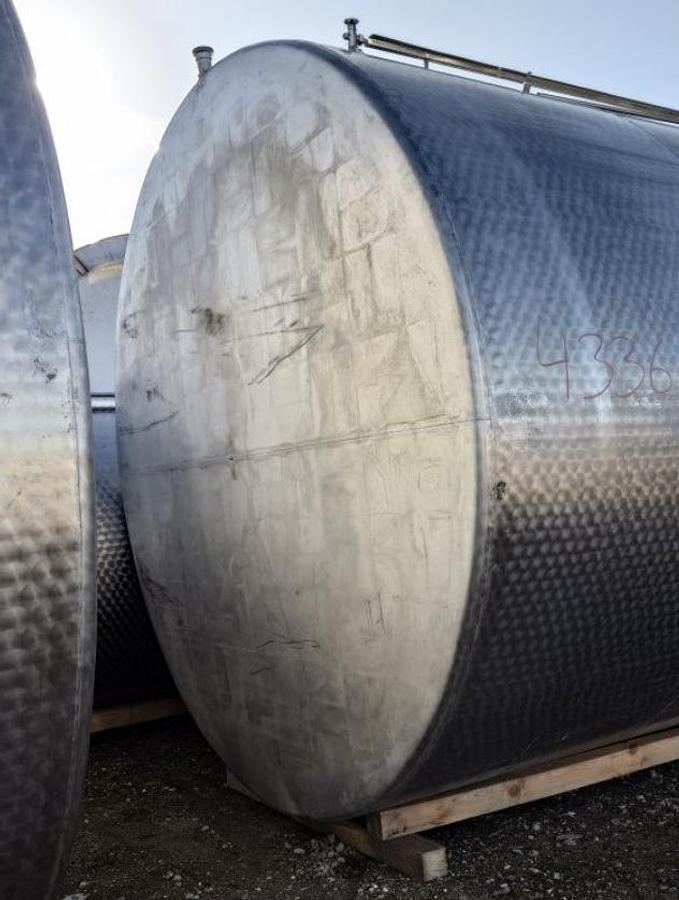

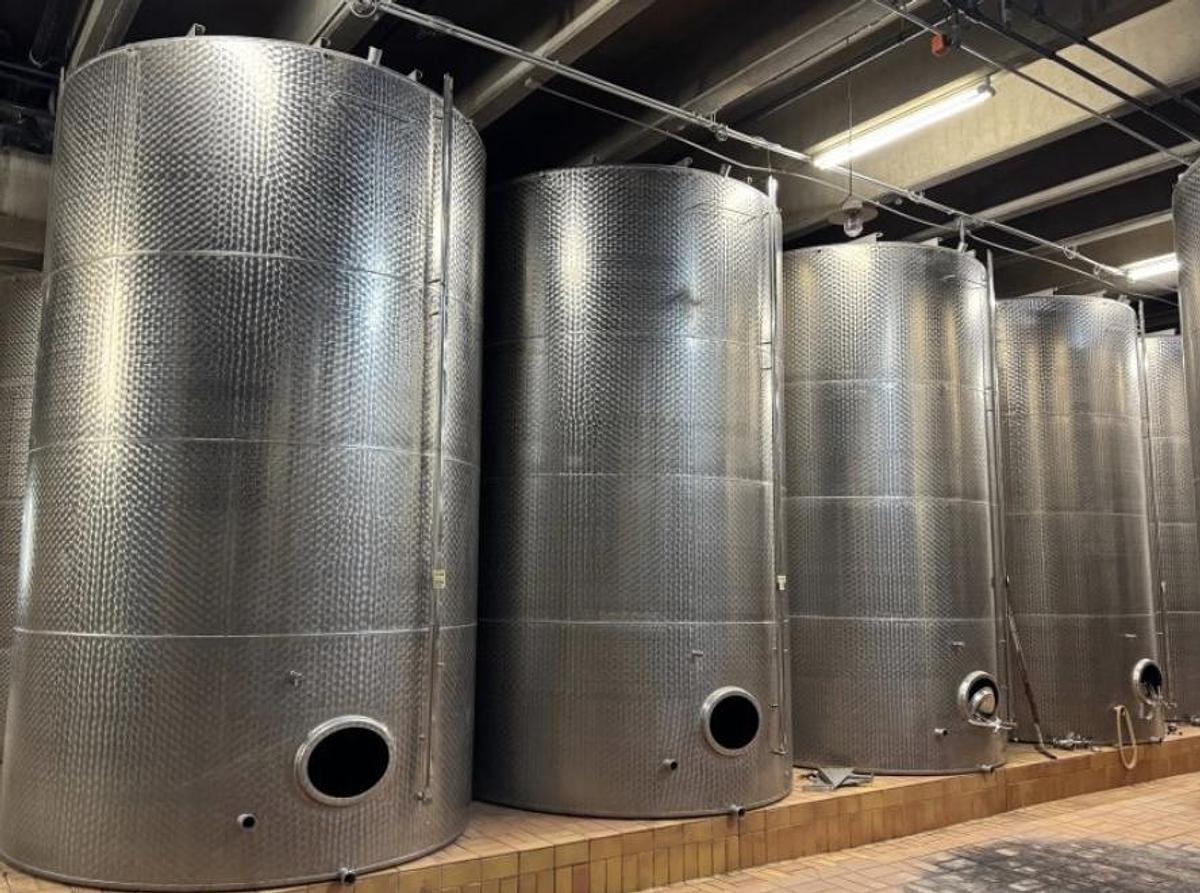

25,000 Litre 304 Stainless Steel Insulated Storage Tanks

Technical Summary

Second-hand storage tanks

Availability: Immediate, subject to prior sale, 6 tanks available

Capacity: 25,800 L

Material: Stainless Steel AISI 304 (V2A)

Previous Application: Food industry

Specification

Capacity: 25,800 L

Material: AISI 304 (V2A) Stainless Steel

Configuration: Vertical

Tank Shape: Cylindrical

Bottom Design: Flat bottom with approximately 90 mm fall towards outlet

Top Design: Flat reinforced top

Dimensions:

• Diameter: 2,750 mm
• Cylindrical Height: 4,400 mm
• Total Height: 4,490 mm

Construction:

• Food-grade ground internal weld finish
• Reinforced top and bottom construction
• Bottom fall: Approximately 90 mm

Connections:

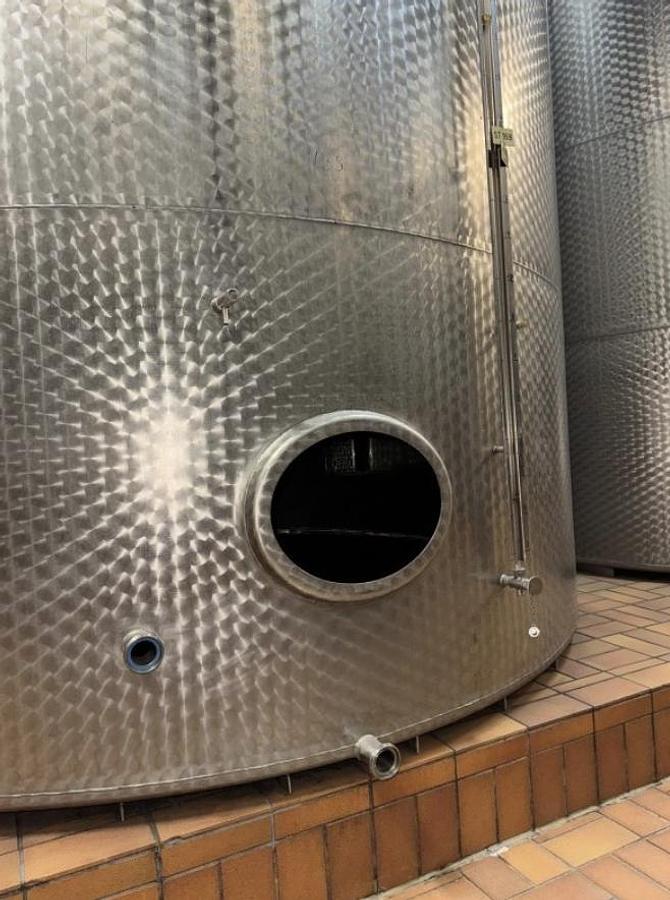

• 1 × Manway (340 × 440 mm) located in the cylinder
• Outlet: DN50 positioned at the lowest point
• 1 × DN50 connection
• 1 × DN50 sampling connection

Additional Features:

• Internal ladder holder
• Integrated cooling coil

Quantity Available: 6 tanks

Availability & Project Support

Six identical tanks are available, subject to prior sale.

Vertex can assist with inspection, dismantling, transportation, refurbishment, installation and commissioning. Additional cleaning, modification and integration services can also be arranged to suit your project requirements.
