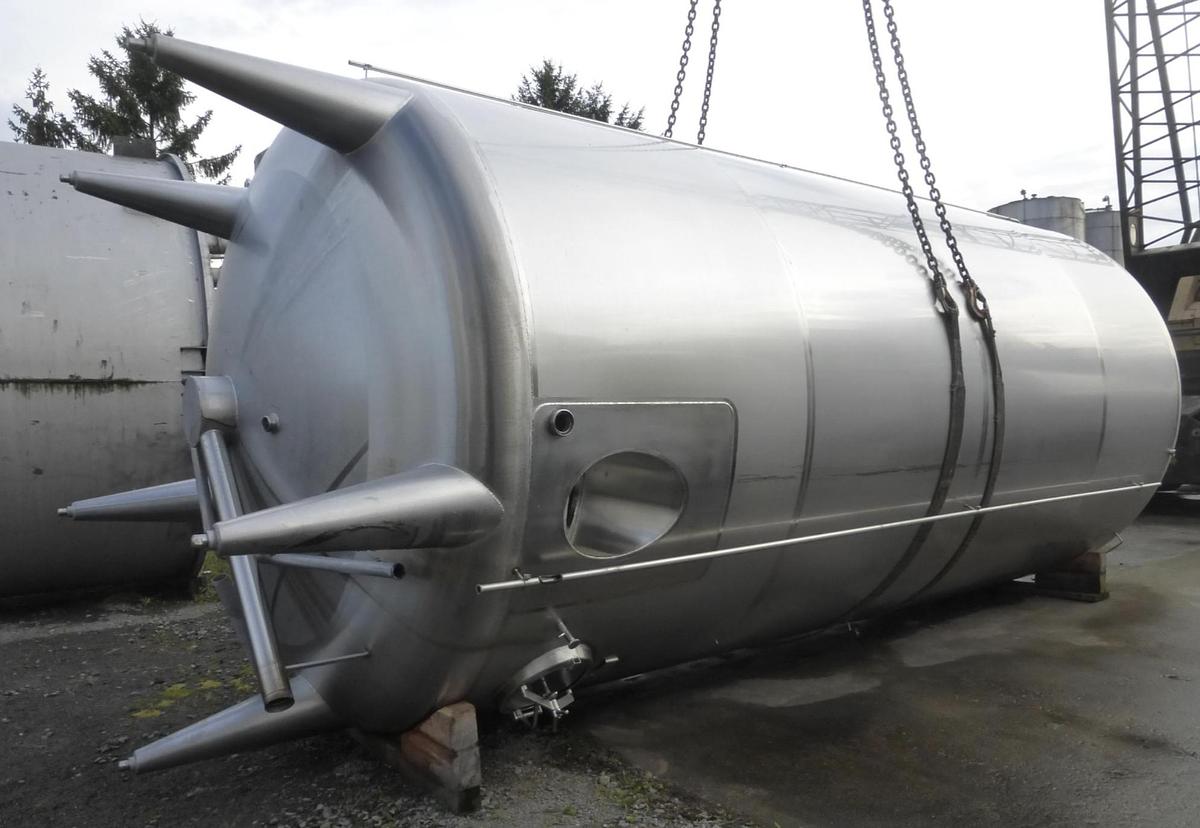

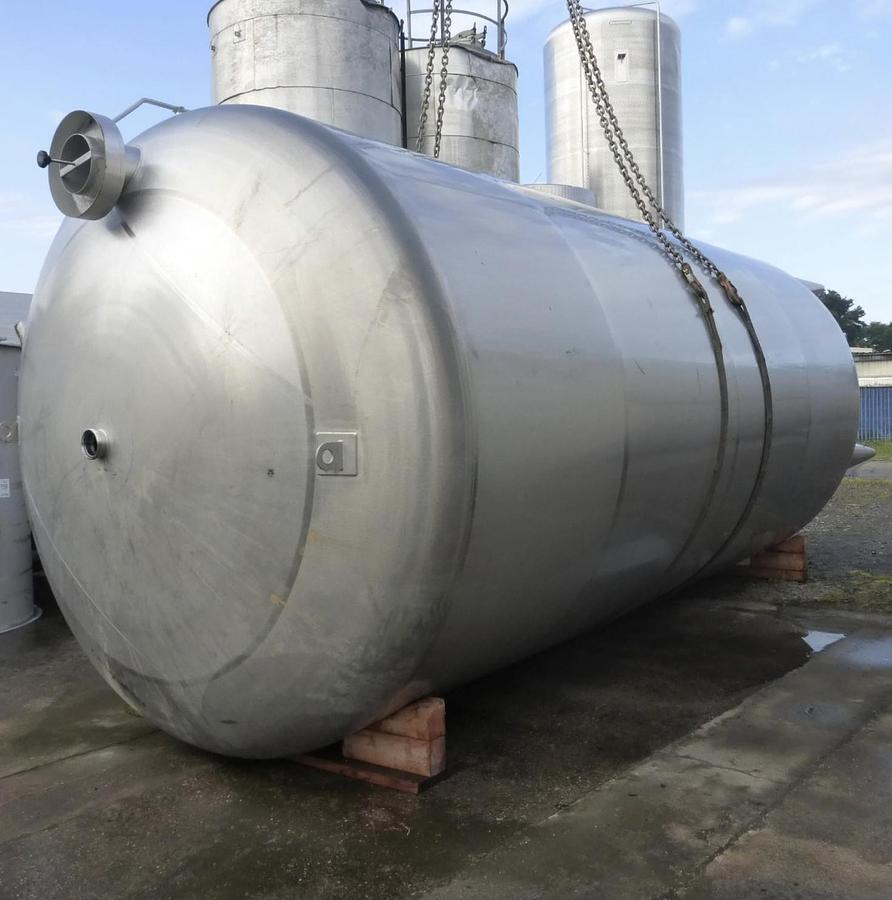

46,000 Litre 304 Stainless Steel Storage Tank

Technical Summary

Capacity: 46,000 Litres

Quantity: 1 unit

Orientation: Vertical

Material: AISI 304 Stainless Steel

Design Pressure: Atmospheric

Diameter: Ø 3,000 mm

Cylinder Height: 5,750 mm

Total Height: 7,450 mm

Bottom Type: Dished

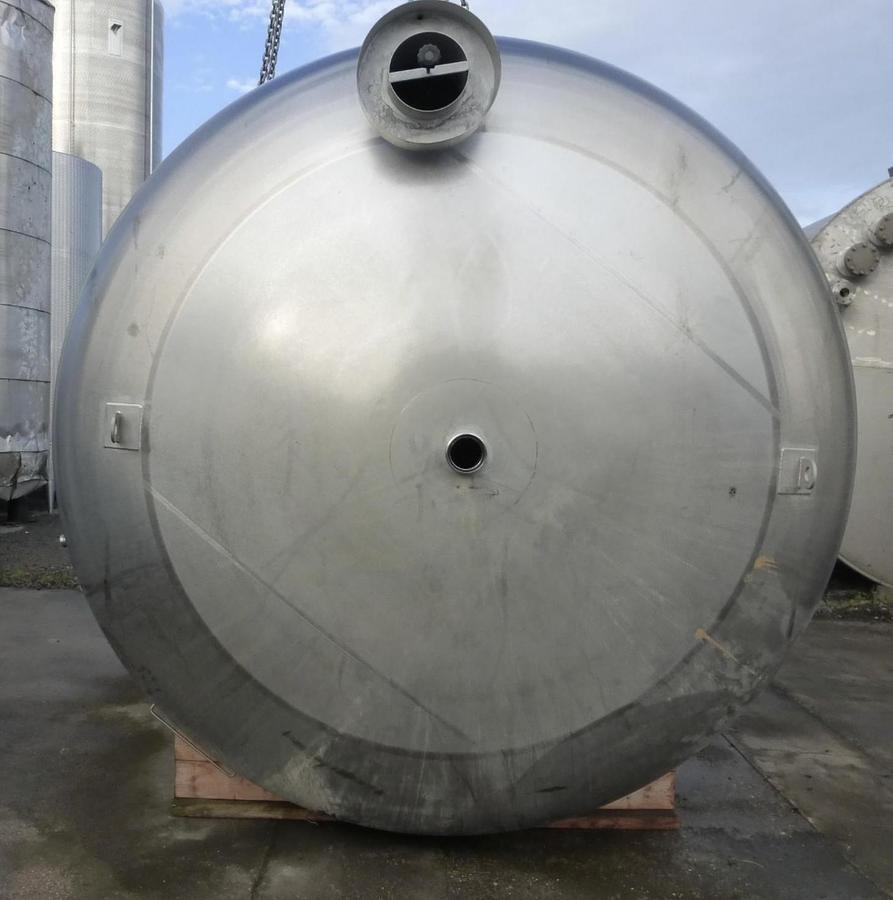

Top Type: Dished

Specification

• Vertical cylindrical storage tank
• Single-skin construction
• Manufactured from AISI 304 stainless steel
• Designed for atmospheric storage
• Originally used for fruit juice
• Total discharge design

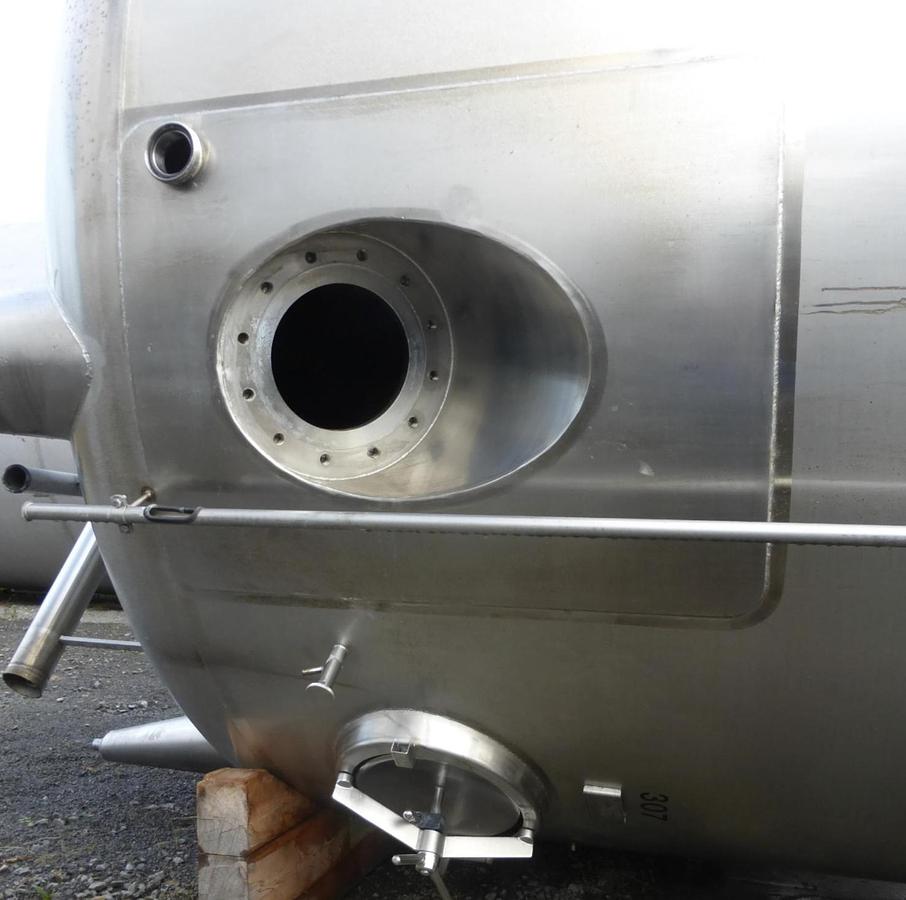

• Cylinder-mounted manway
• Flanged outlet connection DN100

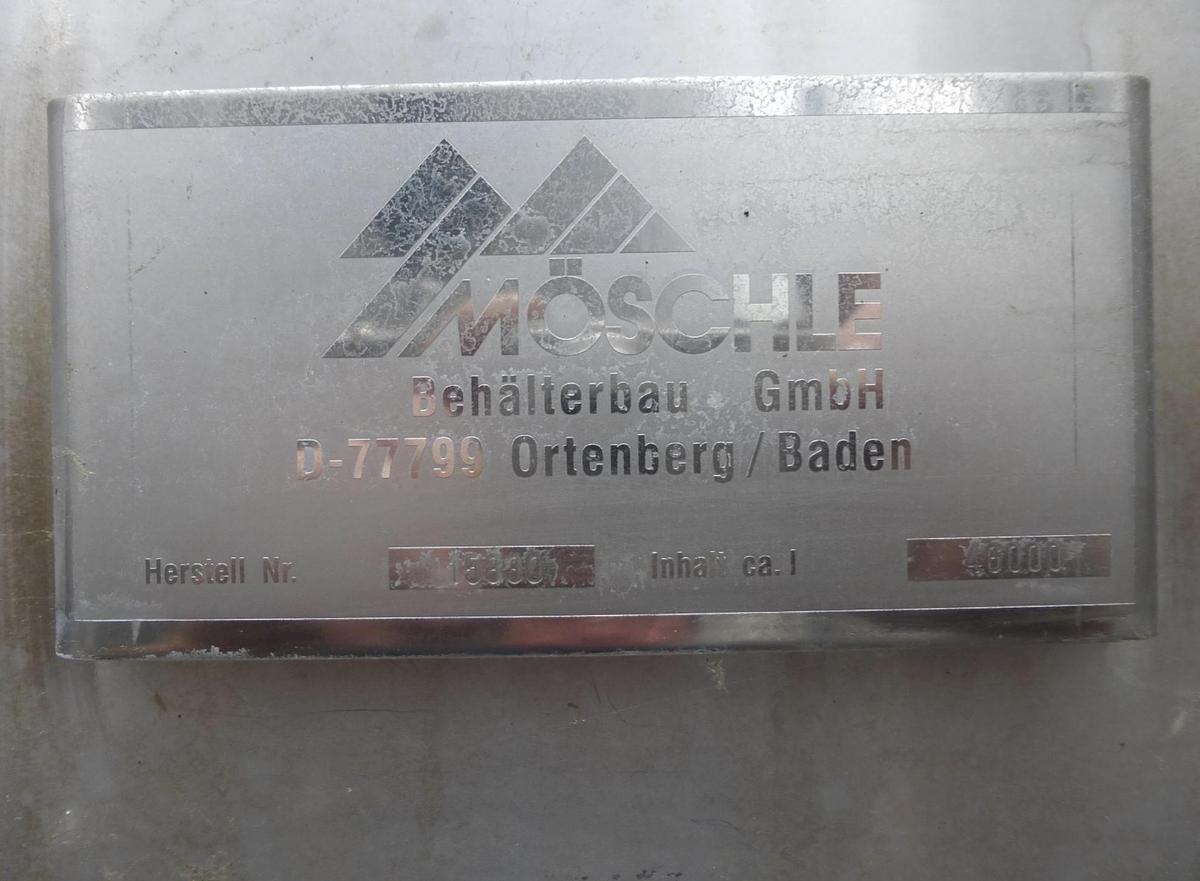

• Registration plate fitted
• No insulation
• No heating or cooling jacket
• Ventilation hood missing

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
