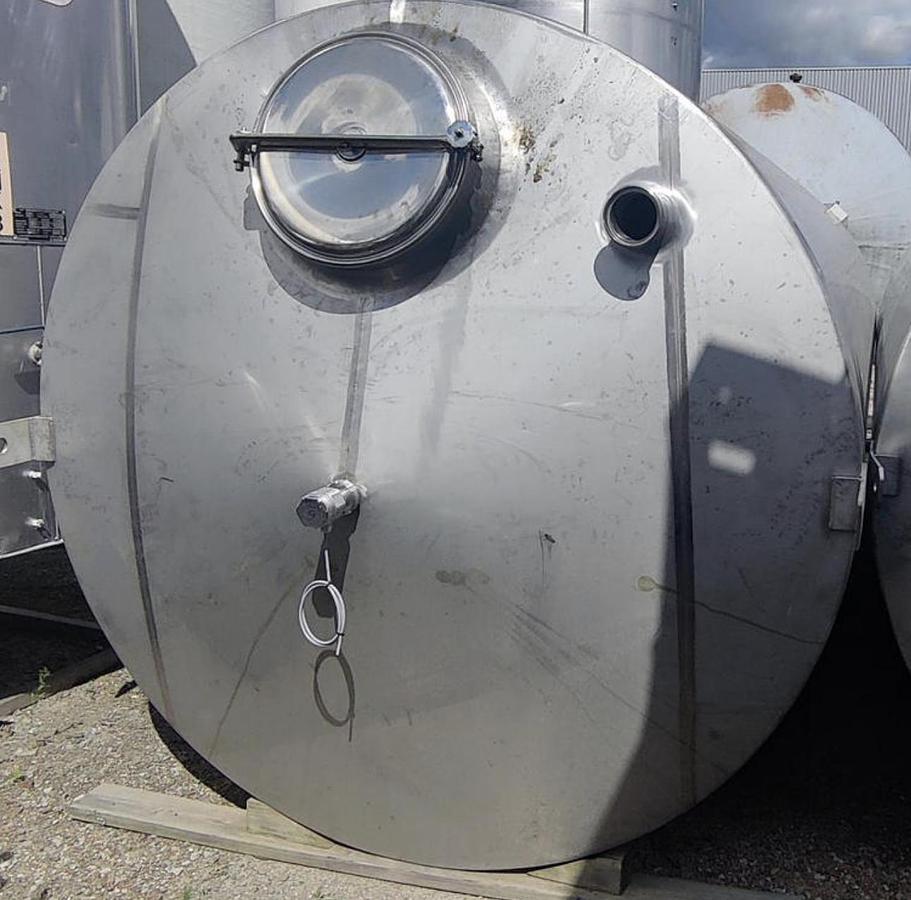

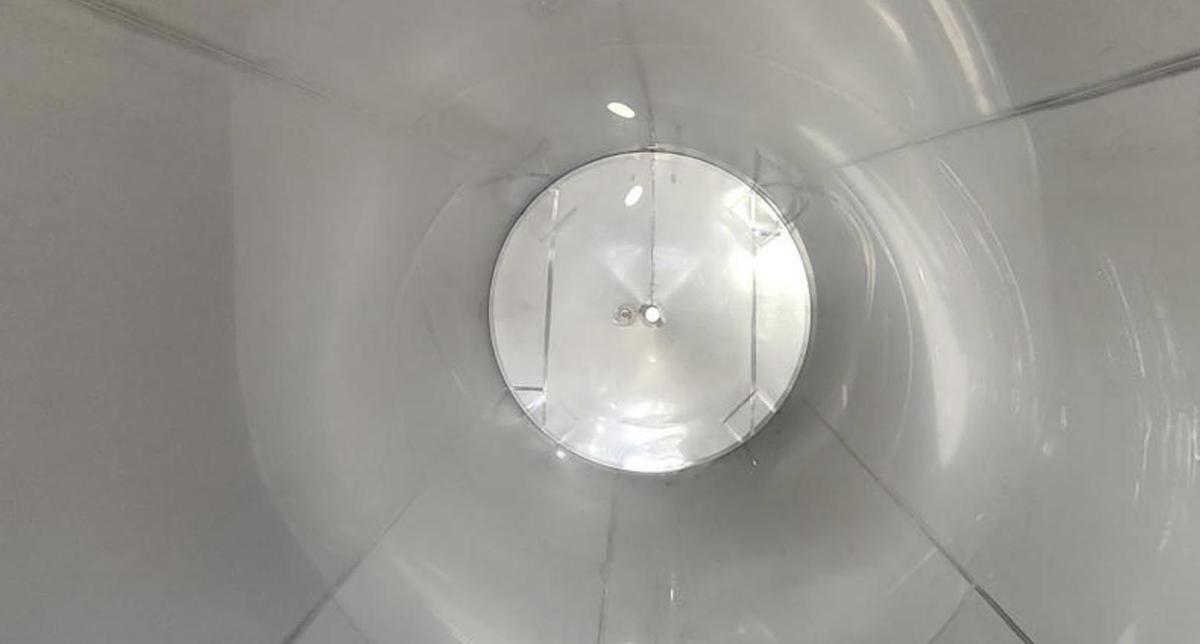

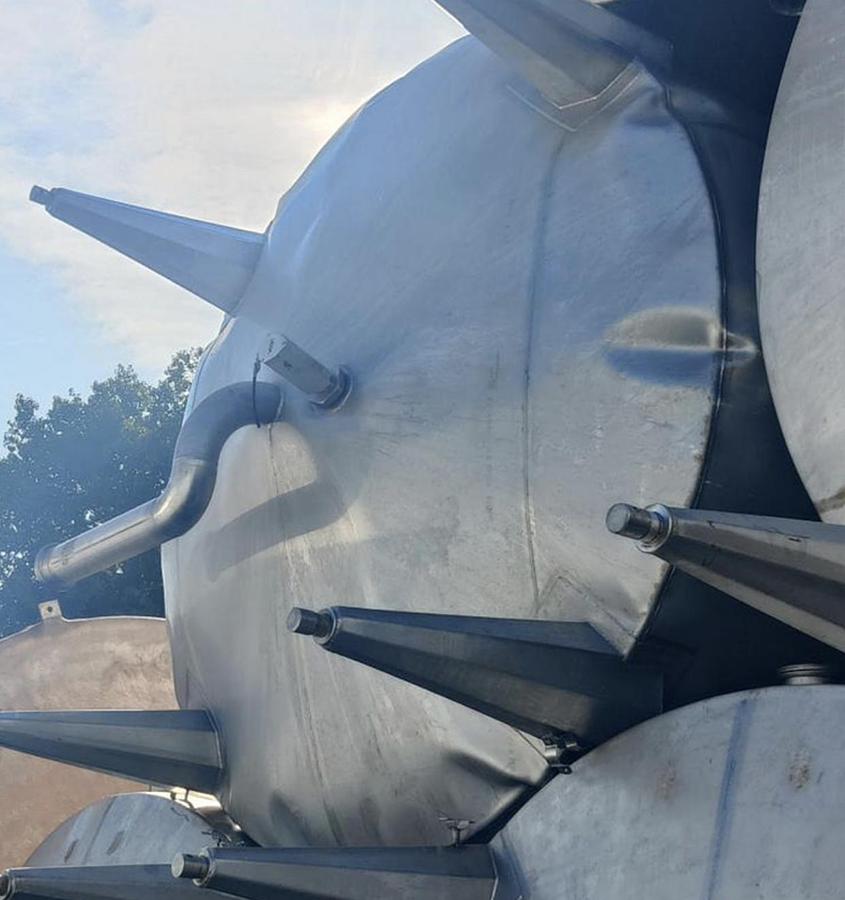

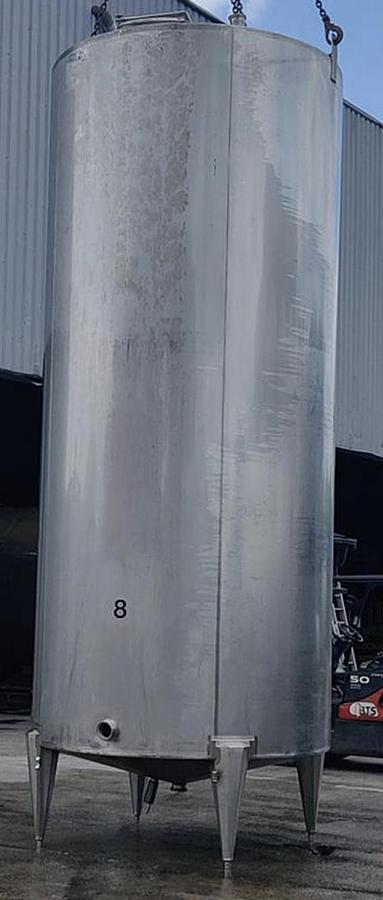

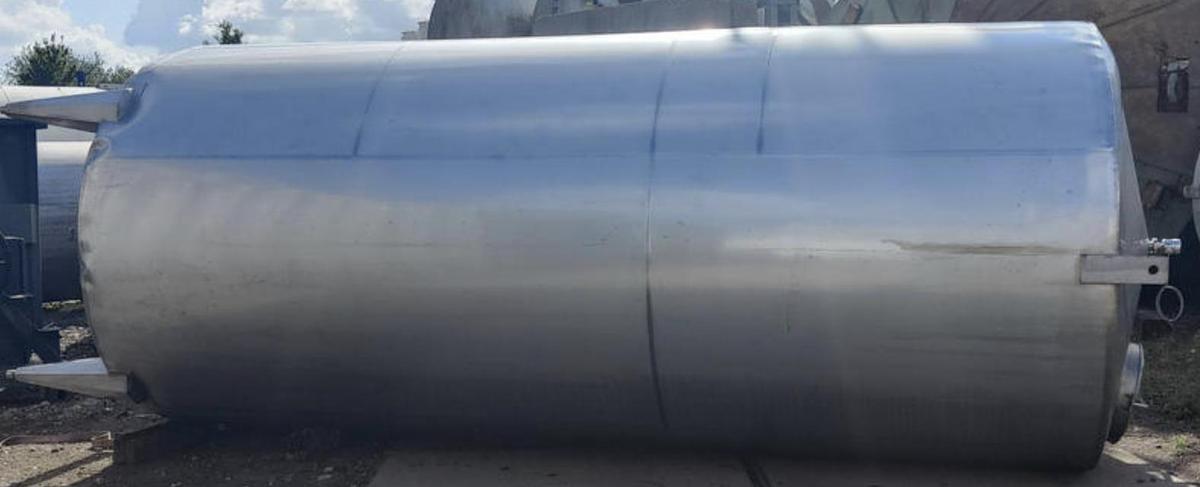

20,000 Litre 304 Stainless Steel Storage Tanks

Technical Summary

Capacity: 20,000 Litres

Quantity: 1 unit

Orientation: Vertical

Material: AISI 304 Stainless Steel

Design Pressure: Atmospheric

Diameter: Ø 2,226 mm

Cylinder Height: 5,000 mm

Total Height: 6,100 mm

Bottom Type: Conical

Top Type: Closed

Specification

• Vertical cylindrical storage tank
• Single-wall construction
• Manufactured from AISI 304 stainless steel
• Internal welds ground for improved hygienic finish
• Four-leg support design
• Conical bottom with total drain
• Closed top construction
• One top-mounted manway (Ø500 mm)
• DN100 outlet connection
• Two lifting lugs for handling and installation
• Previously used in food processing
• No insulation
• No CIP system fitted
• No manufacturer's nameplate
• Please note: Tank wall has dents

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
