2013 Sidel 36,000 BPH PET Filling Line

Overview

Complete Sidel PET bottled water production line designed for the production of still mineral water at high output rates.

The line features a fully integrated Sidel Combi blow moulding and filling system, together with Sidel packaging equipment, Heuft inspection technology and Robopac pallet wrapping, providing an efficient turnkey solution from PET preforms through to finished palletised product.

Installed in 2013, with the labelling system upgraded in 2020, this line offers an excellent opportunity for producers looking to increase PET bottling capacity without the cost and lead time of a new installation.

We have delivered projects ranging from individual machine relocations through to complete production facility transfers.

Production Capability

Nominal output:

Up to 36,000 bottles per hour on 1.5L PET bottles

Designed for:

• Still mineral water
• PET bottles

Key Line Features

Integrated Sidel Combi blow moulding and filling system

120-valve filling system with Arol capper

High-speed roll-fed labelling

Bottle inspection for fill level, cap and label verification

Automatic handle application

Shrink wrapping and end-of-line pallet wrapping

Complete integrated conveyor system

Designed for continuous, high-volume PET beverage production

Asset Breakdown

• Blow Moulding & Filling

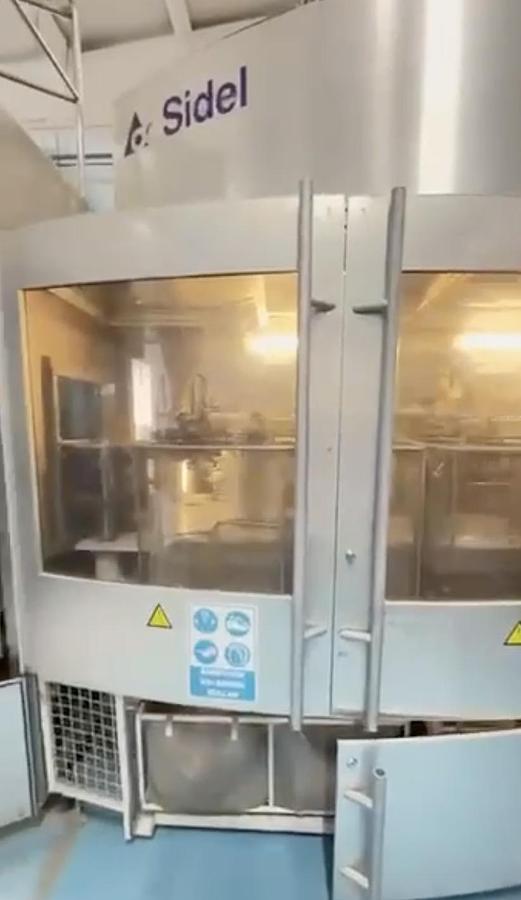

Sidel Universal SBO 20 Combi Block – 2013

Integrated Blow Moulder

120 Valve Sidel Filler

Arol Capper

Inspection

• Heuft Spectrum Inspection System – 2013

Inspection of:

• Fill level
• Cap presence
• Label quality
• Labelling

Sidel Rollquattro F15 EVO 18T/R HH3 S1/E1 Roll-Fed Labeller – 2020

• Packaging

Sidel Cermex Shrink Wrapper – 2013

Sidel Handle Applicator – 2013

Sidel Cermex Simonazzi Linear High-Level Pallet Conveyor – 2013

Robopac Rotary Ring Stretch Wrapper – 2013

• Conveying

Complete Sidel Conveyor System – 2013

Condition & Maintenance

The line was installed in 2013 and has been maintained as a complete production system.

The Rollquattro labelling machine was upgraded in 2020.

The line is available as a complete turnkey package.

Availability & Project Support

Available immediately.

Full support available including:

• Technical due diligence
• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and commissioning
• Integration into existing production facilities



Full layouts, technical documentation and additional information are available on request.

Site inspections can be arranged for qualified buyers.
