Sidel 18,000 BPH PET Filling Line

Overview

Complete PET bottling line suitable for the production of carbonated soft drinks (CSD), non-carbonated beverages and still water across multiple PET bottle formats.

This high-speed production line combines leading equipment from Sidel, Parmatec, Krones, Tekal, SMI, Arol and Domino, providing a complete solution from preform handling through to finished multipack packaging.

Designed for flexibility, the line accommodates multiple bottle sizes with minimal changeover requirements, making it ideal for beverage producers seeking increased production capacity.

Production Capability

Nominal line output:

Up to 18,000 bottles per hour (Blow Moulding)

Up to 36,000 bottles per hour (Labelling & Packaging Equipment)

Suitable for:

• Carbonated soft drinks (CSD)
• Non-carbonated beverages
• Still water

Bottle formats include:

• 330ml
• 500ml
• 1.5L PET bottles

Key Line Features

Complete PET production line from preforms to finished pallet-ready packs

Suitable for both carbonated and non-carbonated products

Integrated preform handling and cooling systems

Bottle neck handling filler requiring no change parts between bottle sizes

Automatic carbonation and beverage mixing

Roll-fed labelling

Automatic fill level inspection

Inkjet date coding

High-speed shrink wrapping for multipacks

Siemens PLC control systems throughout the line

Asset Breakdown

Blow Moulding

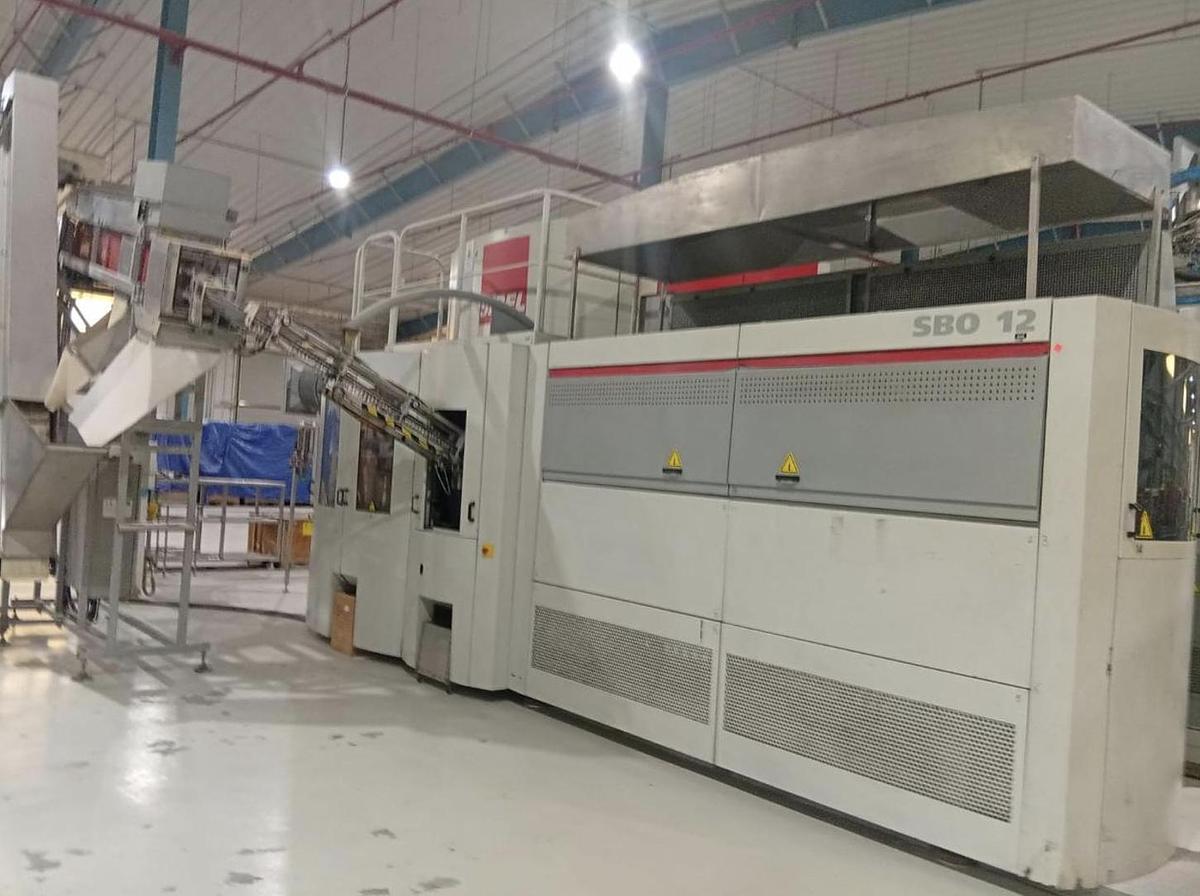

Sidel SBO 12 PET Blow Moulder

Nominal output up to 18,000 BPH

Complete with:

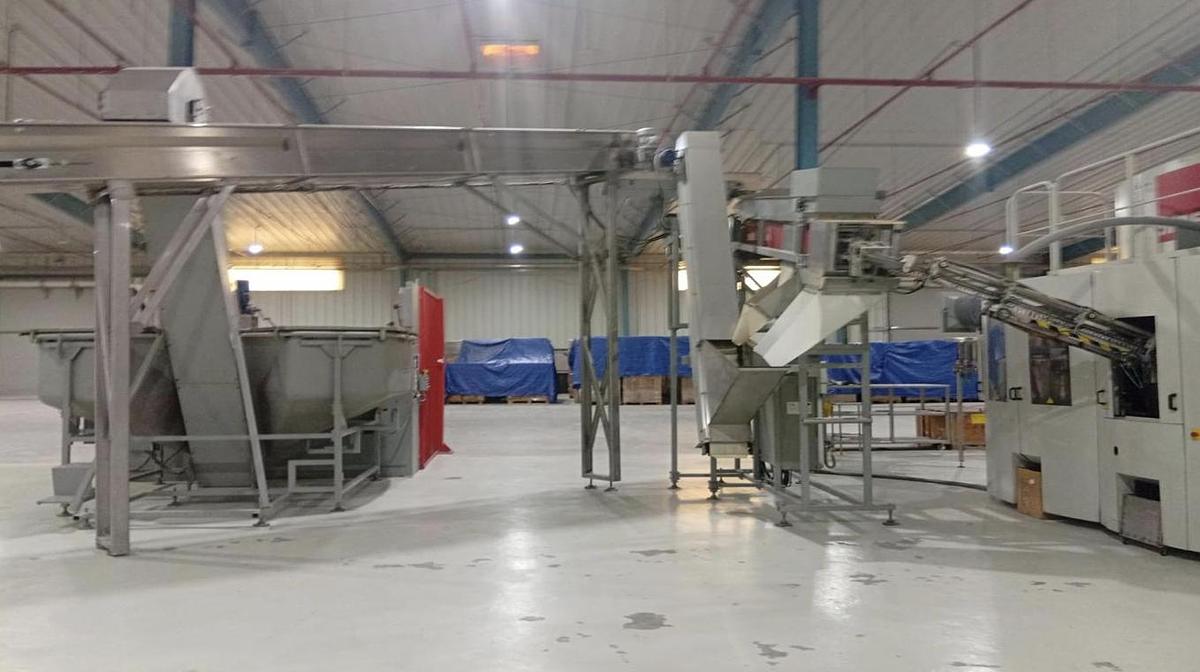

• Dual-box preform tipper
• Preform hopper
• Preform elevator
• Preform conveyors
• Reject preform hopper and elevator
• Siemens S7 PLC control system
• Complete mould cooling system

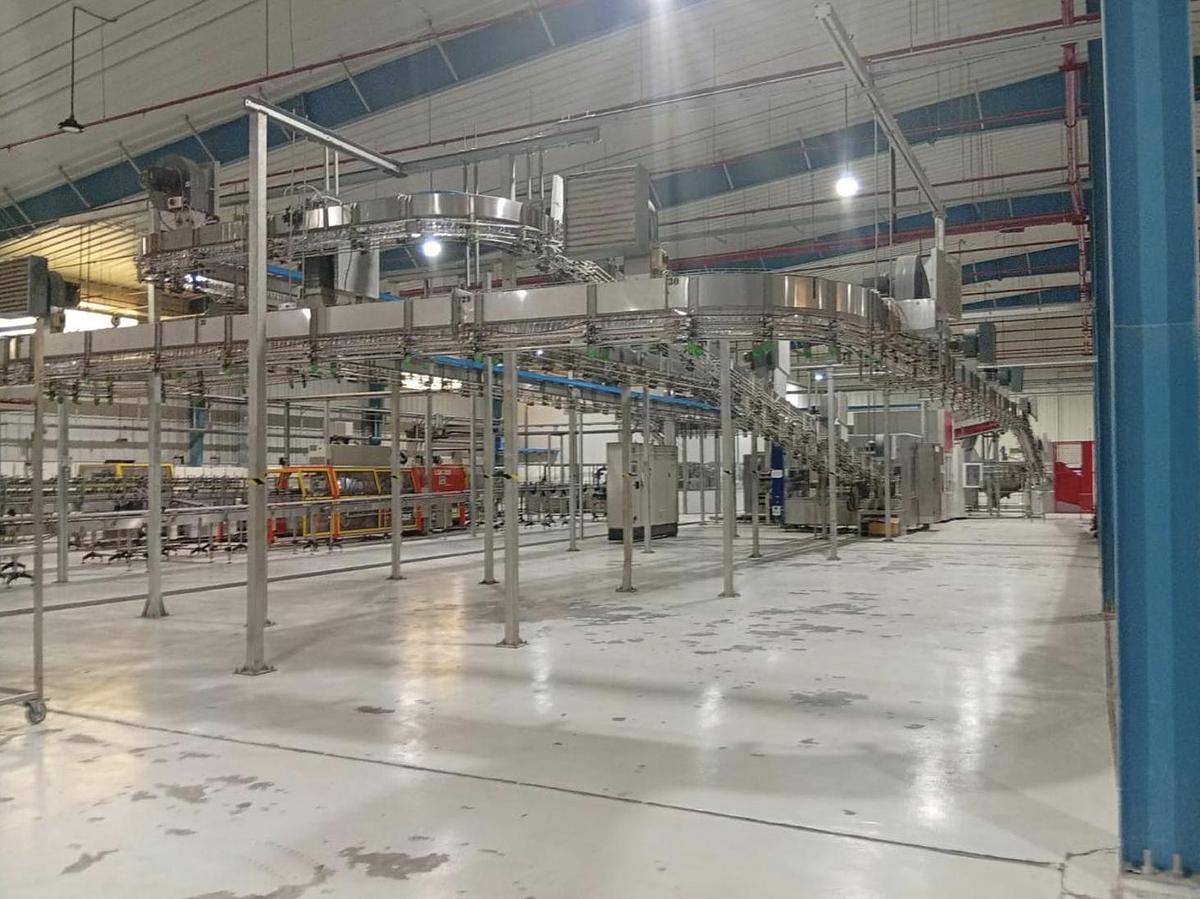

• Air conveyors to labeller
• Complete mould sets for:
• 330ml
• 500ml
• 1.5L PET bottles

Filling Block

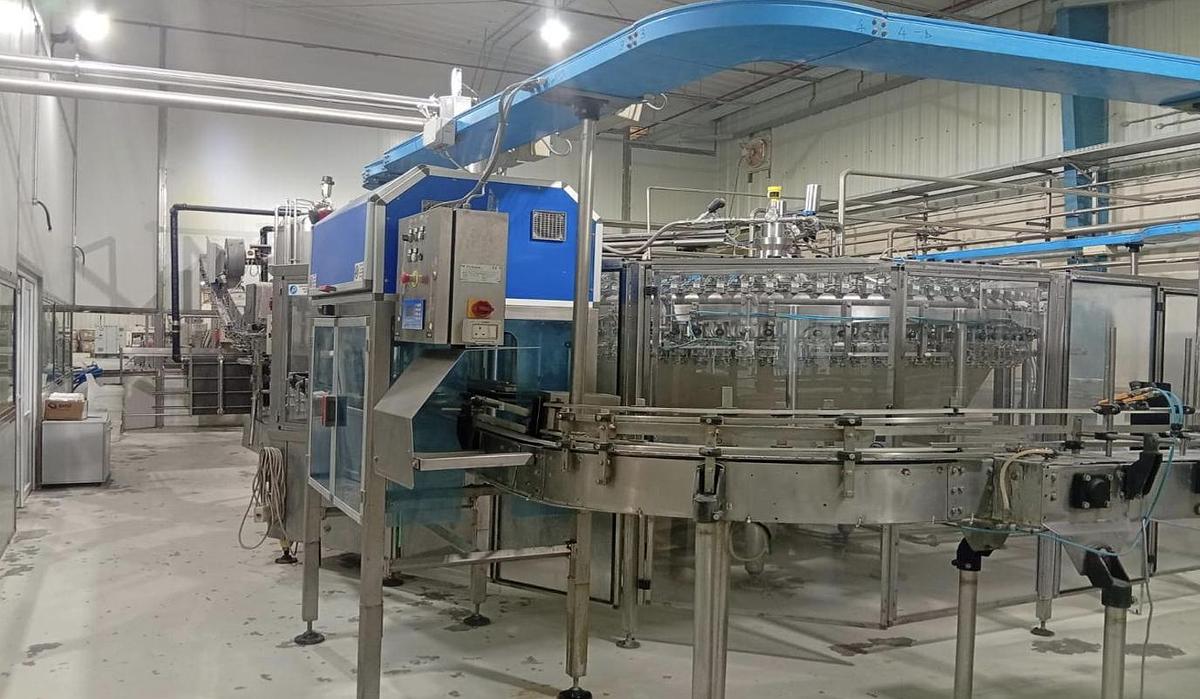

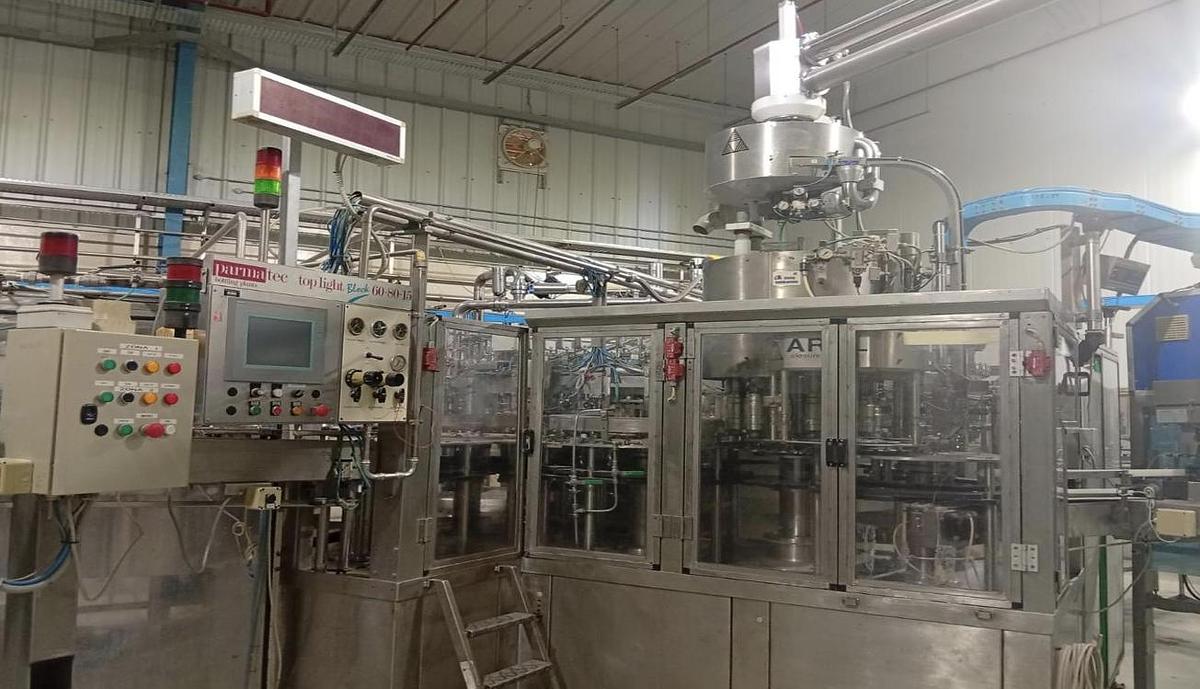

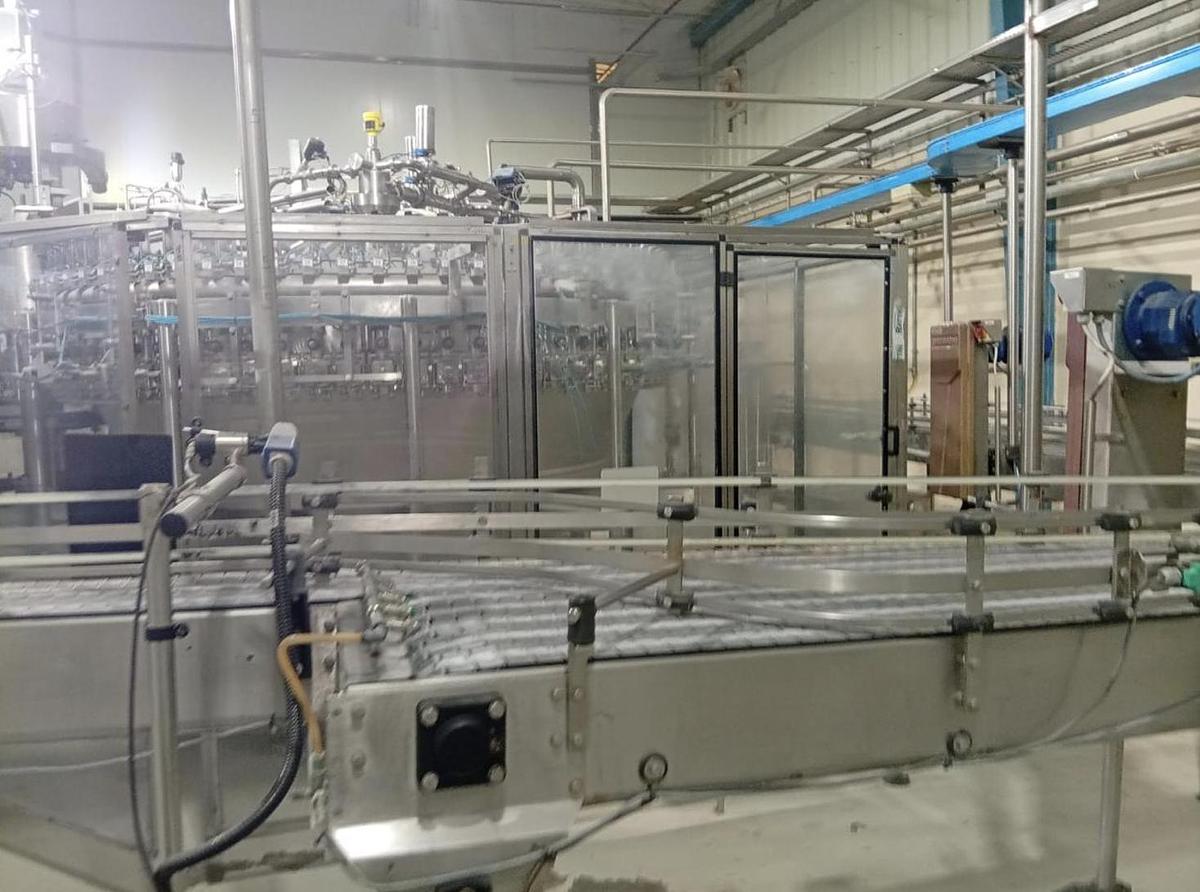

Parmatec Toplight Rinser / Filler / Capper Block (60-80-15)

Includes:

• 60-position rinser
• 80-valve filler
• Arol Euro PK 15-head capper

Features:

• Bottle neck handling system
• No change parts required during bottle size changes
• Central mechanical fill level adjustment
• No filling tube changes required between bottle formats

Beverage Mixing

Tekal Mixer

Capacity:

Up to 40,000 litres per hour

Configuration:

• Three-tank mixing system
• De-aeration
• Carbonation
• Final product blending
• Plate heat exchangers
• Siemens S7-300 PLC
• Maselli Misure product monitoring system

Labelling

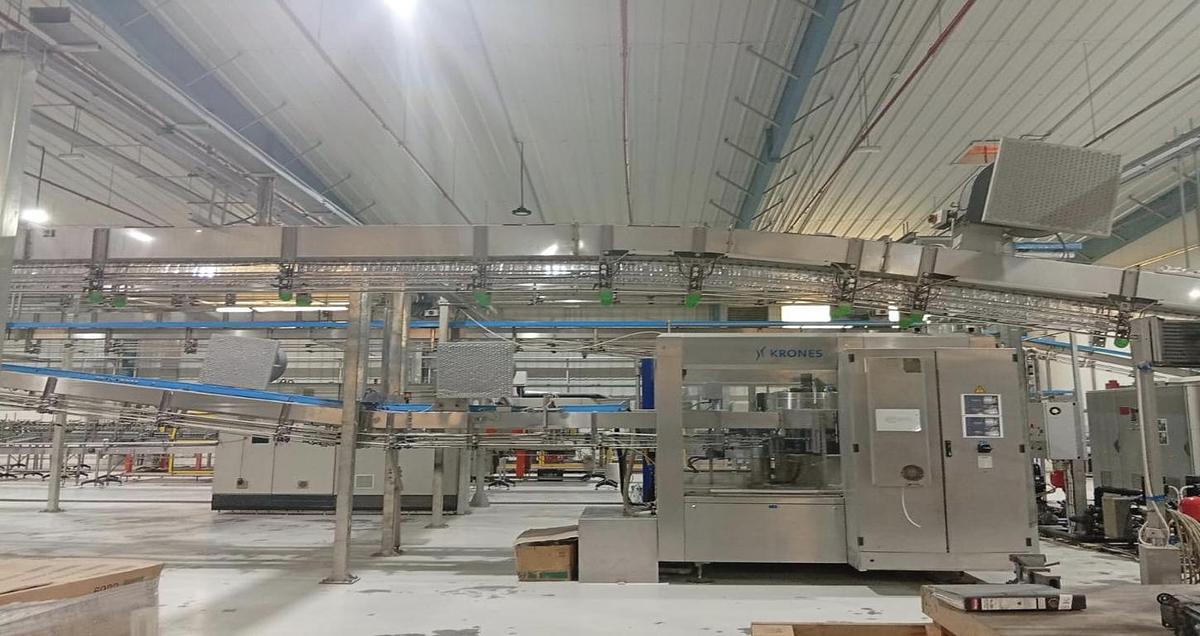

Krones Contiroll Roll-Fed Labeller

Nominal output up to 36,000 BPH

Complete with:

• Siemens PLC
• Krones operator panel

Inspection

FT Systems Fill Level Inspection

Nominal output up to 30,000 BPH

Features:

• Fill level verification
• Leak detection using squeeze technology

Ancillary Equipment

All Glass Vacuum Cap Loader

Domino AX150i Inkjet Coding System

Packaging

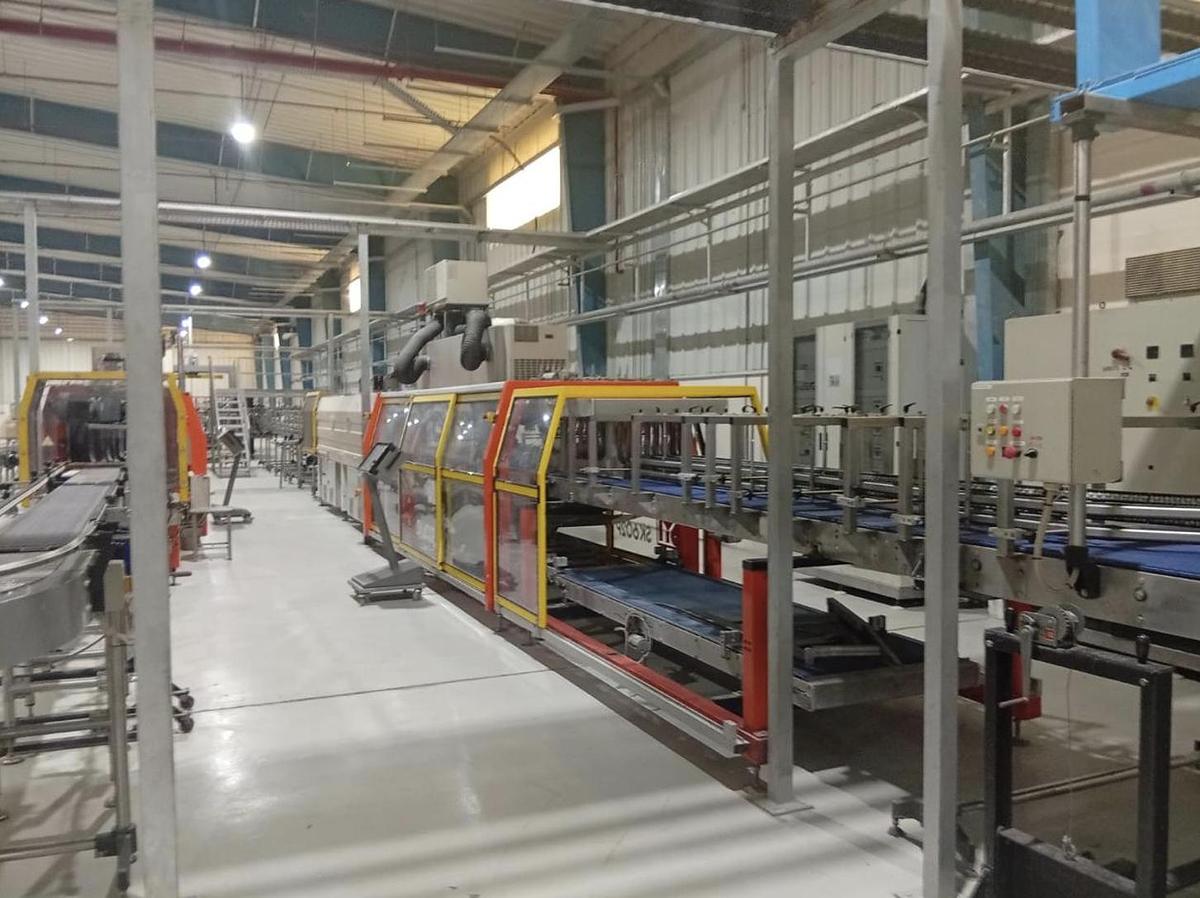

SMI SK 602P Shrink Wrapper

Nominal output up to 36,000 BPH

Features:

• Up to 60 cycles per minute
• Two-lane 6-pack configuration
• Three-lane 4-pack configuration
• Suitable for printed or clear shrink film
• Change parts included for 500ml and 1.5L bottles

Condition & Maintenance

The line is configured as a complete PET beverage production system and is suitable for manufacturers producing a wide range of carbonated and non-carbonated beverages.

Multiple Siemens PLC-controlled systems provide reliable operation and simplified maintenance.

Availability & Project Support

Full support available including:

• Technical due diligence
• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and commissioning
• Integration into existing production facilities



Additional technical documentation, layouts and machine specifications are available on request.

Site inspections can be arranged for qualified buyers.
