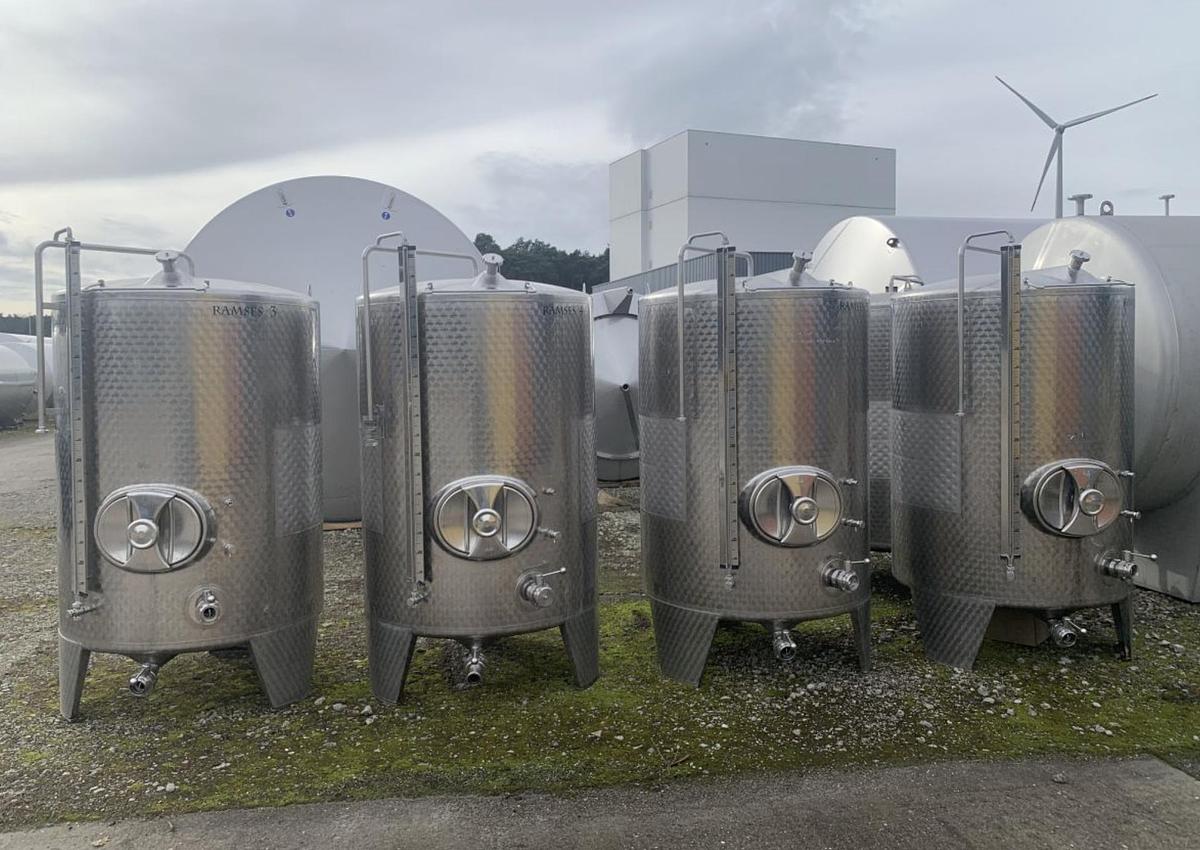

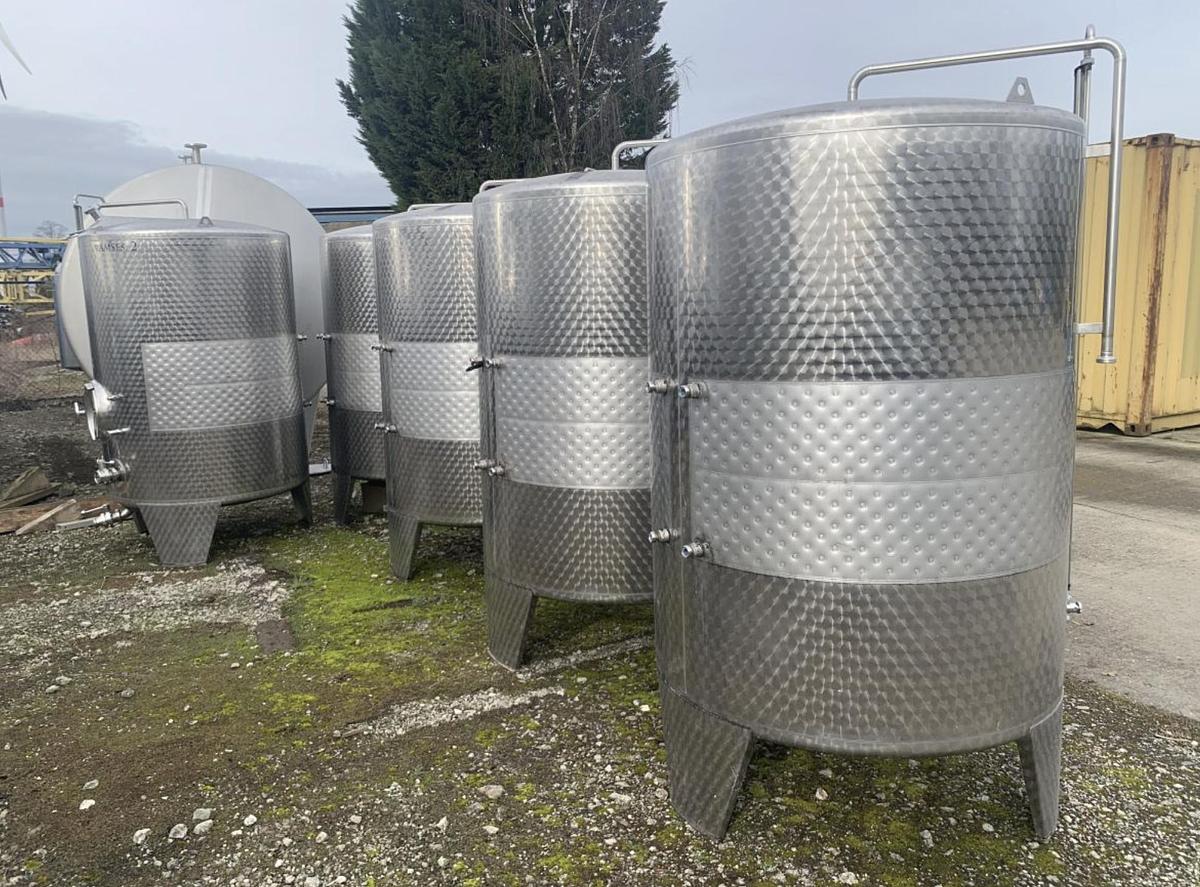

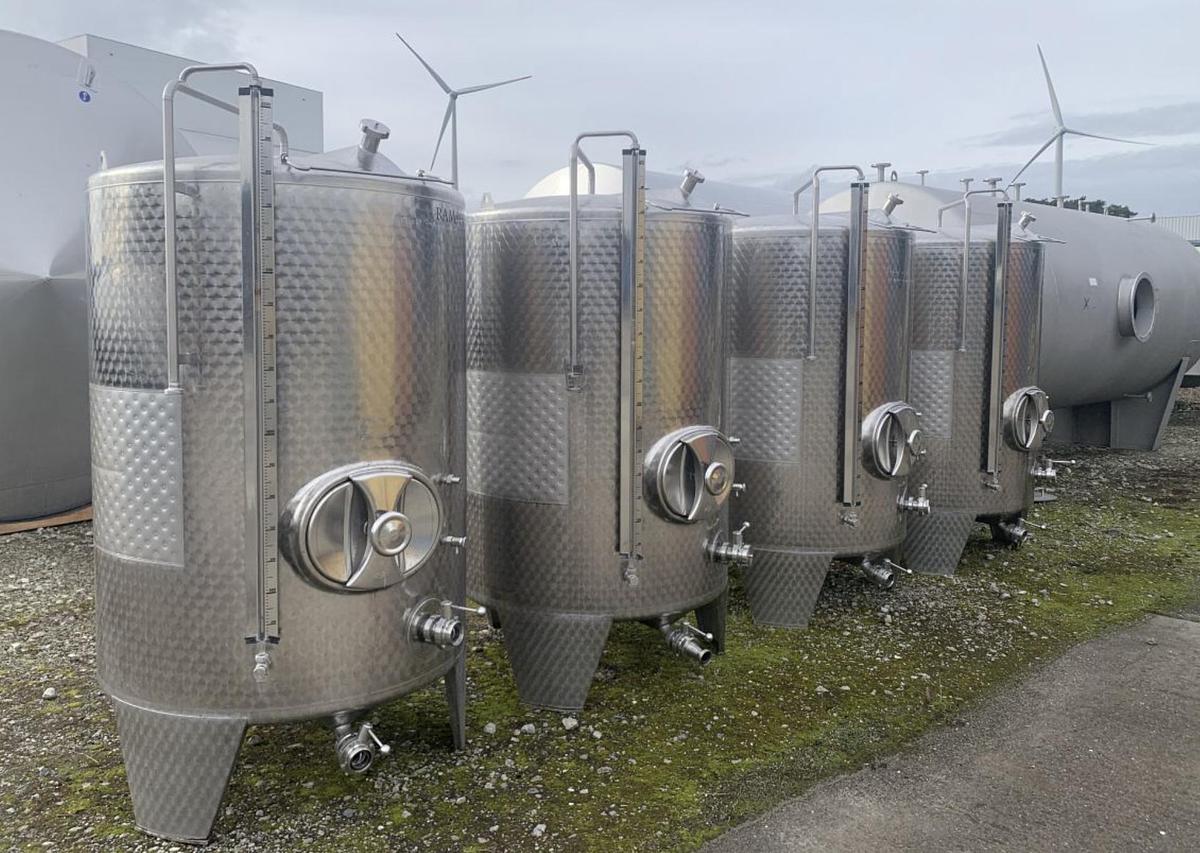

1,800 Litre 304 Stainless Steel Fermentation Vessels

Technical Summary

Capacity: 1,800 Litres (1.8m³)

Quantity: 3 units

Orientation: Vertical

Material: AISI 304 Stainless Steel

Design Pressure: Atmospheric

Diameter: Ø 1,200 mm

Cylinder Height: 1,550 mm

Total Height: 2,200 mm

Empty Weight: 200 kg

Top Type: Flat Sloping

Bottom Type: Flat Sloping

Construction: Single Jacketed with Cooling Jacket

Heat Exchanger: Yes – Cylinder Mounted

Specification

• Vertical cylindrical fermentation tank
• Manufactured from AISI 304 stainless steel
• Designed for atmospheric fermentation and storage
• Single-jacketed construction with integrated cooling jacket
• Heat exchanger located around the centre section of the cylinder
• Heat exchanger height: 500 mm
• Heat exchanger operating temperature: -10°C
• Heat exchanger design pressure: 2 Bar
• Flat sloping top and bottom
• Total discharge design

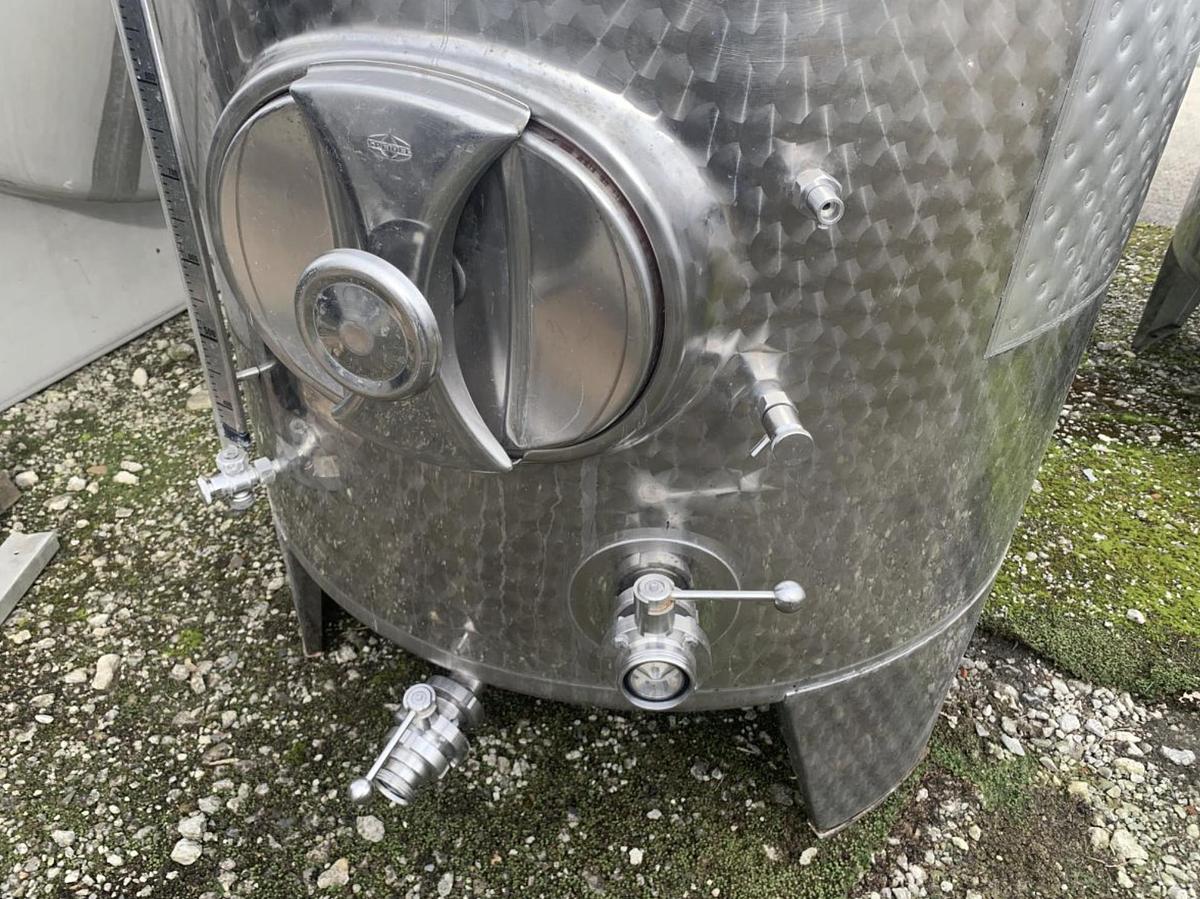

• One cylinder-mounted manway (Ø 330 × 430 mm)

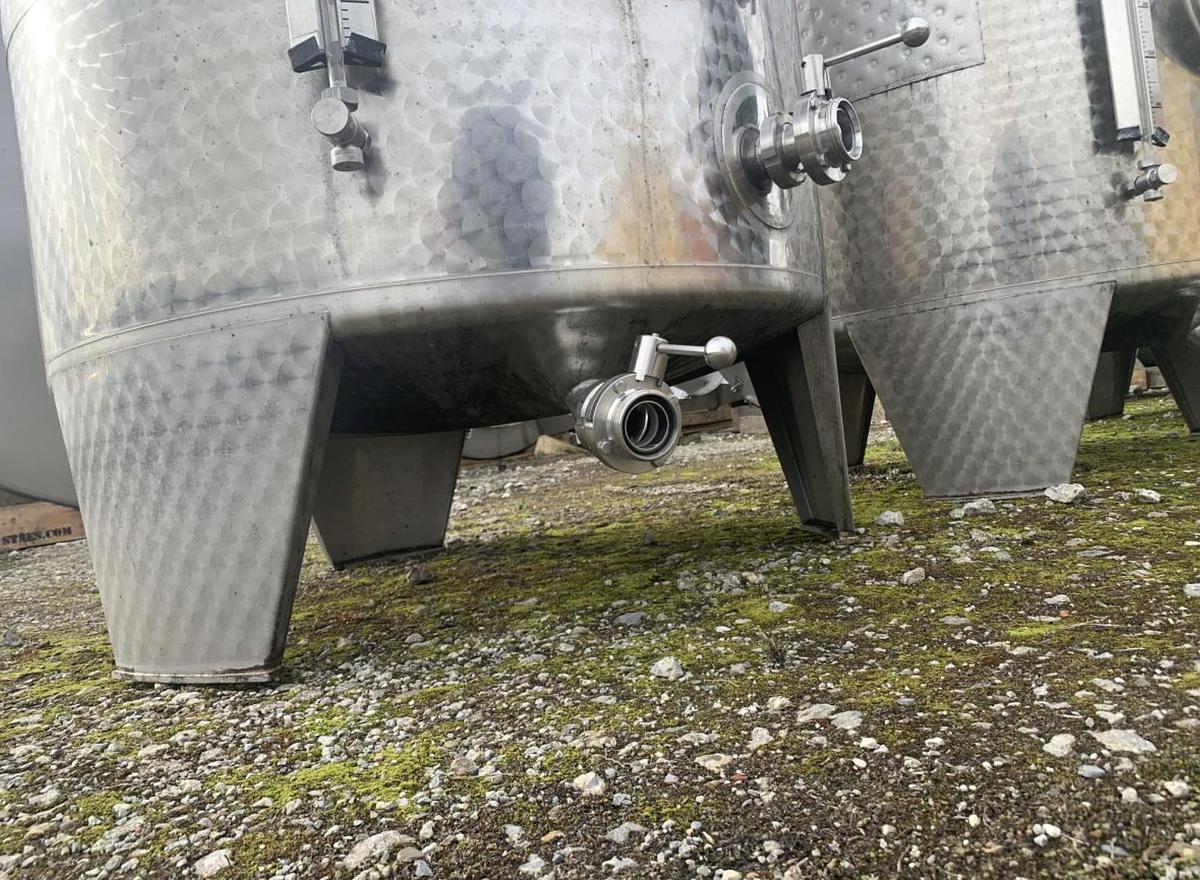

• DIN 11851 outlet connection
• Outlet diameter: Ø 50 mm
• Three adjustable stainless steel support feet
• Suitable for food industry applications
• Originally used as a beer fermentation tank (may contain traces of beer)
• Non-insulated construction
• No agitator flange
• No technical drawings or documentation included
• No registration plate fitted

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
