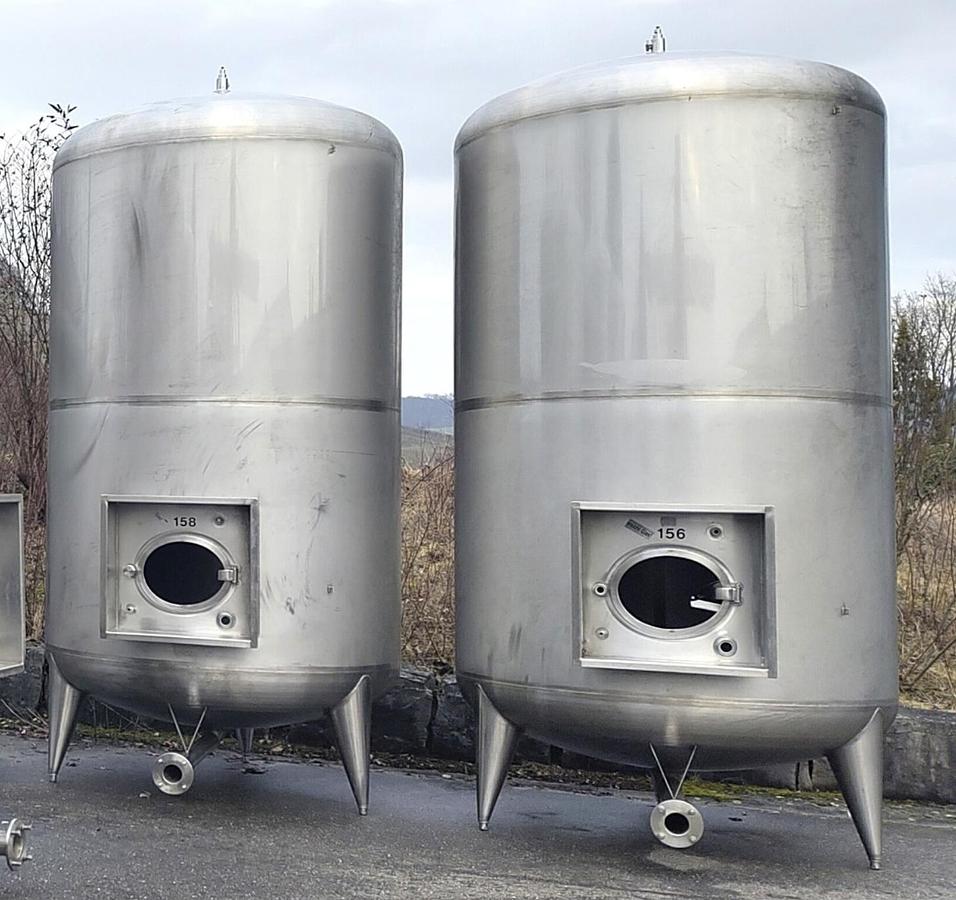

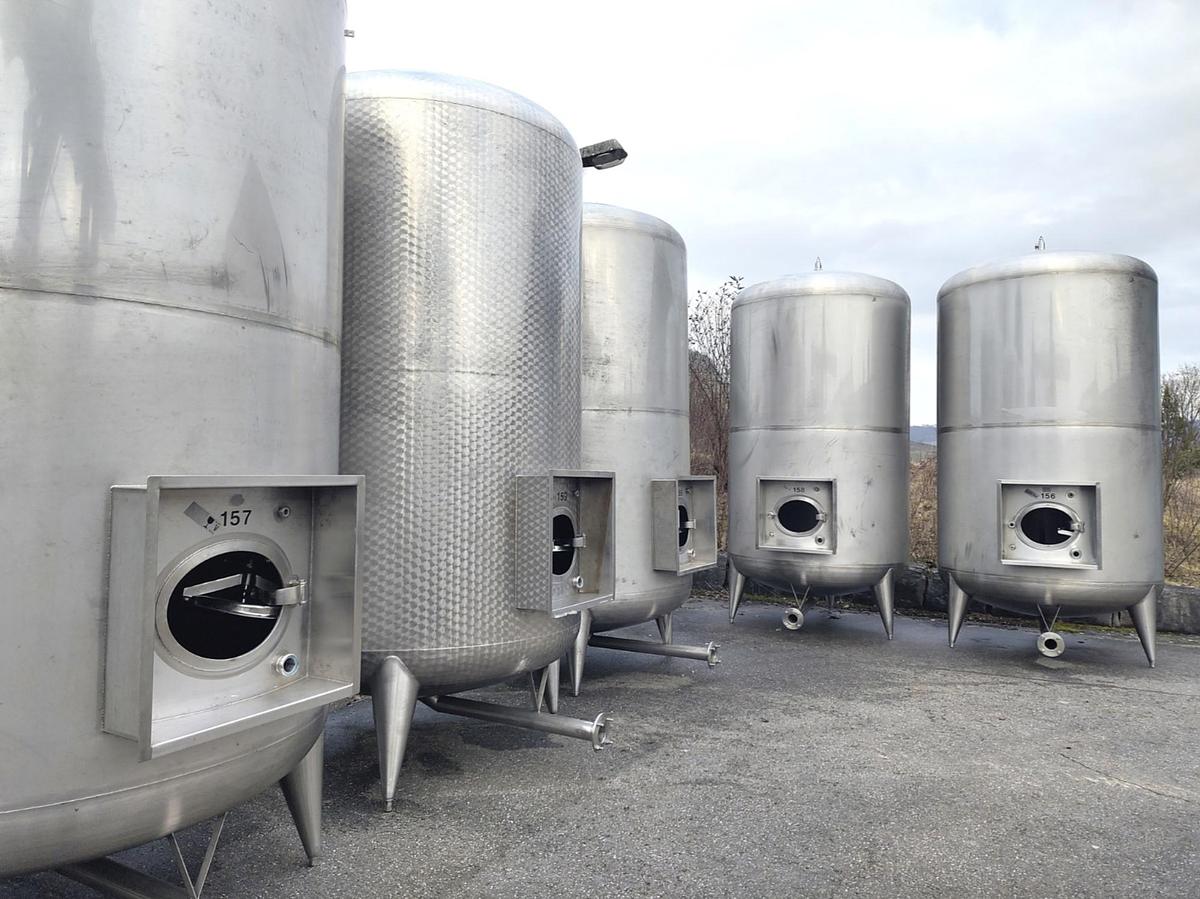

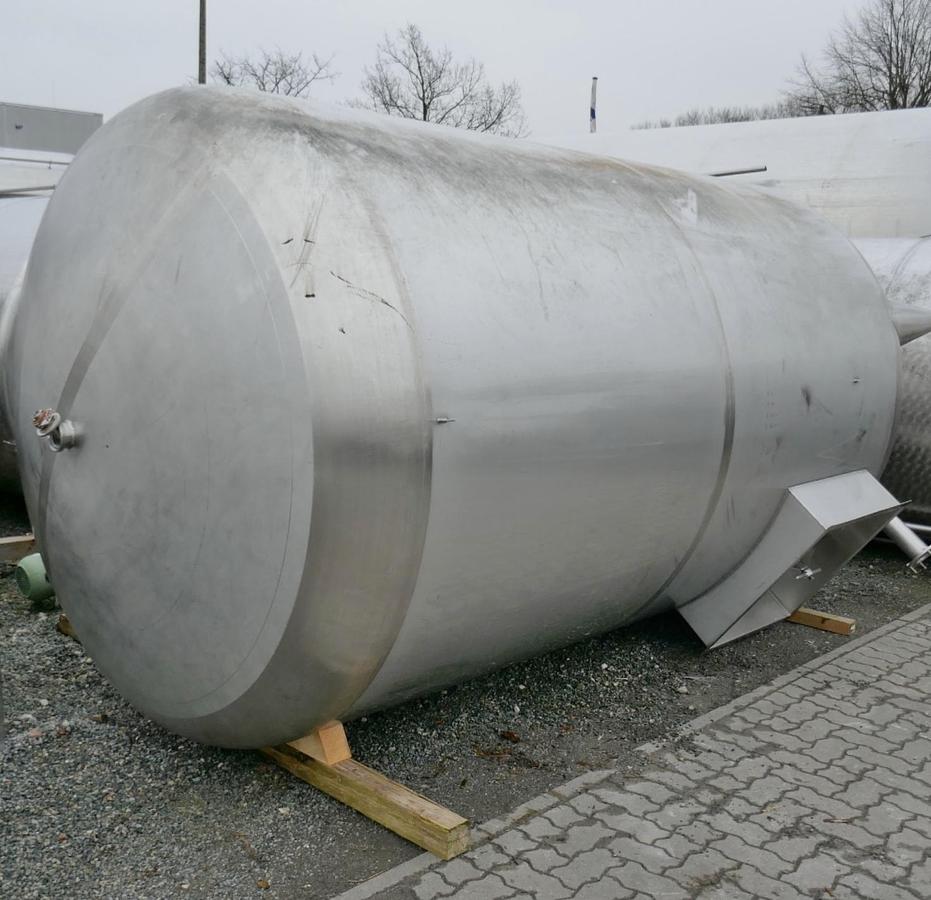

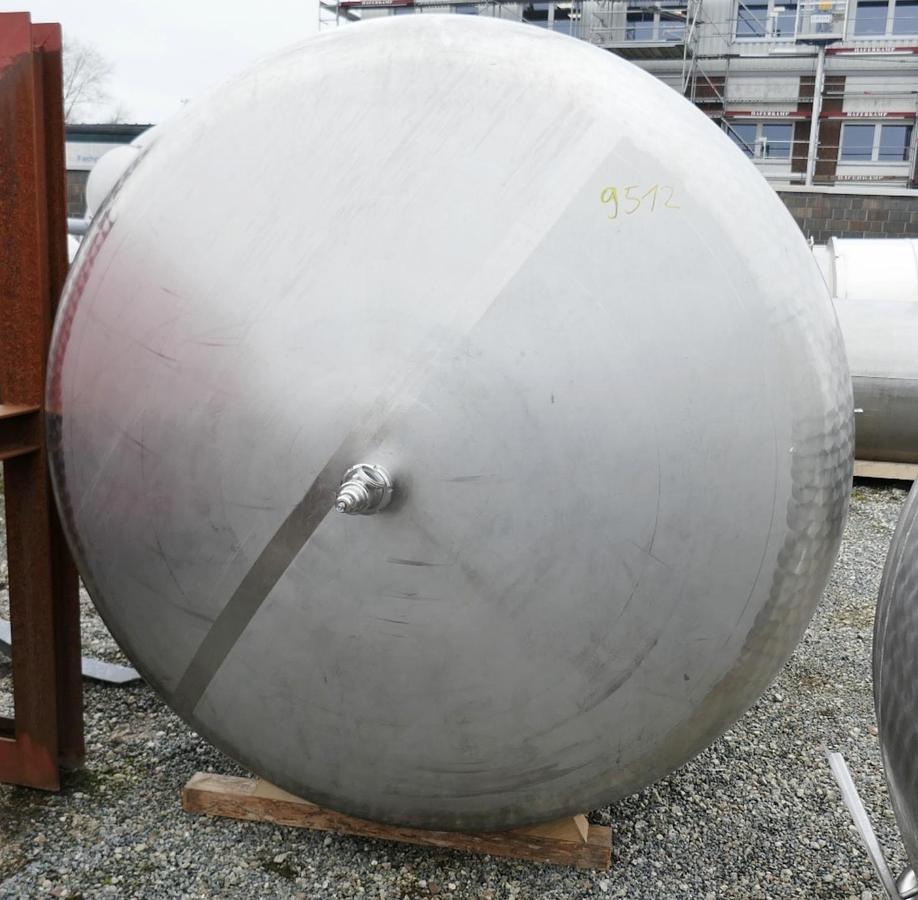

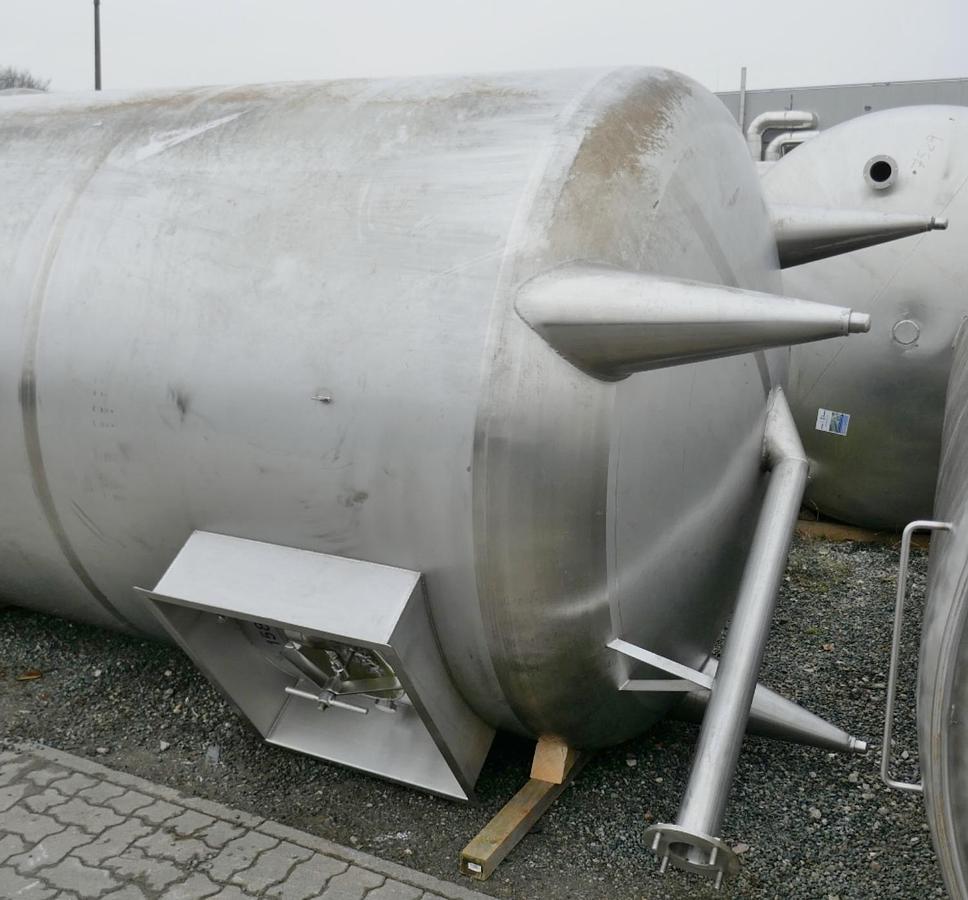

11,800 Litre 304 Stainless Steel Storage Tanks

Technical Summary

Capacity: 11,800 Litres

Quantity: 5 Units

Orientation: Vertical

Material: AISI 304 Stainless Steel

Design Pressure: Atmospheric

Diameter: Ø 2,080 mm

Cylinder Height: 3,000 mm

Total Height: 4,450 mm

Configuration: Single-Skin

Heat Exchanger: None

Insulation: None

Specification

• Vertical cylindrical stainless steel storage tank
• Manufactured from AISI 304 stainless steel (product contact surfaces)
• Single-skin construction
• Designed for atmospheric operation
• Suitable for winery and general liquid storage applications

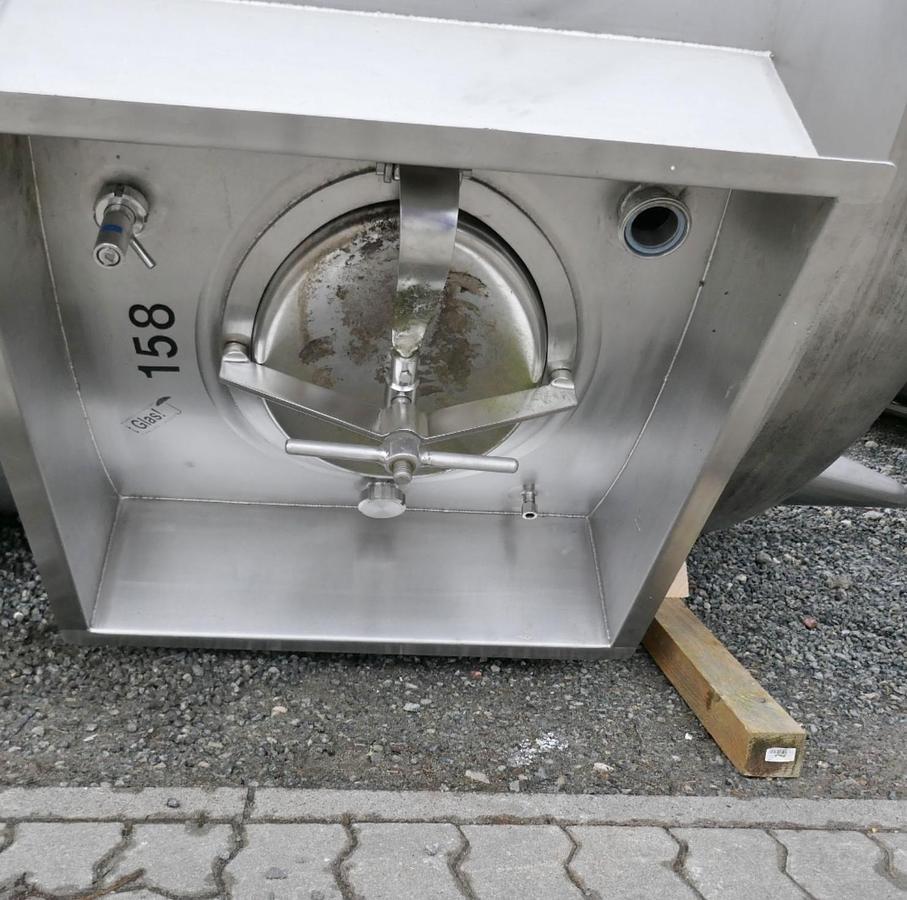

• Cylinder-mounted manway for access and inspection
• DN100 flanged outlet connection
• Full bottom discharge in AISI 304 stainless steel
• Fixed installation (non-mobile)



Additional Information

• Previously used in a winery
• External cylinder surface on one tank shows cosmetic marbling

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
