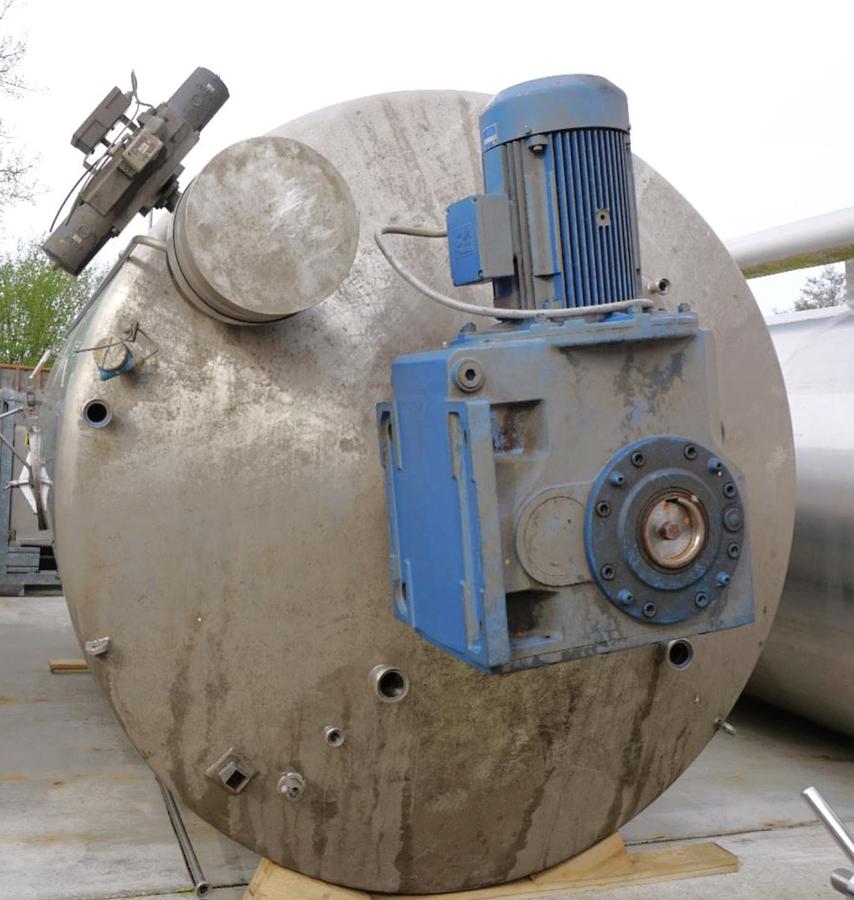

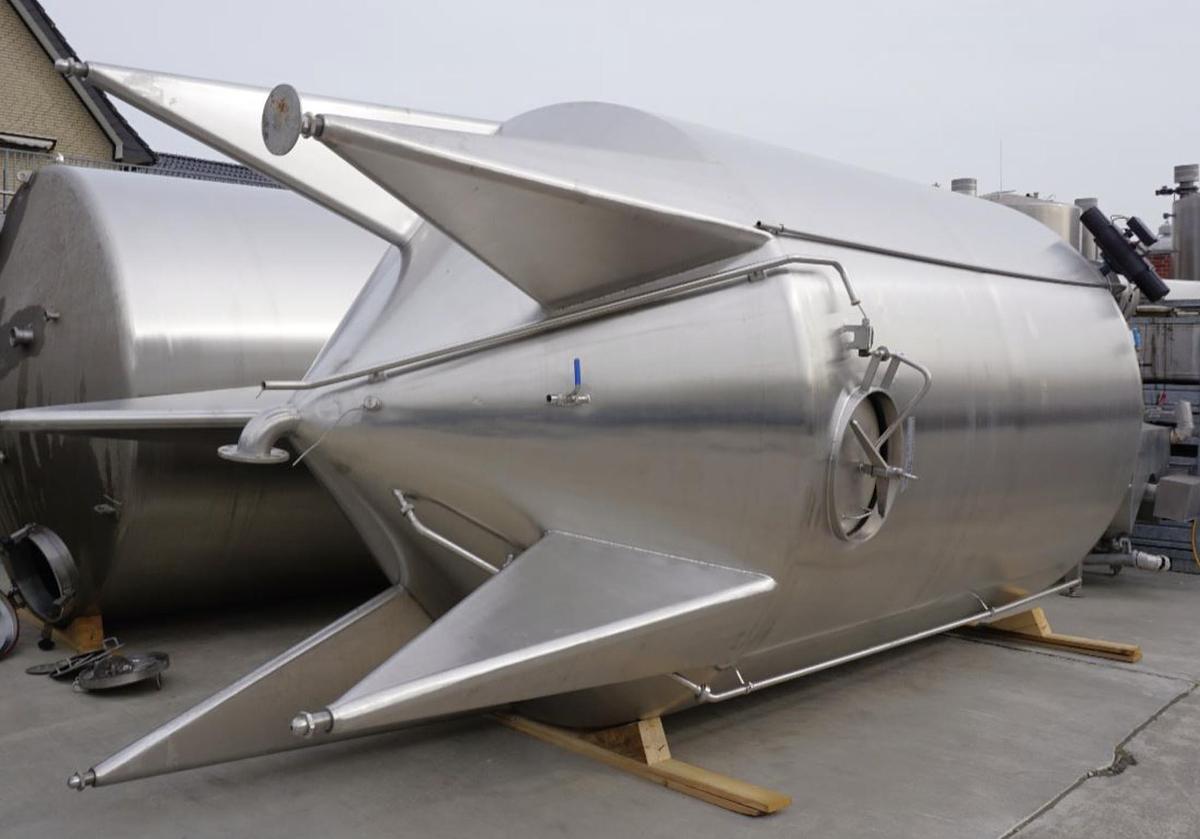

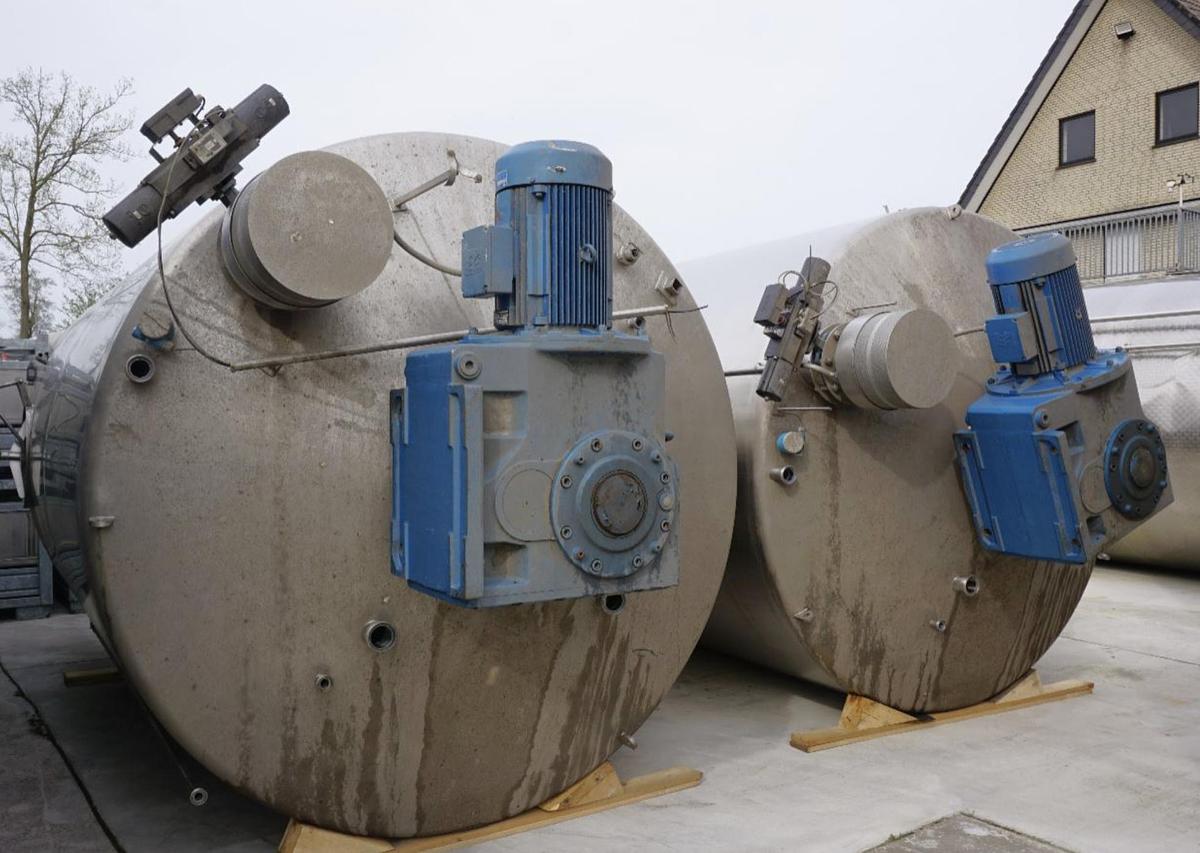

15,000 Litre 304 Stainless Steel Mixing Tanks

Technical Summary

Capacity: 15,000 Litres

Quantity: 4 Units

Orientation: Vertical

Material: AISI 304 Stainless Steel

Design Pressure: Atmospheric

Diameter: Ø 2,500 mm (External)

Cylinder Height: 3,000 mm

Total Height: 5,700 mm

Empty Weight: 3,000 kg

Configuration: Single-Skin

Heat Exchanger: None

Insulation: None

Specification

• Vertical cylindrical stainless steel storage tank
• Manufactured from AISI 304 stainless steel (product contact surfaces)
• Single-skin construction
• Designed for atmospheric operation
• Suitable for food processing and liquid storage applications

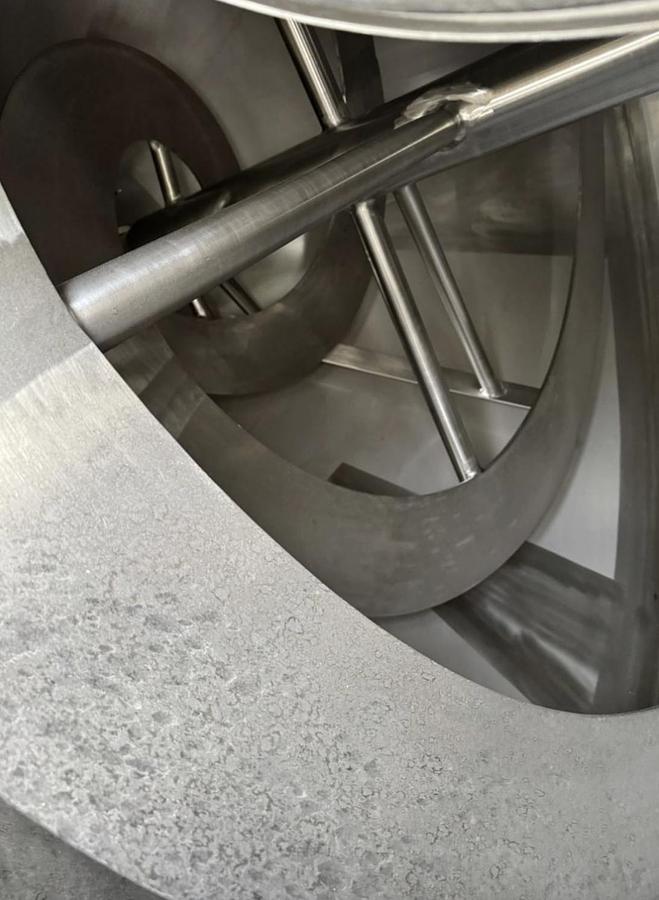

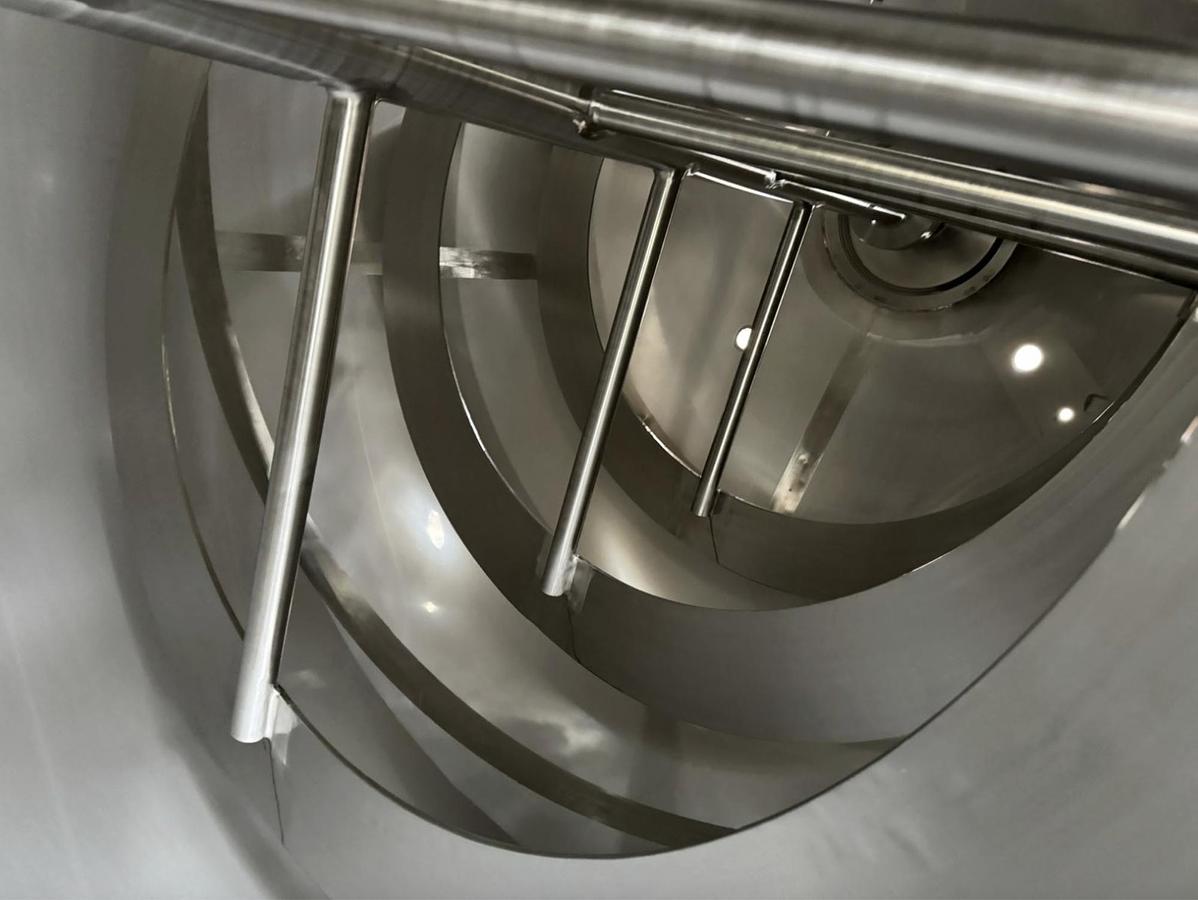

• Integrated agitator fitted
• Agitator speed: 20 rpm
• Agitator motor: 22 kW
• Cylinder-mounted manway for access and inspection
• DN100 flanged outlet connection
• Full bottom discharge
• Fixed installation (non-mobile)

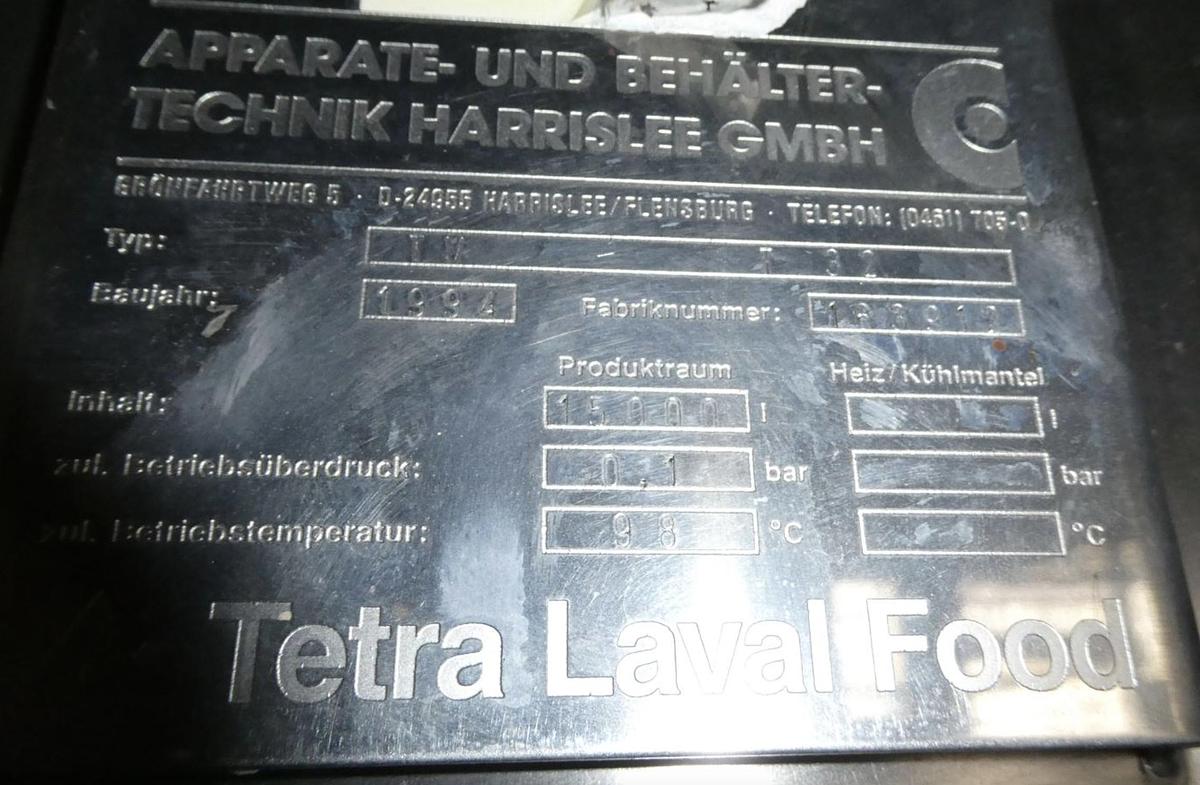

• Registration plate fitted

Additional Information

• Previously used in the food industry
• Agitator is supplied with the tank; however, no operational guarantee can be provided

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
