32,000 Litre 304 Stainless Steel Mixing Tanks

Technical Summary

Capacity: 32,000 Litres

Quantity: 2 Units

Orientation: Vertical

Material: AISI 304 Stainless Steel

Tank Type: Mixing Vessel

Configuration: Single-Wall

Bottom Type: Conical

Diameter (Internal): Ø 2,960 mm

Diameter (External): Ø 3,090 mm

Cylinder Length: 4,700 mm

Bottom Height: 300 mm

Total Height: 6,800 mm

Cylinder Thickness: 2.9 mm

Weight: 2,500 kg

Support: 6 Legs

Insulation: 60 mm (Cylinder & Bottom)

Specification

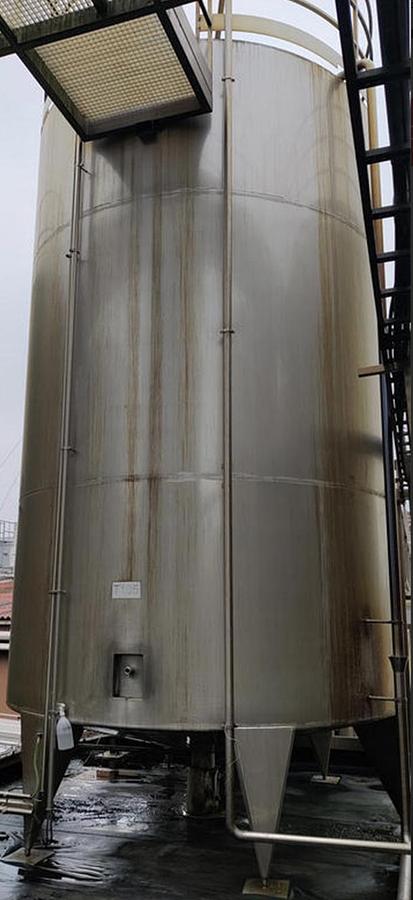

• Vertical cylindrical stainless steel mixing vessel
• Manufactured from AISI 304 stainless steel
• Internal welds ground for a hygienic finish
• Single-wall vessel with insulated external cladding
• 60 mm insulation to cylinder and bottom with fully welded stainless steel cladding
• Conical bottom with full drain

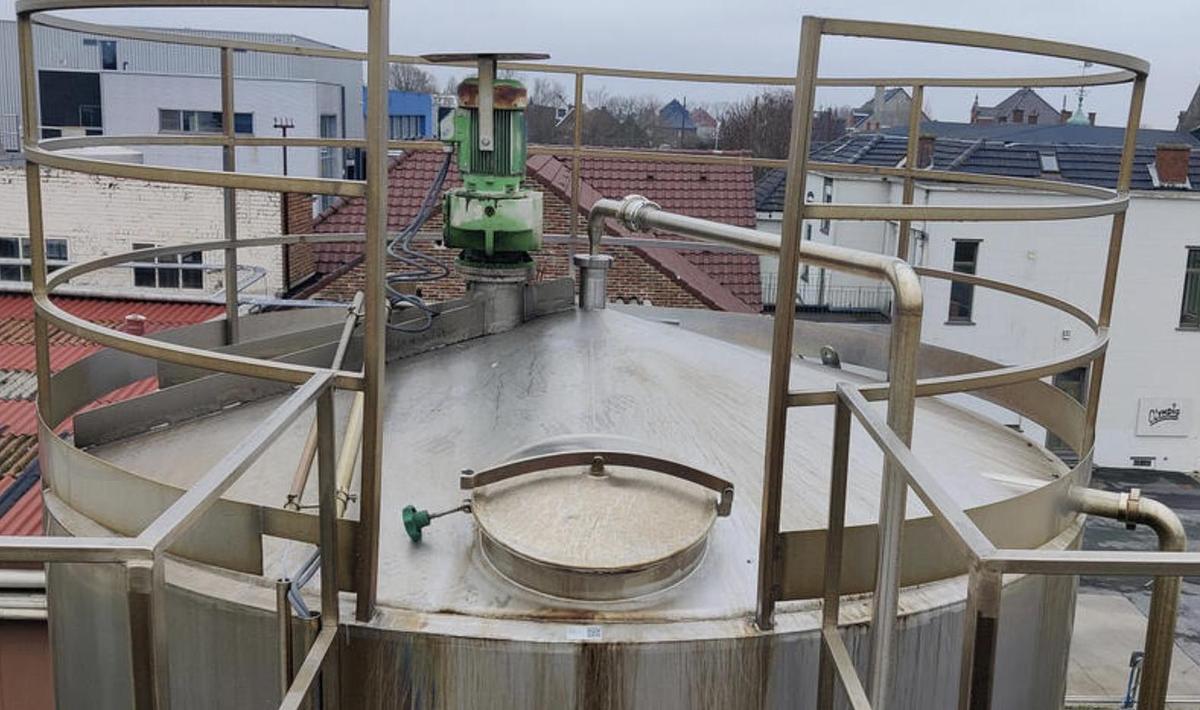

• Equipped with 1 × top-mounted manway (Ø 500 mm)
• CIP spray ball installed for internal cleaning
• 100 mm butterfly valve outlet

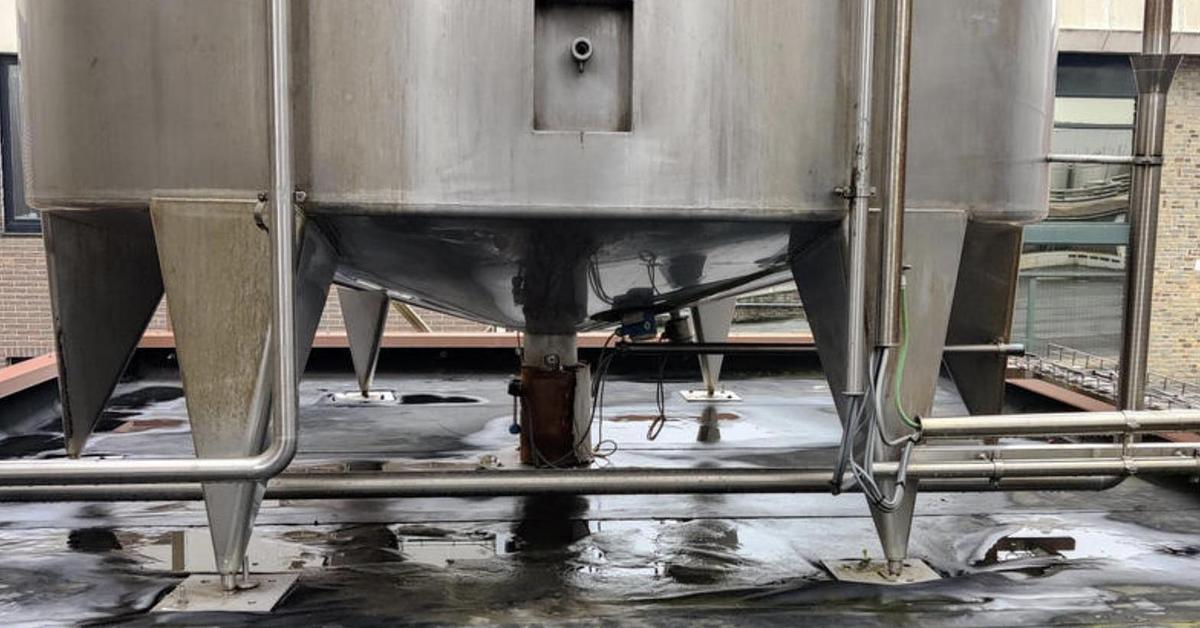

• Mounted on six support legs
• Two lifting lugs for handling and installation
• Suitable for food processing applications

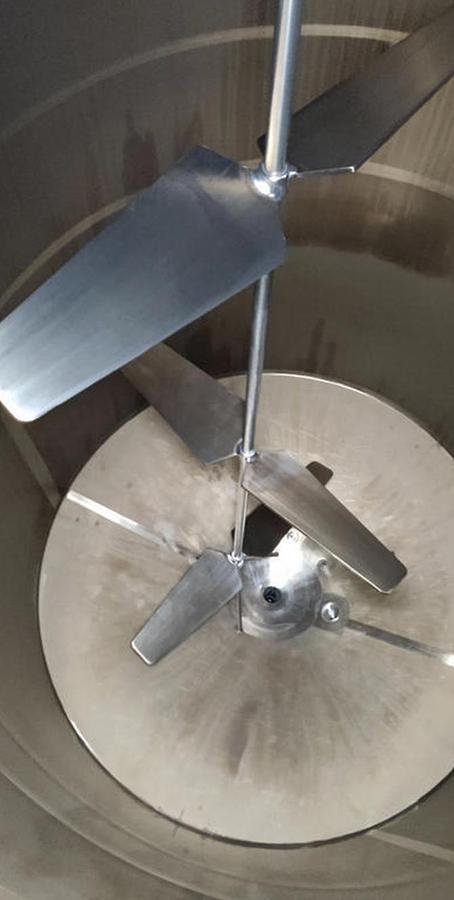

Agitator

• 1 × Fast rotating mixer
• Decentrally mounted on the top of the vessel
• Propeller mixing element
• Shaft length: 5,000 mm
• Electric motor drive
• Motor power: 1.4 kW
• Voltage: 380 V
• Geared reducer drive
• Speed: 715 rpm

Additional Information

• Last used in the food industry
• Manufacturer's identification plate not fitted
• Condition: Used

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
