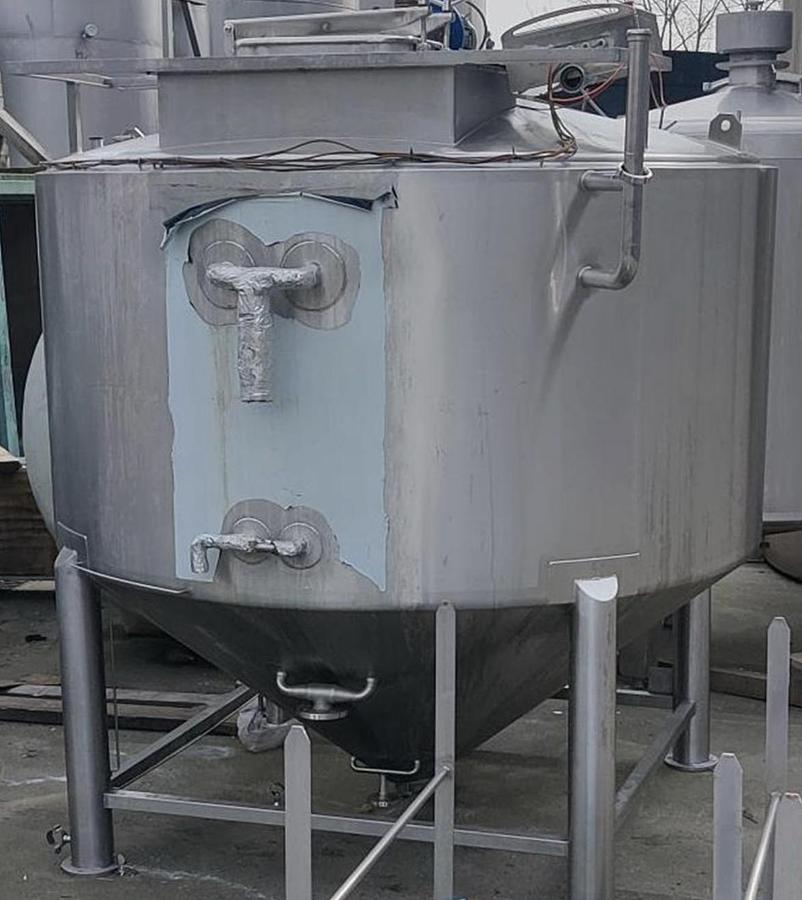

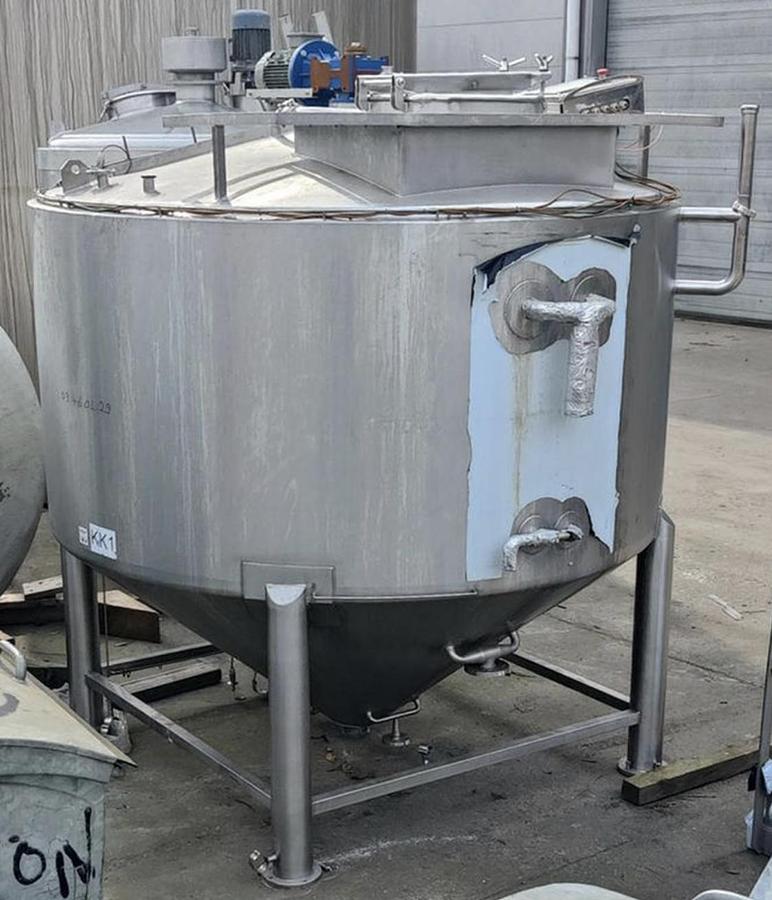

6,000 Litre 304 Stainless Steel Jacketed Mixing Tank

Technical Summary

Capacity: 6,000 Litres

Quantity: 1 Unit

Orientation: Vertical

Material: AISI 316 Stainless Steel

Tank Type: Mixing Vessel

Configuration: Jacketed (Heating/Cooling)

Bottom Type: Conical

Diameter (Internal): Ø 2,295 mm

Diameter (External): Ø 2,400 mm

Cylinder Height: 1,100 mm

Bottom Height: 1,000 mm

Total Height: 2,850 mm

Cylinder Thickness: 2.7 mm

Bottom Thickness: 2.6 mm

Top Thickness: 2.9 mm

Weight: 600 kg

Support: 4 Legs

Insulation: 50 mm (Cylinder & Bottom)

Specification

• Vertical cylindrical stainless steel mixing vessel
• Manufactured from AISI 316 stainless steel
• Internal welds ground for a hygienic finish
• Jacketed vessel for heating and cooling applications
• Bain-marie heating jacket
• 50 mm insulation to cylinder and bottom with fully welded stainless steel cladding

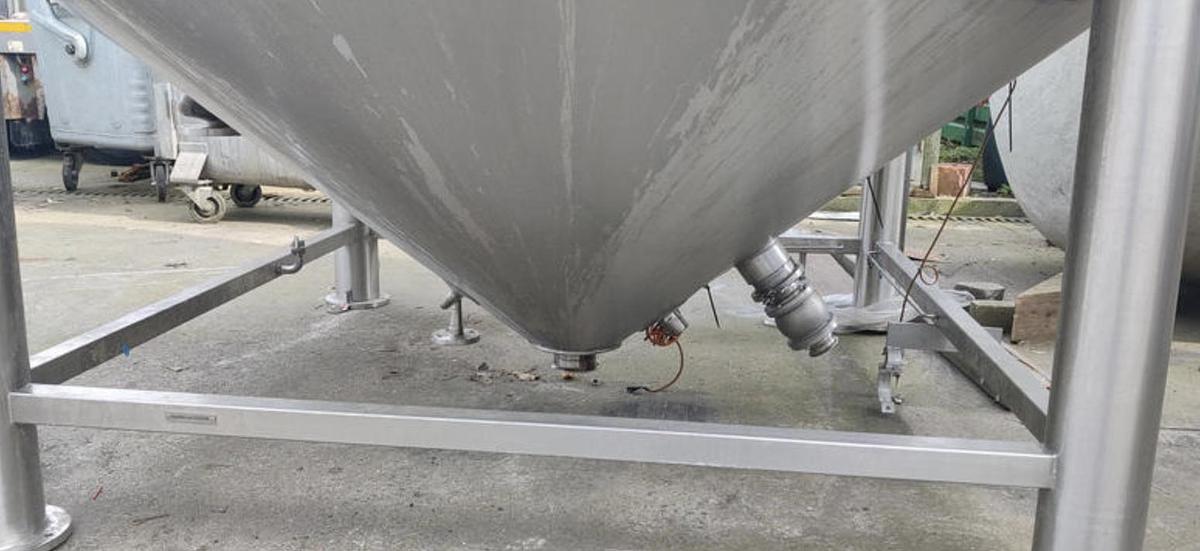

• Closed top with conical bottom
• Full bottom drain

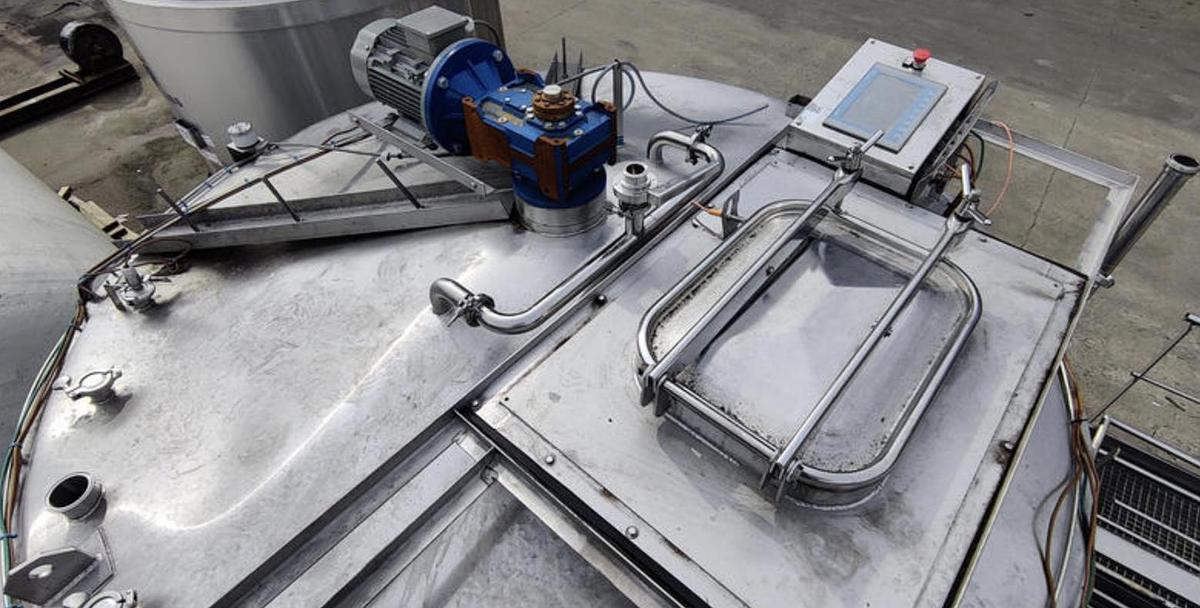

• Equipped with 1 × top-mounted manway (530 × 410 mm)
• CIP spray ball installed for internal cleaning
• 100 mm outlet connection
• Mounted on four support legs
• Two lifting lugs for handling and installation
• Suitable for food processing applications

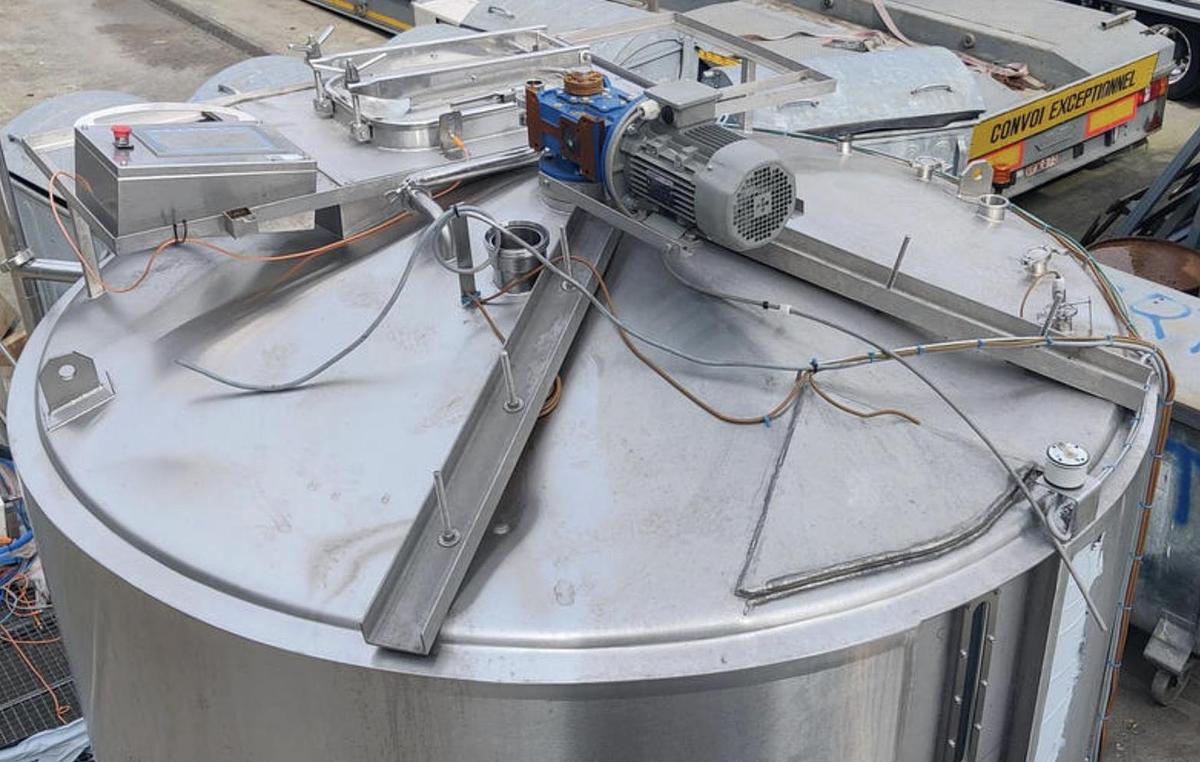

Agitator

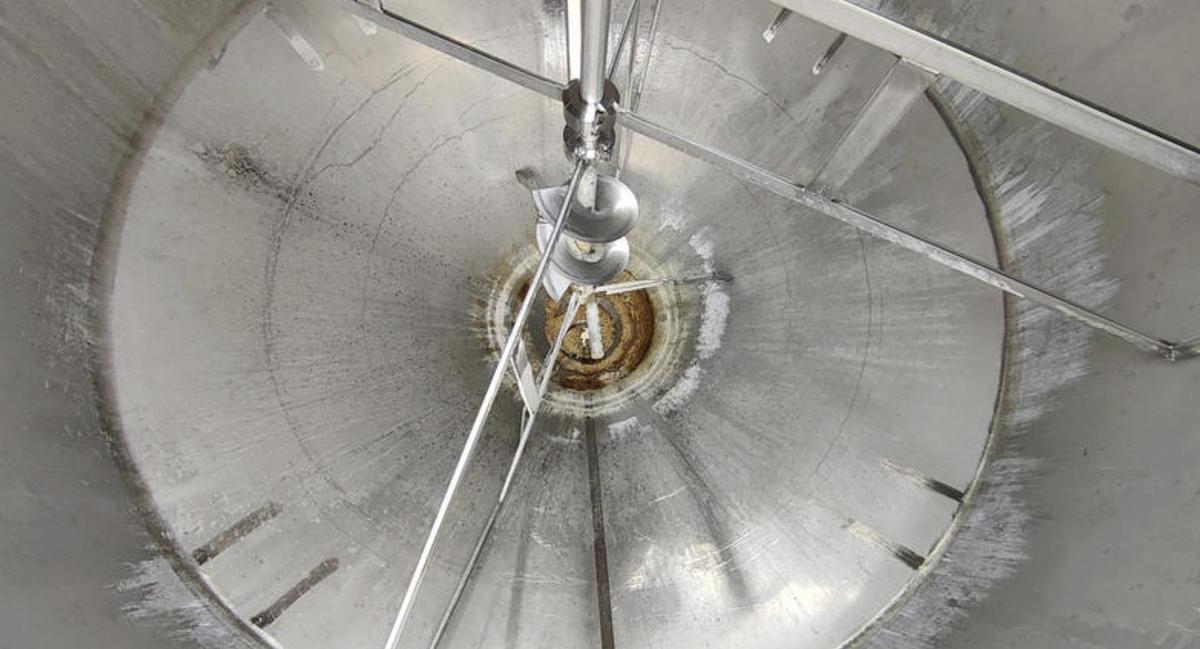

• 1 × Anchor agitator (without scrapers)
• Centrally top-mounted
• Anchor mixing element
• Shaft length: 1,700 mm
• Electric motor
• Voltage: 230/400 V
• Motor power: 1.5 kW
• Geared reducer drive
• Speed: 38 rpm



Additional Information

• Last used in the food industry
• Manufacturer's identification plate not fitted
• Condition: Used

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation support if required
