13,000 - 16,000 BPH Krones PET Filling Line

Overview

Complete non-carbonated PET bottling and packaging line designed for the production of fruit-based beverages and ready-to-drink products.

The line features a Krones rinser, filler and capper monobloc, together with flash pasteurisation, Heuft bottle inspection, Krones labelling, Sidel shrink wrapping, OMMAC case packing and complete end-of-line pallet handling equipment.

Currently operating with 500ml and 850ml PET bottle formats, the line achieves production speeds of up to 16,800 bottles per hour.

The line remains in daily production and has been progressively upgraded, including Krones control equipment, bottle conveying and metal detection.

Production Capability

Nominal output:

Up to 16,800 bottles per hour – 500ml PET

Up to 13,500 bottles per hour – 850ml PET

Pasteuriser throughput:

Up to 13,981 litres per hour

Currently used for:

• Non-carbonated beverages
• Fruit-based drinks
• Ready-to-drink products

Current product parameters include:

• Product concentration: approximately 22.29° Brix
• Flash pasteurisation
• Holding temperature: approximately 92°C

Bottle formats currently tooled:

• 500ml PET
• 850ml PET

Key Line Features

Krones rinser, filler and capper monobloc

Flash pasteurisation system with three-stage plate heat exchanger and holding tube

Liquid nitrogen dosing for improved rigidity of lightweight PET bottles

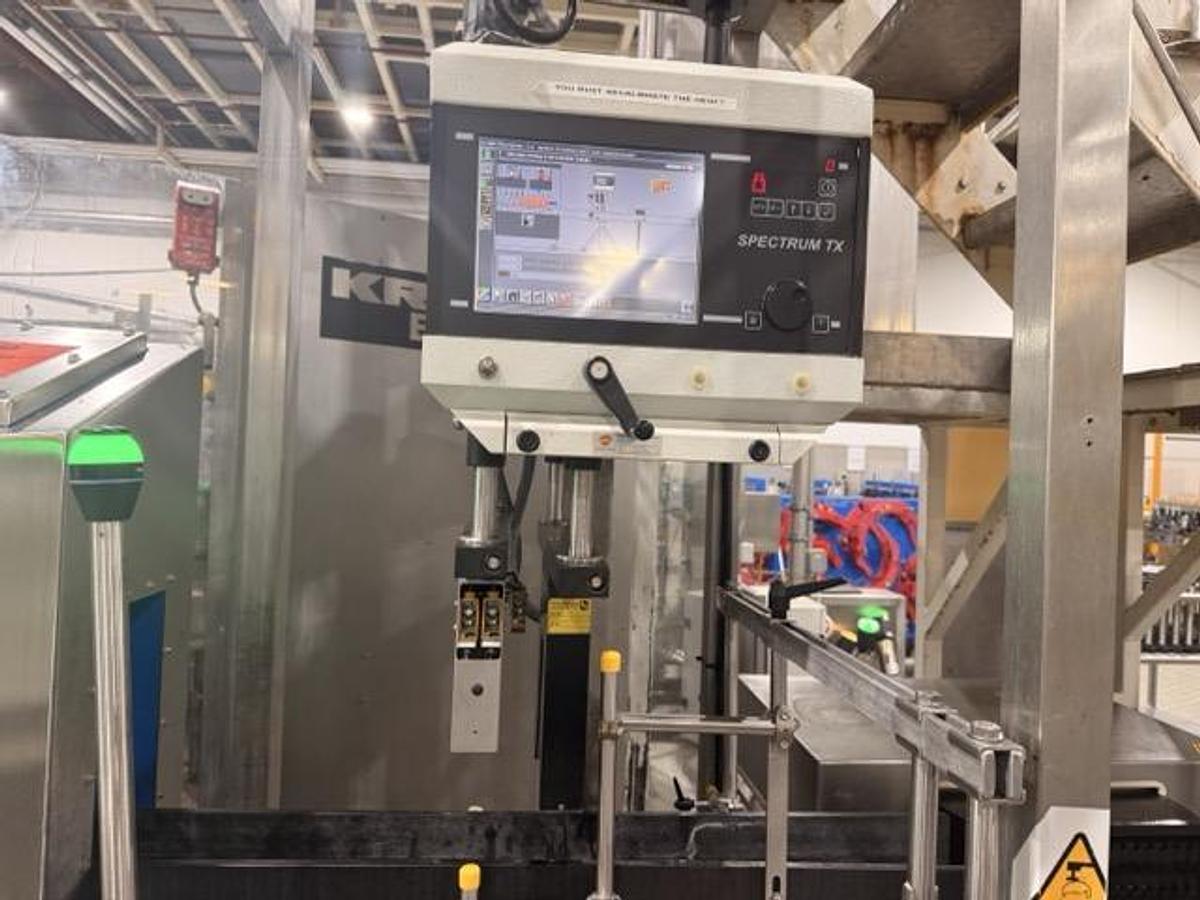

Heuft empty bottle inspection

Krones Topmodul roll-fed labelling with Checkmat inspection

Sidel shrink wrapping and heat tunnel

OMMAC wraparound case packing

Loma Systems IQ4 metal detection

Complete bottle and pack conveying

End-of-line pallet handling, strapping and wrapping

Format change parts for both 500ml and 850ml PET bottles

Designed for continuous production of non-carbonated PET beverages

Asset Breakdown

Filling & Wet End

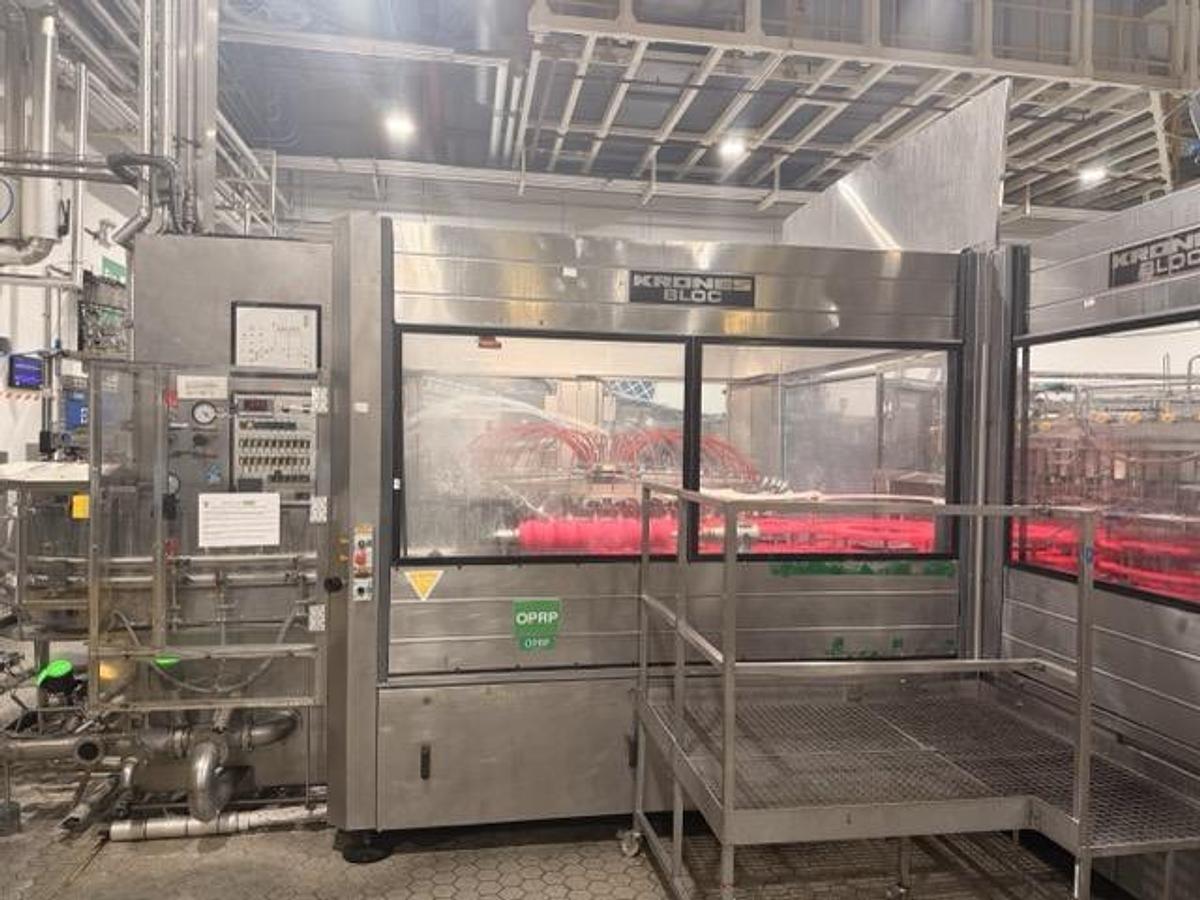

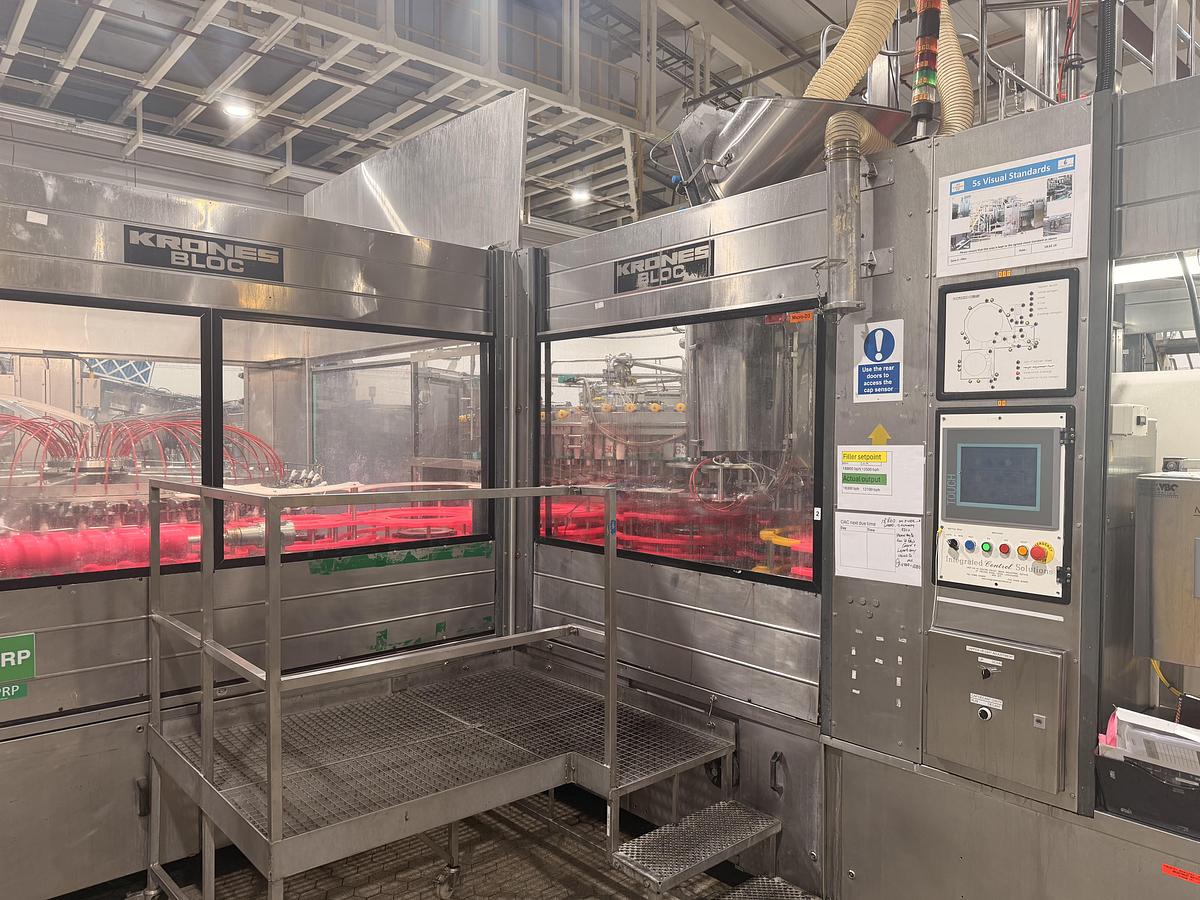

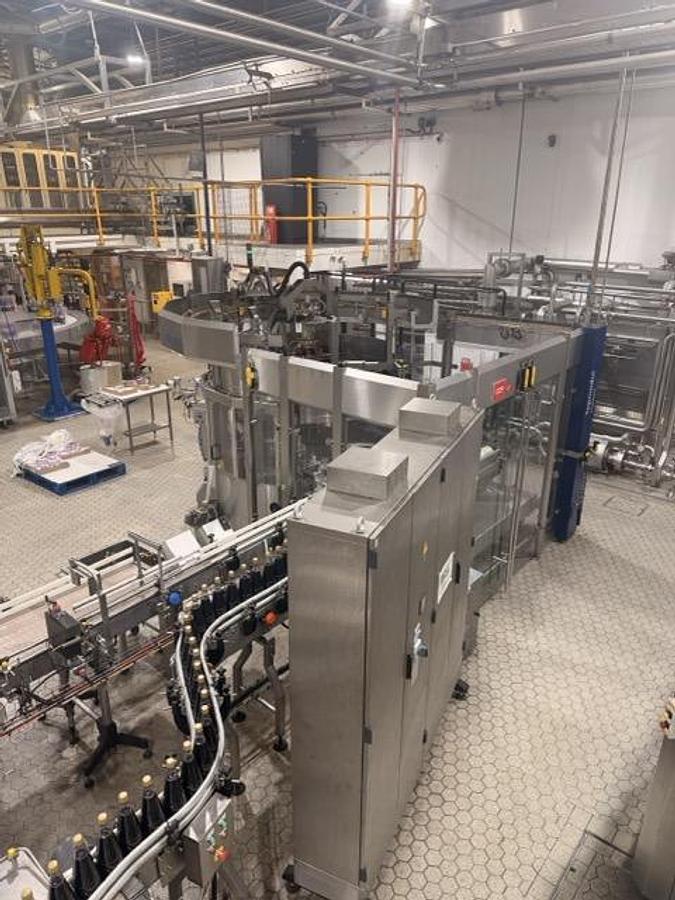

Krones Rinser / Filler / Capper Monobloc

Integrated bottle rinsing, filling and capping system

Production speed:

• 16,800 BPH – 500ml
• 13,500 BPH – 850ml

Filling machine build year to be confirmed.

Krones Main Control Cabinet – 2012

Controls retrofit

Krones Secondary Control Panel – 2012

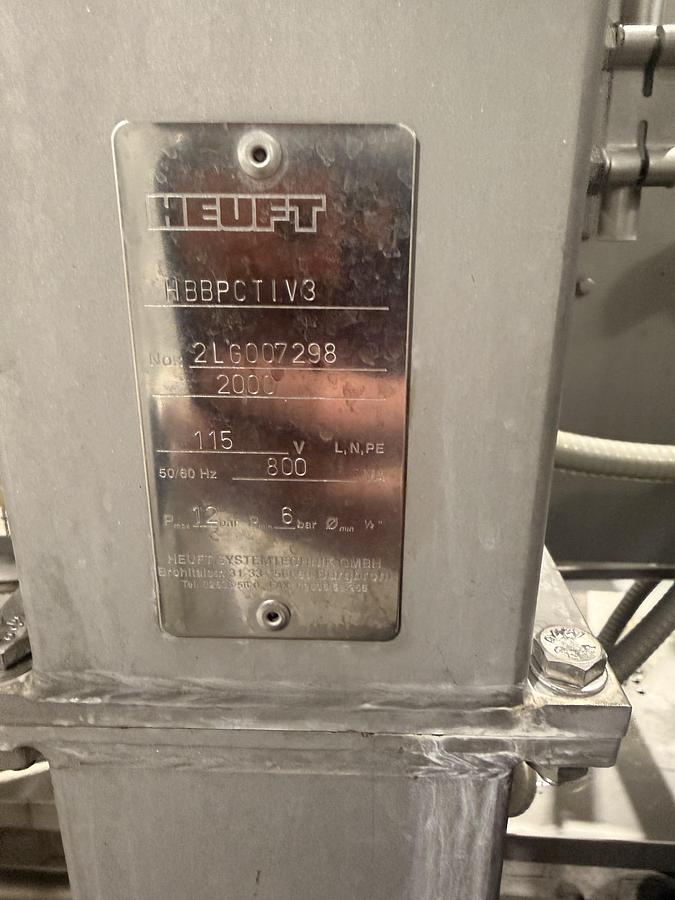

Heuft HBBPCTIV3 Empty Bottle Inspector – 2000

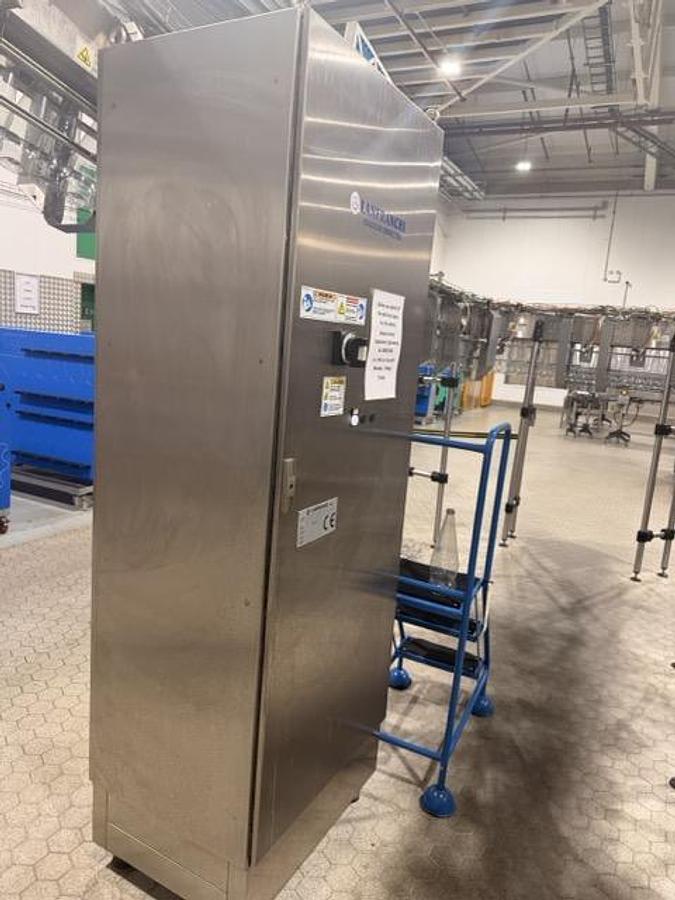

Lanfranchi Empty Bottle Air Conveyor – 2015

6 kW

6 bar

Liquid Nitrogen Dosing System

Siemens controlled

Maximum rated speed: 400 containers per minute

Pasteurisation

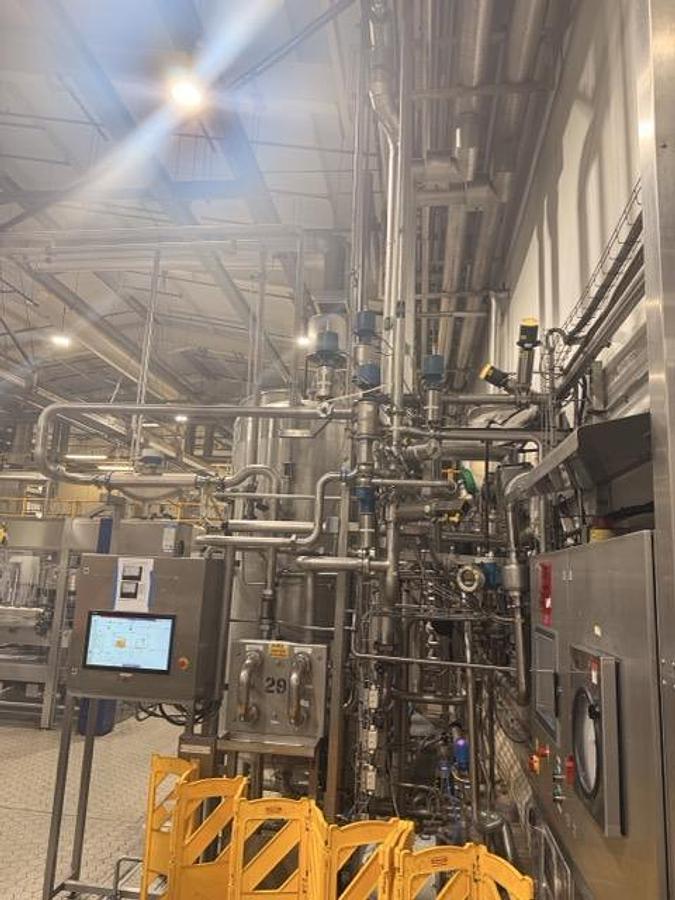

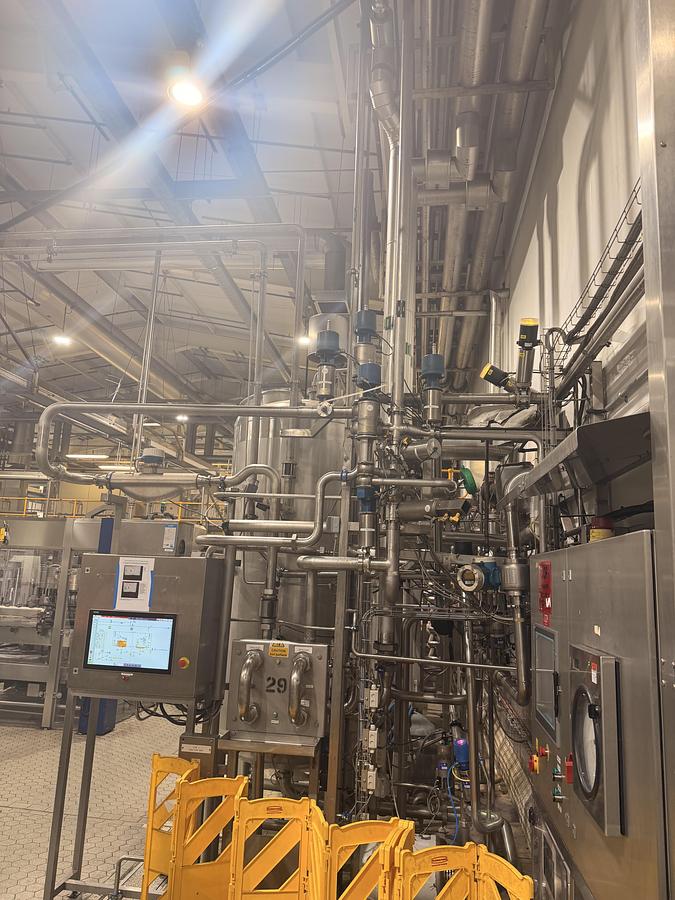

Three-Stage Flash Pasteuriser

Plate heat exchanger with holding tube

Throughput: approximately 13,981 L/H

Operating holding temperature: approximately 92°C

Integrated control system

Labelling & Inspection

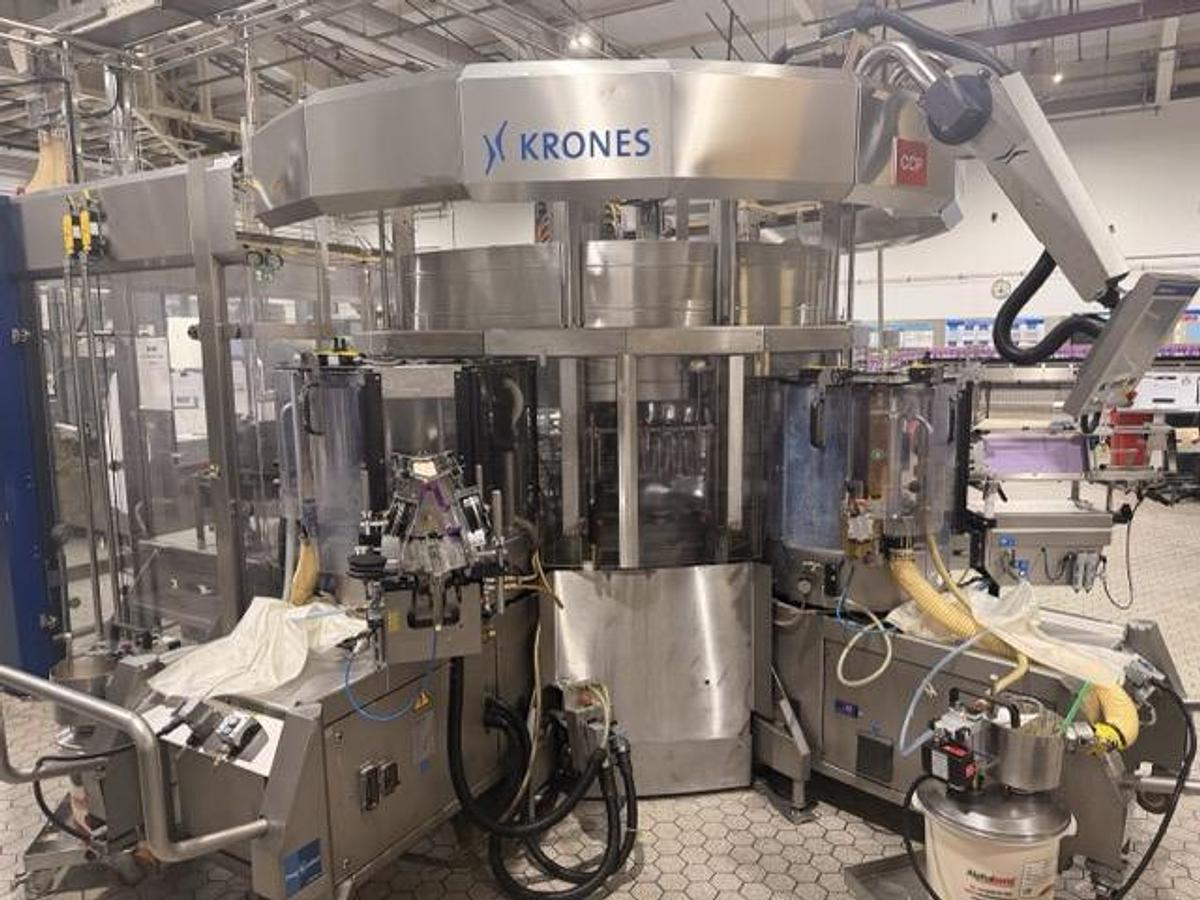

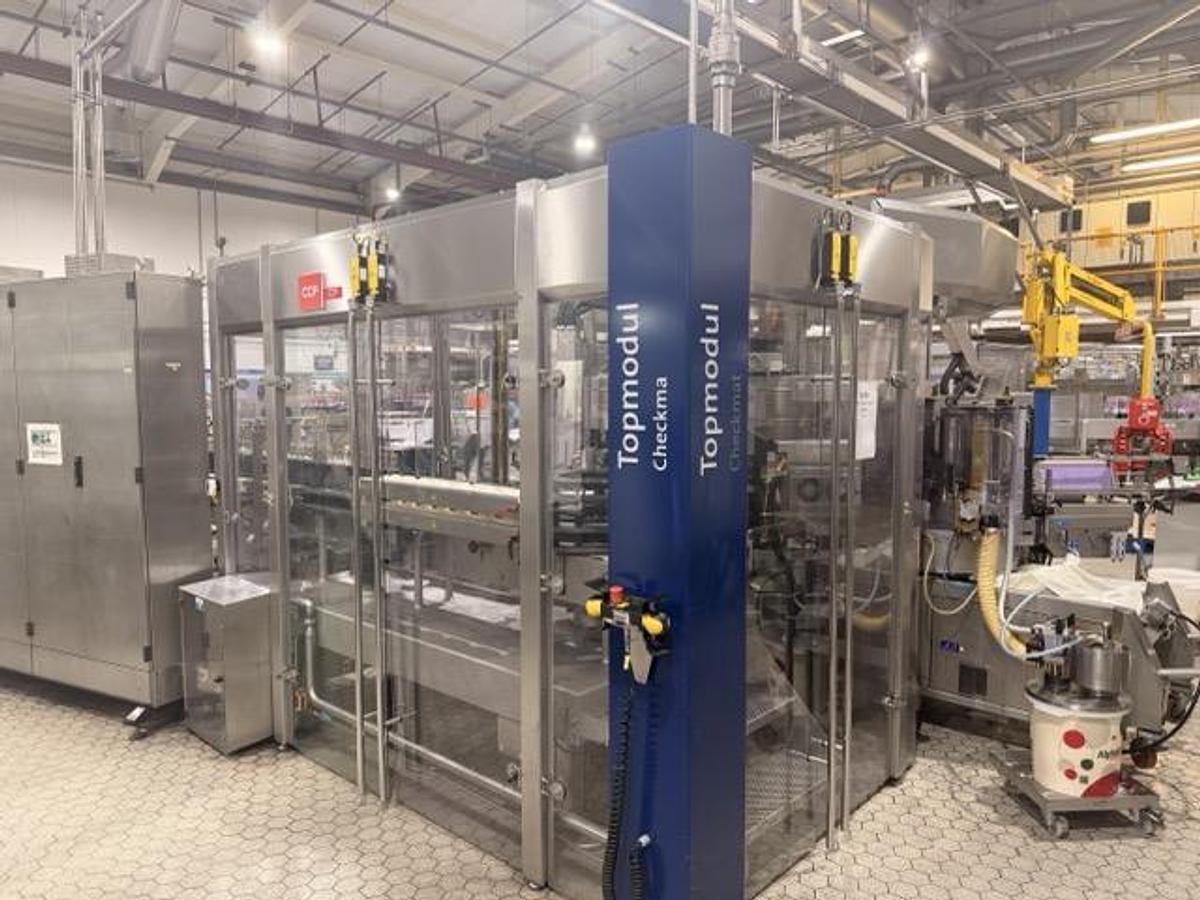

Krones Topmodul Labeller

Roll-fed labelling system

Twin-head configuration

Integrated Krones Checkmat inspection

Packaging

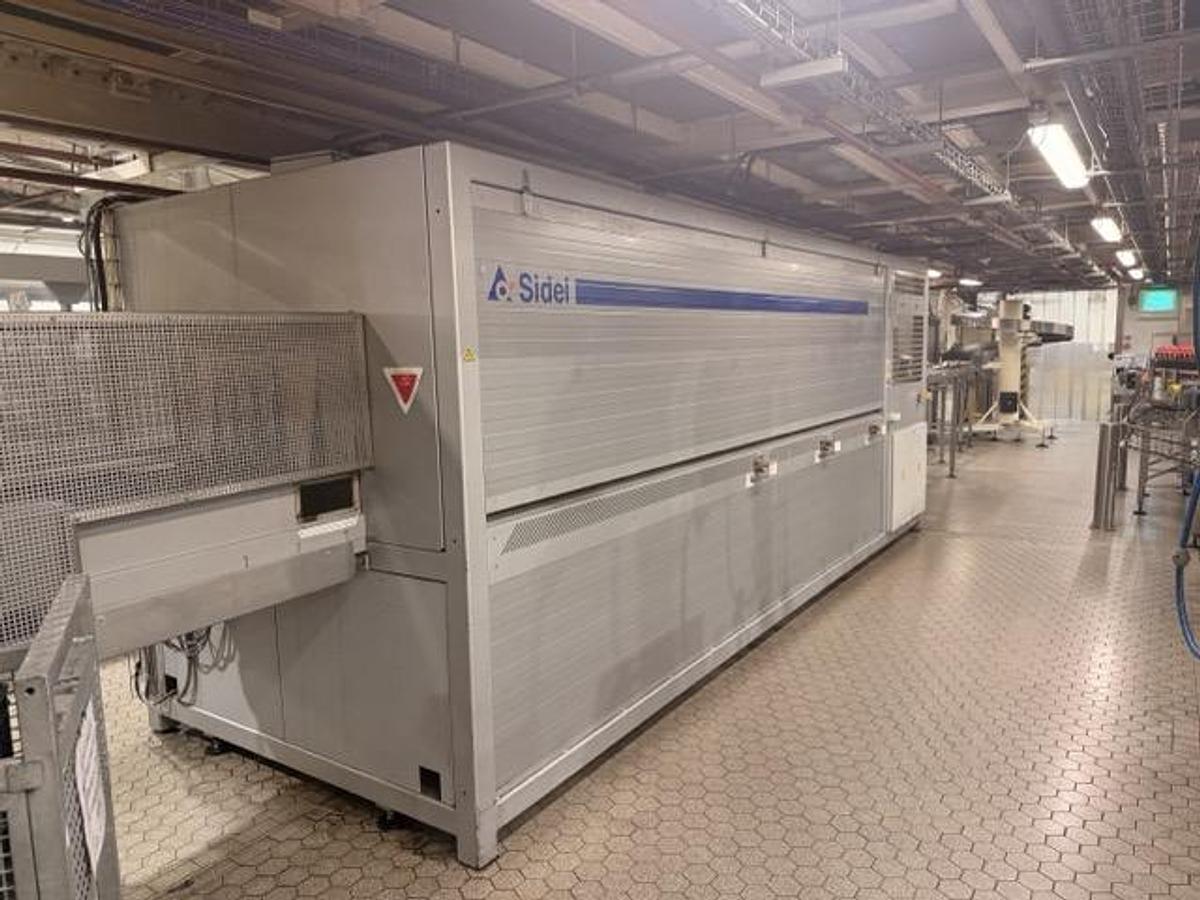

Sidel Shrink Wrapper & Heat Tunnel

Single-lane configuration

OMMAC Wraparound Case Packer

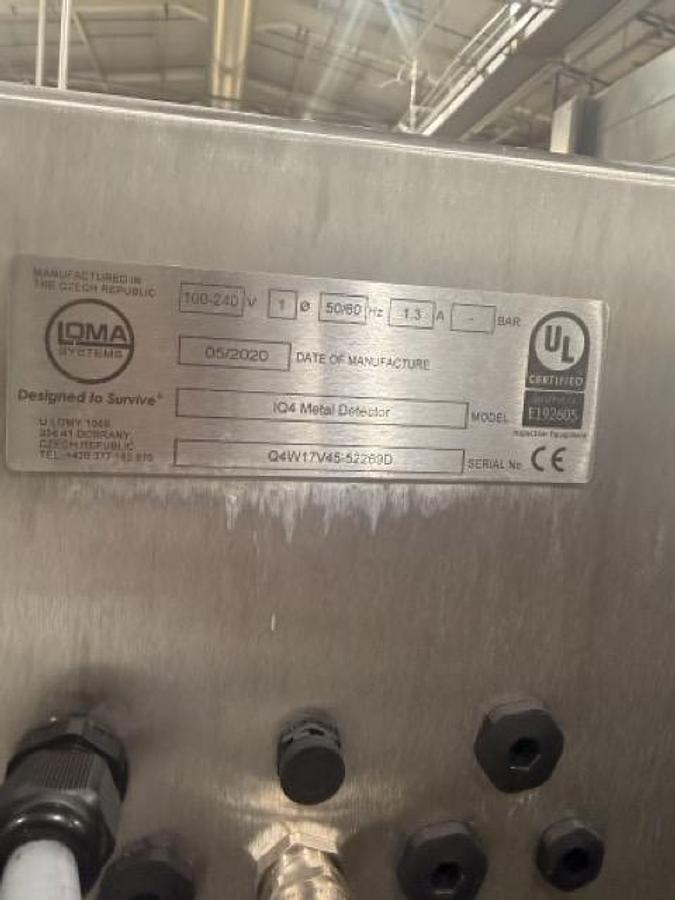

Loma Systems IQ4 Metal Detector – 2020

Pack-level metal detection

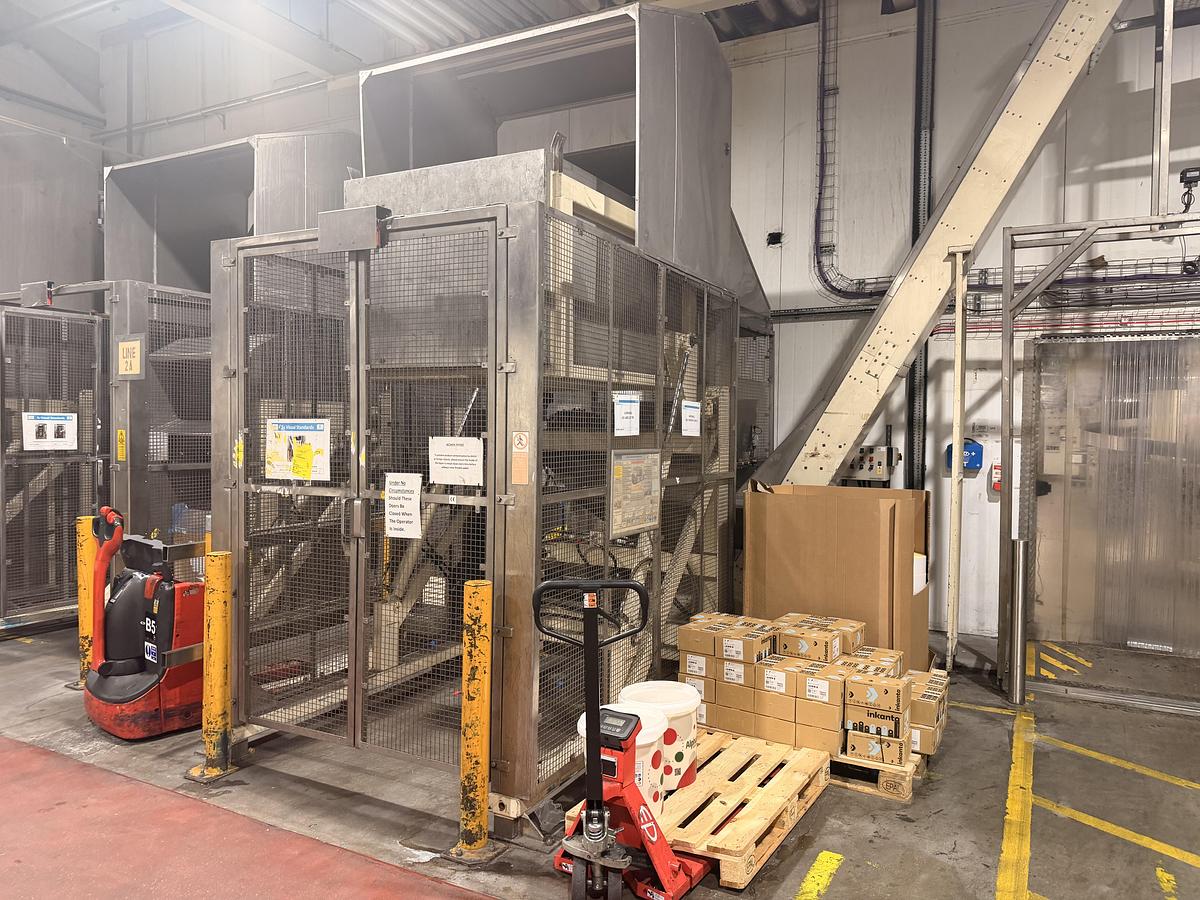

Pallet Handling

Kensal Handling Systems Pallet Handling Equipment

Robopac Pallet Strapper

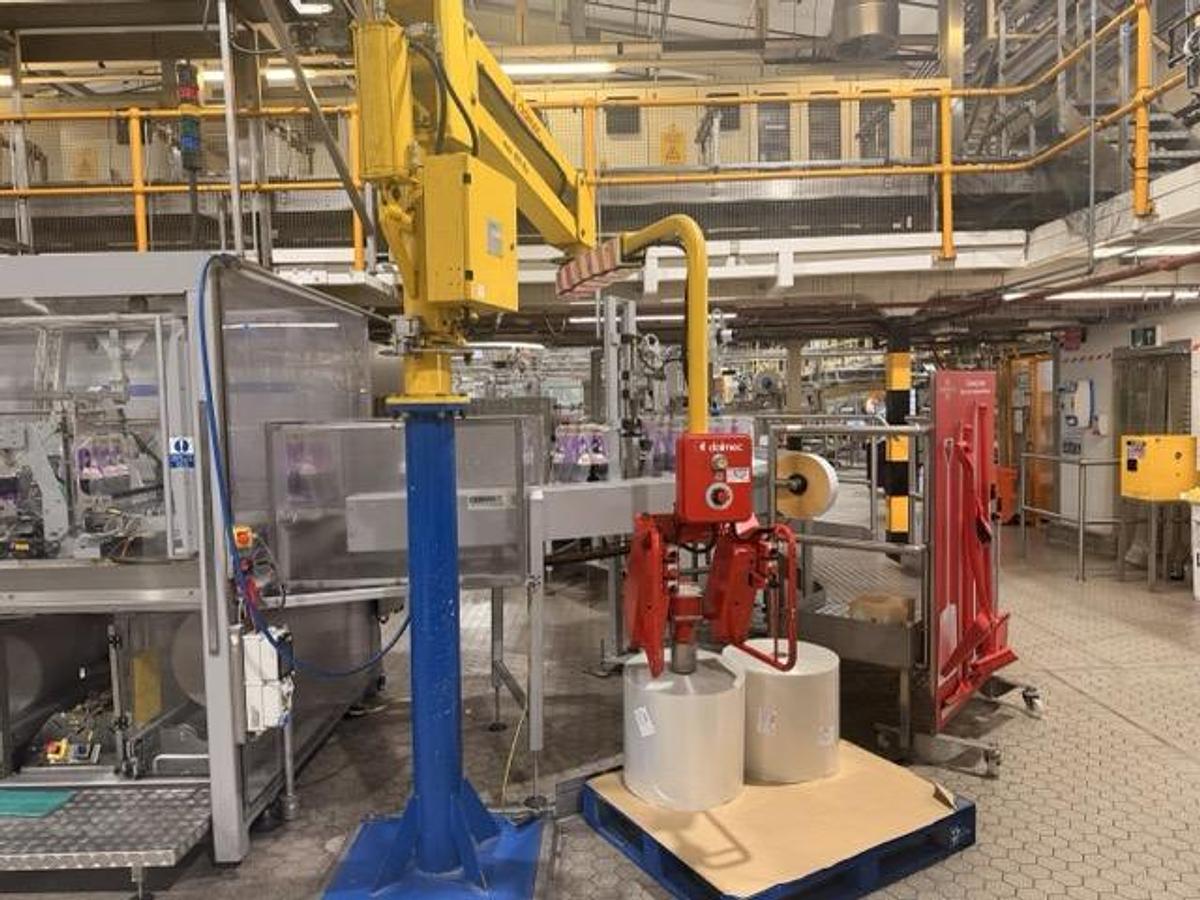

Dalmec Reel Handling Manipulator

Maximum lifting capacity: 100 kg

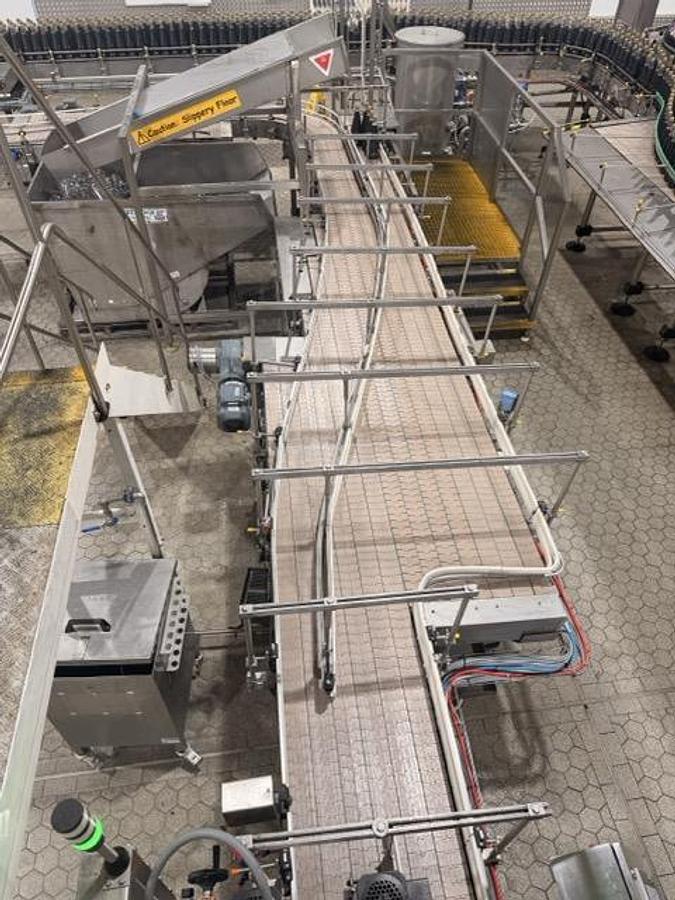

Conveying

Complete conveying between the listed machines

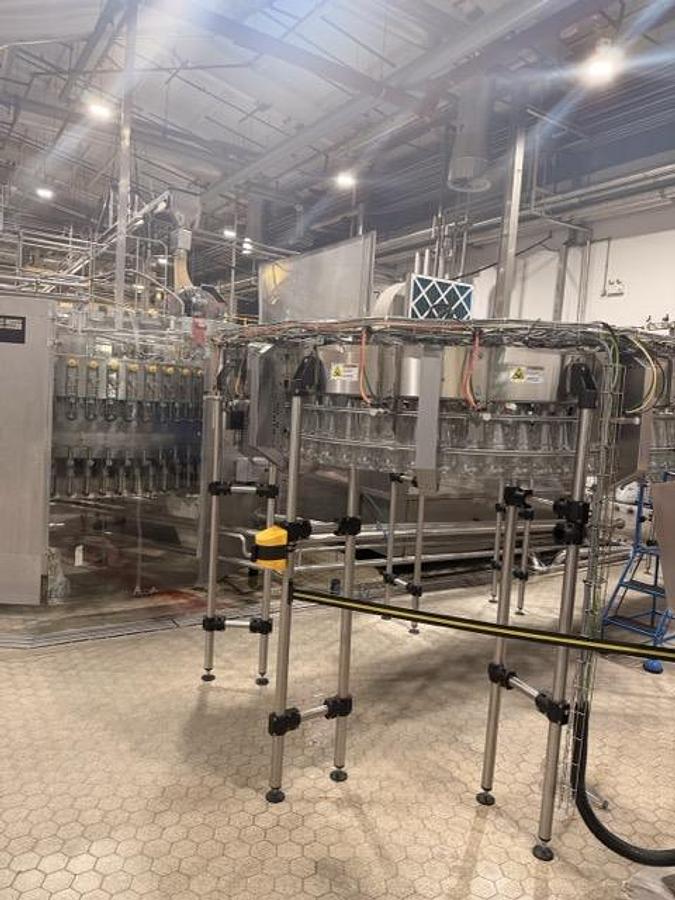

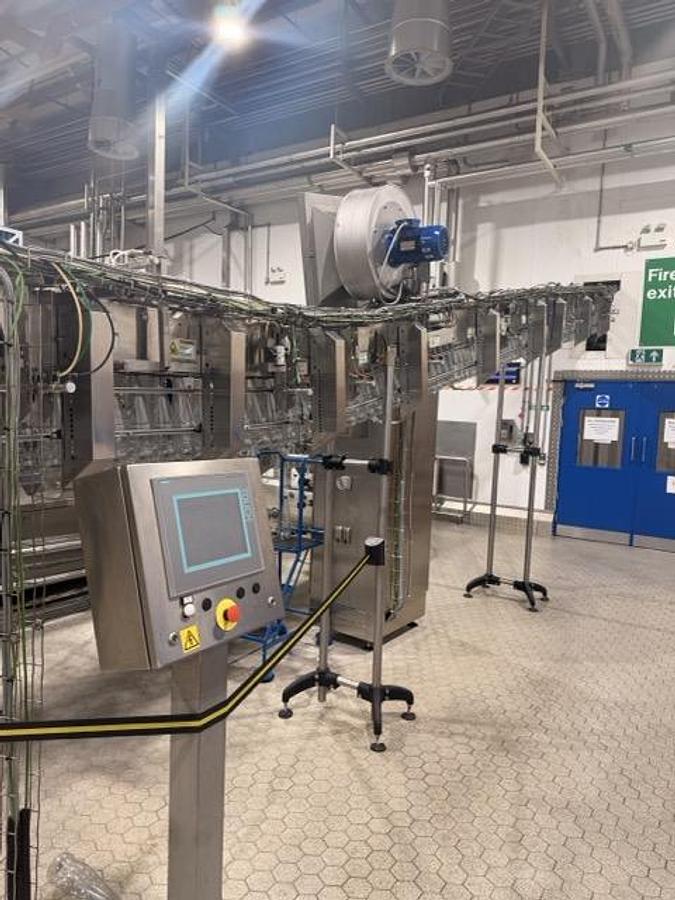

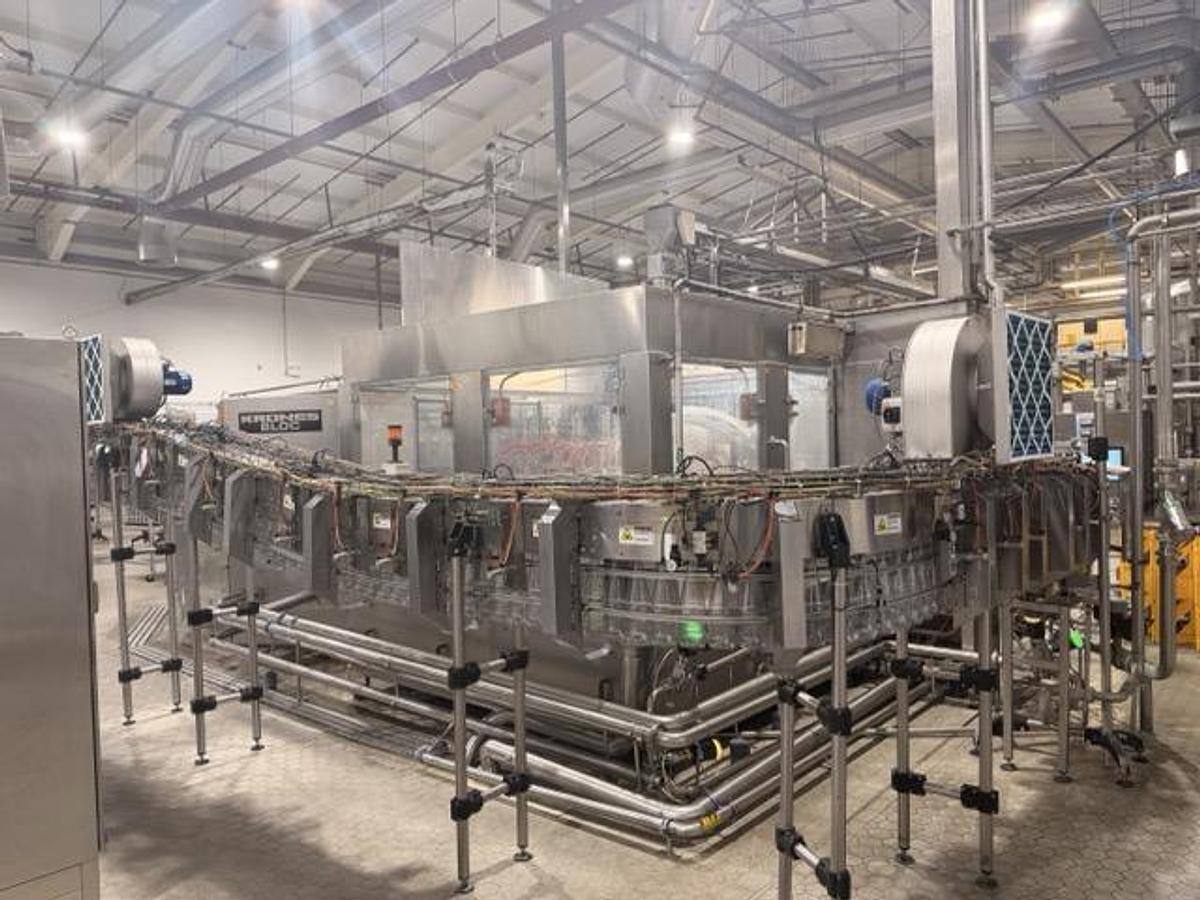

Lanfranchi air conveyor for empty PET bottle handling

Integrated conveying through filling, labelling, packaging and pallet handling sections

Formats & Change Parts

The line is currently tooled for two PET bottle formats:

• 500ml
• 850ml

Format change parts for both bottle sizes are included with the line.

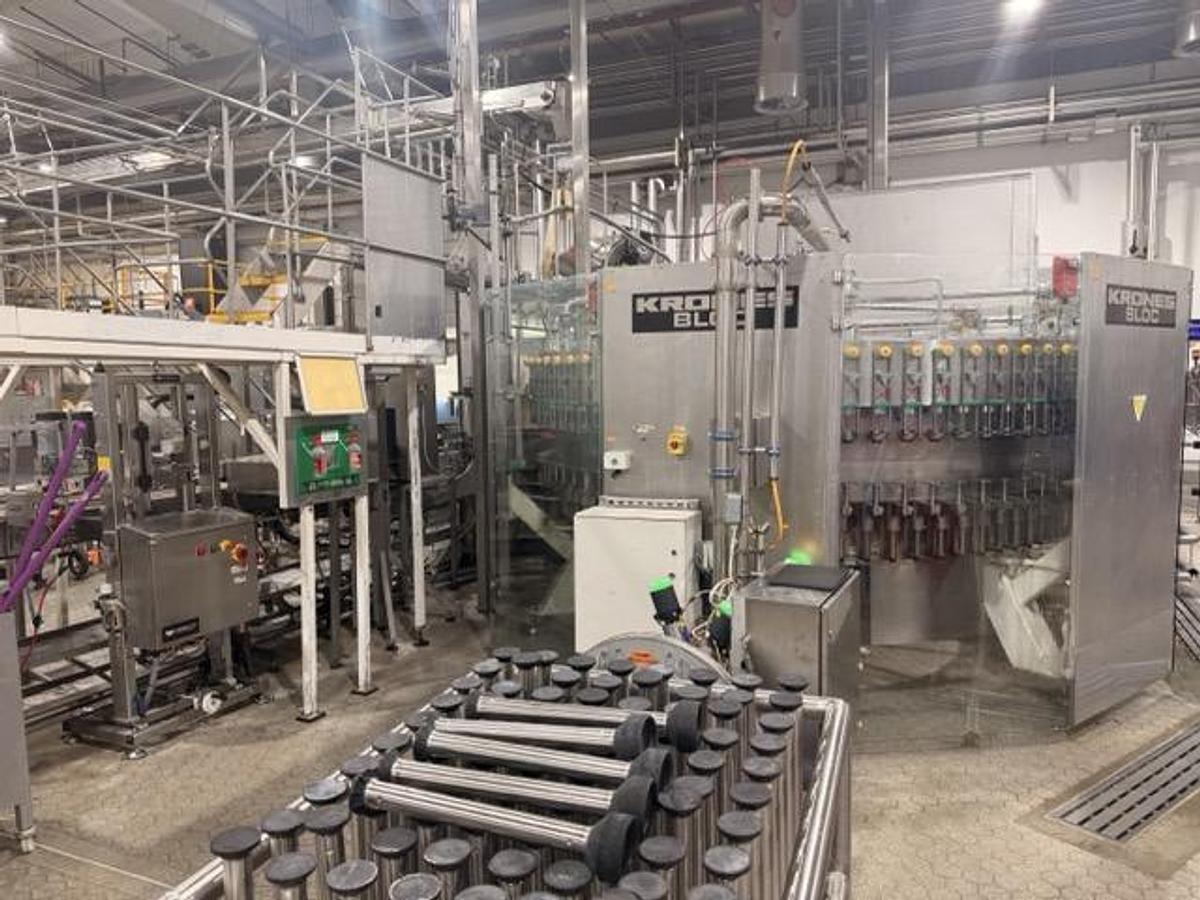

Multiple dedicated change-part trolleys are available, including tooling for the rinser and capper.

Condition & Maintenance

The line remains in daily production and can potentially be witnessed operating prior to dismantling, subject to site approval.

The equipment has been maintained as a complete production system and has received progressive upgrades, including:

• Krones control cabinets – 2012
• Lanfranchi air conveyor – 2015
• Loma Systems IQ4 metal detector – 2020

The original build year of the Krones filling monobloc is currently being confirmed.

Included Equipment

The line includes:

• Complete wet end from bottle infeed through to filled and capped bottle
• Flash pasteurisation system
• Labelling and inspection
• Shrink wrapping
• Case packing
• Metal detection
• Pallet handling equipment
• Pallet strapping and wrapping
• Conveying between listed machines
• Format change parts for 500ml and 850ml PET bottles

Not Included / To Be Confirmed

The following equipment is not currently confirmed as part of the sale:

• PET blow moulding equipment
• Palletising robot – ownership to be confirmed
• Shared site utilities including compressed air, steam, chilled water and CIP
• Syrup room and blending plant

Availability & Project Support

The line is currently installed and operational, with release expected in 2027 following commissioning of the site's replacement production line.



Full project support is available including:

• Technical due diligence
• Operational line inspection
• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and commissioning
• Integration into existing production facilities
