2004 / 2007 Krones Complete aseptic PET bottling and packaging line

Overview

Complete aseptic PET bottling and packaging line designed for the production of still, sensitive beverages requiring aseptic processing and filling.

The line combines a Tetra Pak UHT sterilisation and aseptic processing system with a Krones PET-Asept filling block, providing an integrated solution from product sterilisation and aseptic buffering through to filling, inspection, packaging and finished pallet handling.

Product is sterilised through a Tetra Therm Aseptic Drink UHT system, transferred to a 5,673 litre Tetra Alsafe aseptic buffer tank, and subsequently filled using the Krones PET-Asept system.

The dry end includes Krones inspection and conveying equipment, multipack shrink wrapping and tray packing, a Krones Pressant palletiser and automatic ring stretch wrapping.

The line has also benefited from significant investment, with new Krones inspection equipment, control panels and coding equipment installed in 2020.

Production Capability

Designed for:

• Still beverages
• Sensitive beverages
• Aseptically processed products
• PET bottles

Rated production output: To be confirmed

Final rated filling speed is currently being verified against the Krones OEM machine specification.

Bottle formats, filling valve count and neck finish are also being confirmed.

Key Line Features

Complete aseptic PET processing and filling system

Tetra Pak UHT product sterilisation

5,673 litre Tetra Alsafe aseptic buffer

Krones PET-Asept aseptic filling block

Integrated Krones container handling and conveying

Krones Checkmat inspection system – upgraded 2020

Markem-Imaje coding system – 2020

Loma Systems IQ4 metal detection

Multipack shrink wrapping and tray packing

Krones Pressant automatic palletising

Automatic ring-type pallet stretch wrapping

Complete integrated conveying from filling through to finished pallet

Designed for continuous production of sensitive, non-carbonated PET beverages

Asset Breakdown

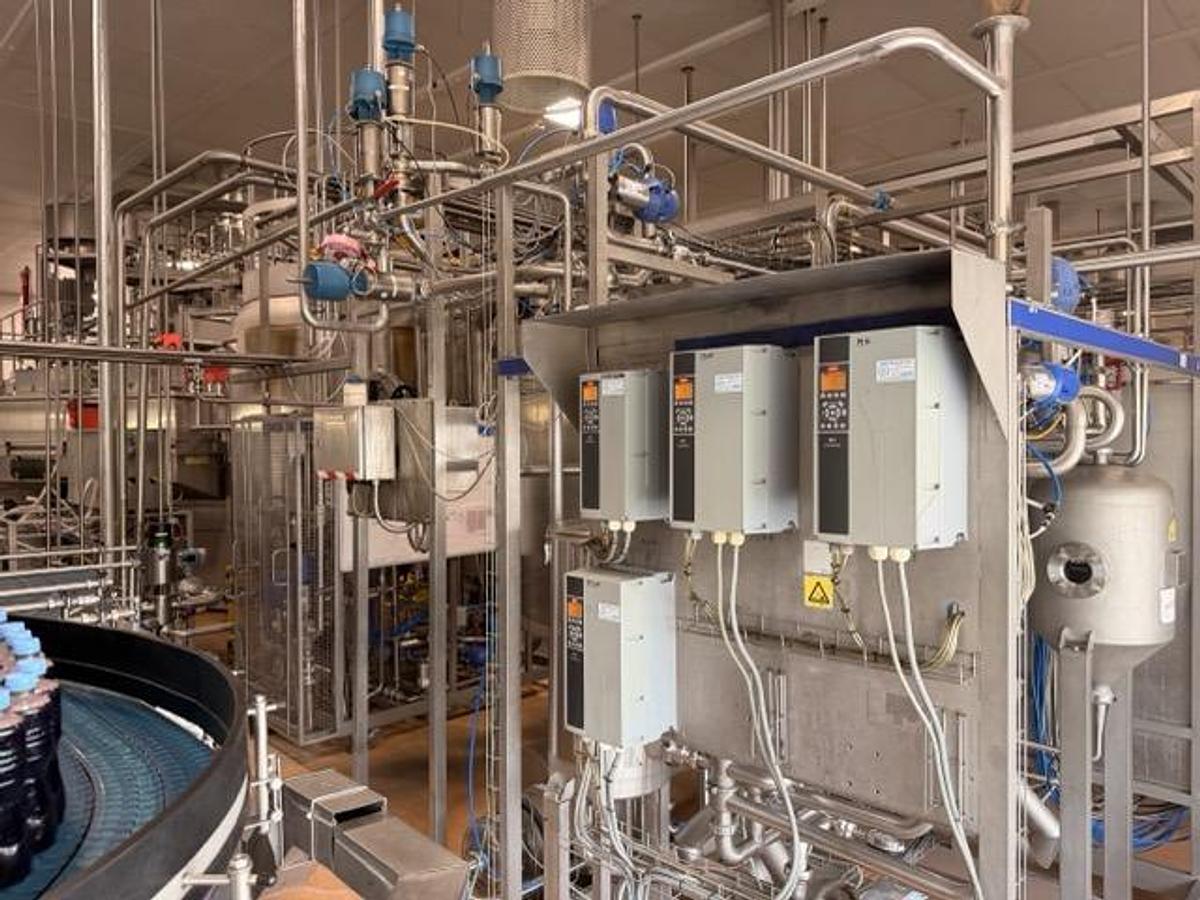

UHT Processing & Aseptic Buffering

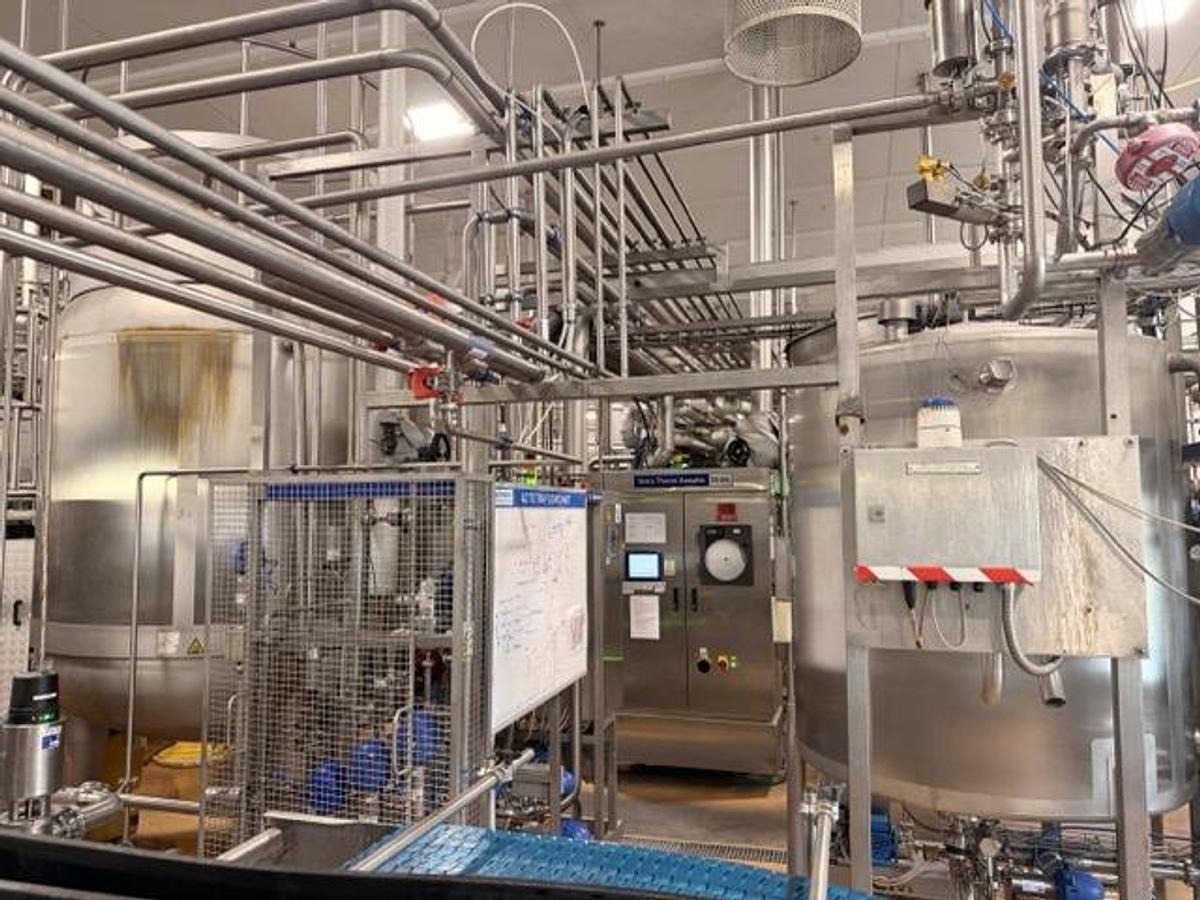

Tetra Therm Aseptic Drink UHT Steriliser – 2004

Complete UHT product sterilisation system

Honeywell Truline recorder

Critical process control / monitoring

Tetra Alsafe Aseptic Buffer Tank – 2004

Capacity: 5,673 litres

Provides aseptic product buffering between UHT processing and filling

Alfa Laval CW8-SR Heat Exchanger – 2004

Design temperature range: 0–143°C

Tetra Pak Lantern Process Vessel – 2004

Capacity: 60 litres

Design pressure: 0–6 bar

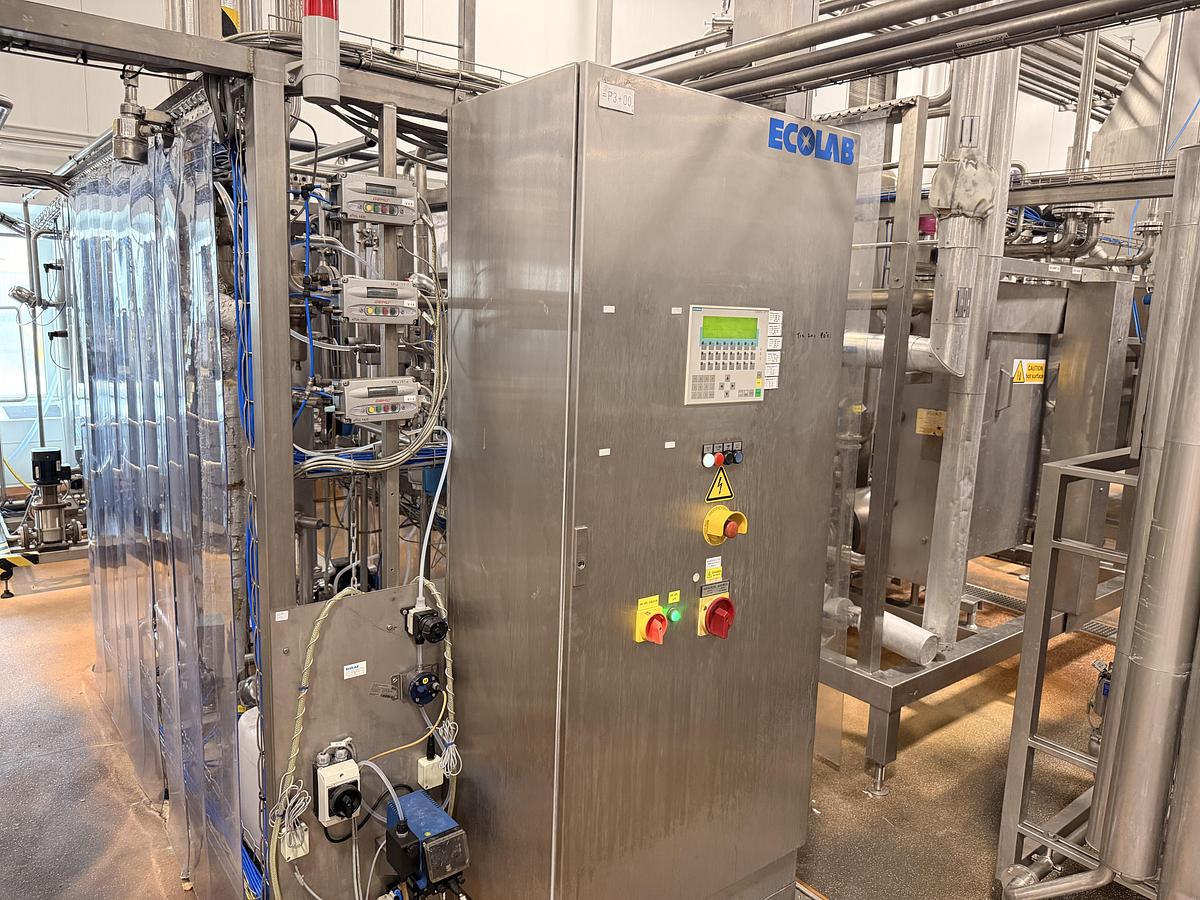

Ecolab / Lang Apparatebau CIP Demineralised Vessel – 2004

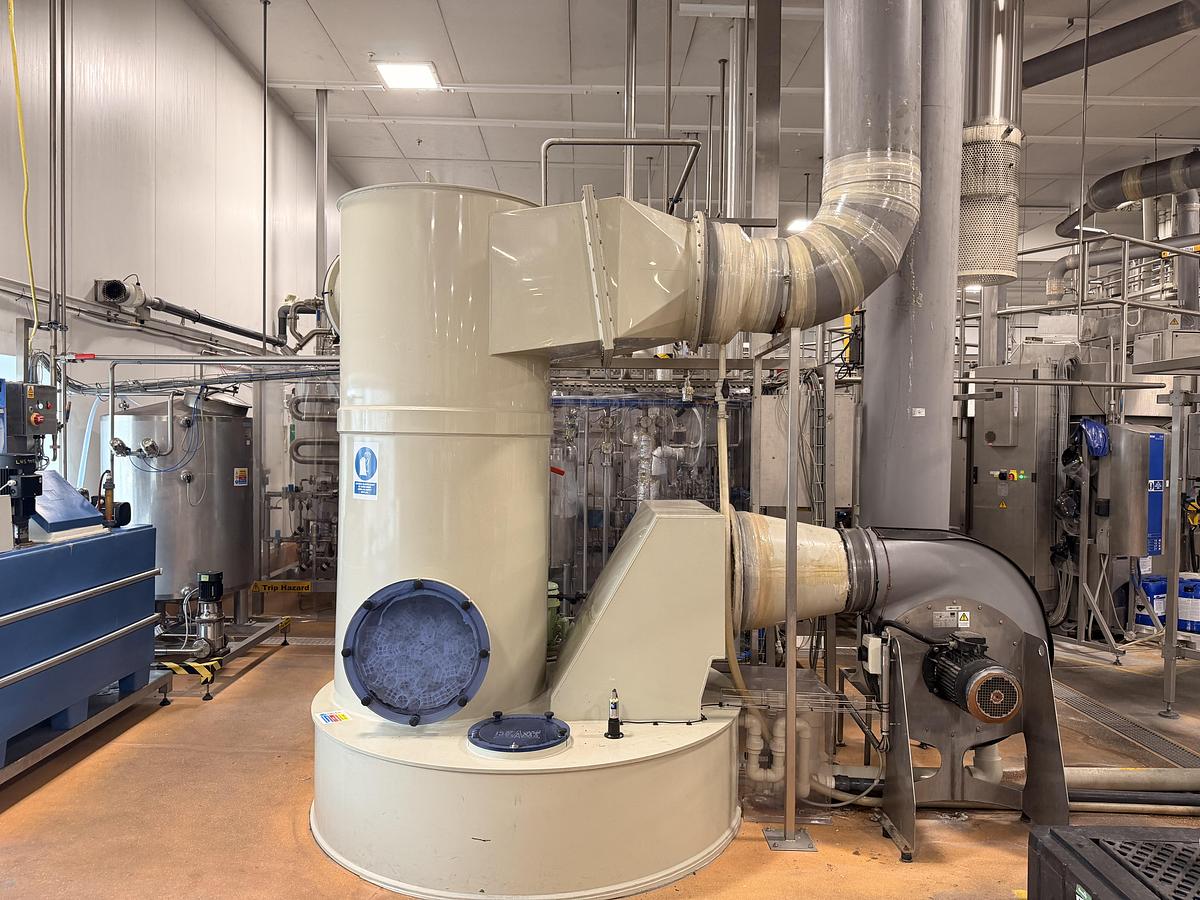

Colasit CMV 400 Extract Fan – 2004

Airflow: 6,000 m³/h

Power: 5.12 kW

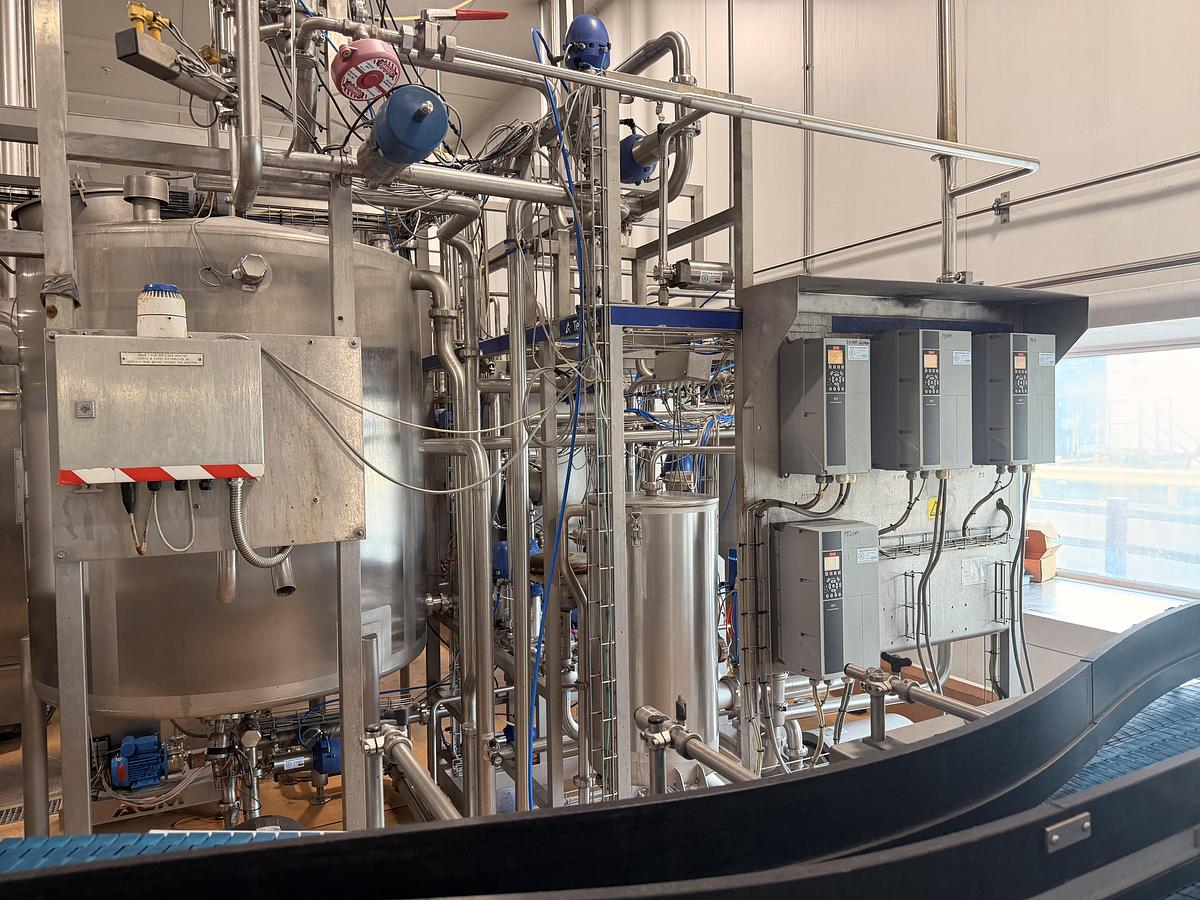

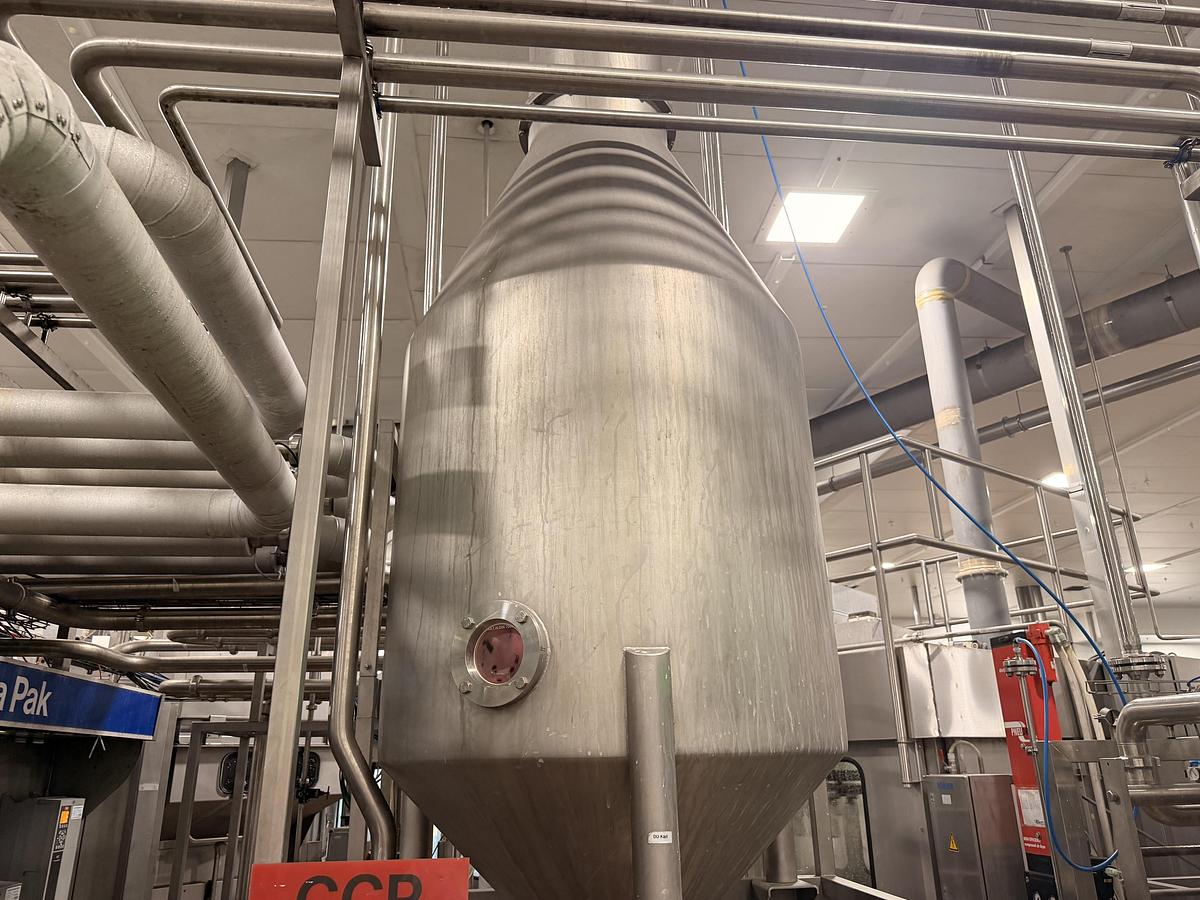

Stainless Steel Aseptic Process Tanks

Vertical stainless steel vessels

Capacities to be confirmed

Aseptic Filling

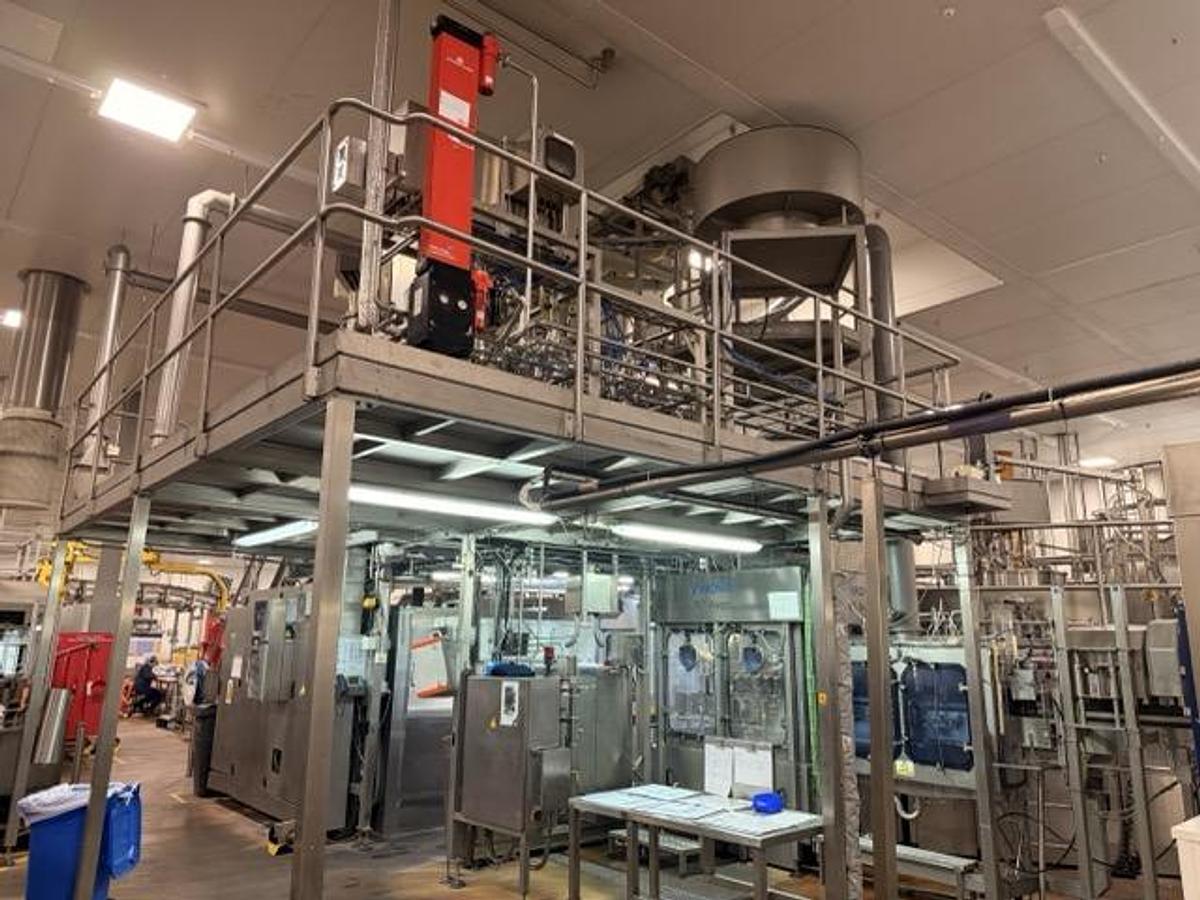

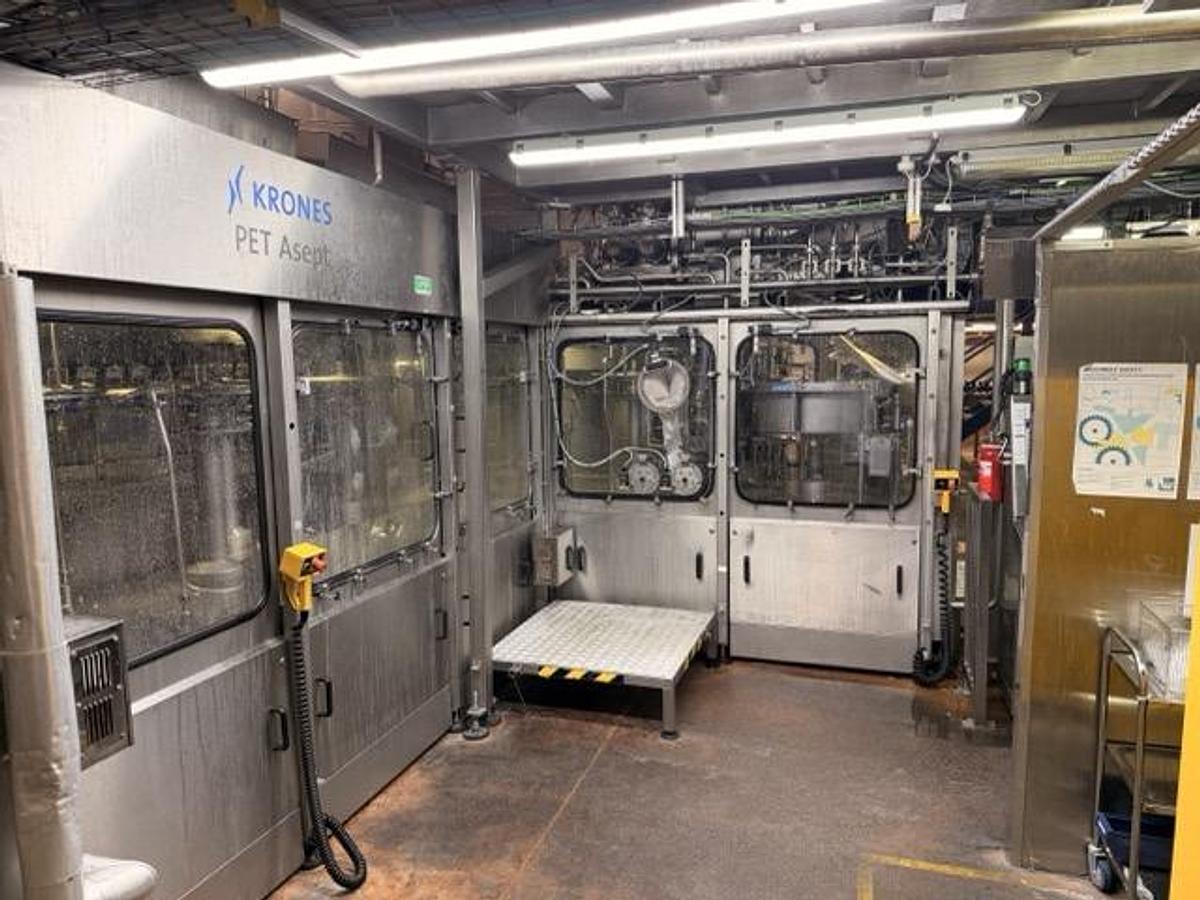

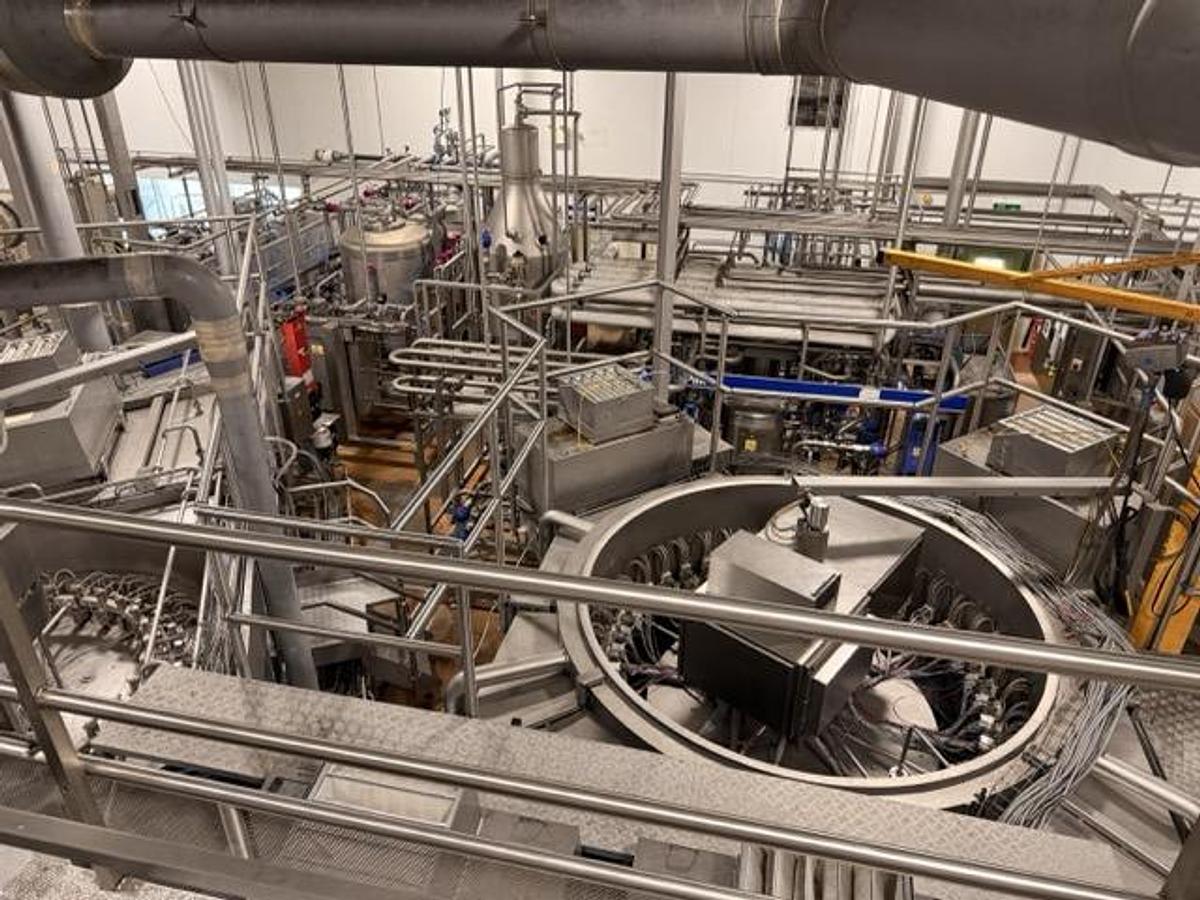

Krones PET-Asept Aseptic Filling Block – 2004 / 2007

Integrated aseptic PET filling system

Configured for the hygienic filling of sensitive still beverages

Exact filling valve count and rated production speed to be confirmed against OEM machine records

Krones Process Units – 2004

Integrated process equipment supporting the PET-Asept filling system

Krones SynCo Container Transport System

Integrated bottle handling and transport

Inspection, Coding & Detection

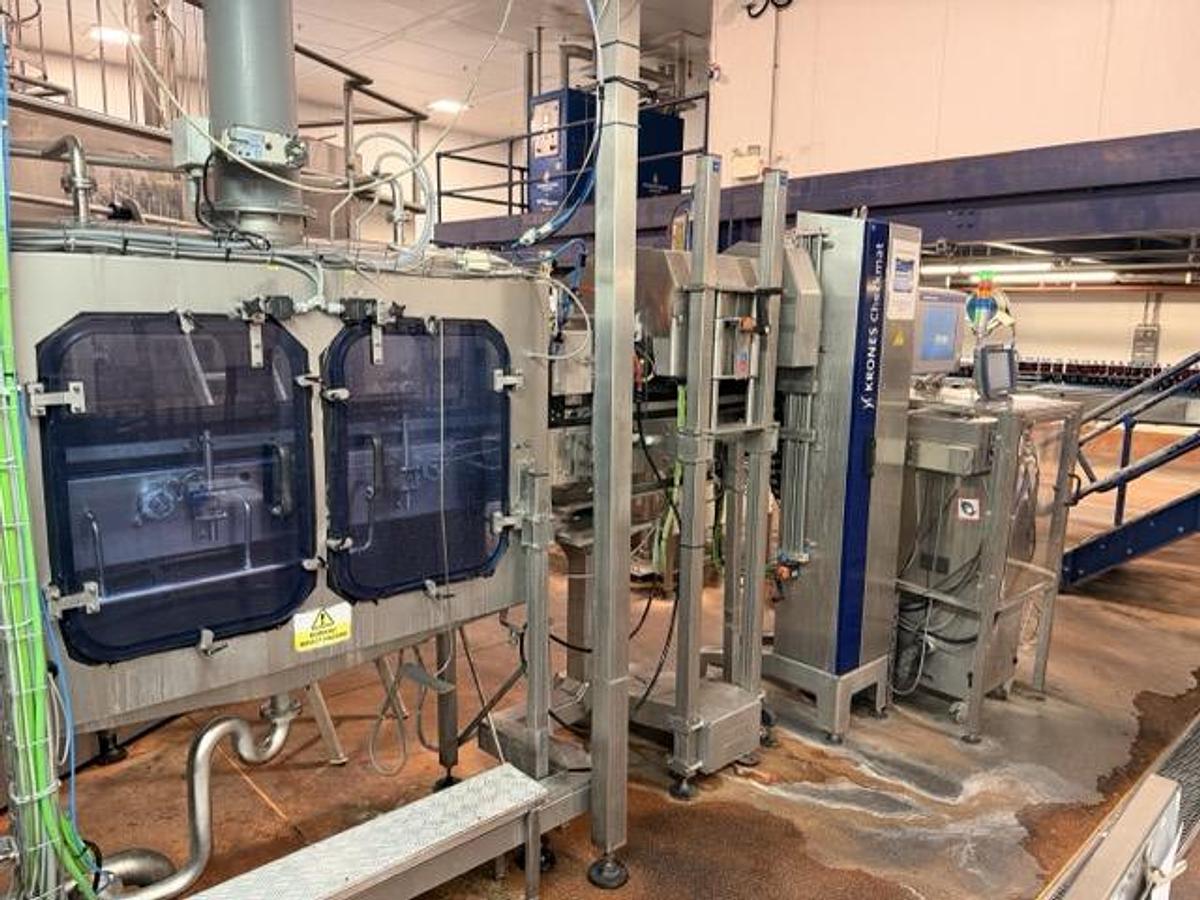

Krones Checkmat 731 Inspection System – 2020

Upgraded inspection equipment

Markem-Imaje 2200 Coder – 2020

Manufactured August 2020

Loma Systems IQ4 Metal Detector

Pack-level product detection

Packaging

Shrink Wrapper & Tray Packer

Multipack shrink wrapping and tray packing configuration

Palletising

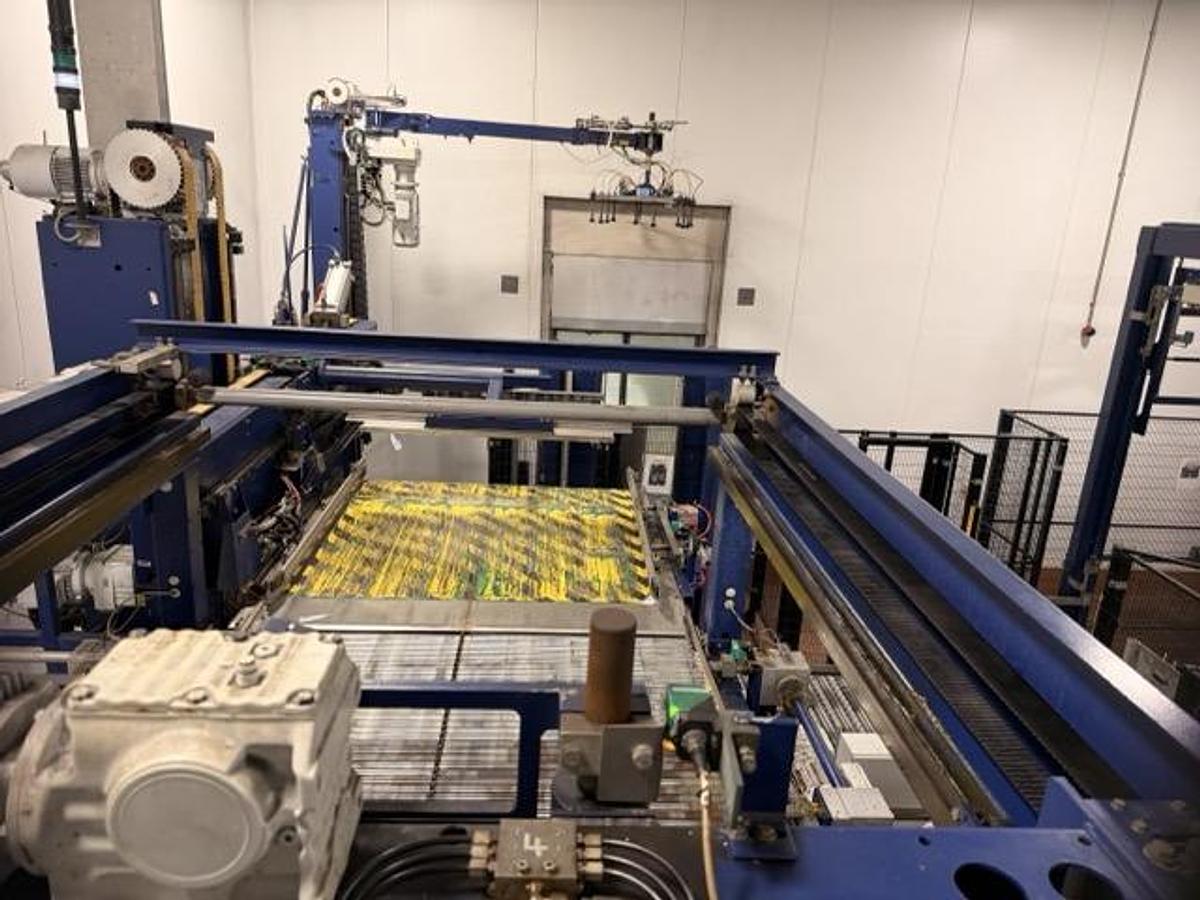

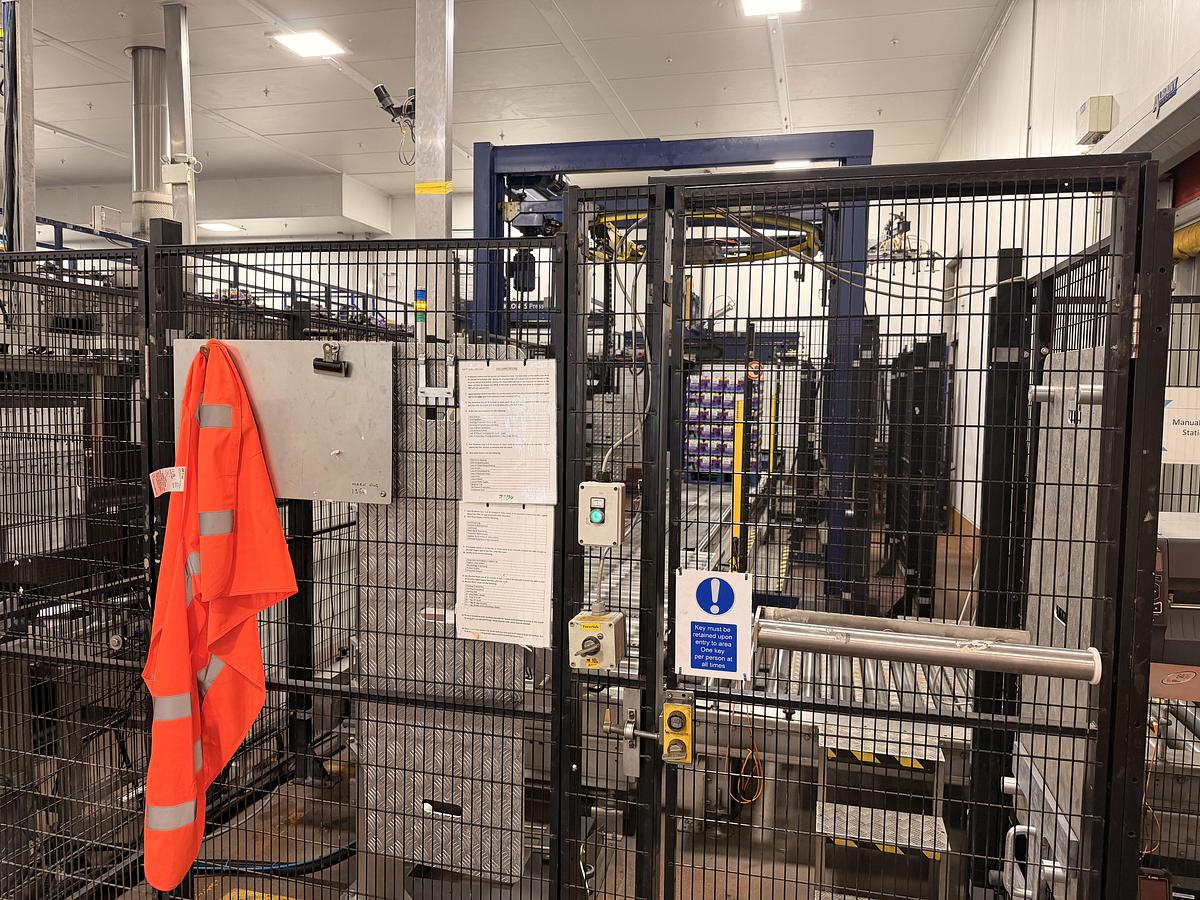

Krones Pressant Palletiser

Automatic layer-forming palletising system

Caged configuration

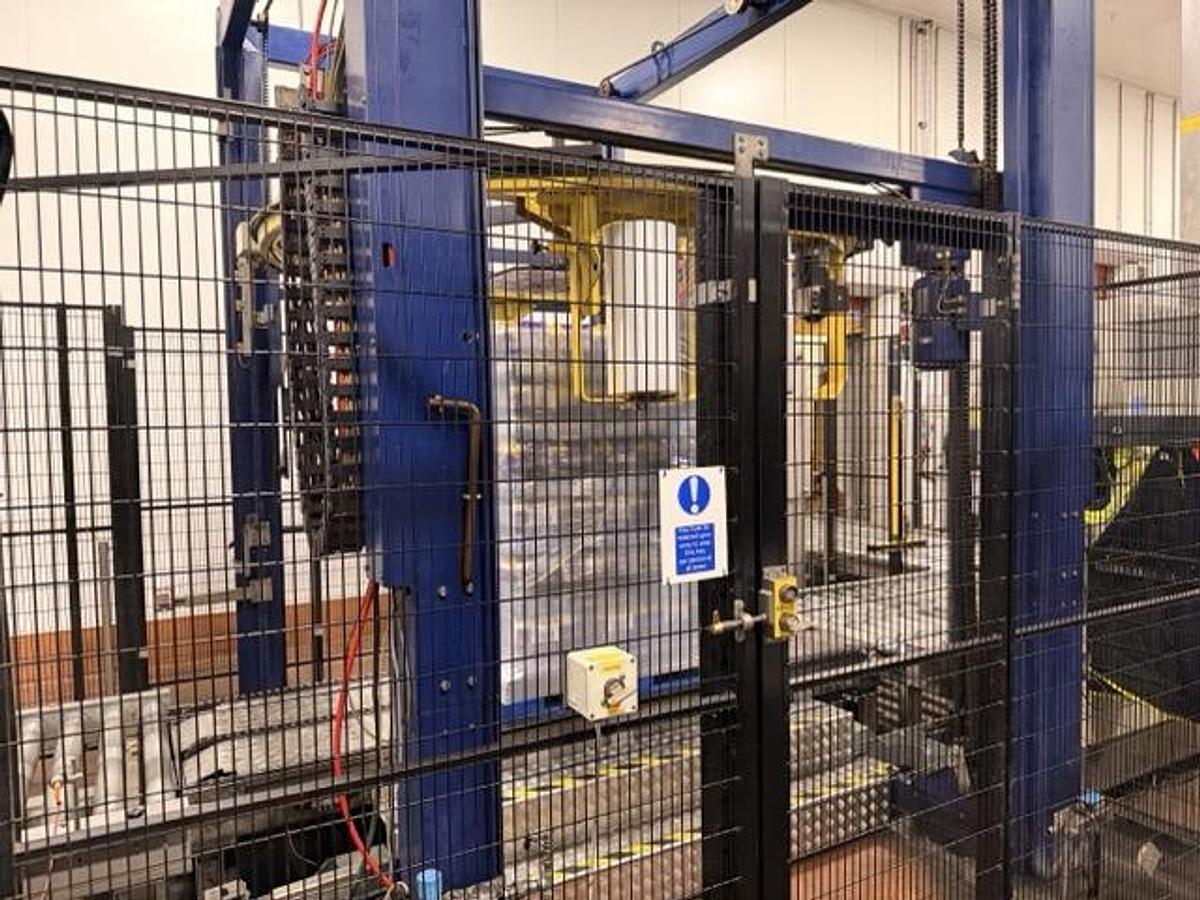

Automatic Ring-Type Pallet Stretch Wrapper

Inline finished pallet wrapping

Conveying

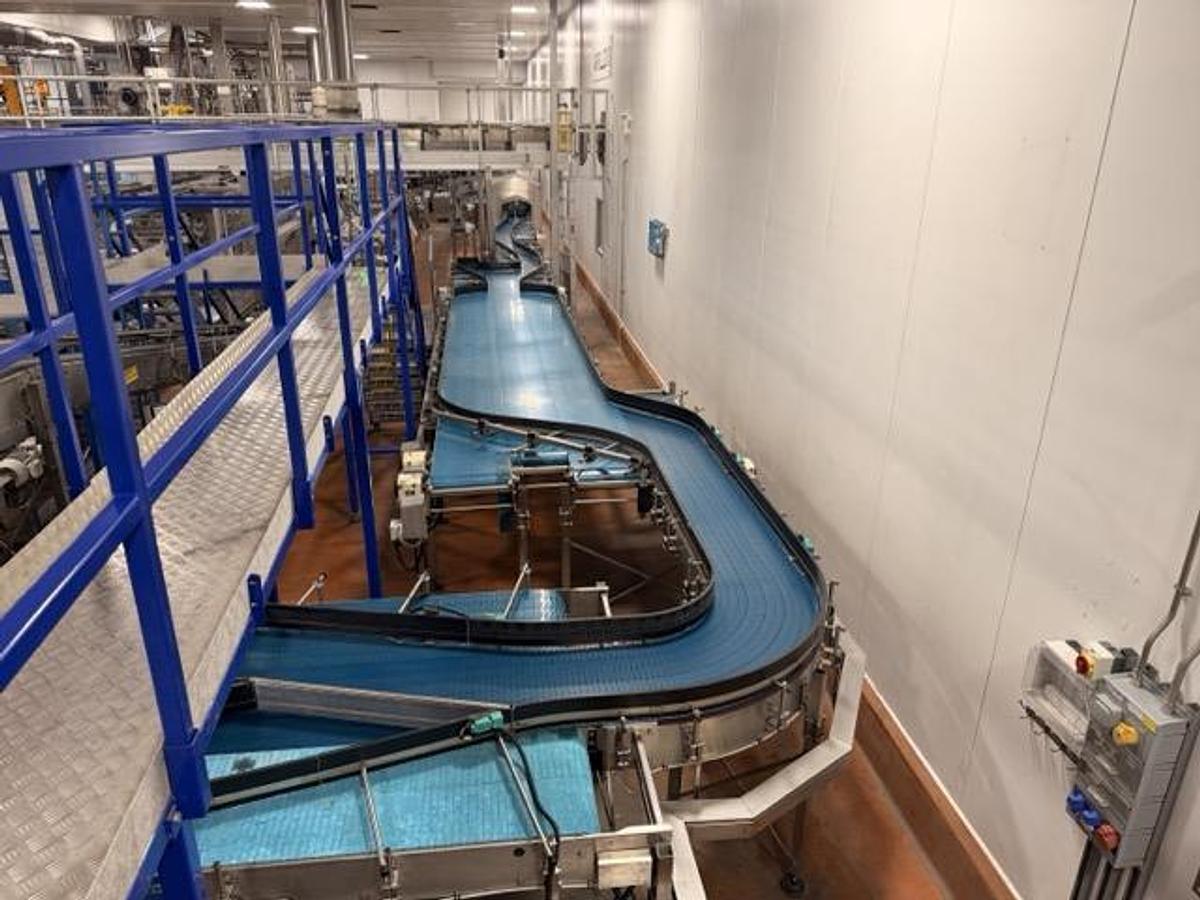

Krones SynCo Pack Conveying

Mat-top and slat conveying systems

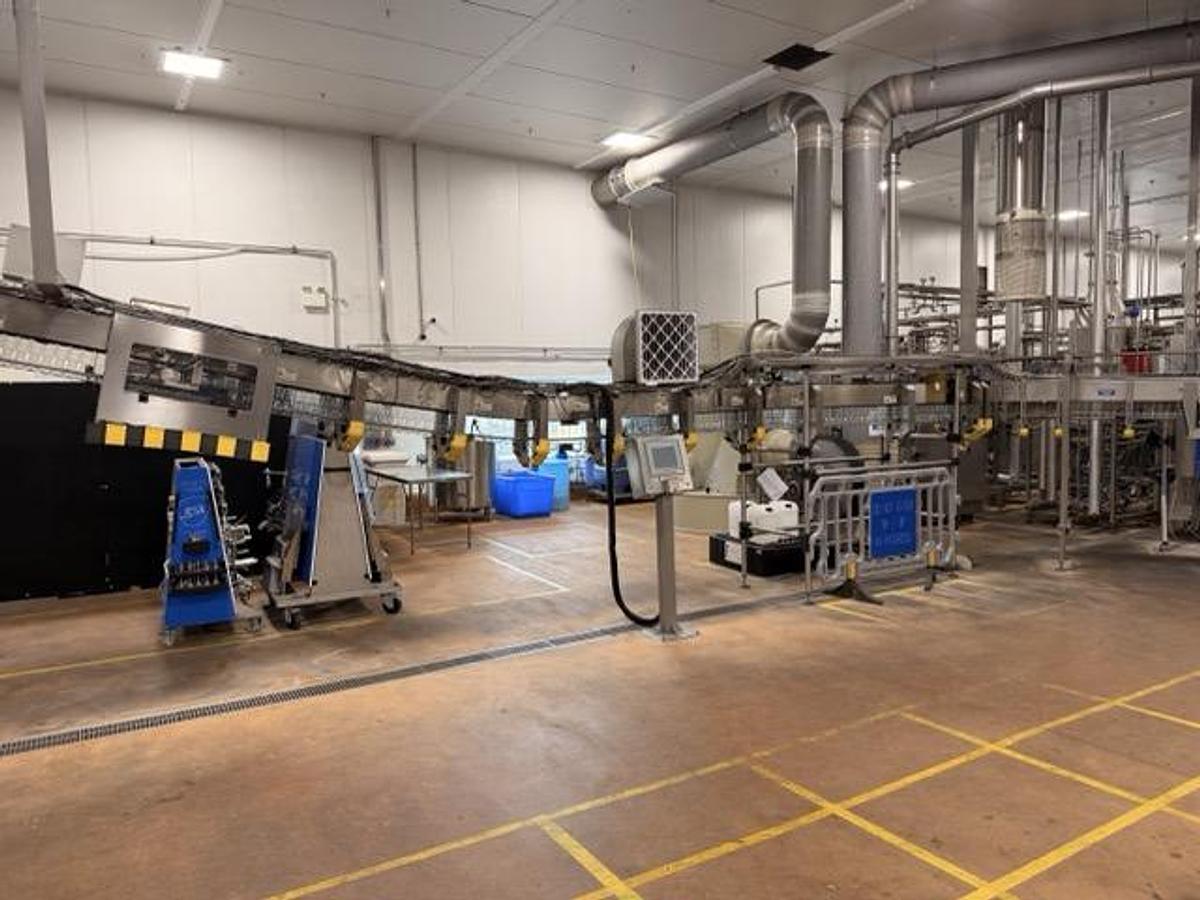

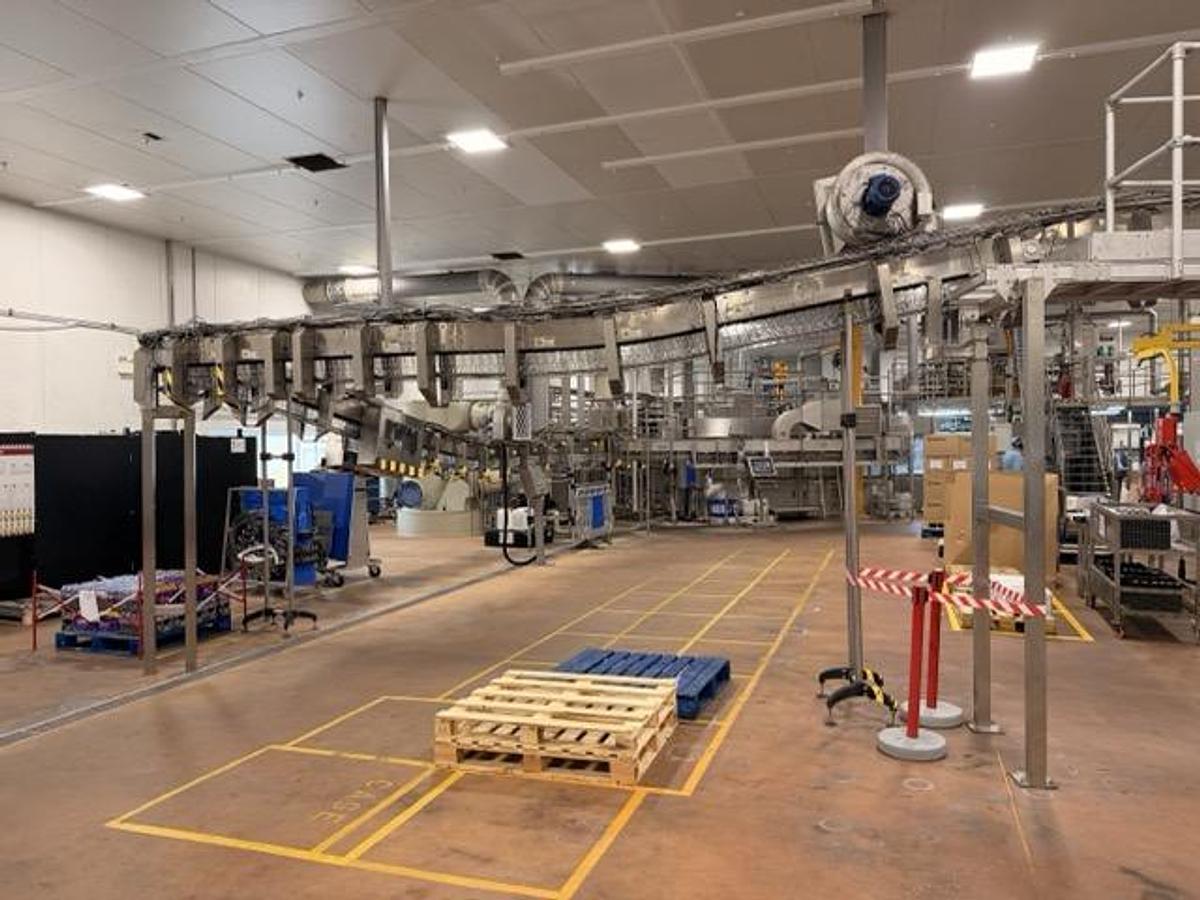

Empty Bottle Conveying

Overhead neck-handling conveyor system with elevated runs

Complete integrated conveying between the principal line equipment

Condition & Maintenance

The line forms part of an established beverage production facility and is being released as part of a capital replacement programme.

Significant investment was made in 2020, including:

• Krones Checkmat 731 inspection system
• Markem-Imaje 2200 coder

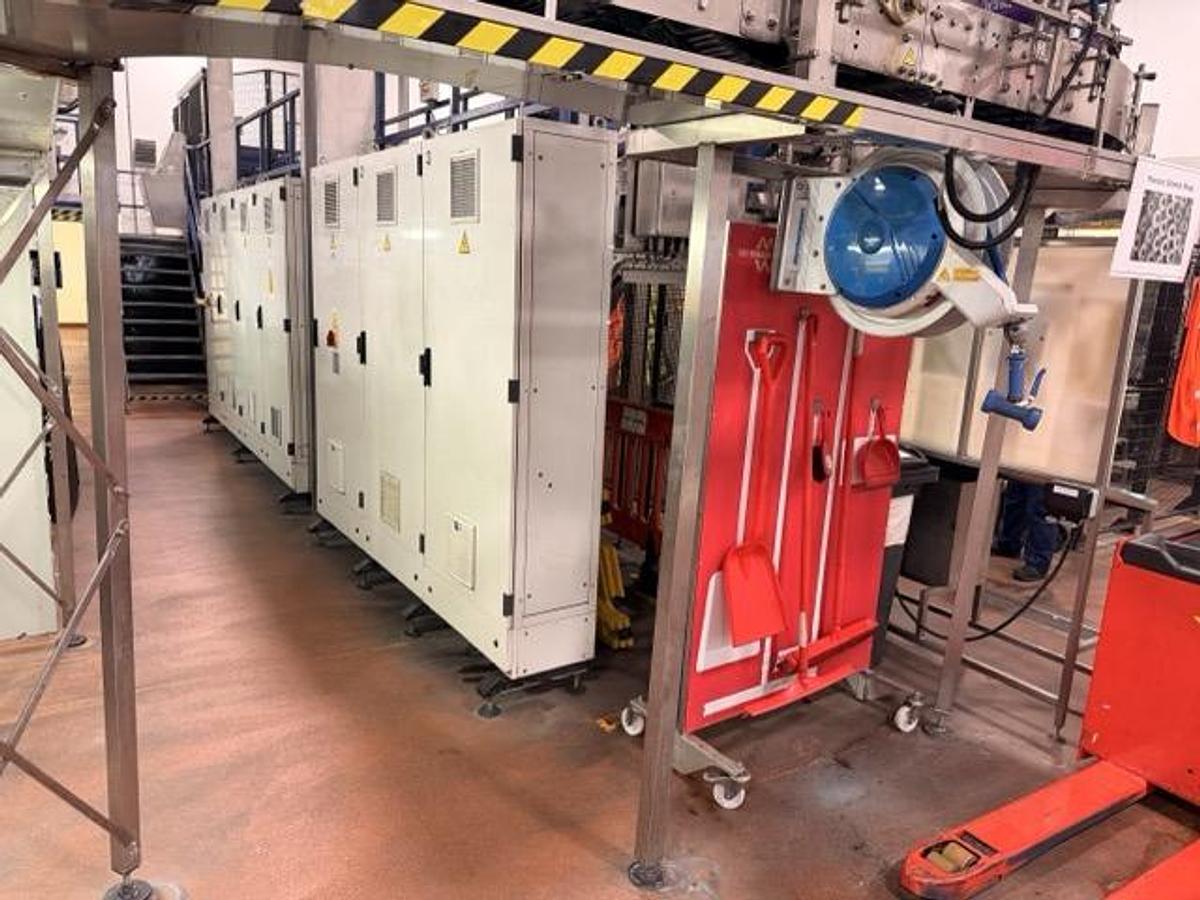

• Two Krones control panels

The process equipment, aseptic buffer and PET-Asept filling system remain together as a coherent aseptic production line.

Included Equipment

The line includes:

• Tetra Pak UHT sterilisation system
• Tetra Alsafe aseptic buffer tank
• Associated process equipment
• Krones PET-Asept filling block
• Container handling and conveying
• Inspection equipment
• Coding system
• Metal detection
• Multipack shrink wrapping and tray packing
• Krones Pressant palletiser
• Automatic pallet stretch wrapping
• Complete dry end through to wrapped pallet

Not Included / To Be Confirmed

The following equipment or specifications are currently excluded or awaiting confirmation:

• PET blow moulding equipment
• Shared site services
• Blending plant
• Bottle sizes and neck finish
• Format change parts inventory
• Filling valve count
• Rated filling output
• Wet or dry sterilisation configuration

Availability & Project Support

The line is currently installed, with release expected in 2027 as part of the site's capital replacement programme.

Full project support is available including:

• Technical due diligence
• Operational line inspection
• OEM specification verification
• Decommissioning and dismantling
• Loading and export packing
• Transport and logistics
• Installation
• Commissioning
• Integration into existing production facilities
• Complete project handover
