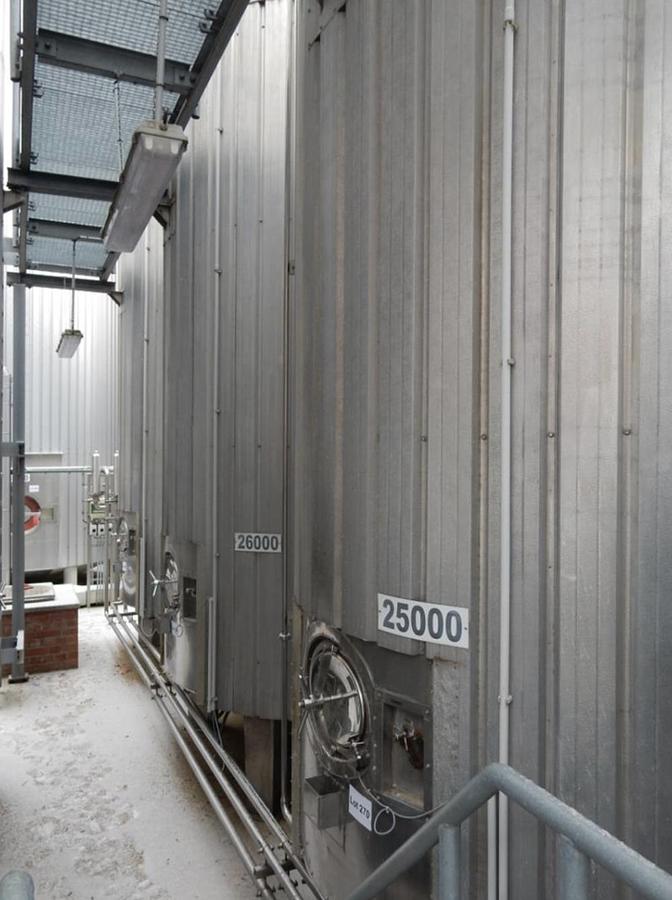

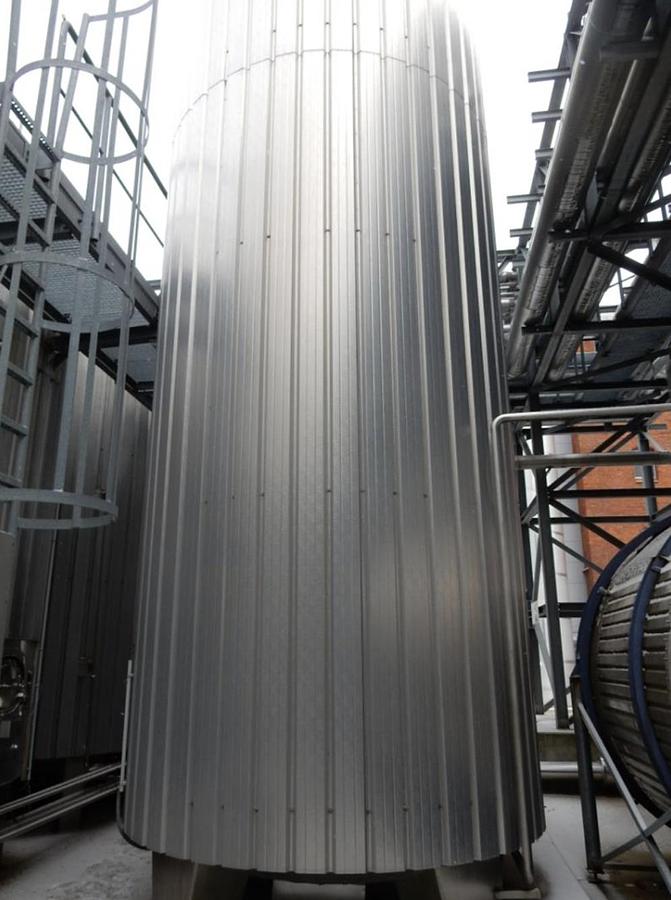

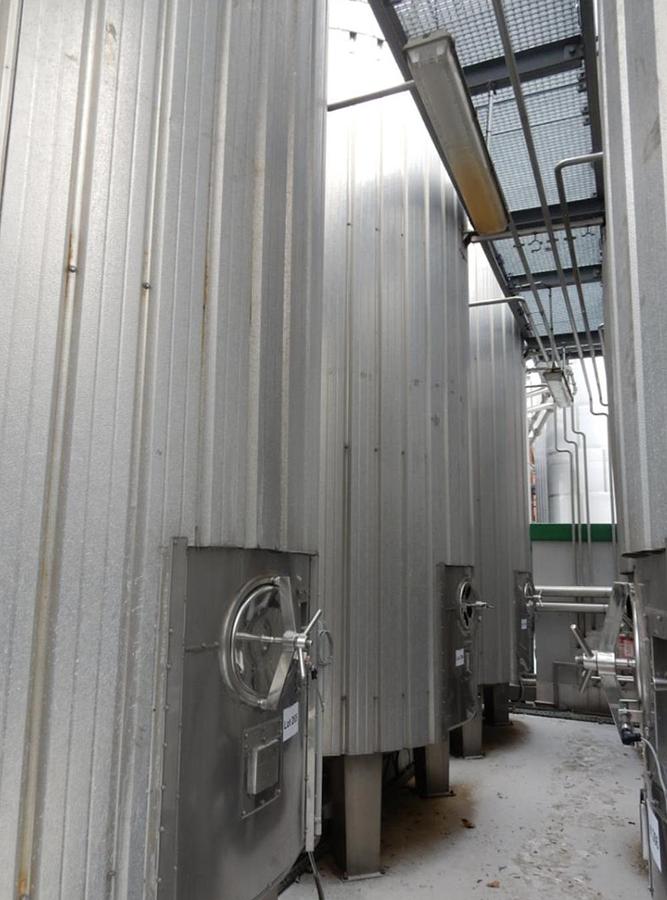

25,000 litres 304 Stainless Steel Insulated Storage Tanks

Technical Summary

Capacity: 25,000 litres

Quantity: 5

Manufacturer: Sielmann Bremen

Year: 2007

Orientation: Vertical

Material: AISI 304 Stainless Steel

Application: Food

Tank Type: Storage Tank

Construction: Single wall, fully insulated

Outside Diameter: 2,690 mm

Tank Diameter: 2,490 mm

Total Height: 6,200 mm

Cylindrical Length: 4,500 mm

Bottom Type: Dished

Fixation: 4 legs

Condition: Used

Specification

Vertical cylindrical stainless steel storage tank

Manufactured from AISI 304 stainless steel

Internal welds ground for hygienic finish

Single-wall construction

Fully insulated with 50 mm insulating wool

External profile cladding

Dished top and bottom

1 × 350 × 450 mm manhole positioned on the cylindrical section

100 mm flanged outlet

Designed for total drain

CIP cleaning ball fitted

2 × lifting lugs

Cylinder thickness: 2.5 mm

Top dome thickness: 2.2 mm

Bottom thickness: 2.2 mm

Previously used within the food industry

Manufacturer type plate fitted

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
