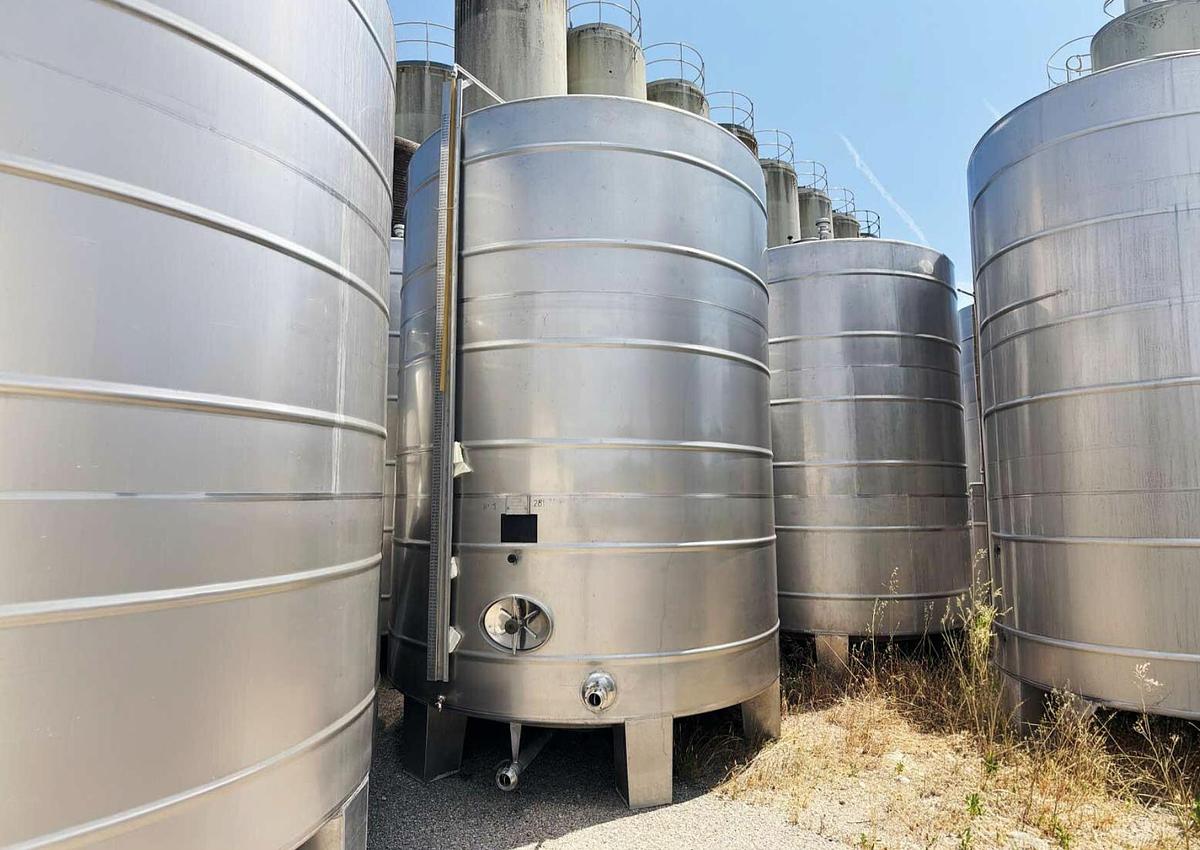

28,300 Litre 304 Stainless Steel Tanks

Overview

Used 28,300-litre (283 HL) AISI 304 stainless steel vertical storage tanks, designed for the storage of wine, juice and other food-grade liquids.

Featuring a conical bottom with separate partial and total drainage circuits, the tank is designed for efficient product discharge and easy operation. An oval access manway provides internal access for cleaning, inspection and maintenance.

Complete with level indication, sampling point, stainless steel valves and access fittings, this tank provides a practical and cost-effective solution for increasing liquid storage capacity within wineries, beverage plants and food processing facilities.

Technical Summary

Capacity: 28,300 litres / 283 HL

Quantity: 10 units

Orientation: Vertical

Material: AISI 304 Stainless Steel

Diameter: 3,000 mm

Total Height: 5,500 mm

Bottom Type: Conical

Condition: Used

Specification

Vertical cylindrical storage tank design

AISI 304 stainless steel construction

Conical bottom for efficient drainage

Peripheral reinforcement bands

Stainless steel support feet

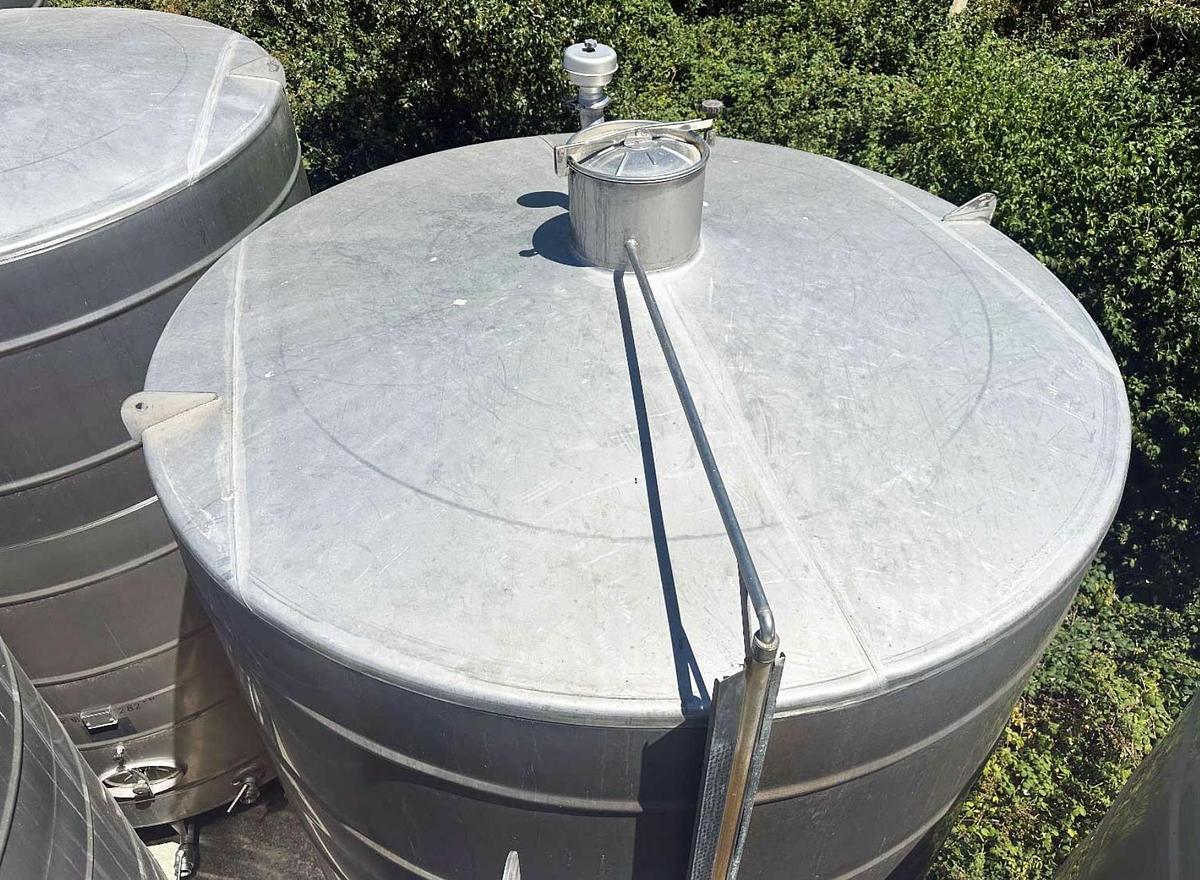

Top / Roof

• Centred chimney with stainless steel access hatch
• Valve positioned on chimney
• 2 lifting rings

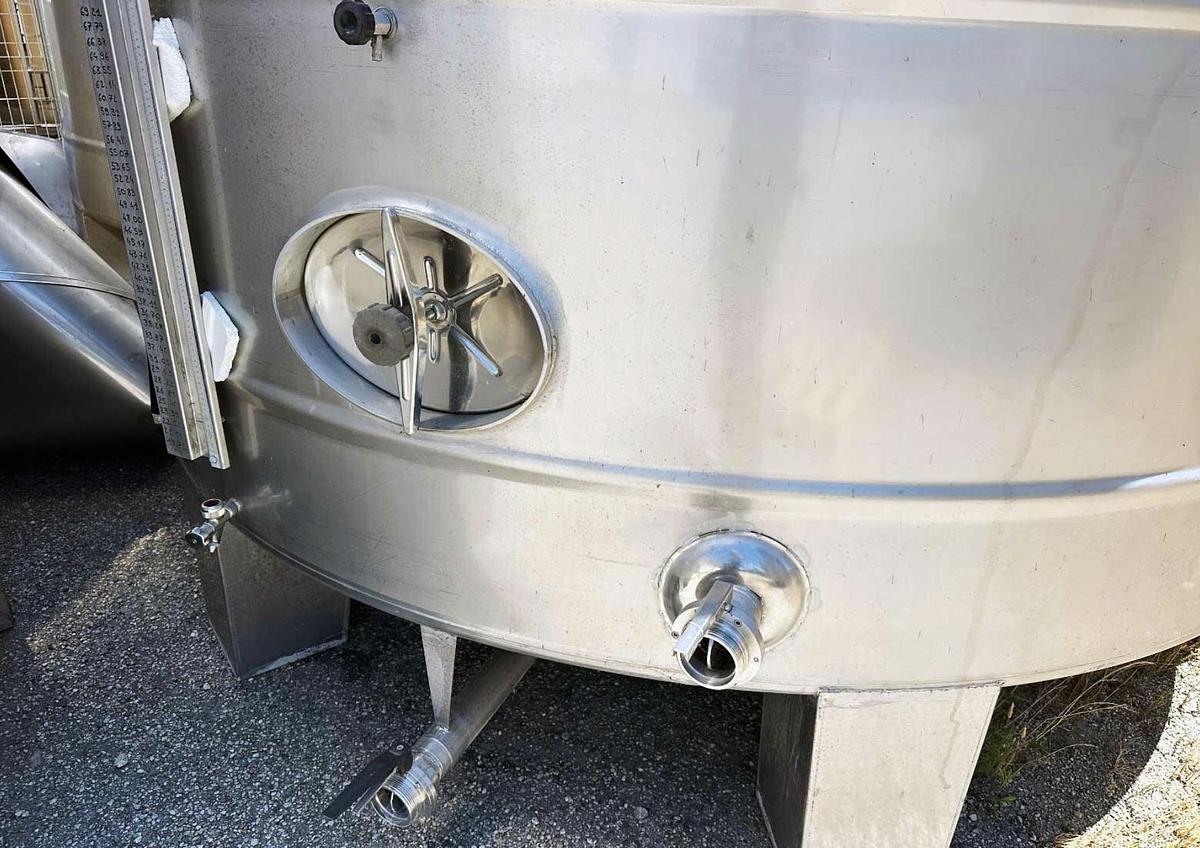

Tank Body

• Oval access manway
• Sampling / tasting tap
• Level gauge with graduated scale
• Stainless steel partial drain valve

Bottom

• Conical bottom
• Stainless steel total drain valve
• Stainless steel support feet

Applications

Suitable for a range of beverage and food processing applications, including:

• Wine storage
• Must storage
• Juice storage
• Cider production
• Food-grade liquid storage
• Winery and cellar applications
• Beverage production facilities
• General food processing applications



Availability & Project Support

Available immediately.

6-month warranty included.

CE compliant.

Full project support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
