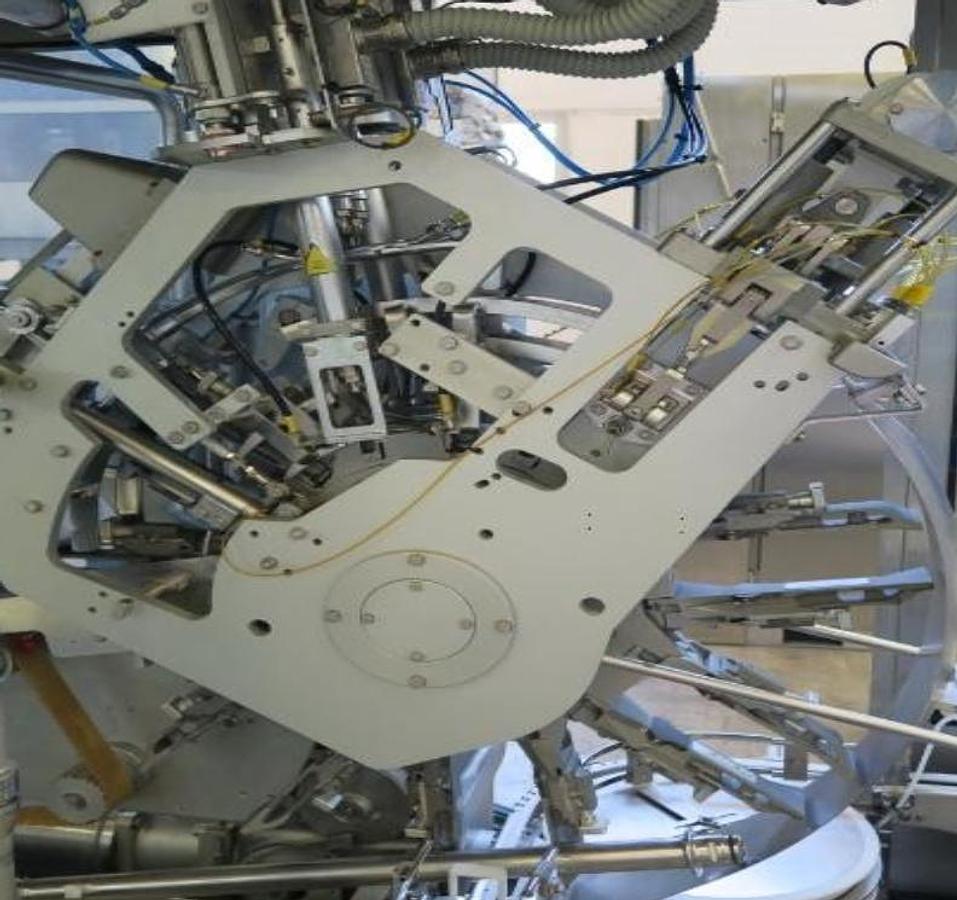

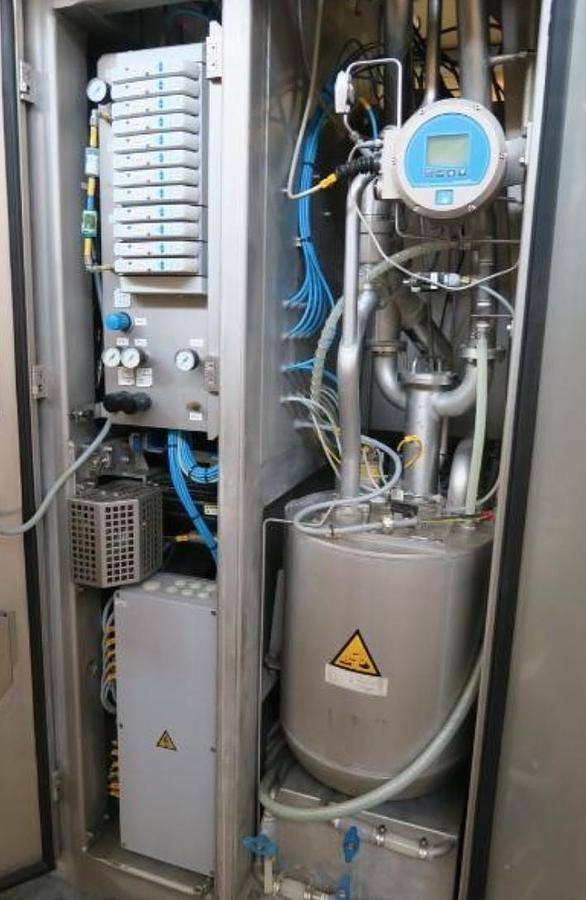

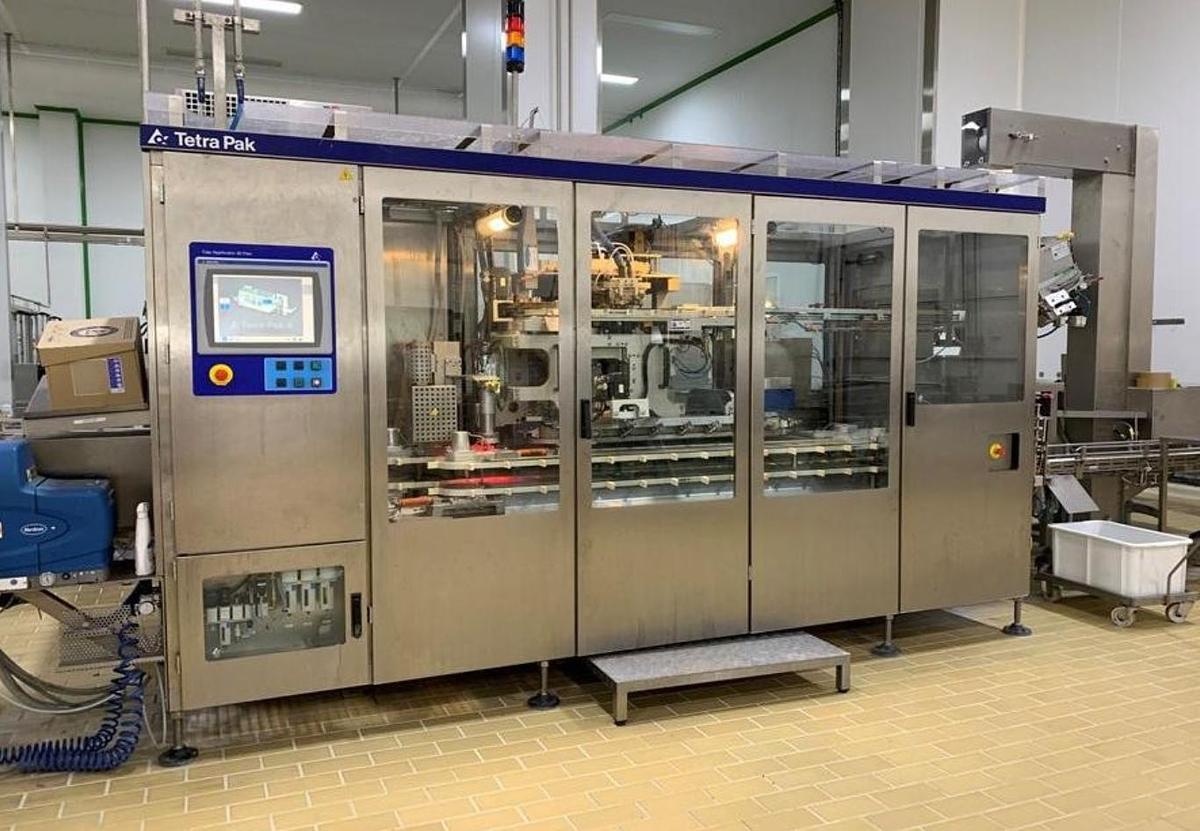

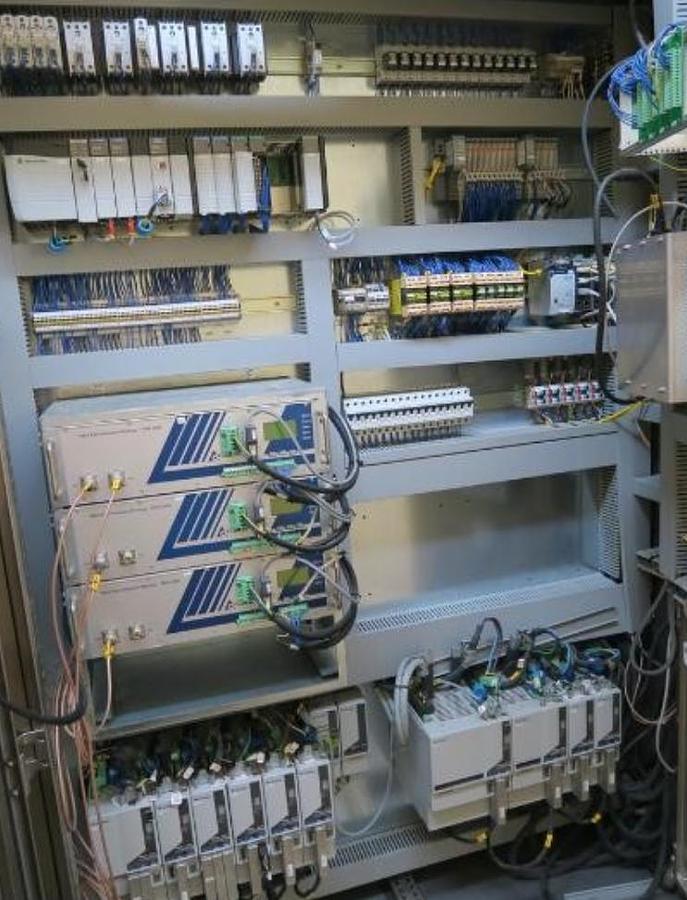

Tetra Pak A3/Flex 1000ml Prisma Aseptic Filling Line – 7,000 PPH

Complete Tetra Pak aseptic filling line designed for filling 1,000ml Prisma packages, with a nominal production capacity of up to 7,000 packs per hour.

The line is centred around a Tetra Pak A3/Flex filling machine and includes a Tetra Pak Cap30 Flex cap applicator, product conveyors and paper trolley.

Originally manufactured in 2007/2008, the equipment is offered fully refurbished, with installation, commissioning, start-up and sterile testing support available as part of the project scope.

Line Overview

Integrated aseptic carton filling solution covering:

Aseptic filling of 1,000ml Prisma packages

Cap application using StreamCap 500 closures

Finished pack conveying

Paper handling

Installation and commissioning

Sterile testing and production start-up support

Operator and maintenance training

Key Equipment

Aseptic Filling Machine – Tetra Pak A3/Flex

Year: 2007

Format: 1,000ml Prisma

Development Step: 150V

Nominal Capacity: 7,000 packs per hour

Service & Maintenance: Tetra Pak

Cap Applicator – Tetra Pak Cap30 Flex

Year: 2008

Cap Type: StreamCap 500

Nominal Capacity: up to 9,000 packs per hour

Power Consumption: 5 kW

Additional Equipment

2 x 5-metre conveyors with individual drives

Paper trolley

Technical Summary

Nominal line output: Up to 7,000 x 1,000ml packs per hour

Package format: 1,000ml Prisma

Filling temperature range: 5–50°C

Recommended filling temperature: 15–30°C

Product supply pressure: 1.5–2.5 ±0.5 bar

Electrical supply: 400/230V, 3-phase, 50/60Hz

Filler power consumption: 32.9 / 46.7 kW

Compressed air pressure: 6–7 bar

Compressed air consumption: 470–1,125 Nl/min

Cold water pressure: 2–4 bar

Cold water consumption: 15.6 ±0.7 L/min

Steam pressure: 2.0 bar

Steam consumption: 2.4 kg/h

Steam inlet temperature: 130°C

Condition & Availability

Year of manufacture:

Filling Machine: 2007

Cap Applicator: 2008

Condition: Used, offered fully refurbished

The equipment is supplied following refurbishment and can undergo a Factory Acceptance Test (FAT) with water prior to packing and shipment.

Indicative preparation/delivery period: approximately 120 days following order/deposit.

Additional Support

Full project support is available including:

Equipment refurbishment

Factory Acceptance Testing (FAT)

Packing and international transportation

Installation and commissioning

Start-up assistance

Sterile testing

Production assistance

Operator and maintenance training

A three-month equipment warranty is available following arrival at the buyer's facility, subject to agreed terms and conditions.
