Technical Summary

Capacity: 50,000 Litres (500 HL / 50m³)

Orientation: Vertical

Material: AISI 304 Stainless Steel with AISI 316L components

Diameter: Ø 3,023 mm

Tank Height: Approx. 7,000 mm

Top Type: Conical

Bottom Type: Flat bottom with 2% slope

Pressure: Atmospheric

Construction: Vertical cylindrical

Specification

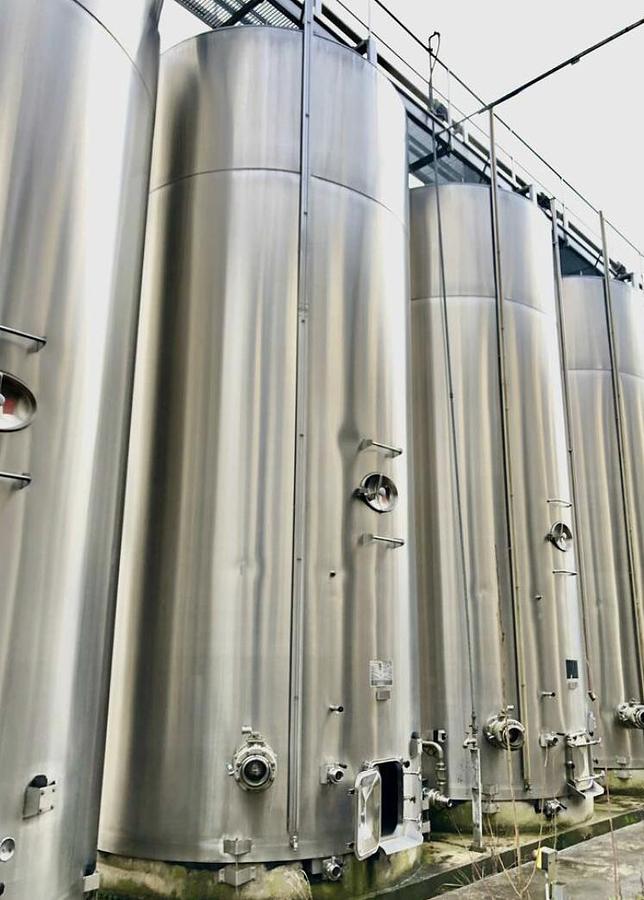

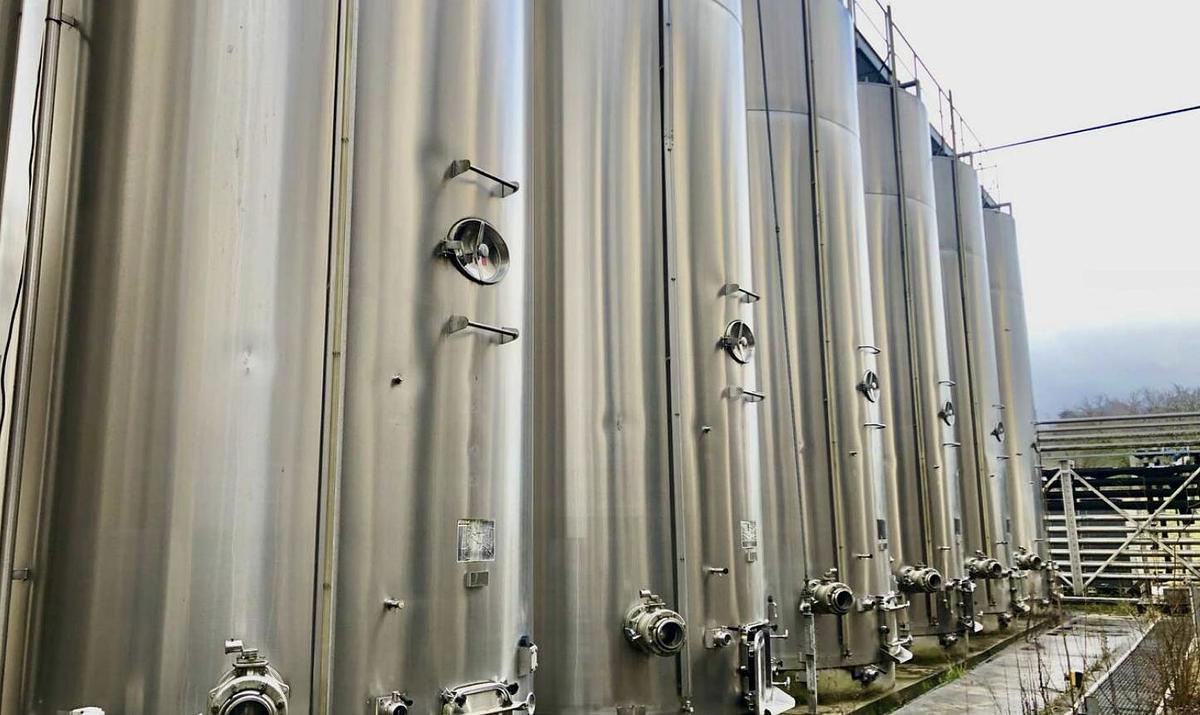

Vertical cylindrical stainless steel storage tank

AISI 304 stainless steel cylindrical shell

Conical top manufactured from AISI 316L stainless steel

Flat AISI 304 stainless steel bottom with 2% slope to assist drainage

Designed for installation on a concrete base

Oval stainless steel manway

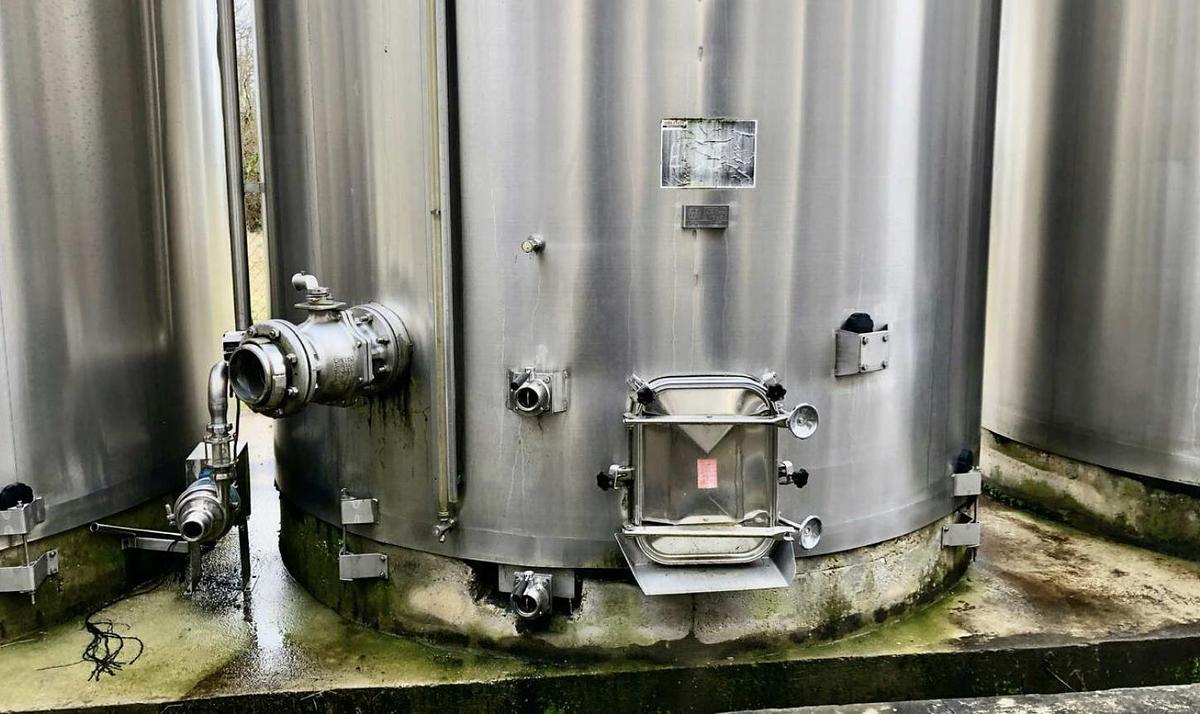

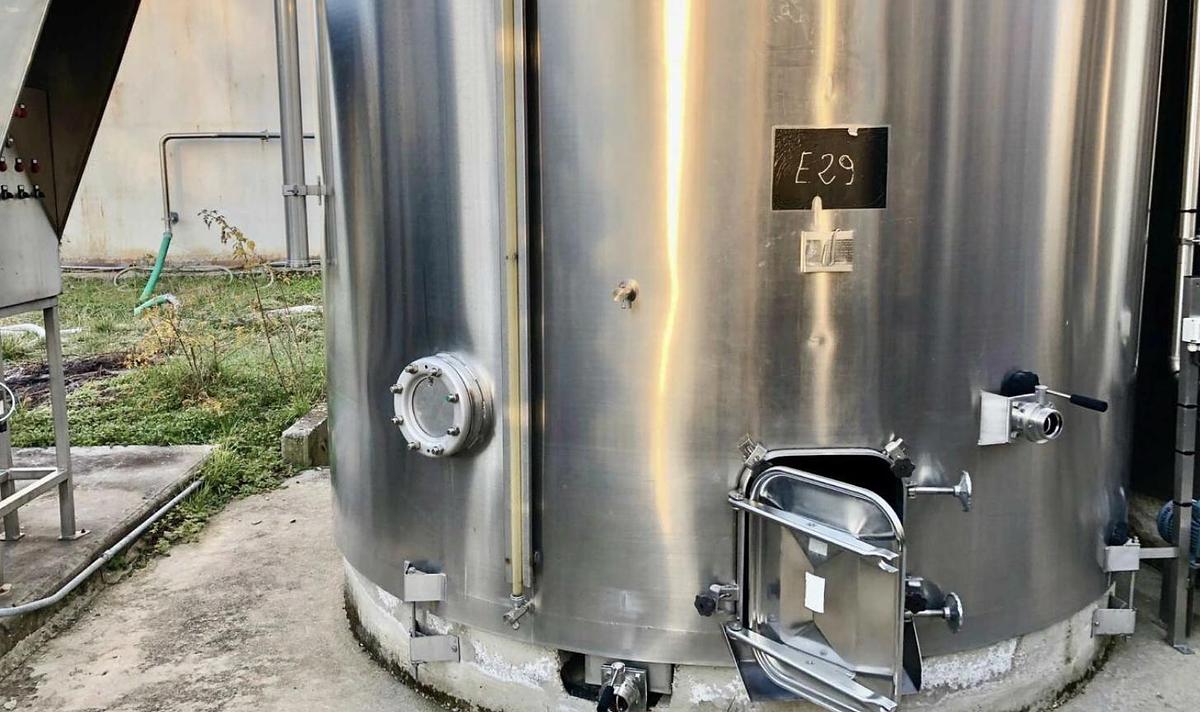

Rectangular access door approximately 410 x 530 mm with safety closures

DN60 butterfly valve for total discharge

DN60 butterfly valve for clear/product draw-off

Stainless steel sampling/tasting valve

Stainless steel level indicator with graduated scale

Thermometer connection with glove finger

Pressure/vacuum relief valve

DN500 breather/vent connection on tank roof

Lifting points incorporated into the vessel

Access handles fitted to the interior and exterior of the tank

Provision for access platform/support

Suitable for beverage, wine and general food-processing storage applications

Available for sale.

Full support available including:
