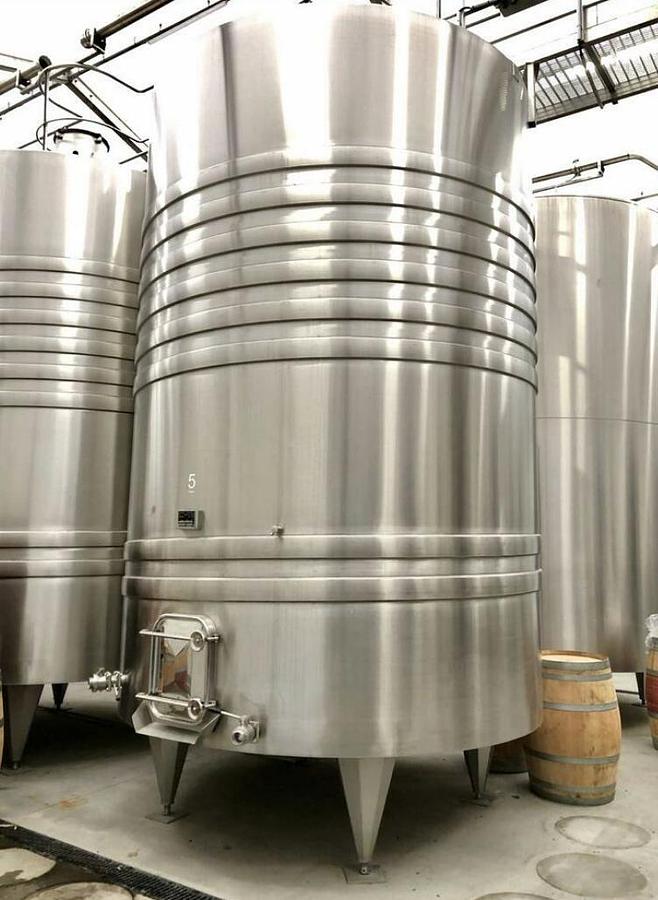

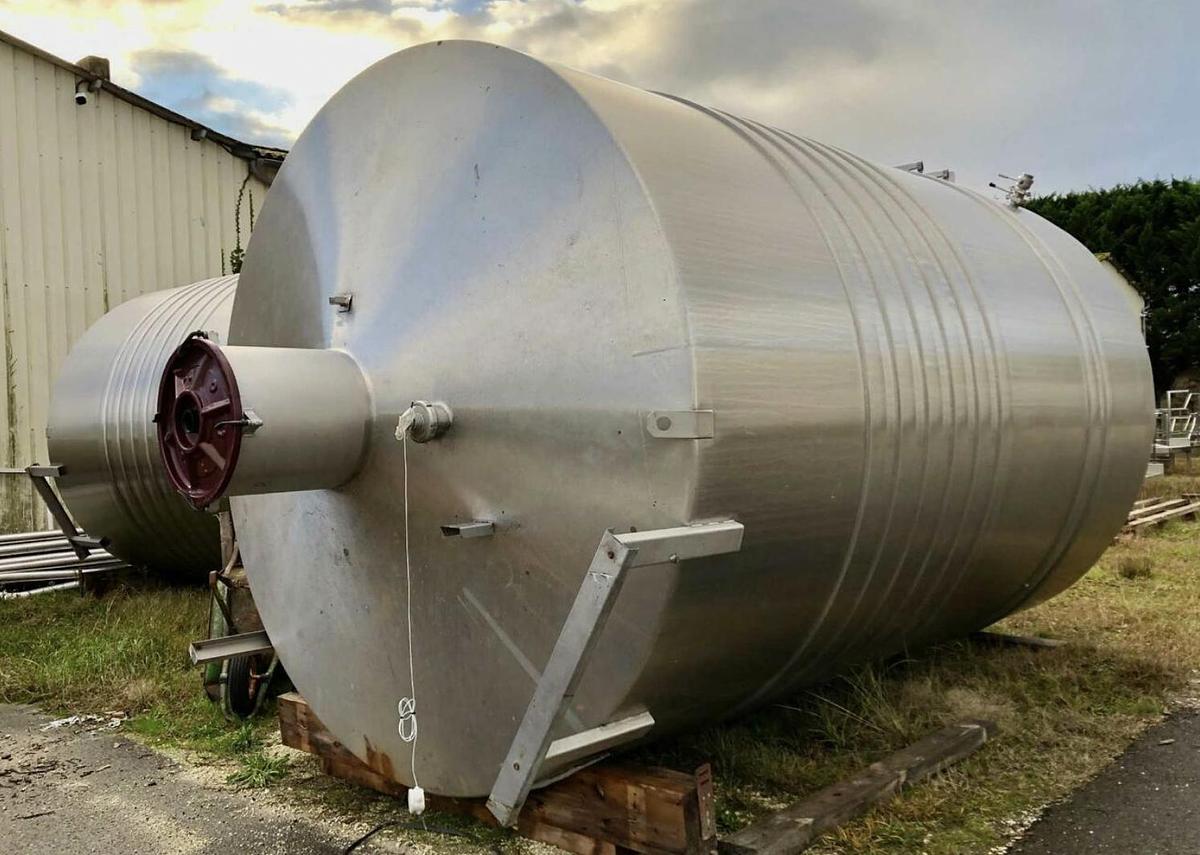

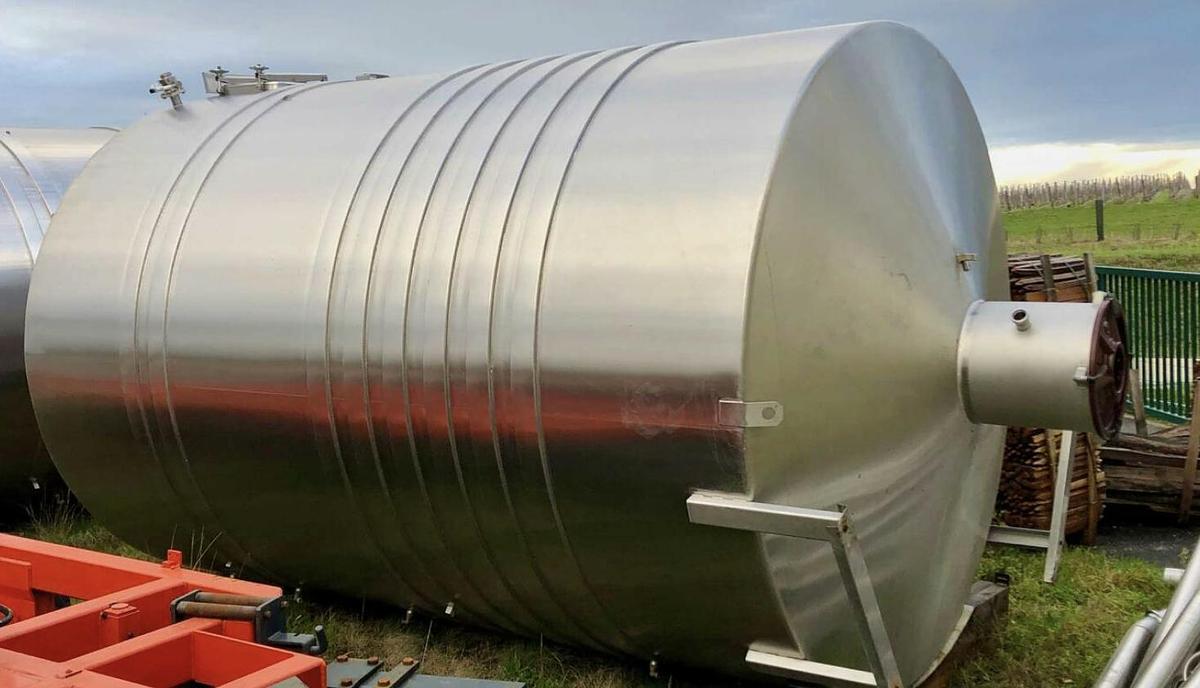

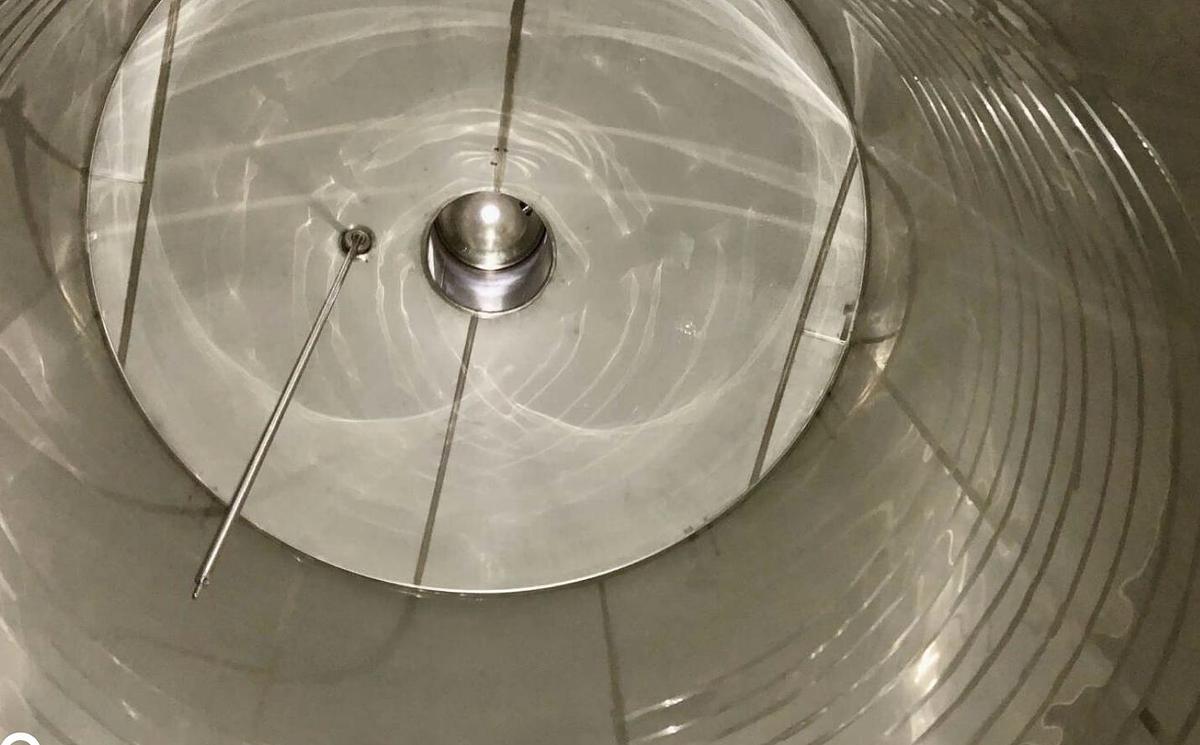

24,500 Litre 304 Stainless Steel Jacketed Tank

Technical Summary

Capacity: 24,500 Litres (245 HL)

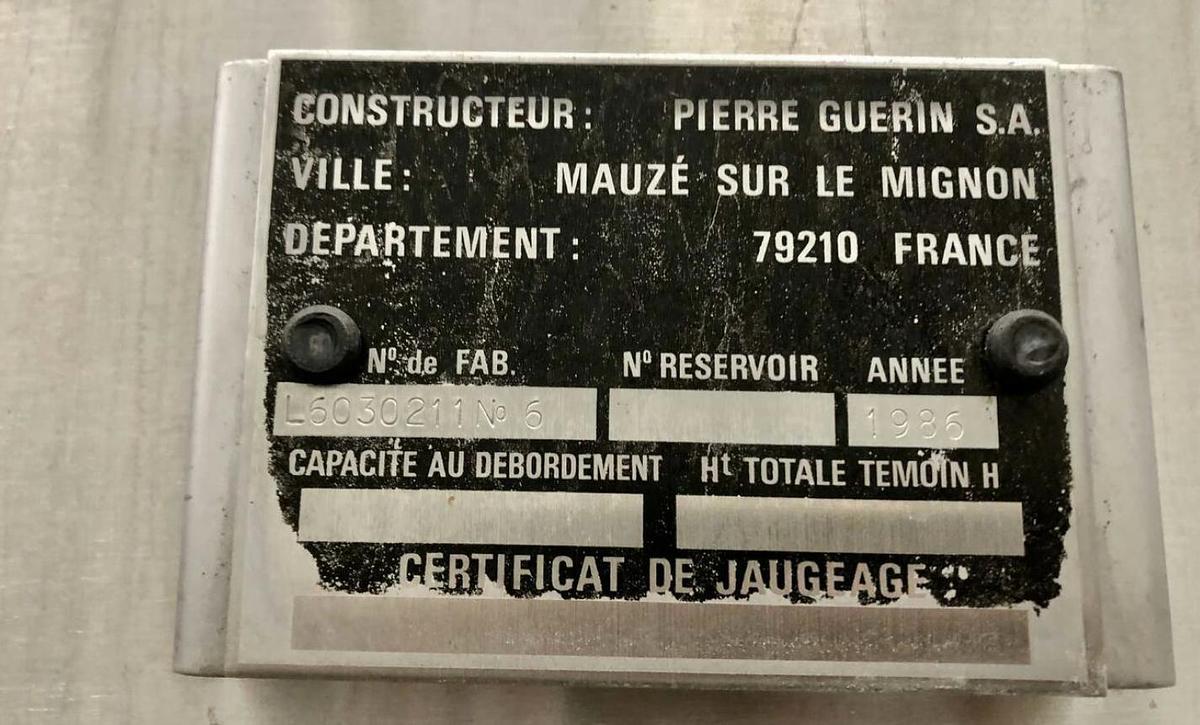

Brand: Pierre Guérin

Orientation: Vertical

Material: AISI 304L Stainless Steel

Diameter: Ø 3,000 mm

Total Height: Approx. 6,000 mm

Temperature Control: Shell-type cooling circuit

Top Type: Central chimney with DN500 PVC hatch

Bottom Type: Sloping flat bottom

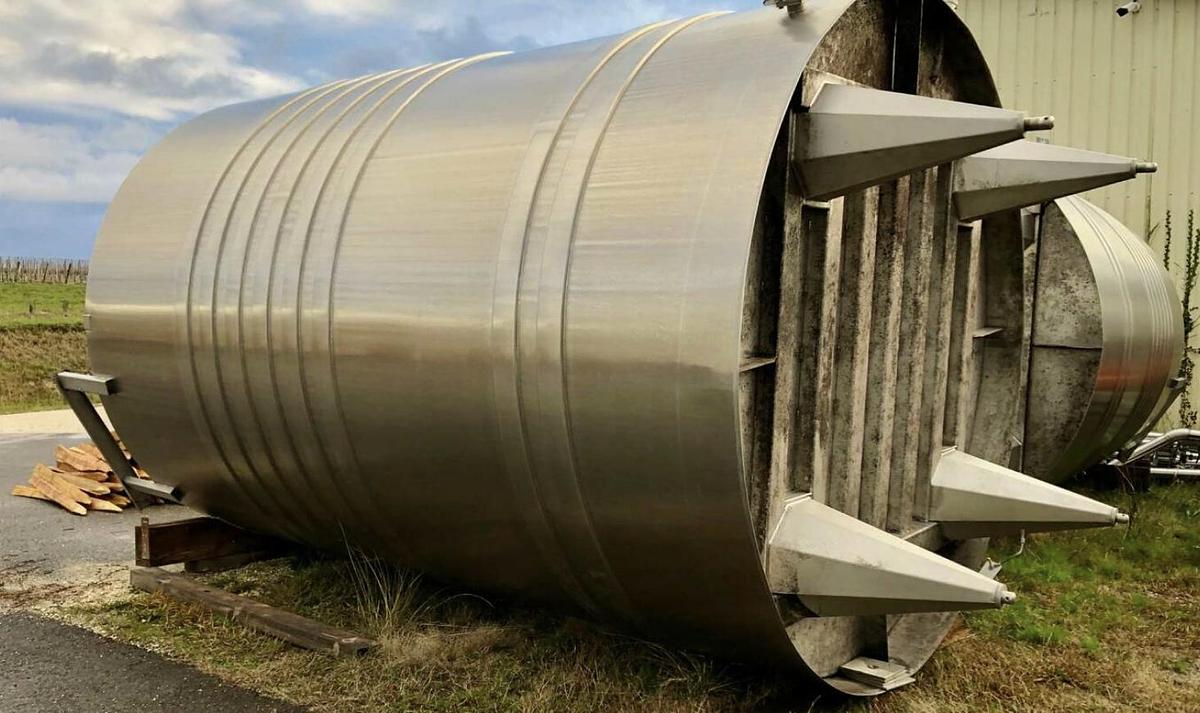

Support: 4 adjustable legs

Specification

Vertical cylindrical storage tank design

Temperature controlled with shell-type cooling circuit

Central chimney with DN500 access hatch

410 x 530mm stainless steel side access door

DN50 partial drain valve with decanting elbow

DN50 total drain valve

Stainless steel sampling tap

Sloping flat bottom for effective product drainage

Lifting rings and walkway support

Suitable for wine, brewery, cider and general liquid storage applications

CE compliant

6-month warranty



Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
