Technical Summary

System: CIP Station

Condition: New

Quantity: 1 unit

Tank Capacity: 2 x 200 Litres

Tank 1 Material: AISI 304 Stainless Steel

Tank 2 Material: AISI 316 Stainless Steel

Heating: 2 x Electric Heaters

Pump: Ebara 1.1 kW

Valves: DN32 Stainless Steel Automatic Butterfly Valves

Control: PLC Touch Screen

Mounting: Stainless Steel Frame with Wheels

Specification

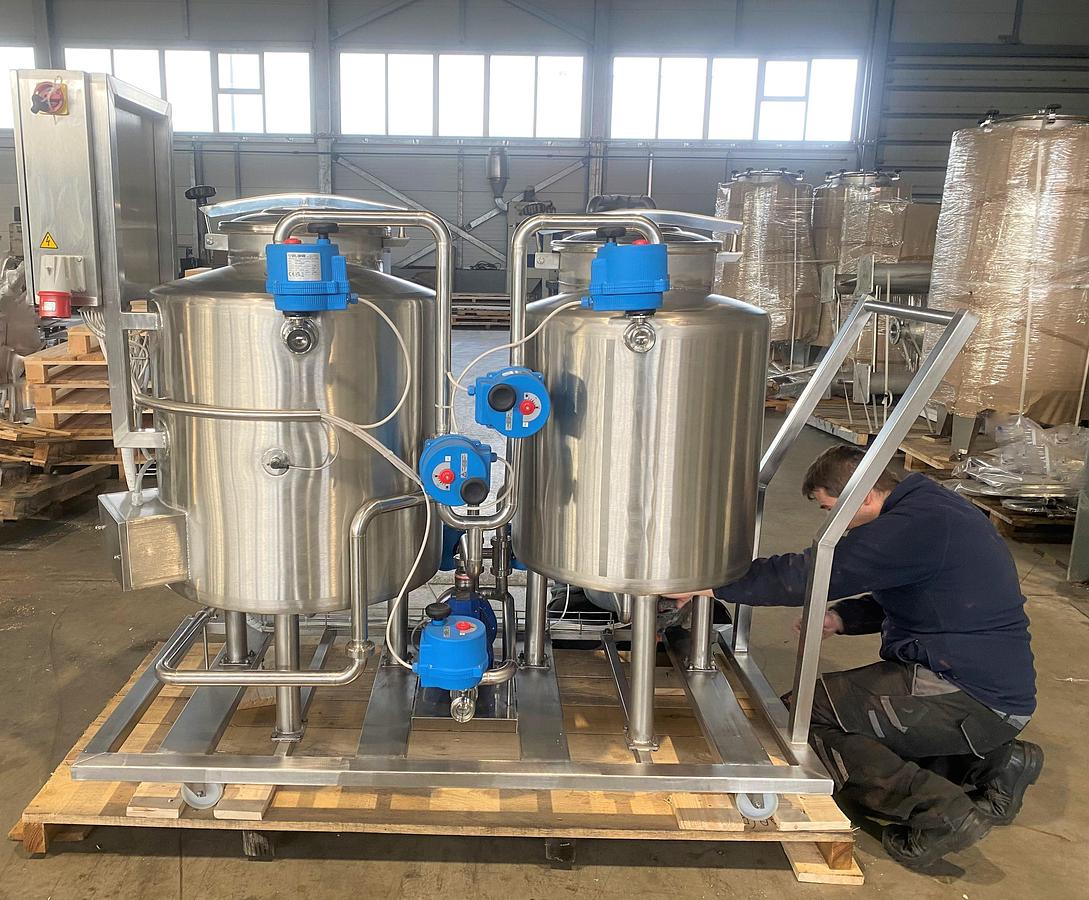

Complete 2-tank CIP cleaning station

Tank 1 – Hot Water Tank

200-litre capacity

AISI 304 stainless steel construction

50mm polyurethane foam insulation

2 x electric heating elements

Temperature switch and temperature control

400mm diameter top manhole

DN32 electrically operated automatic stainless steel butterfly valves

Tank 2 – Cleaning Tank

200-litre capacity

AISI 316 stainless steel construction

400mm diameter top manhole

DN32 electrically operated automatic stainless steel butterfly valves

Ebara 1.1 kW circulation pump installed between tanks

Stainless steel electrical control box

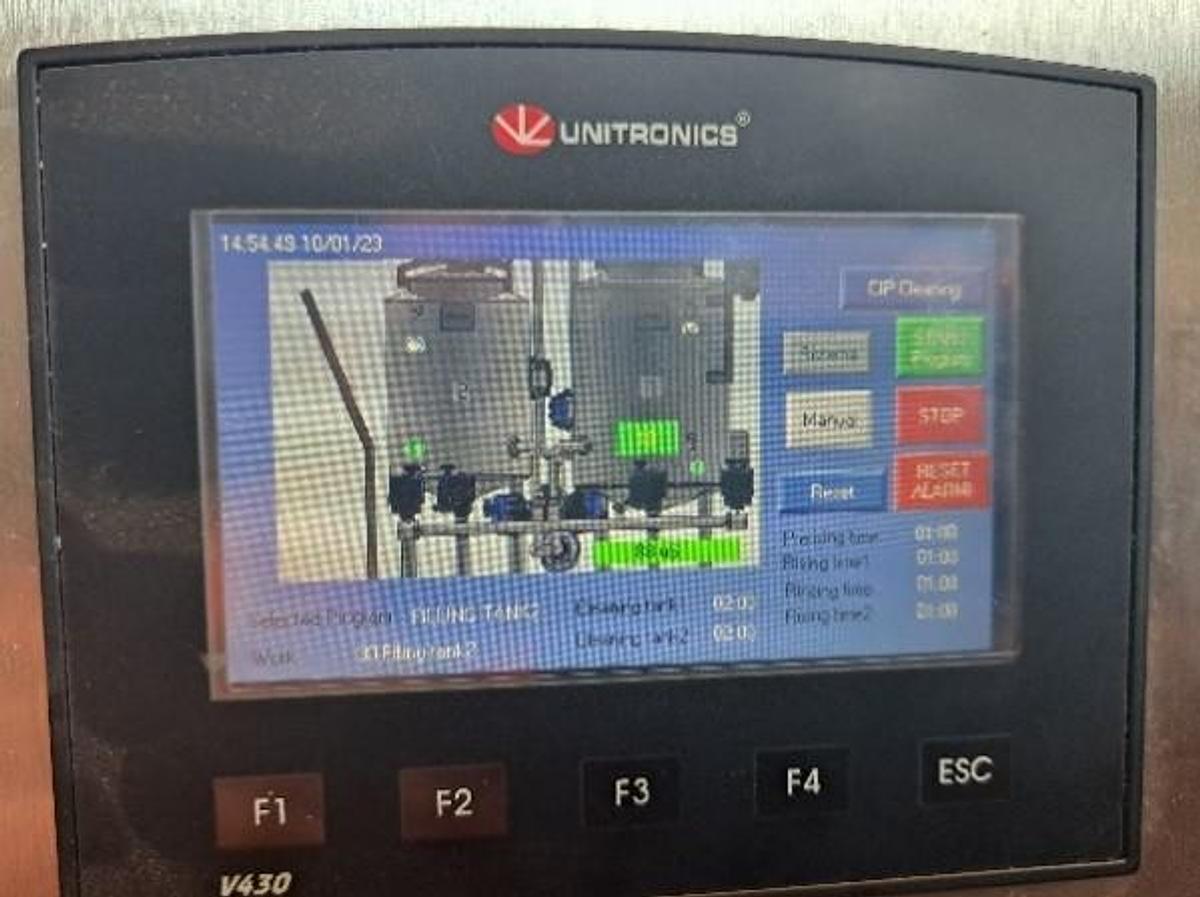

PLC touchscreen control panel

Complete system mounted on stainless steel support frame with wheels

Availability & Project Support

New and available immediately from stock.

Full support available including:
