Brand New 10,000 Litre Stainless Steel Tank (304/316)

(The below is a standard specification which can be adapted to your requirements)

Technical Summary

Capacity: 10,000 Litres (10m³)

Orientation: Vertical

Material: AISI 304 Stainless Steel

Diameter: Ø 2,050 mm

Cylinder Height: 3,000 mm

Leg Height: 500 mm

Top Type: 15° Conical top

Bottom Type: 15° Conical bottom

Outlet: DN50 DIN EN 11851

Support: 4 adjustable legs

Specification

Vertical cylindrical closed storage/process tank design

15° conical top and bottom

400mm diameter top manhole with safety arm

Oval side manhole – Fratelli Laveggi A5

DN50 total outlet connection

DN50 side connection

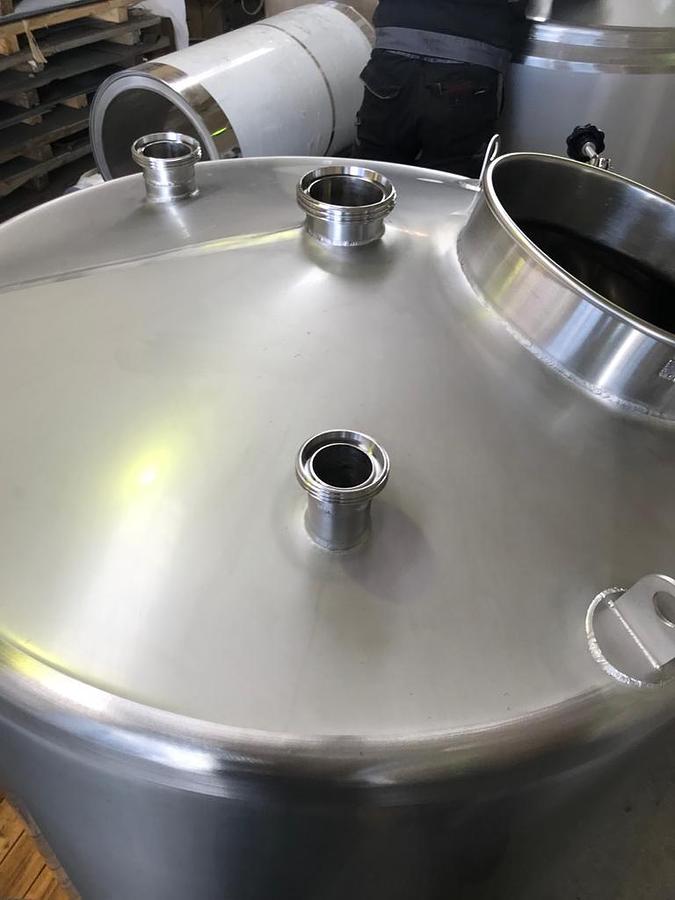

DN80 top connection

DN70 pressure relief / vent valve

Internal rotating CIP spray ball with DN40 external connection

Stainless steel lifting points

Stainless steel ladder support

Internal welds ground flat and highly polished

Bottom material thickness: 3mm

Cylinder material thickness: 2mm

Top material thickness: 2mm

Material and welder certification included

Penetrant testing completed

3D technical drawing available

Optional Equipment -

50mm Rockwool insulation

Insulated manhole

2 x 1,000mm cooling/heating jackets – maximum working pressure 4 bar

Upgrade to AISI 316 stainless steel

Automatic temperature control

Availability & Project Support

Available to order.

Full support available including:

• Loading and export packing
• International logistics
• Delivery coordination
• Installation and integration support if required
