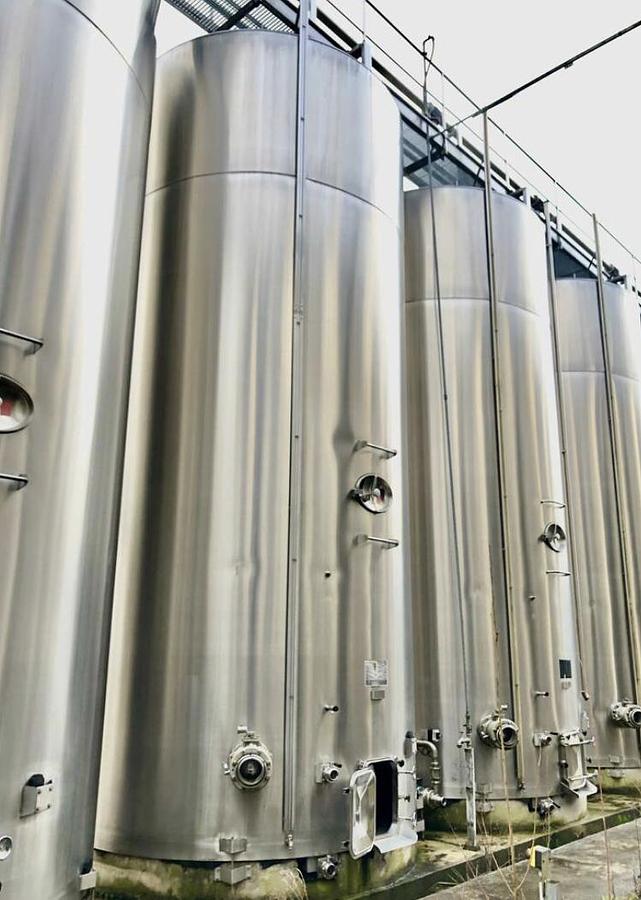

50,000 Litre 304 Stainless Steel Tank with Heating

Technical Summary

Capacity: 50,700 Litres

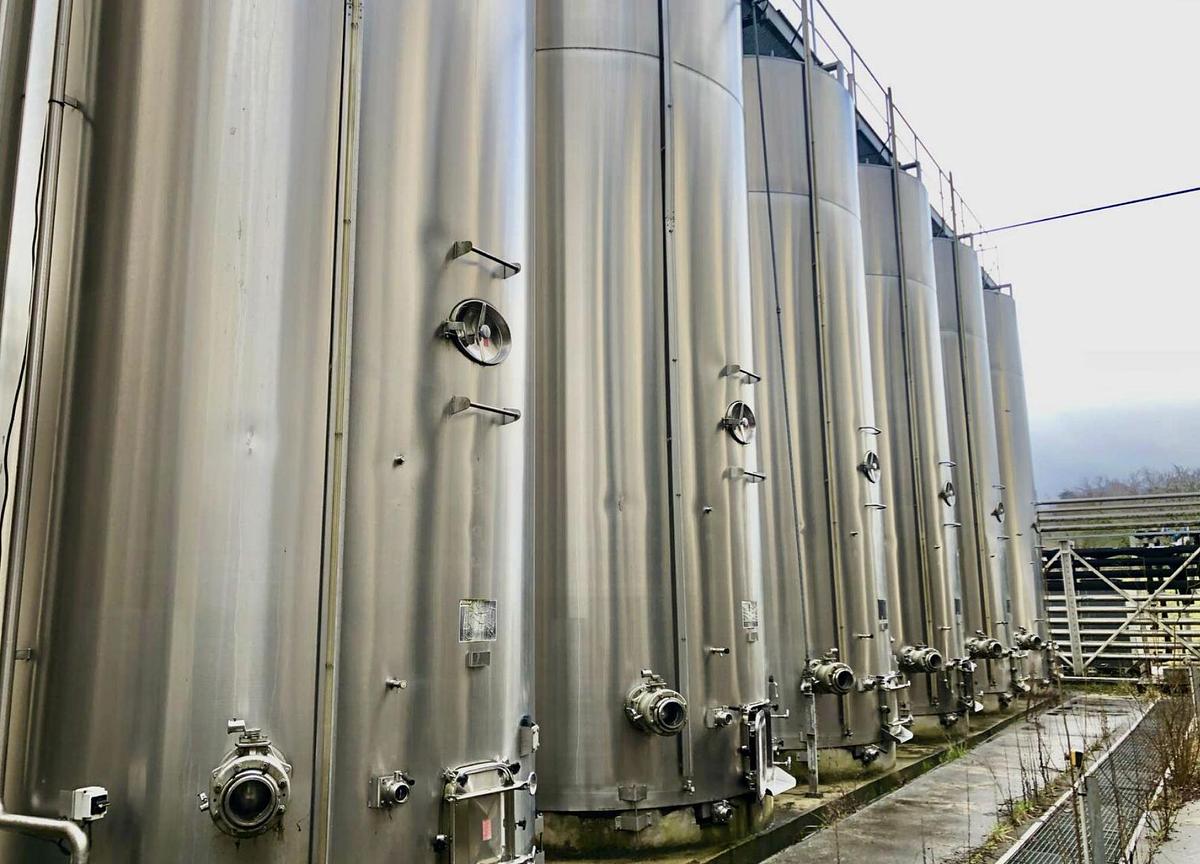

Quantity: 10 units

Manufacturer: CTIA

Year: 1998

Orientation: Vertical

Material: AISI 304L Stainless Steel

Application: Storage / Fermentation

Temperature Control: Internal cooling coil

Internal Coil Exchange Surface: Approx. 4.5 m²

Interior Finish: 2B

Exterior Finish: Brushed

Bottom Type: Flat bottom, inclined at 2.5%

Mounting: Foundation slab

Specification

Vertical cylindrical stainless steel storage and fermentation tank

Manufactured from AISI 304L stainless steel

Suitable for wine, beverage and food processing applications

Temperature controlled via internal coil radiator with approximately 4.5 m² heat exchange surface

2B internal finish with brushed external finish

Flat bottom inclined at 2.5% to assist product drainage

Four fixing brackets for secure installation to a foundation slab

Top Features

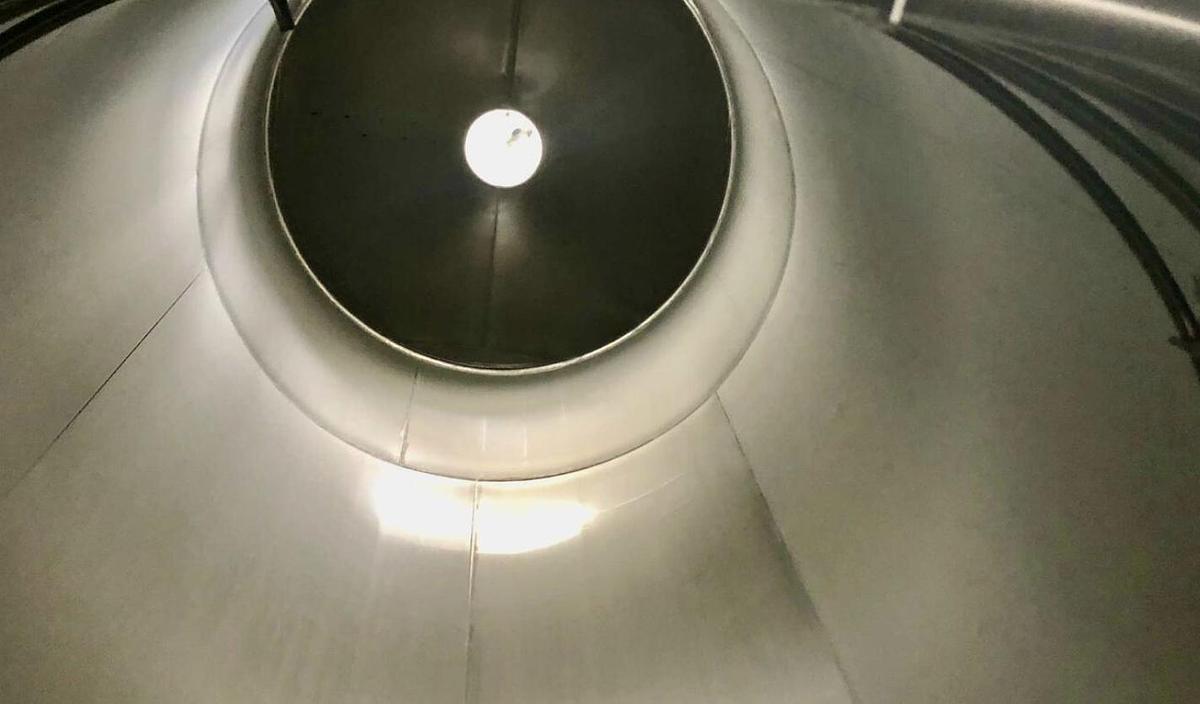

Central chimney with DN 500 stainless steel manway and clamping arm

Stainless steel lifting rings

Tank Body Features

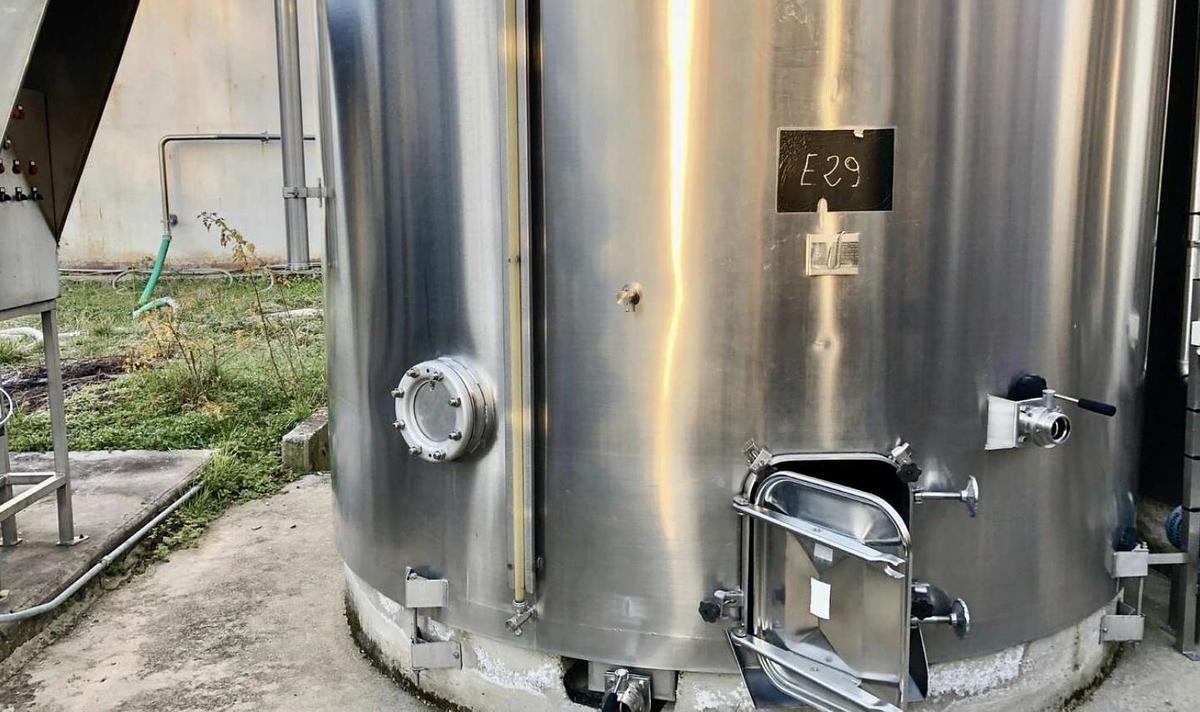

410 x 520 mm stainless steel outward-opening access door

Oval autoclave access door

Ladder support

DN 70 stainless steel butterfly valve with sludge trap

Stainless steel sampling / tasting cup

Tap and level gauge

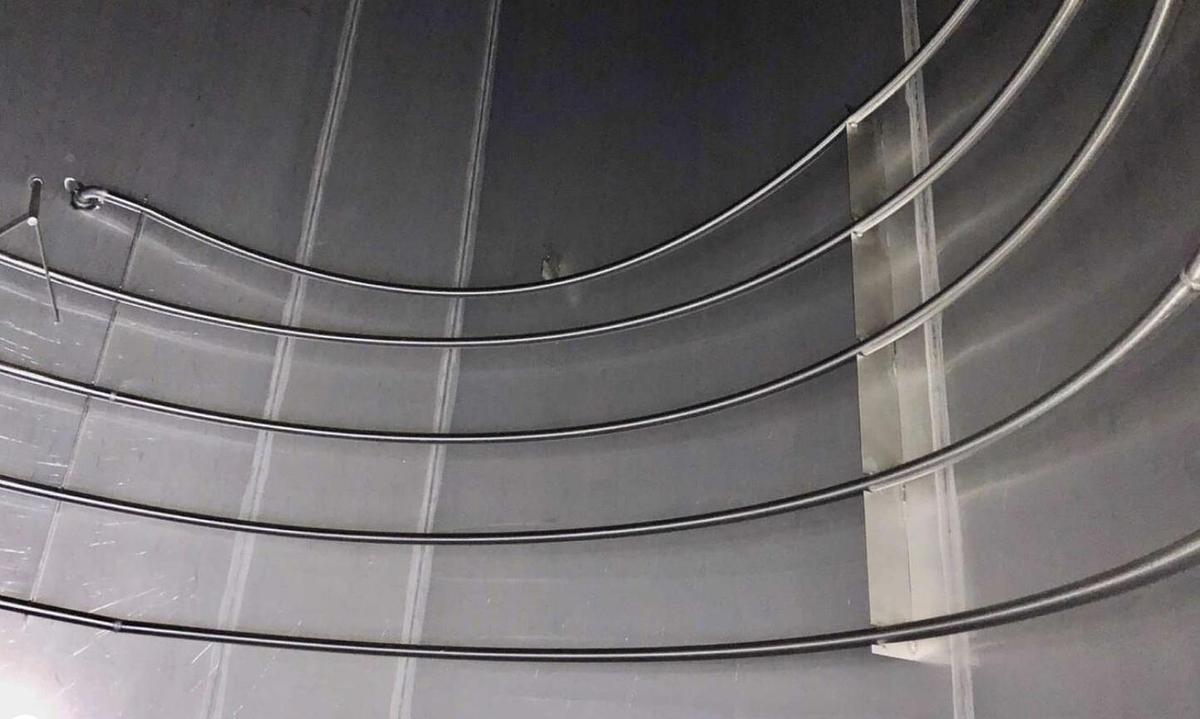

Internal cooling coil with approximately 4.5 m² exchange surface

7 tanks fitted with DN 150 ball valve

3 tanks fitted with DN 150 flange without valve

Bottom Features

Flat bottom with 2.5% incline

DN 70 stainless steel butterfly valve

Four fixing brackets for mounting to foundation slab

Availability & Project Support

Available immediately.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
