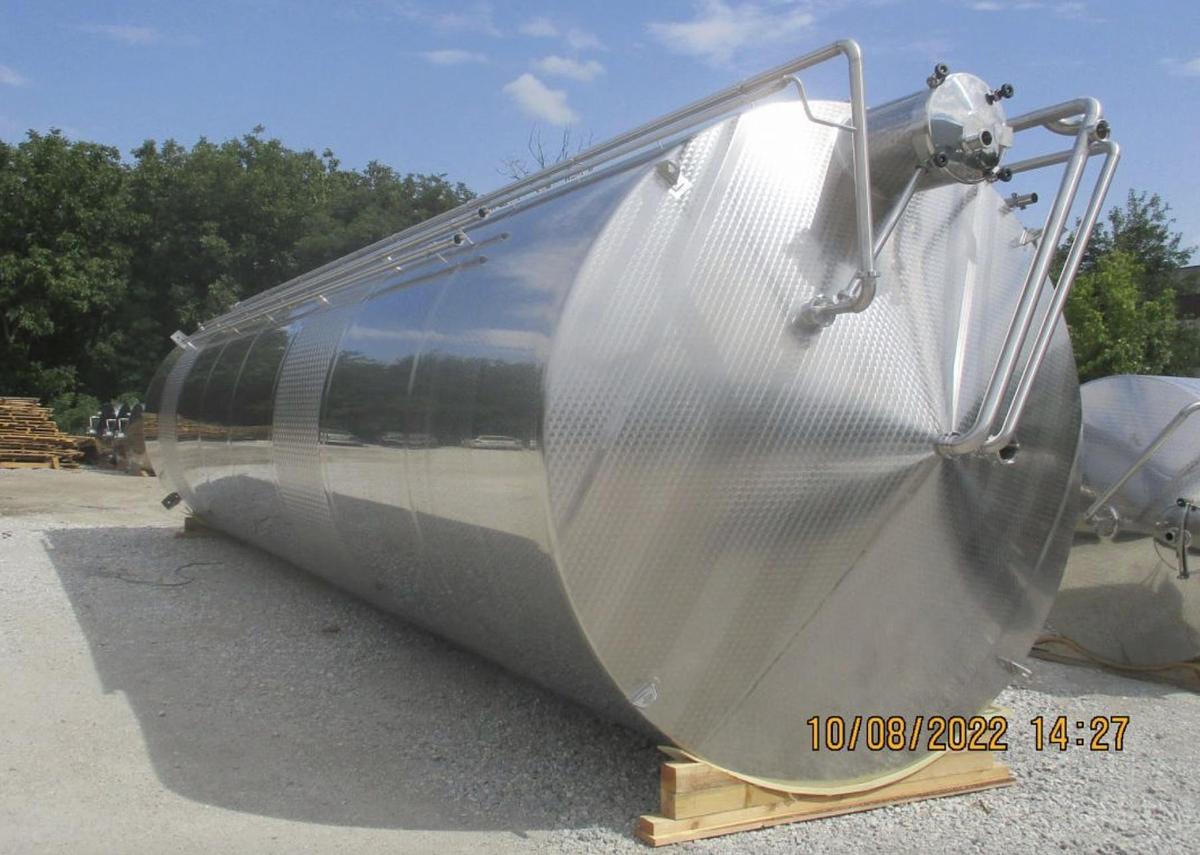

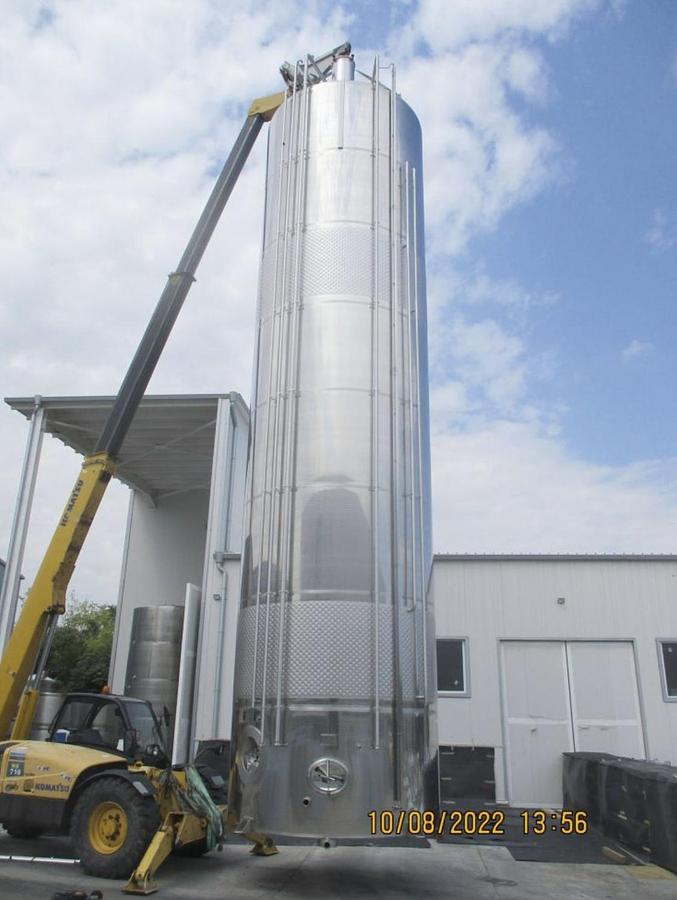

Brand New 85,000 Litre 304 Stainless Steel Tank with Heating

Technical Summary

Capacity: 85,700 Litres

Order Number: 16219 WWD - V4LN

Condition: Brand New / Project Cancellation

Quantity: Multiple units – 5 tanks completely finished

Orientation: Vertical

Material: AISI 304L Stainless Steel

Conical Head Material: AISI 316L Stainless Steel

Diameter: 3,000 mm

Cylinder Height: 12,000 mm

Total Height: 12,847 mm

Empty Weight: Approx. 2,985 kg

Maximum Product Density: 1,100 kg/m³

Tank Pressure: Atmospheric

Minimum Temperature: -10°C

Top Type: 20° Conical

Bottom Type: Flat, 3% Sloping

Heat Exchanger: Heating / Cooling Jacket

Heat Exchange Surface: Approx. 23.2 m²

Agitator: Not included – optional

Specification

Brand-new vertical cylindrical stainless steel storage tanks originally manufactured for a project which was subsequently cancelled.

The tanks are primarily manufactured from AISI 304L stainless steel, with the conical head side manufactured from AISI 316L.

Designed for food-industry applications and suitable for general liquid storage and process applications.

20° conical top with flat 3% sloping bottom for effective total product discharge.

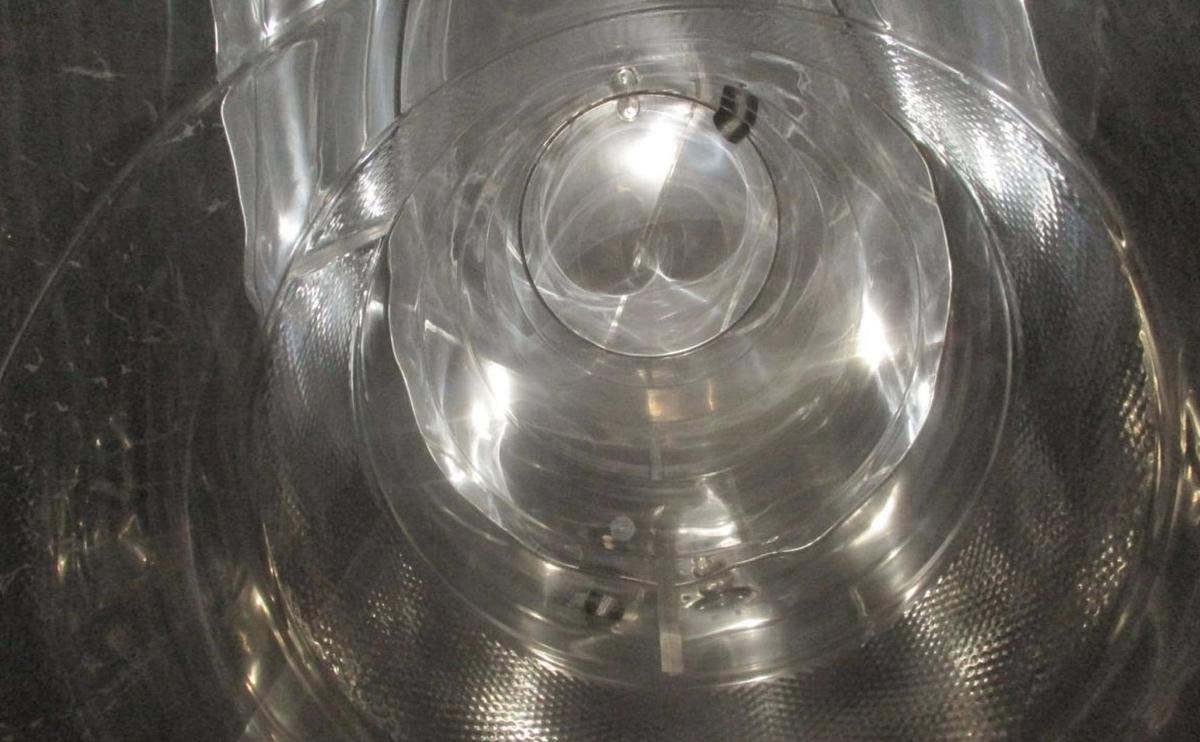

Internal stainless steel finish: 2R

Internal weld finish: Ra 1.60 µm

Atmospheric tank design

Bottom outlet for complete product discharge

Fixing / attachment points provided

Technical drawing available

Tank identification / registration plate included

Heating & Cooling

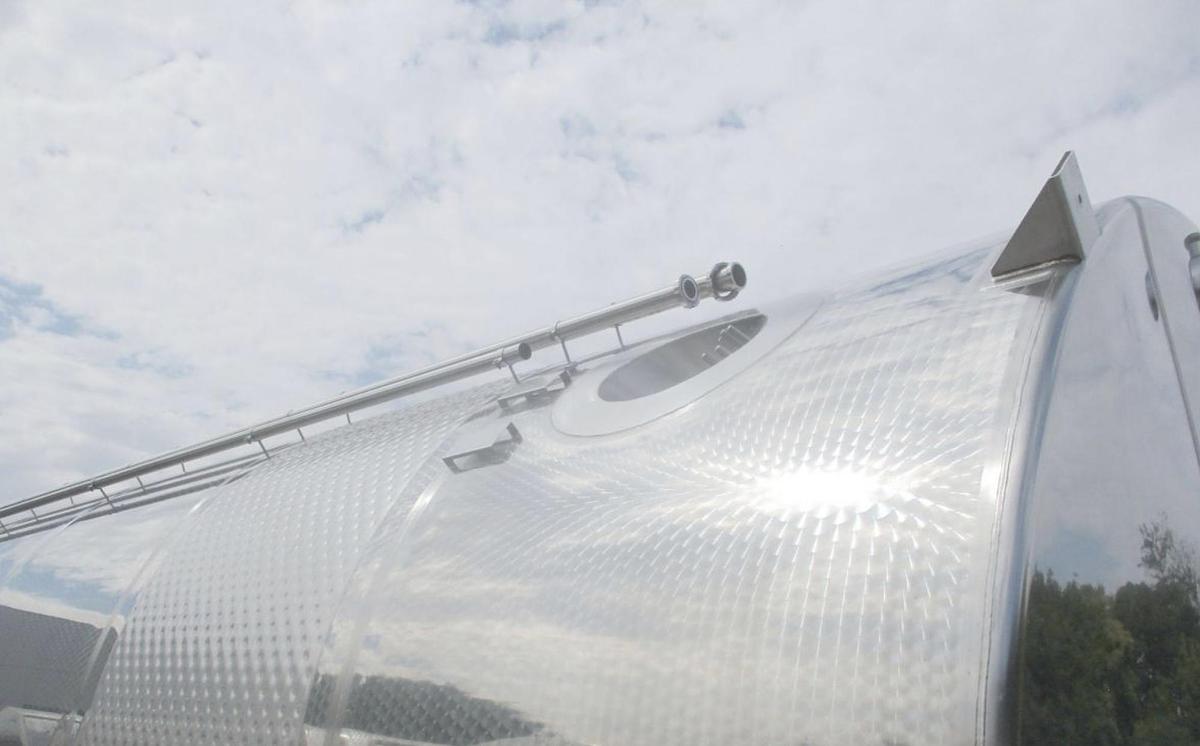

Heating / cooling jacket fitted to the cylinder

Heat exchanger height: 2,500 mm

Number of sections: 2

Height per section: 1,250 mm

Total cylinder contact surface: Approx. 23.20 m²

Heat exchanger pressure: 5 bar

Heat exchanger working temperature: 50°C

Heat exchanger material: AISI 304 Stainless Steel

Additional heating / cooling zones can be added if required.

Optional insulation is also available using either 50 mm PU or 50 mm rockwool with welded stainless steel external cladding.

Connections & Access

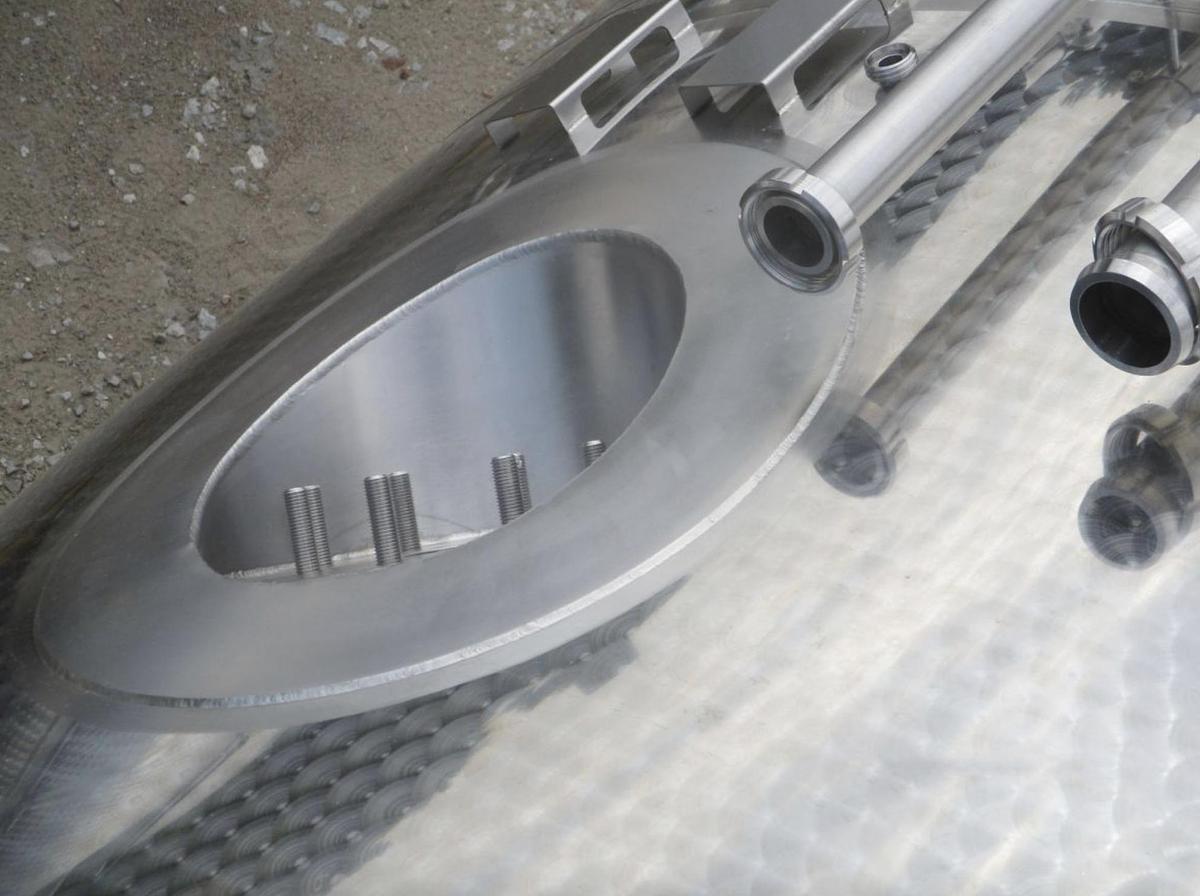

2 manways

Side manway: Ø 340 x 440 mm

Second manway positioned on the head side

Tank outlet: DN65

Outlet connection: DIN 11851 male

Bottom outlet for total discharge

Construction

Top material thickness: 3 mm

Bottom material thickness: 3 mm

Tank wetted parts: AISI 304L Stainless Steel

Manways: AISI 304L Stainless Steel

Fixing points: AISI 304L Stainless Steel

Optional Equipment

Agitator available as an optional addition

Additional heating / cooling zones can be added at €2,750 per zone

Heat exchangers can be individually insulated with 50 mm PU or 50 mm rockwool and welded stainless steel cladding at €3,750 each

Documentation available as an option

Condition & Availability

These tanks originate from a cancelled project and are offered as brand-new equipment.

5 tanks are completely finished.

Availability & Project Support

Full support available including:

• Loading and logistics
• Export packing and international transport
• Delivery coordination
• Installation and integration support if required
