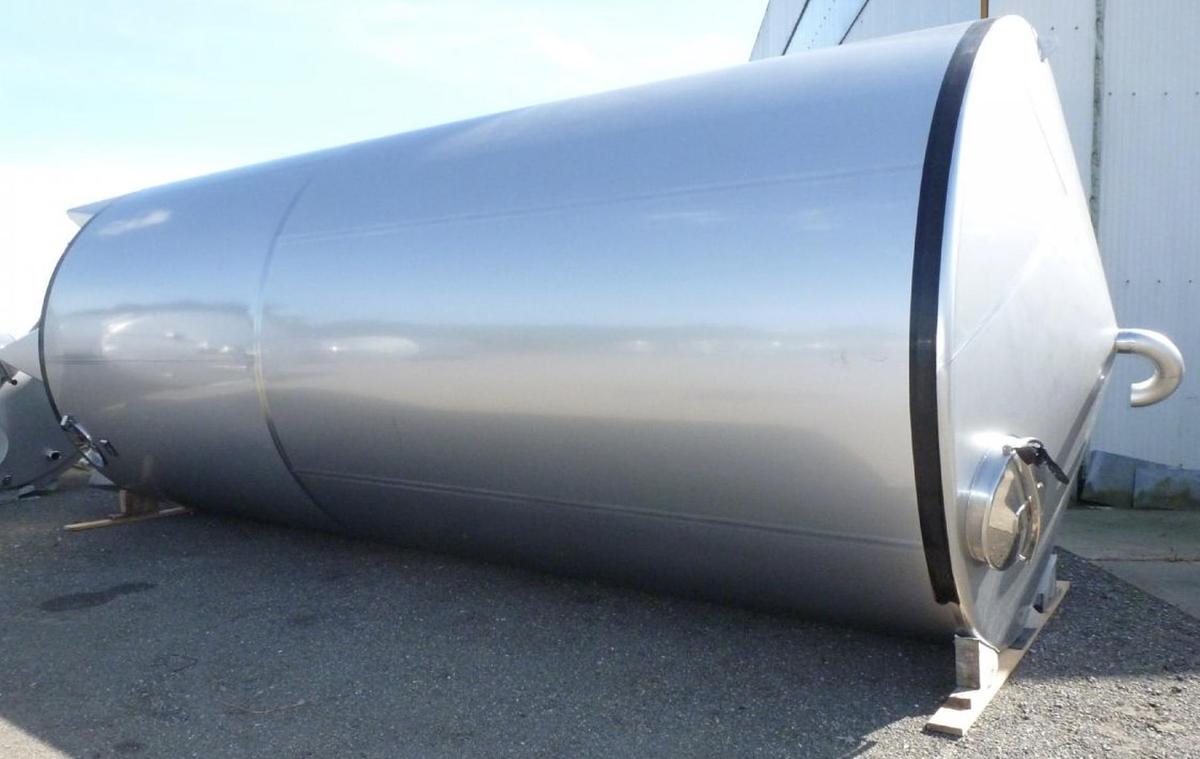

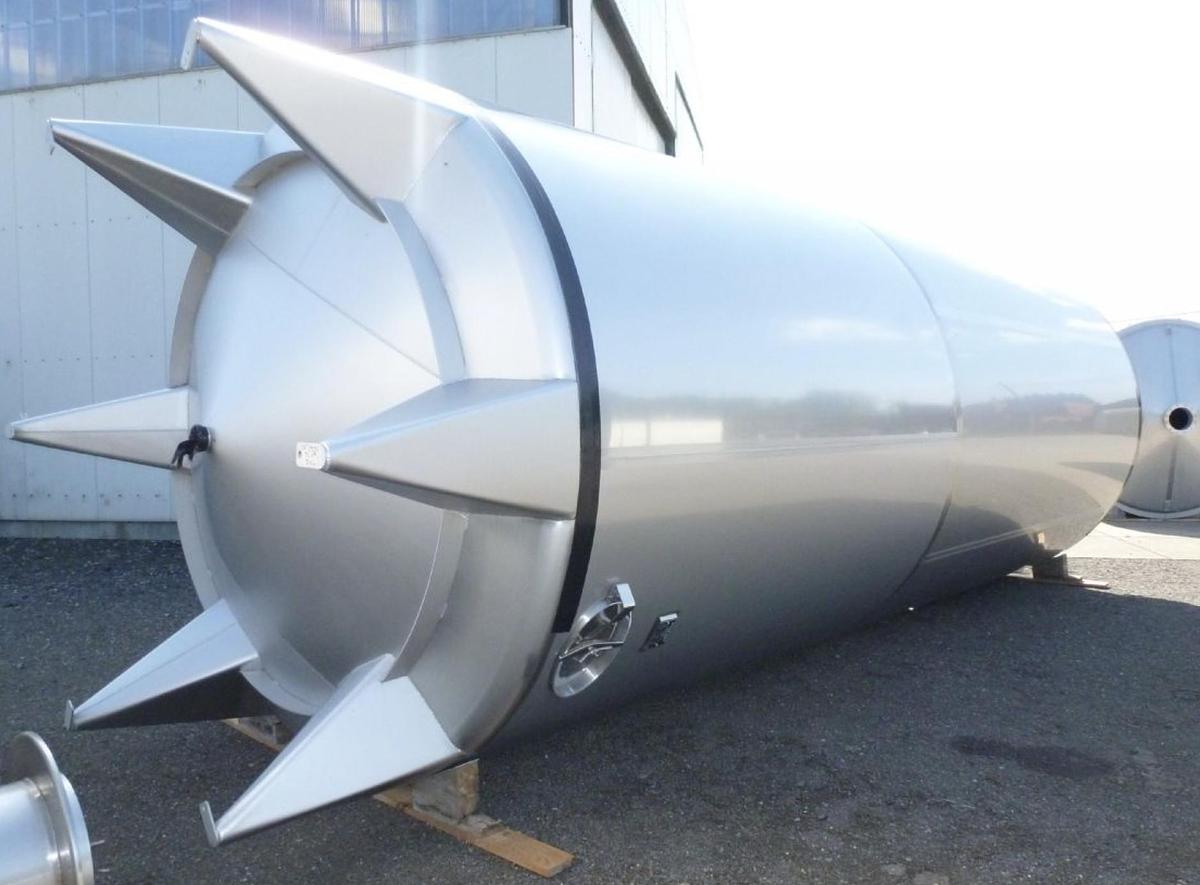

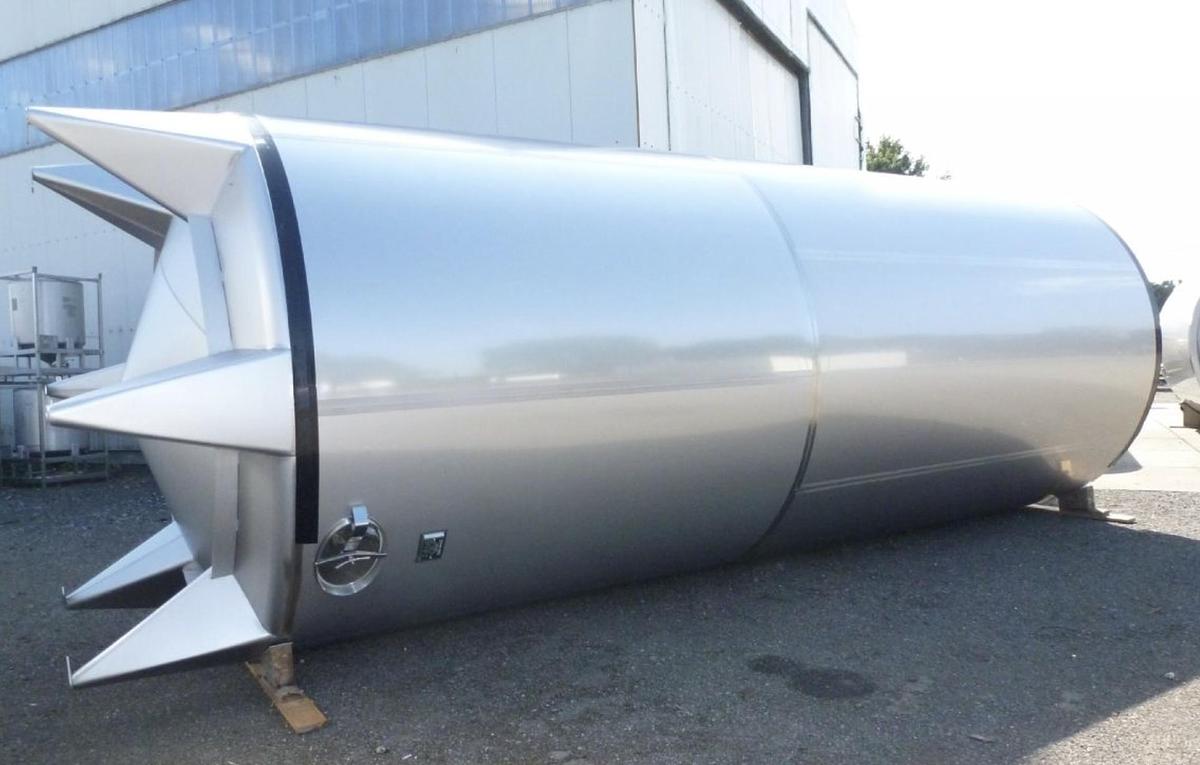

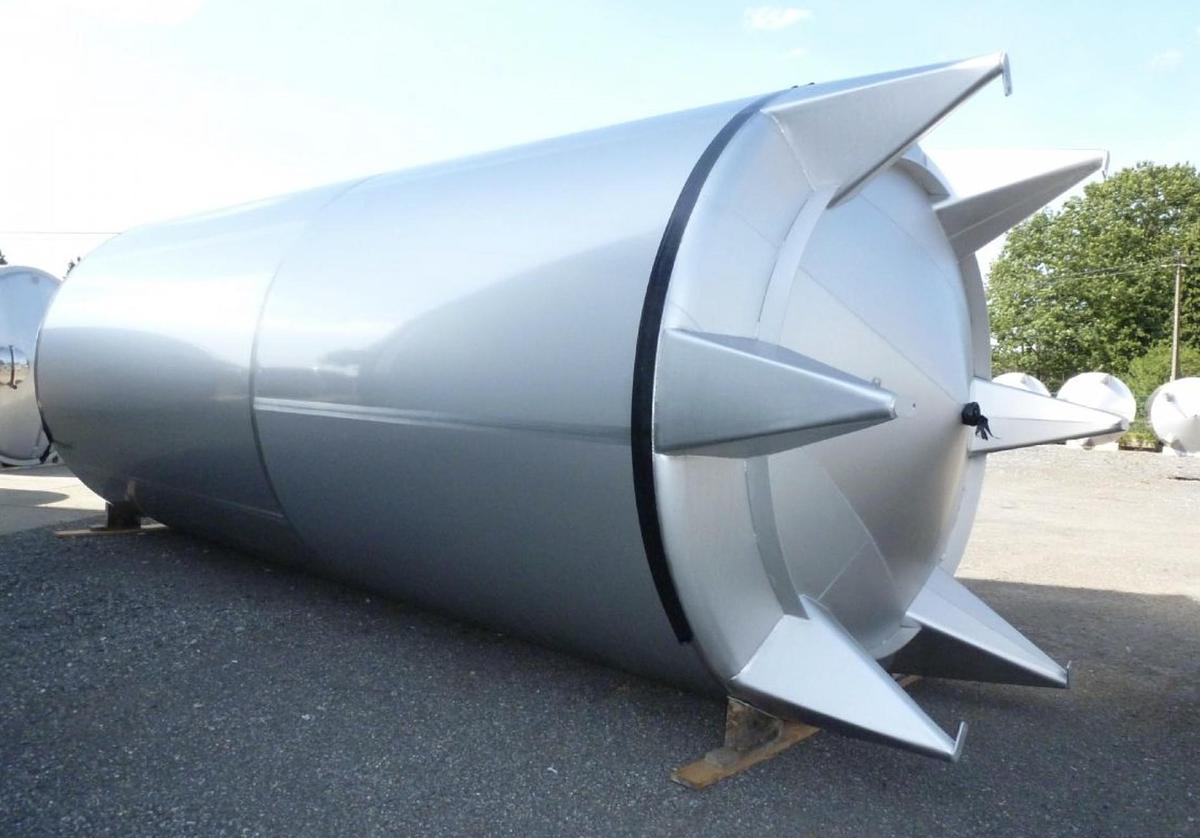

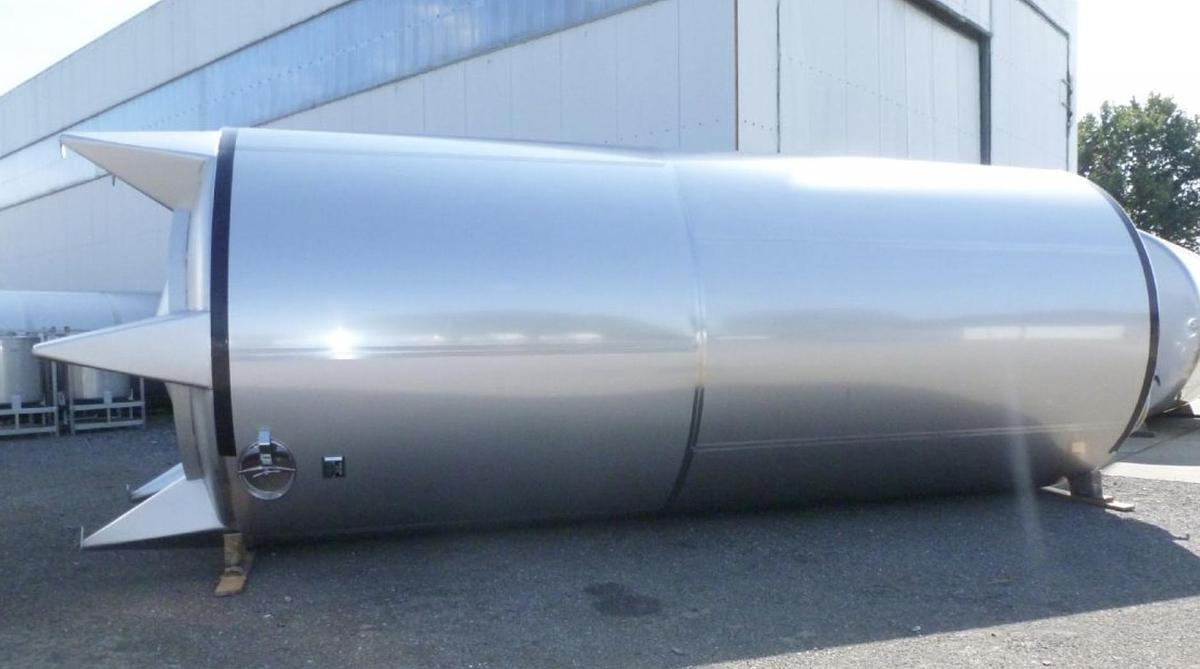

Brand New 50,000 Litre 316 Stainless Steel Tank (Heating Coil Optional)

Technical Summary

Capacity: 50,000 Litres

Orientation: Vertical

Material: AISI 316 Stainless Steel

Maximum Product Density: 1,000 kg/m³

Operating Pressure: Atmospheric

Configuration: Single Skin

Diameter: 3,000 mm

Cylinder Height: 7,000 mm

Total Height: 8,800 mm

Top Type: 15° Conical

Bottom Type: 20° Conical

Outlet: Ø 80 mm DIN 11850

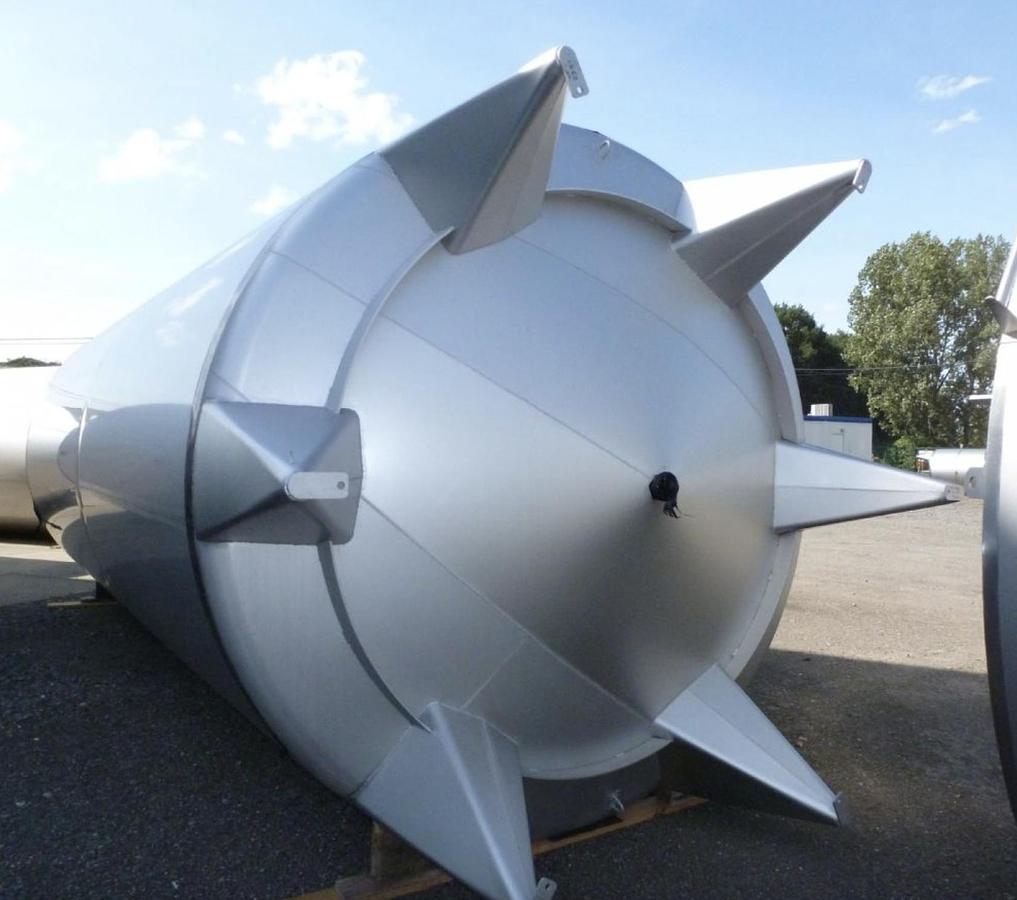

Mounting: 6 Fixed Legs

Empty Weight: Approx. 1,850 kg

Specification

Vertical cylindrical stainless steel storage tank

AISI 316 stainless steel product contact surfaces

Suitable for food industry applications

Single-skin, non-insulated construction

15° conical top

20° conical bottom for effective product drainage

Designed for complete product discharge

Atmospheric operating pressure

Maximum operating temperature available on request, subject to confirmation of product temperature and seal suitability

Access & Connections

2 hinged access manways

Top manway: Ø 500 mm

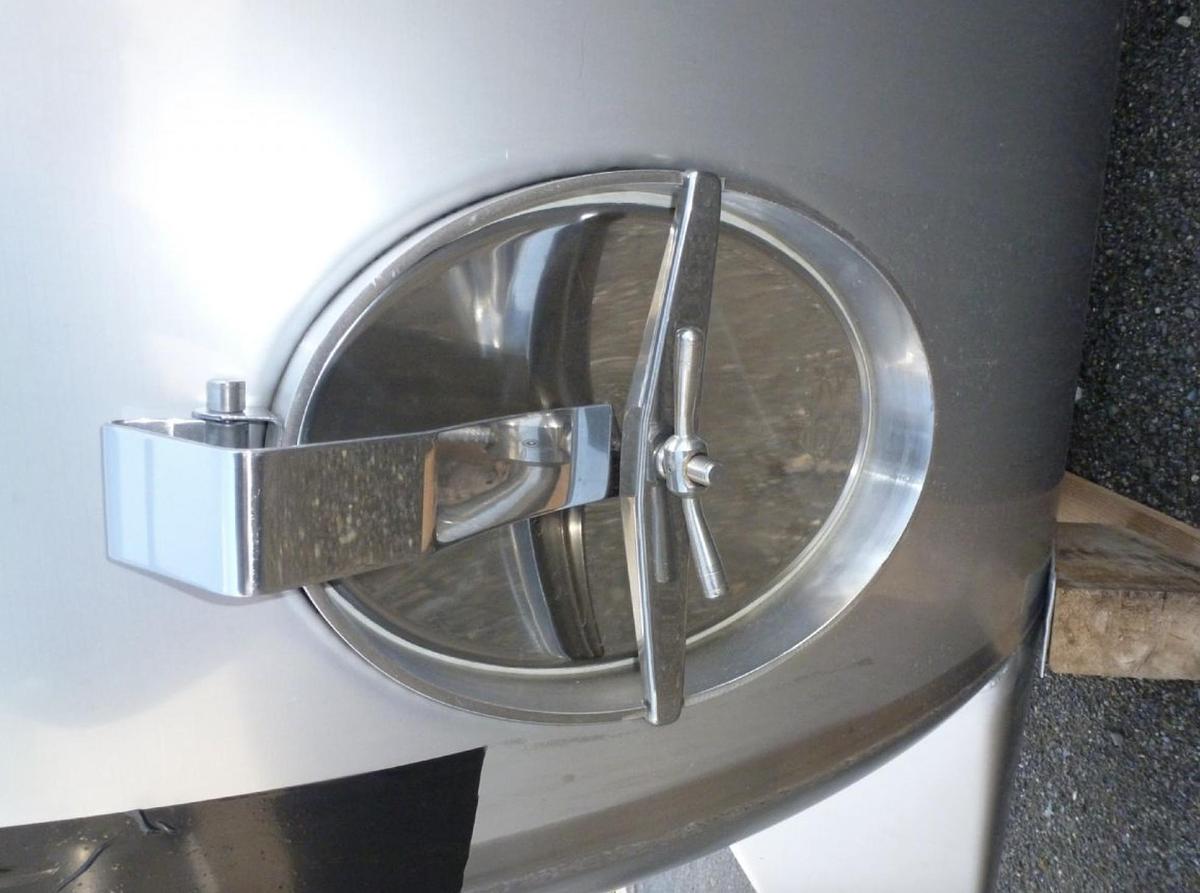

Side manway: 440 x 308 mm

Manways manufactured from AISI 316 stainless steel

EPDM manway seals

Product outlet: Ø 80 mm DIN 11850

AISI 316L stainless steel valve components

Total outlet valve available as an option

Construction

Tank wetted parts: AISI 316 Stainless Steel

Top thickness: 3 mm

Cylinder thickness: 2.5 mm

Bottom thickness: 4 mm

Fixing points: AISI 304 Stainless Steel

6 fixed, non-adjustable support legs

Leg height: 945 mm

Outlet height from ground: 405 mm

Top height: 443 mm

Bottom height: 615 mm

Dimensions

Diameter: 3,000 mm

Cylinder Height: 7,000 mm

Total Height: 8,800 mm

Empty Weight: Approx. 1,850 kg

Availability & Project Support

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
