KHS CSD PET Bottling Line – 36,000 BPH – 2012

Description

KHS CSD PET Bottling Line – 36,000 BPH – 2012

Complete KHS PET bottling line for carbonated soft drinks, with a nominal production capacity of up to 36,000 bottles per hour.

Manufactured predominantly in 2012, the line covers PET bottle blowing, rinsing, filling, capping, labelling, inspection, coding, shrink packing, palletising and pallet wrapping, together with product preparation, utilities, CIP and complete conveyor systems.

The line is configured for a range of PET bottle formats from 400 ml through to 2.5 litres, using PCO 1881 neck finish.

Line Overview

Complete PET bottling and packaging system including:

PET stretch blow moulding

Bottle rinsing, filling and capping

Cap feeding

Fill level and cap inspection

Labelling and label inspection

Bottle temperature conditioning

Shrink packing

Palletising

Pallet wrapping

Premix system

Chilling and air handling

Coding and marking systems

CIP system

Lubrication system

Bottle, pack and pallet conveyors

Key Equipment

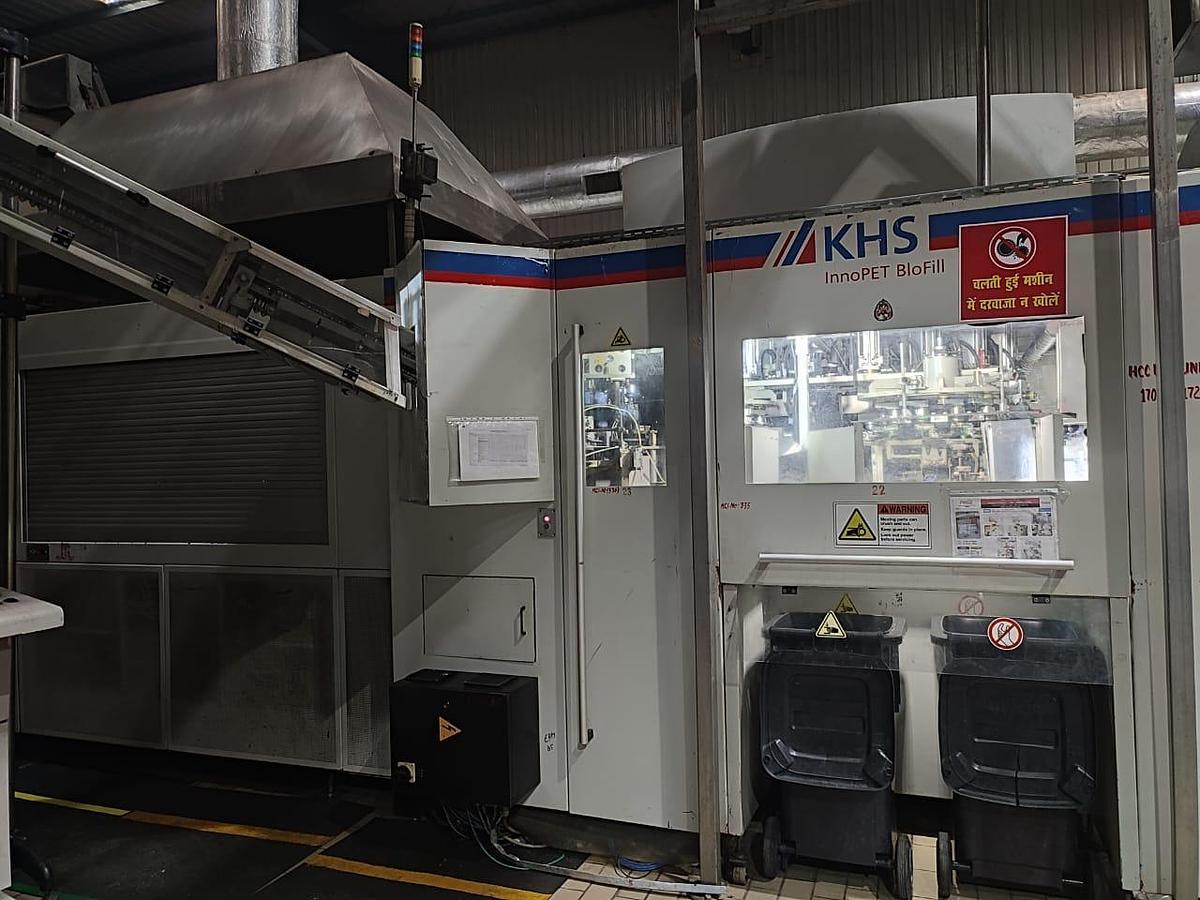

KHS Innopet Blomax 18S PET Stretch Blow Moulding Machine

KHS high-speed PET bottle blowing system.

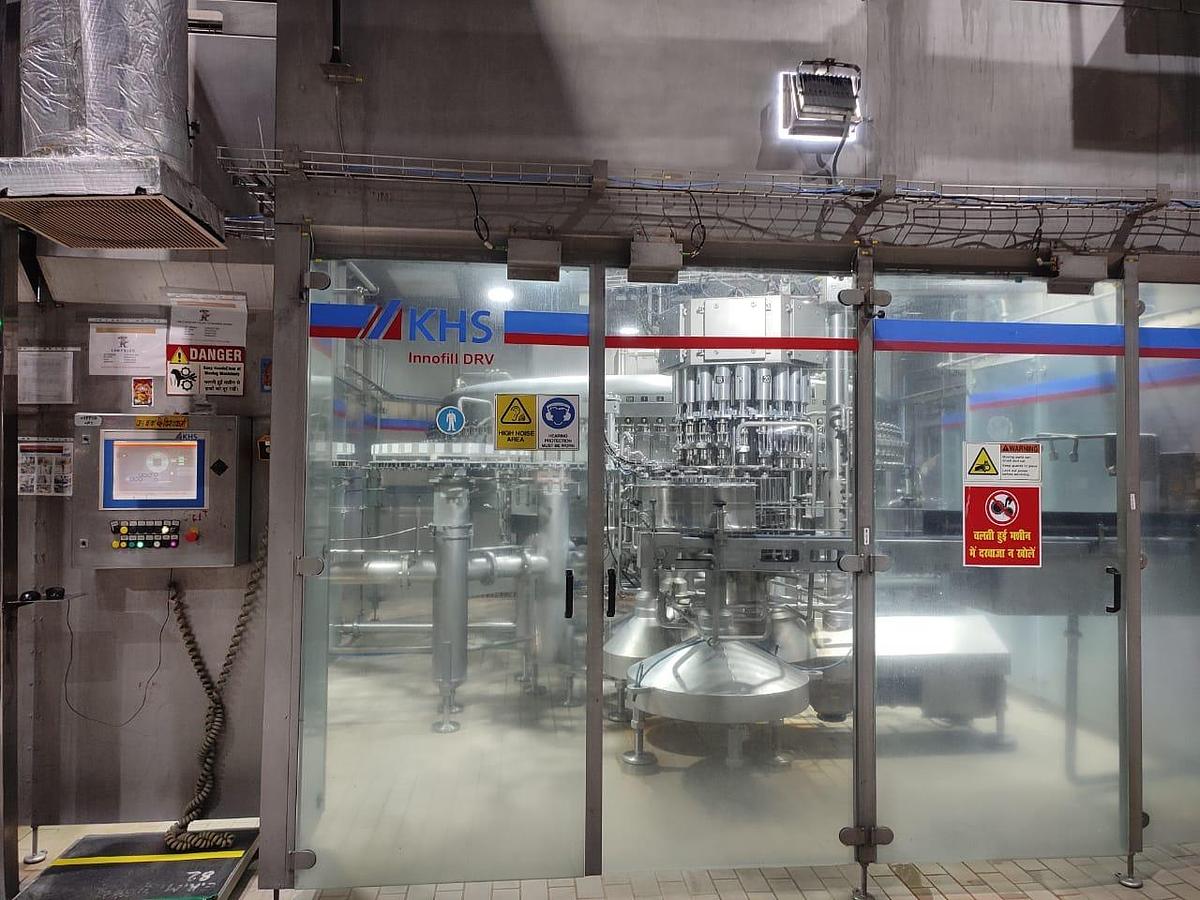

KHS Innofill DRV-VF-120/TK4320 Rinser / Filler / Capper

Integrated rinsing, filling and capping system.

Gassner Cap Feed System

Cap handling and feeding system for the filling line.

FT System Fill Level & Cap Inspection Unit

Year: 2022

Inspection system for fill level and cap presence/quality control.

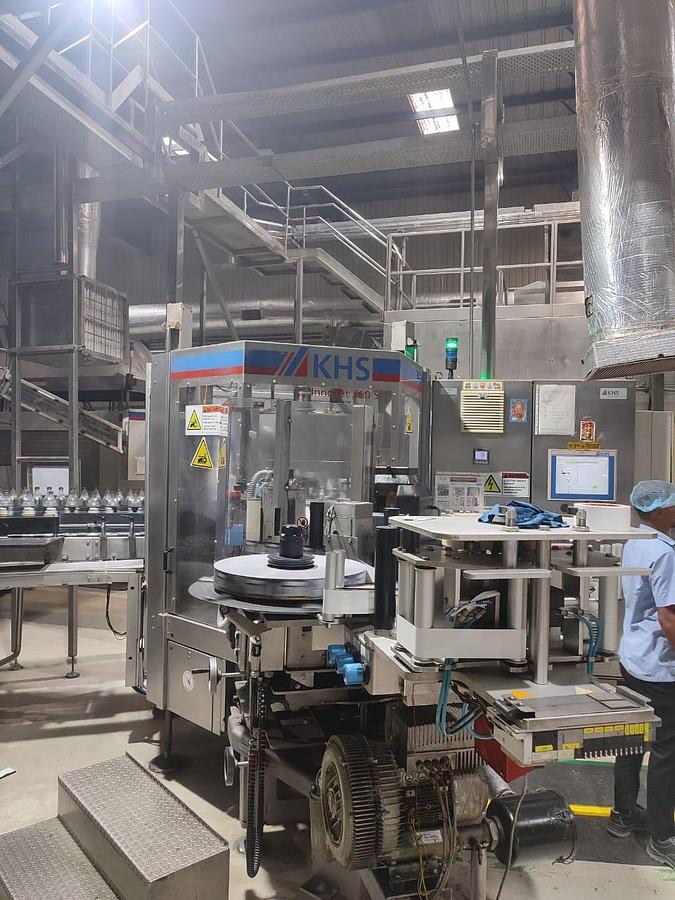

KHS Innoket 360 S/145 – 15RMPT Labeller

High-speed bottle labelling system.

Label Inspection Unit

Integrated label quality inspection system.

FMS KG-4268 Water-Cooled Chiller

Process cooling system.

Warmer WISG 21-94 LH DTS-C Bottle Warmer

Year: 2011

Bottle warming system for post-filling temperature conditioning.

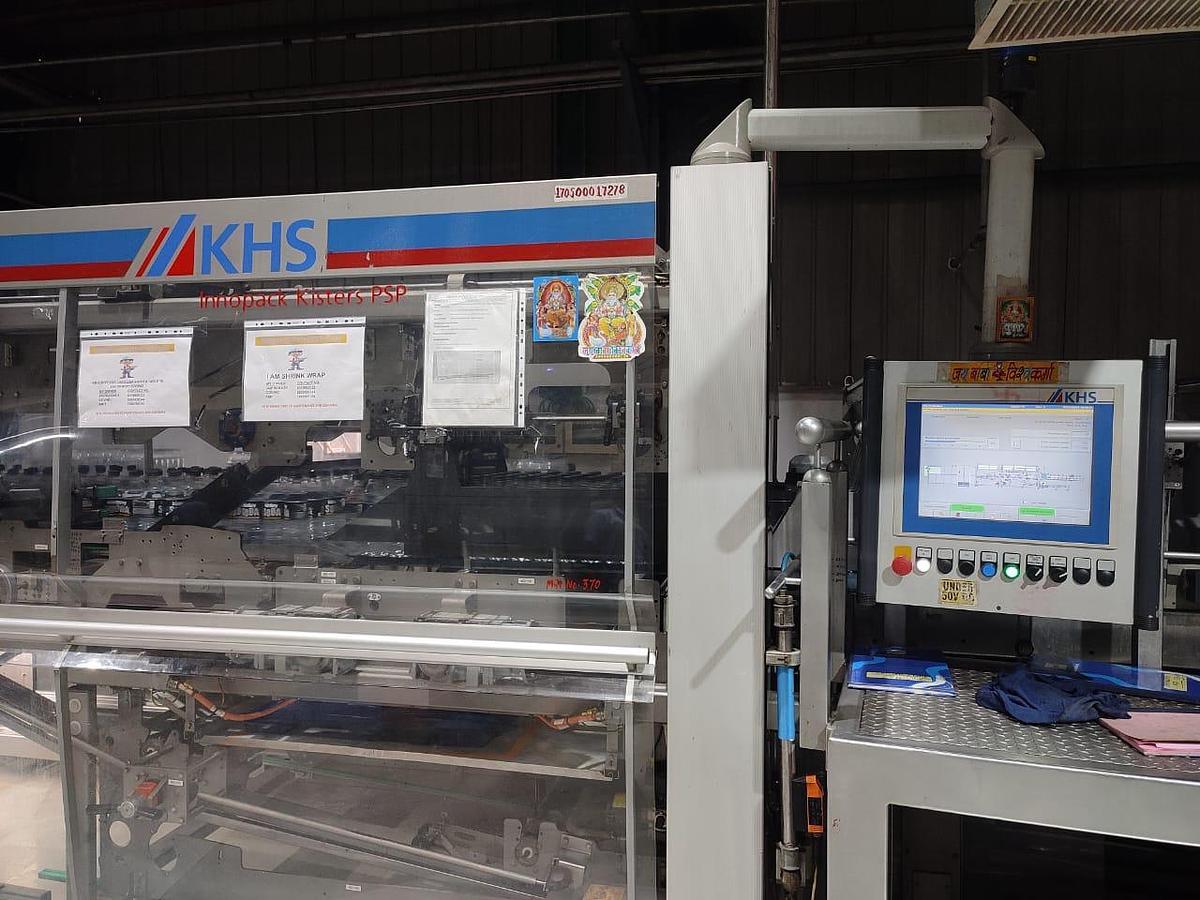

KHS Innopack SP A-M Shrink Packer

Secondary packaging system for shrink-packed bottle formats.

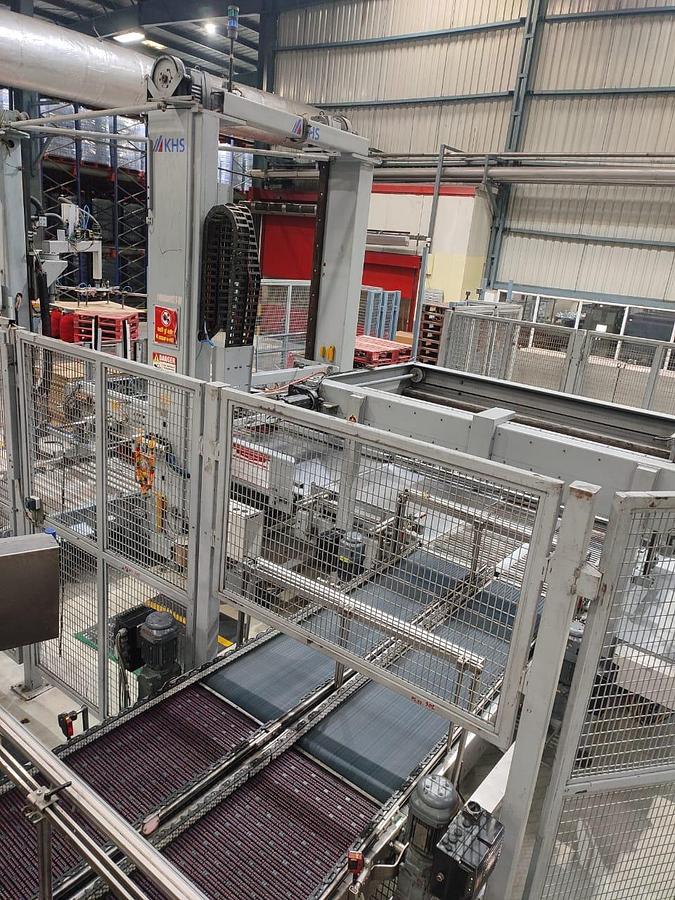

Octopus PB1N2 Palletiser

Automatic end-of-line palletising system.

ITW Signode Octopus 1800 Junior Pallet Wrapper

Automatic stretch wrapping system for finished pallets.

Premix CMX 40T 40-4

Product premixing system.

HCBD Heator Air Blower

Air handling equipment associated with the line.

Eisbär DAS 12 Dehumidifier

Dehumidification system.

Coding & Marking Systems

The line includes multiple coding systems:

Domino Laser Coding Unit – Year 2022

Laser Marking System – Laser coder

Ax350i Ink Coding System

Inkjet Case Coding System

Bottle Formats

The line is configured for the following PET bottle sizes:

400 ml

500 ml

750 ml

1.0 litre

2.0 litre

2.5 litre

Neck finish: PCO 1881

Conveyor Systems

Complete conveyor systems are included for:

Bottle conveying

Pack conveying

Pallet conveying

Additional Equipment

CIP unit

Lubrication machine

Water-cooled chiller

Air blower

Dehumidifier

Premix system

Technical Summary

Manufacturer: KHS

Application: Carbonated Soft Drinks / CSD

Nominal output: Up to 36,000 bottles per hour

Year: 2012

Bottle material: PET

Bottle sizes: 400 ml, 500 ml, 750 ml, 1.0 L, 2.0 L and 2.5 L

Neck finish: PCO 1881

Blow moulder: KHS Innopet Blomax 18S

Filler: KHS Innofill DRV-VF-120/TK4320

Labeller: KHS Innoket 360 S/145 – 15RMPT

Shrink packer: KHS Innopack SP A-M

Palletiser: Octopus PB1N2

Pallet wrapper: ITW Signode Octopus 1800 Junior

Premix system: CMX 40T 40-4

Condition: Used

Working hours: To be advised

Layout: Available upon request

Condition & Availability

Very good condition

Still in production

Additional Support

Vertex Industrial Projects can provide support with:

Inspection and technical assessment

Dismantling and decommissioning

Mechanical and electrical disconnection

Loading and transportation

International relocation

Installation and recommissioning support

Engineering and layout modifications
