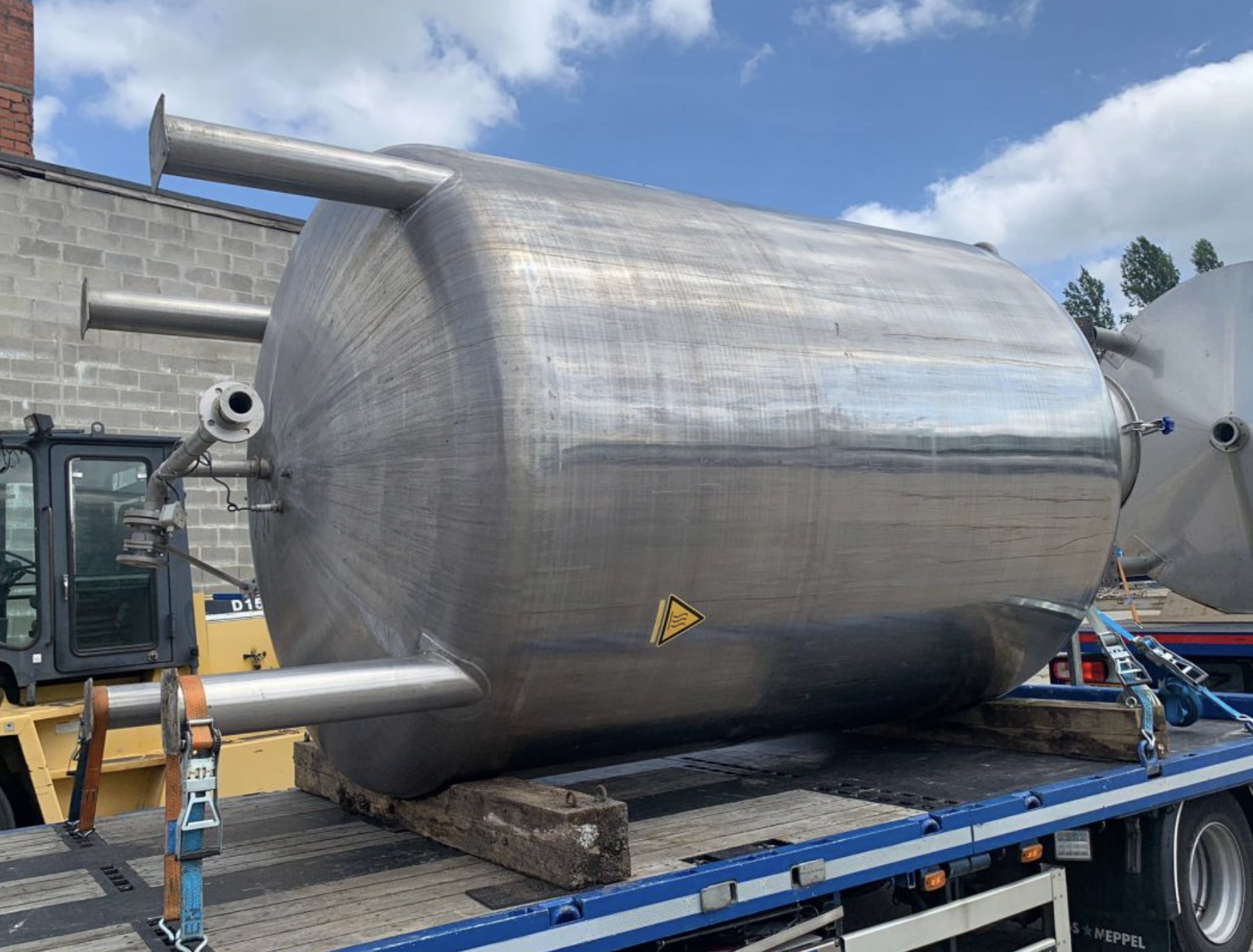

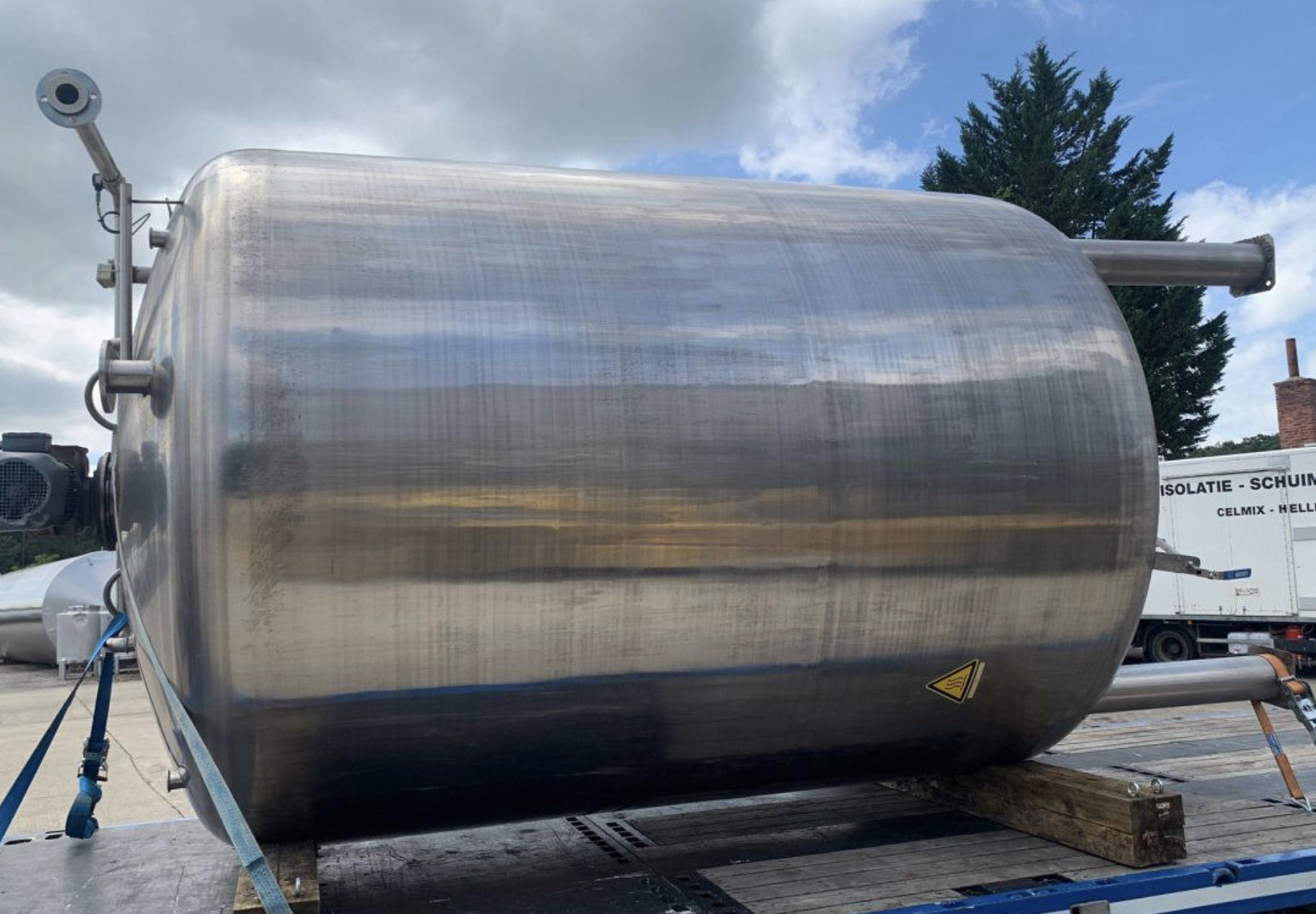

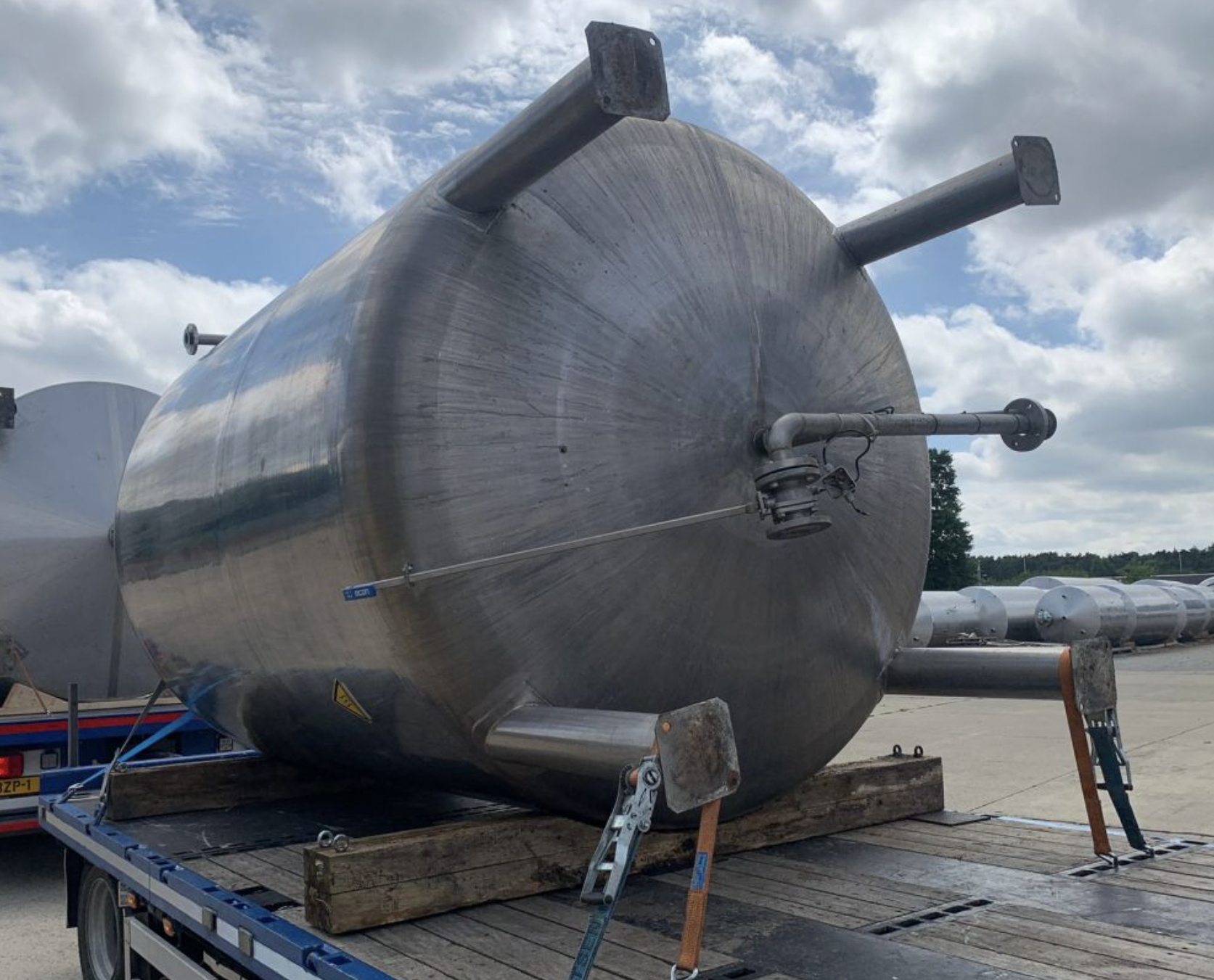

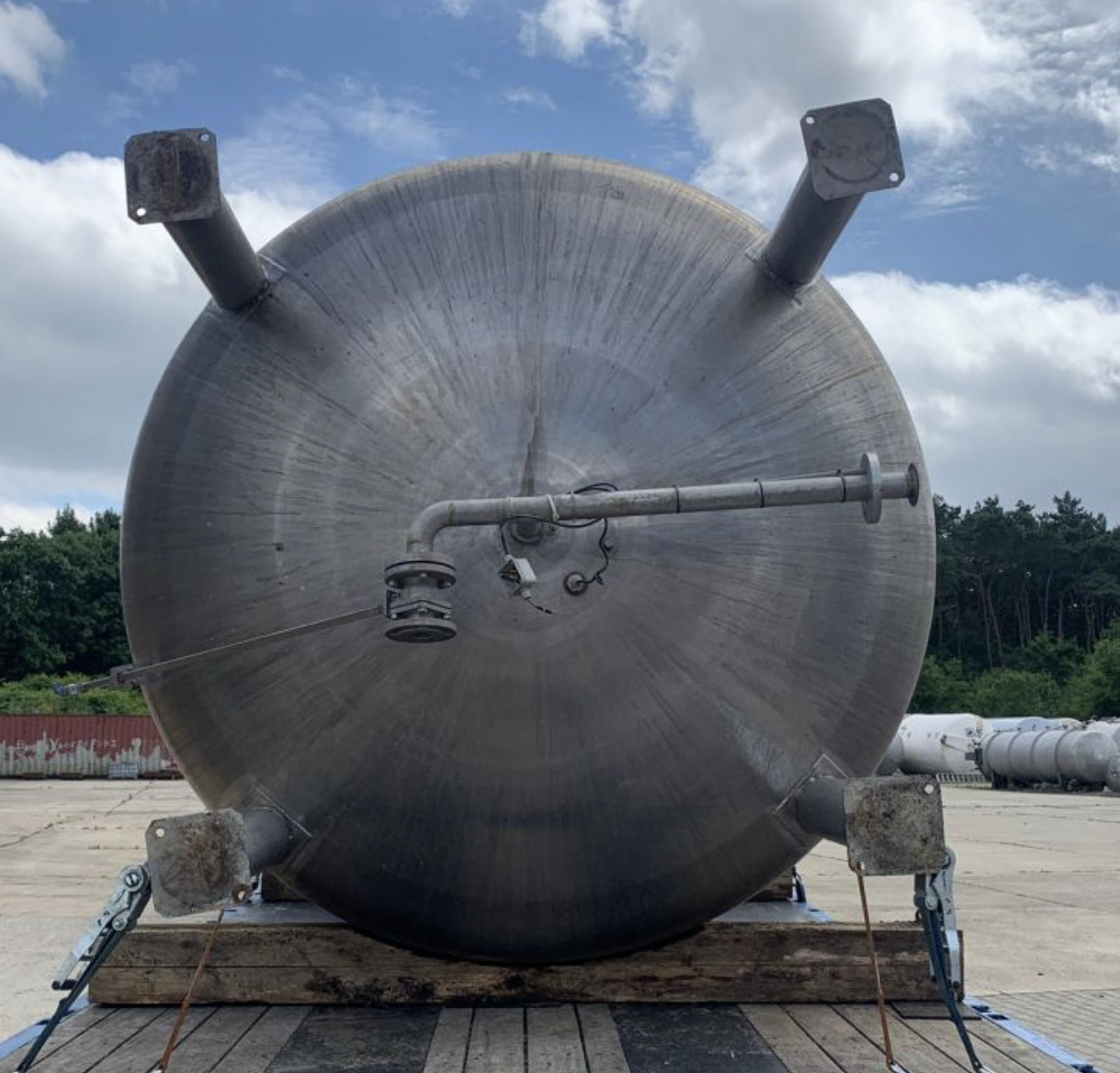

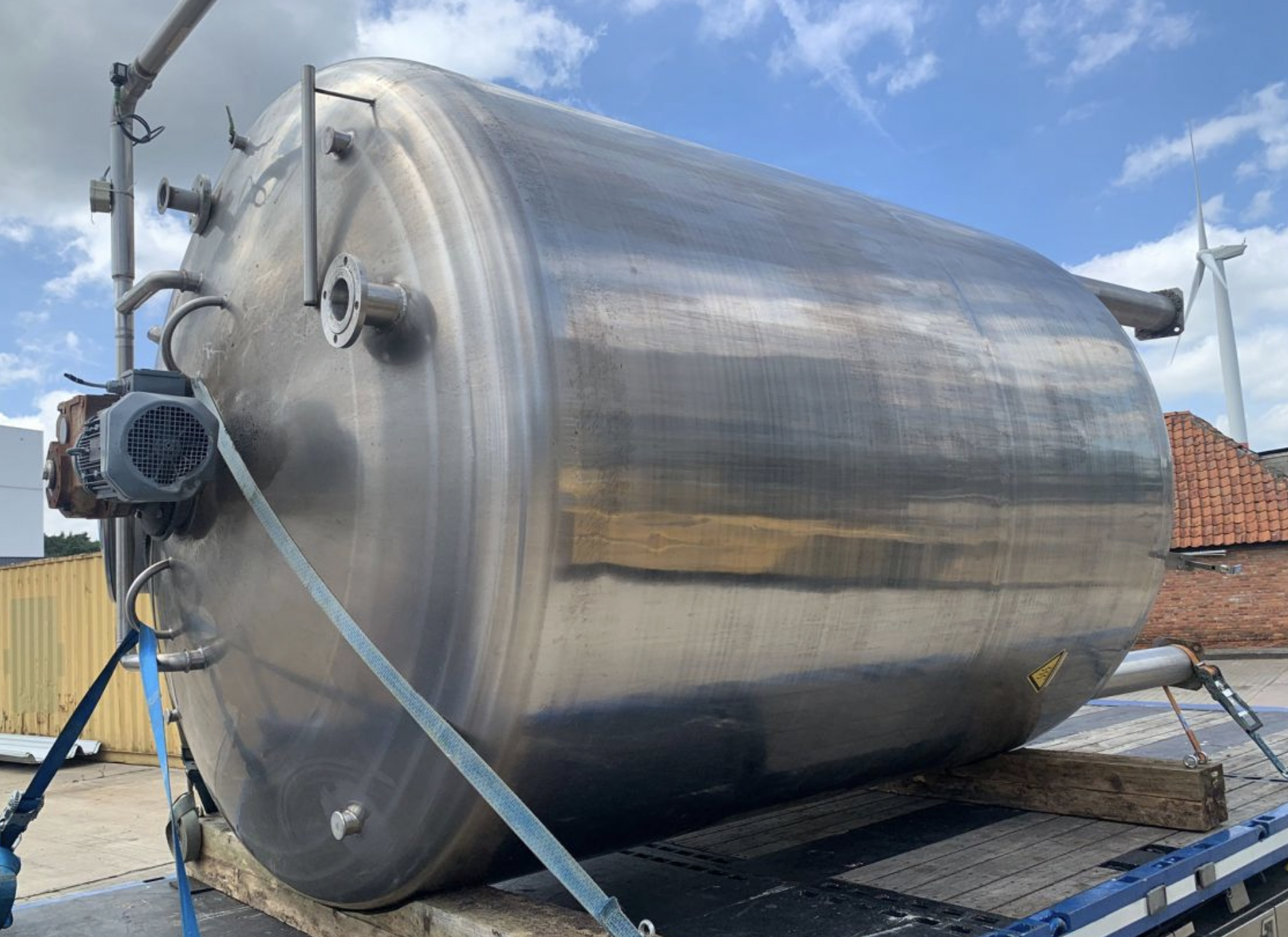

15,000 Litre 304 Stainless Steel Mixing Tank

Technical Summary

Capacity: Approx. 15,000 Litres

Type: Second-Hand Mixing Tank

Condition: Used

Orientation: Vertical

Internal Material: AISI 304 Stainless Steel

Configuration: Single-Skin

Pressure: Atmospheric

Diameter: Approx. 2,300 mm

Cylinder Height: Approx. 2,700 mm

Total Height: Approx. 4,350 mm

Bottom Type: Dished

Top Type: Dished

Agitation: Top-Mounted Propeller Agitator

Agitator Speed: Approx. 25 rpm

Agitator Power: 4 kW

Voltage: 380 V, Three-Phase

Jacket: No

Insulation: No

Supports: 4 Fixed Stainless Steel Feet

Tank Outlet: Approx. 60 mm Internal Diameter

Empty Weight: Approx. 900 kg

Specification

Vertical cylindrical stainless steel mixing tank

Approx. 15,000 litre internal capacity

AISI 304 stainless steel product-contact surfaces

Single-skin atmospheric tank construction

Dished top and dished bottom design

Designed for total product discharge

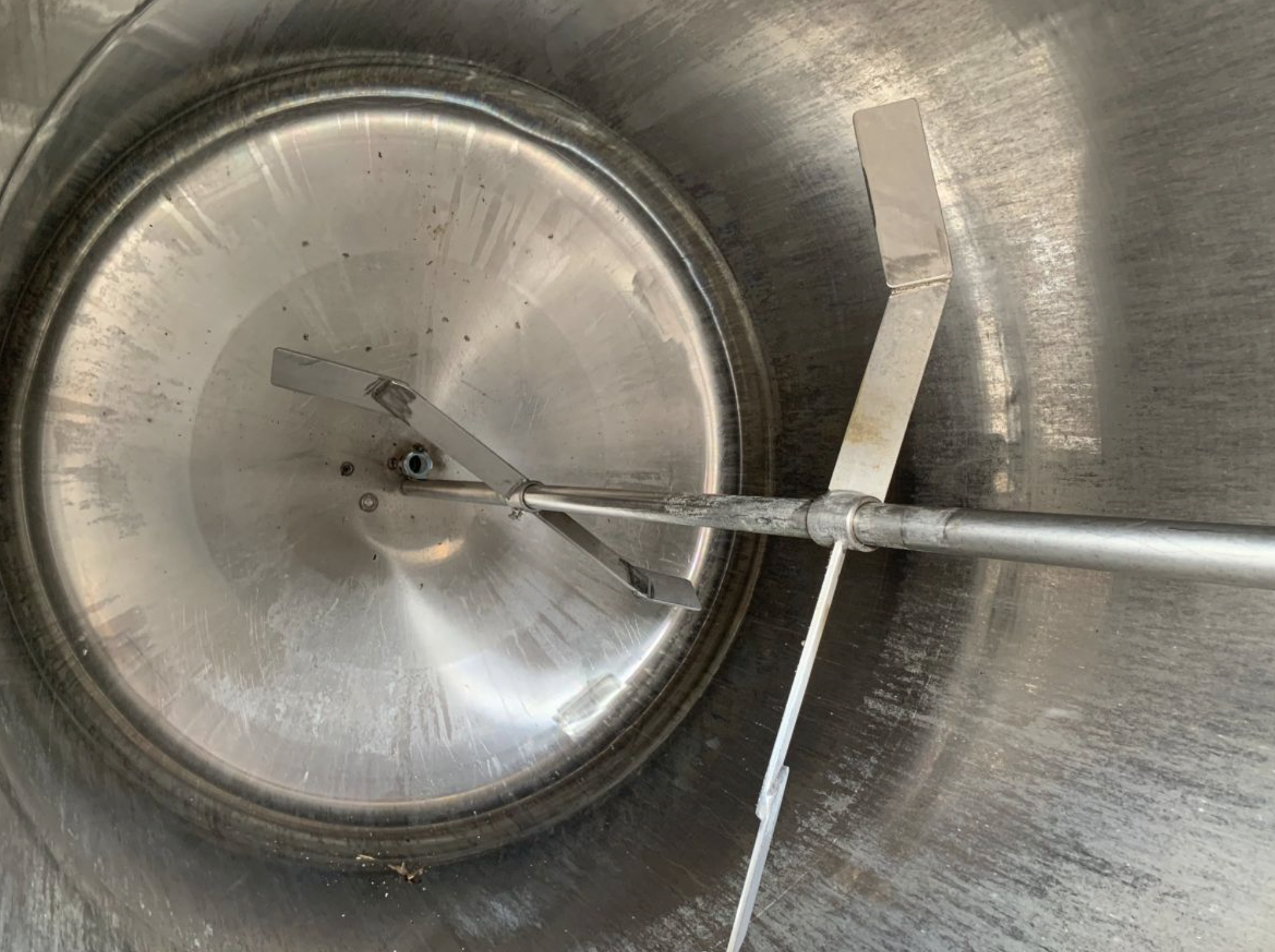

Top-mounted propeller agitator

Agitator operating at approximately 25 rpm

4 kW agitator motor

380 V three-phase electrical supply

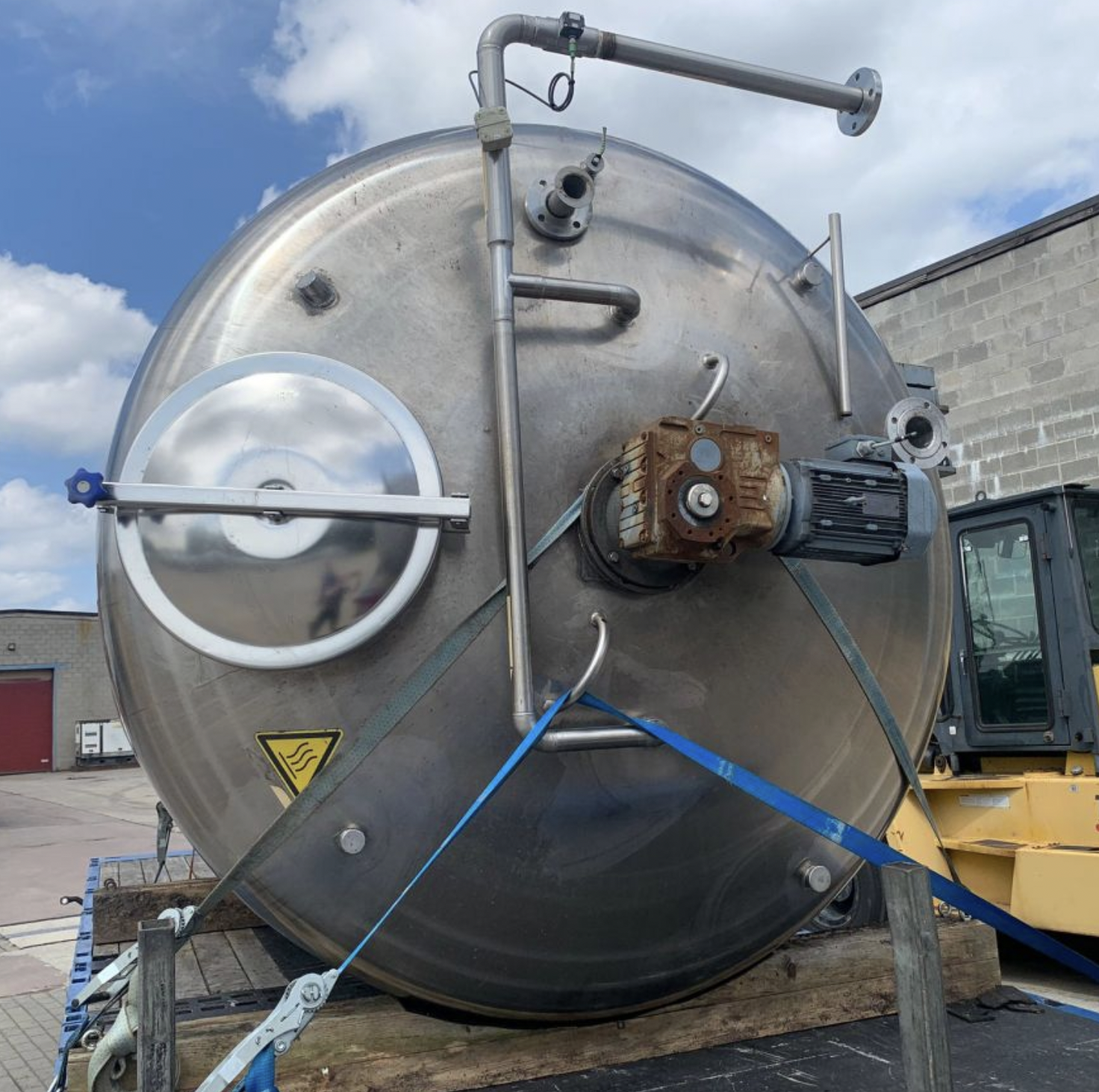

Single hinged manway positioned at the head / top of the tank

AISI 304 stainless steel manway construction

Approx. 60 mm internal diameter product outlet

Outlet positioned approximately 120 mm above ground level

Mounted on four fixed, non-adjustable stainless steel feet

No heating or cooling jacket

No insulation

Please note: the tank is supplied as used equipment and no guarantee can be provided regarding the condition or operation of the agitator.

Dimensions

Overall Diameter: Approx. 2,300 mm

Cylinder Height: Approx. 2,700 mm

Overall Height: Approx. 4,350 mm

Internal Volume: Approx. 15,000 Litres

Outlet to Ground: Approx. 120 mm

Empty Weight: Approx. 900 kg

Availability & Project Support

Available as second-hand equipment.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
