15,000 Litre 304 Stainless Steel Mixing Tanks

Technical Summary

Capacity: Approx. 15,000 Litres

Type: Second-Hand Storage Tank

Condition: Used

Orientation: Vertical

Internal Material: AISI 304 Stainless Steel

Configuration: Single-Skin

Pressure: Atmospheric

Diameter: Approx. 2,500 mm

Cylinder Height: Approx. 3,000 mm

Total Height: Approx. 5,700 mm

Agitation: Yes

Agitator Speed: Approx. 20 rpm

Agitator Power: 22 kW

Jacket: No

Insulation: No

Outlet: DN100 Flanged Outlet

Empty Weight: Approx. 3,000 kg

Registration Plate: Yes

Specification

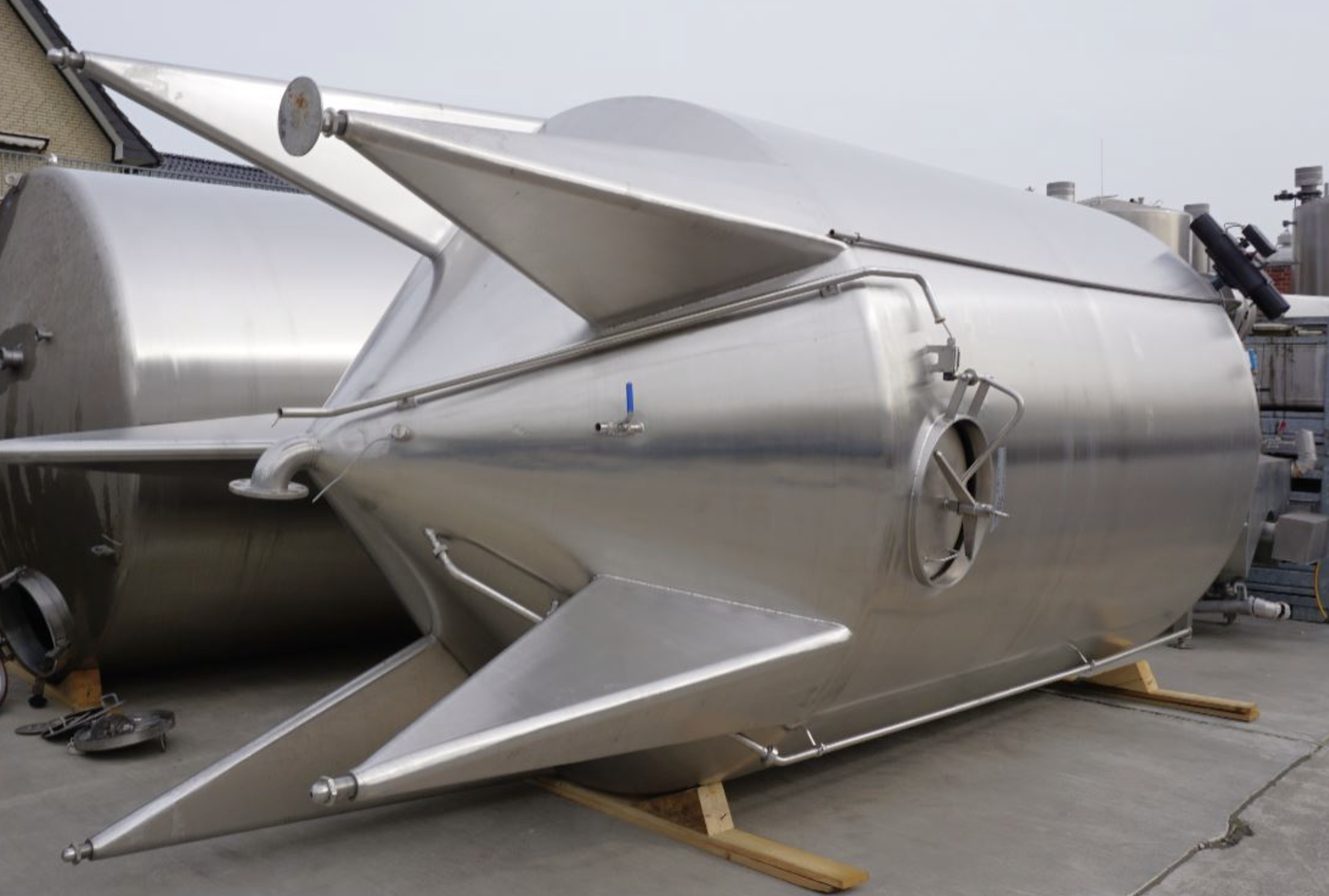

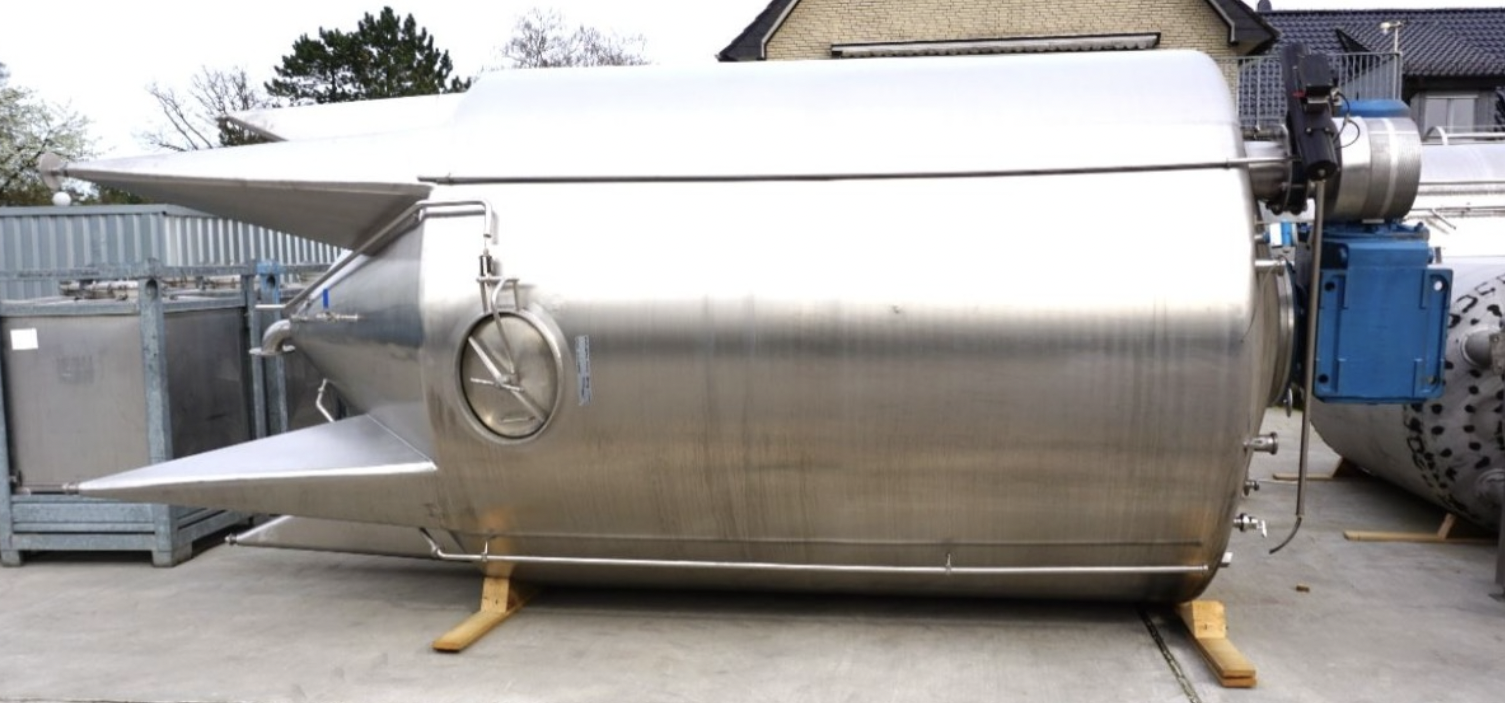

Vertical cylindrical stainless steel storage tank

Approx. 15,000 litre internal capacity

AISI 304 stainless steel product-contact surfaces

Single-skin atmospheric tank construction

Designed for total product discharge

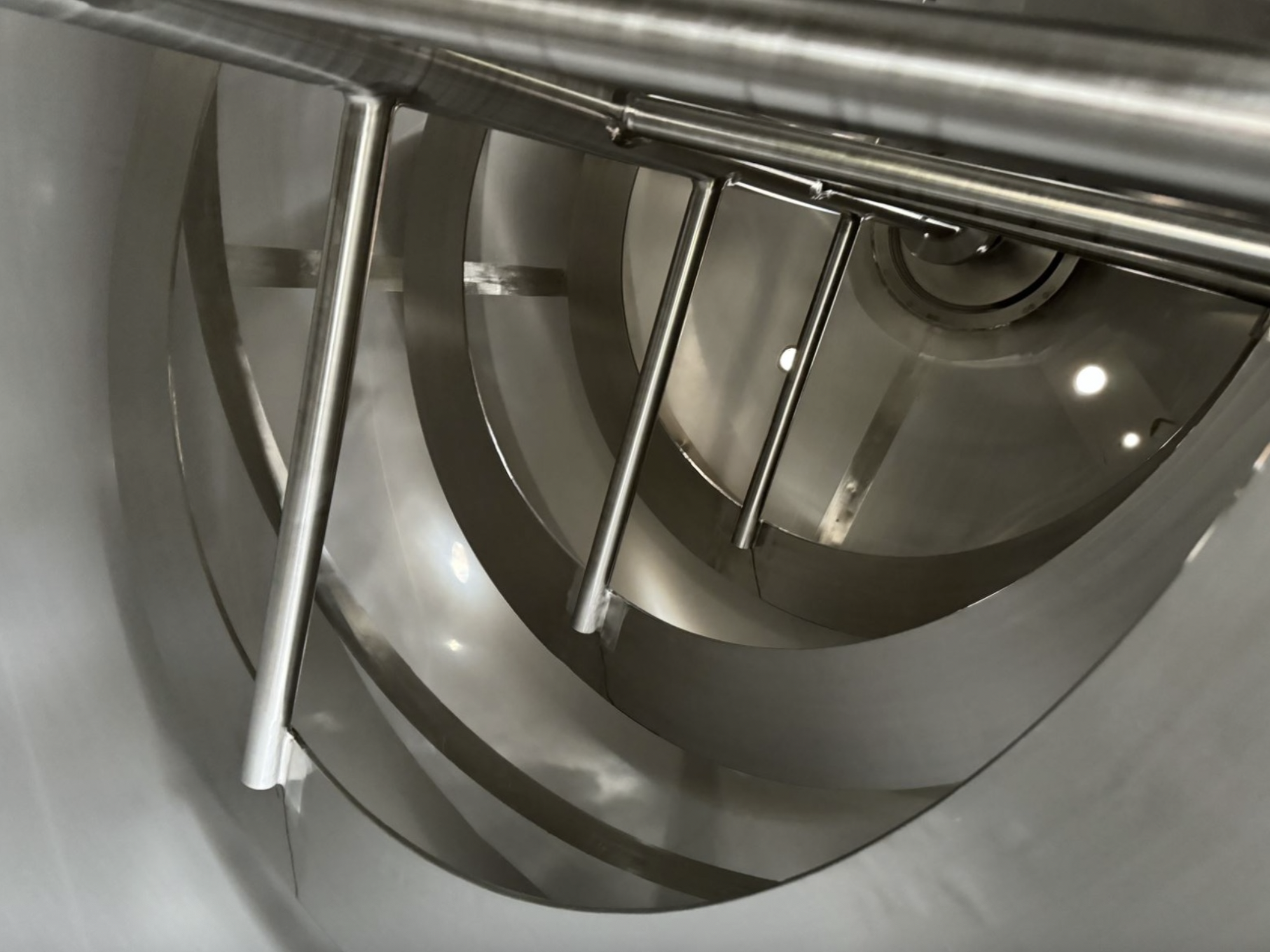

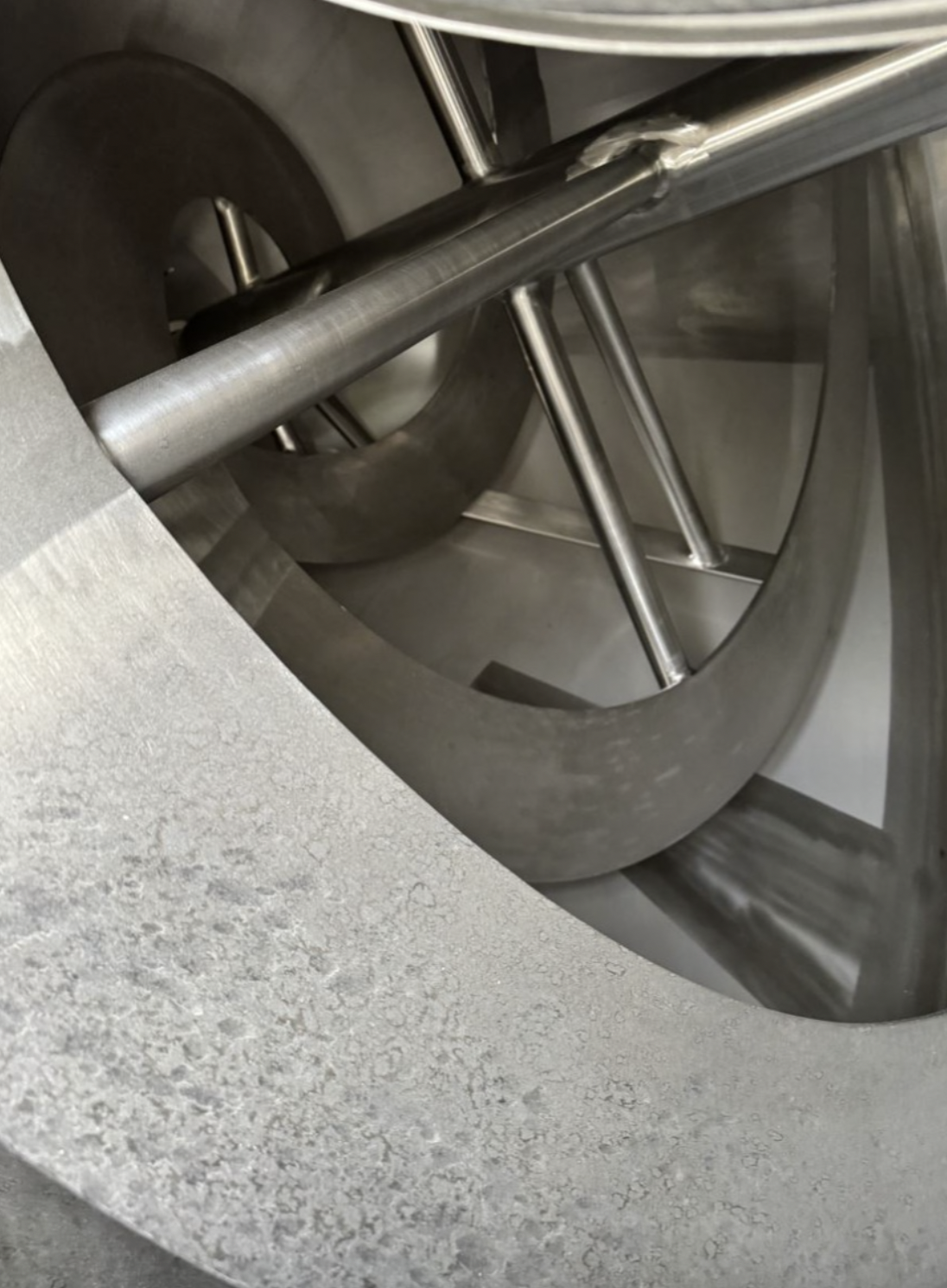

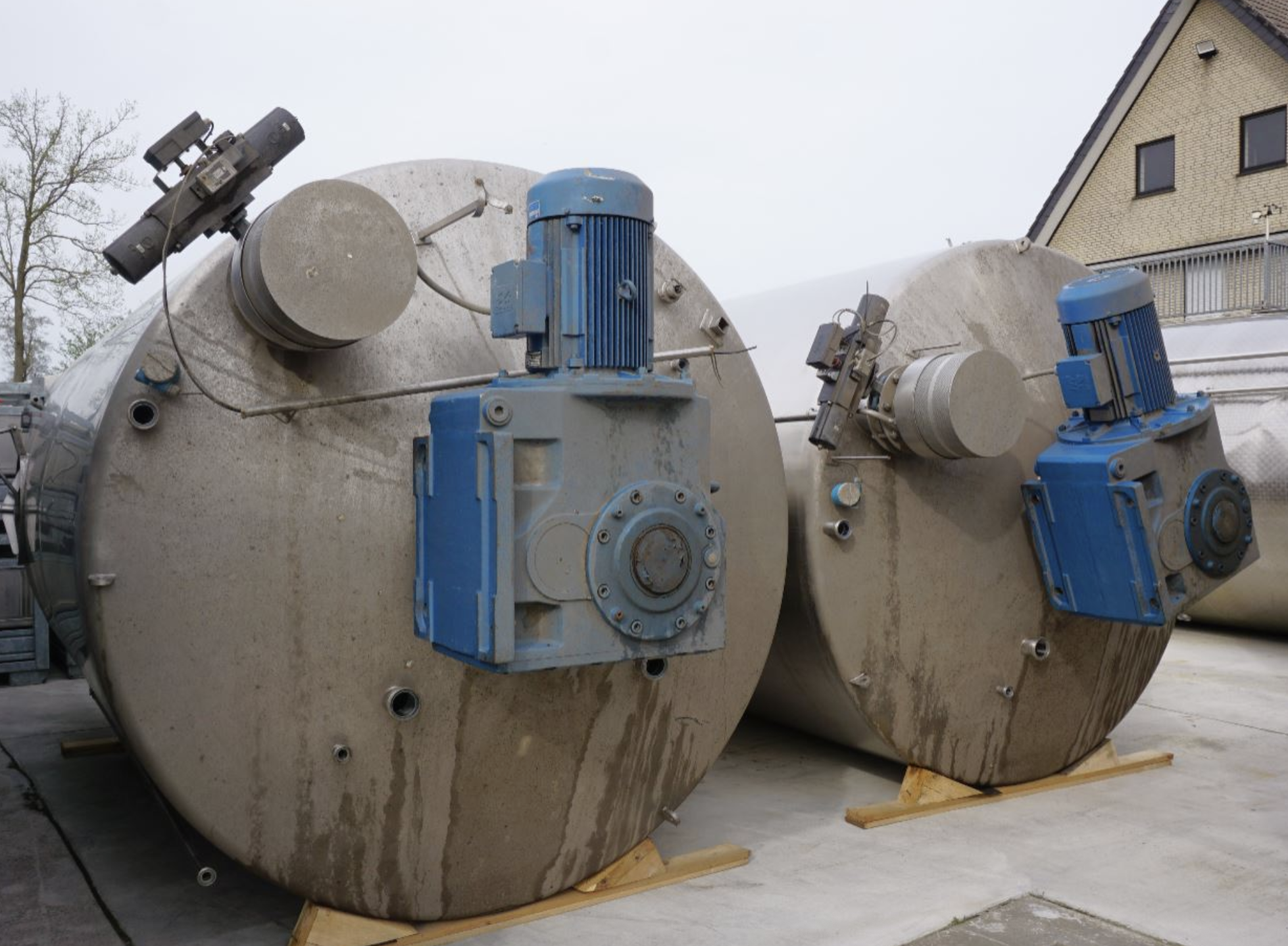

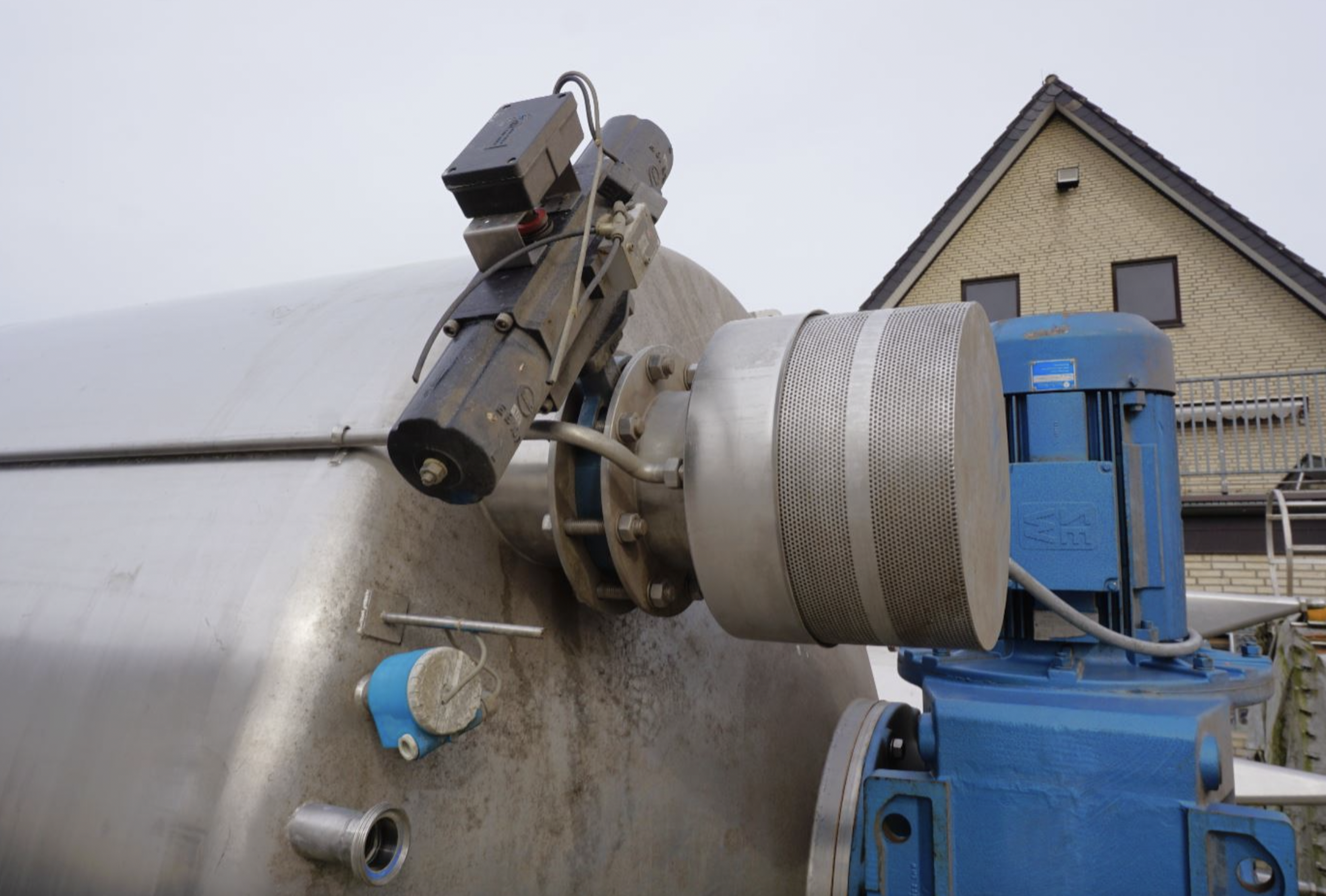

Fitted with agitator

Agitator operating at approximately 20 rpm

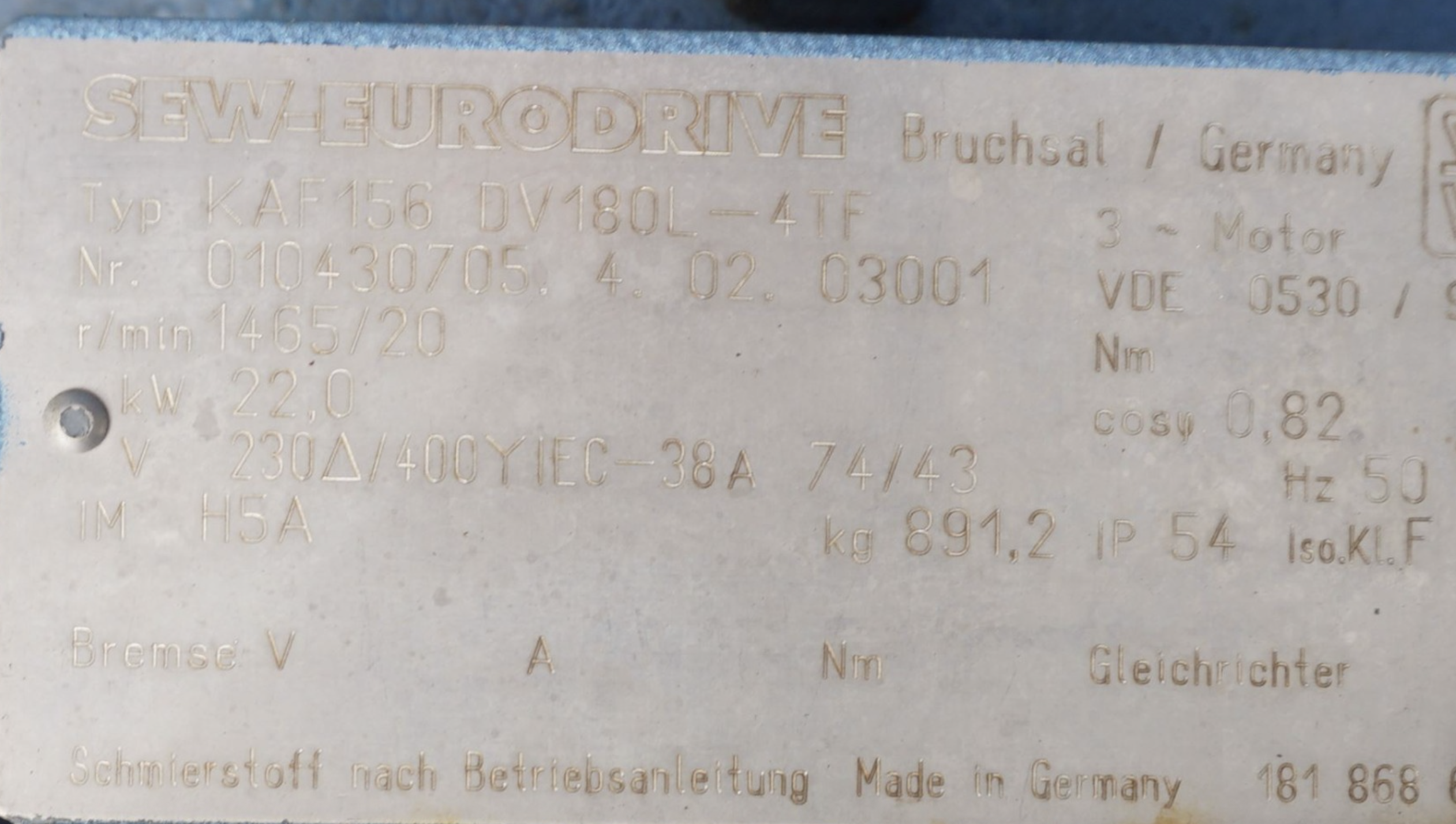

22 kW agitator motor

Manway positioned on the cylindrical shell

DN100 flanged product outlet

No heating or cooling jacket

No insulation

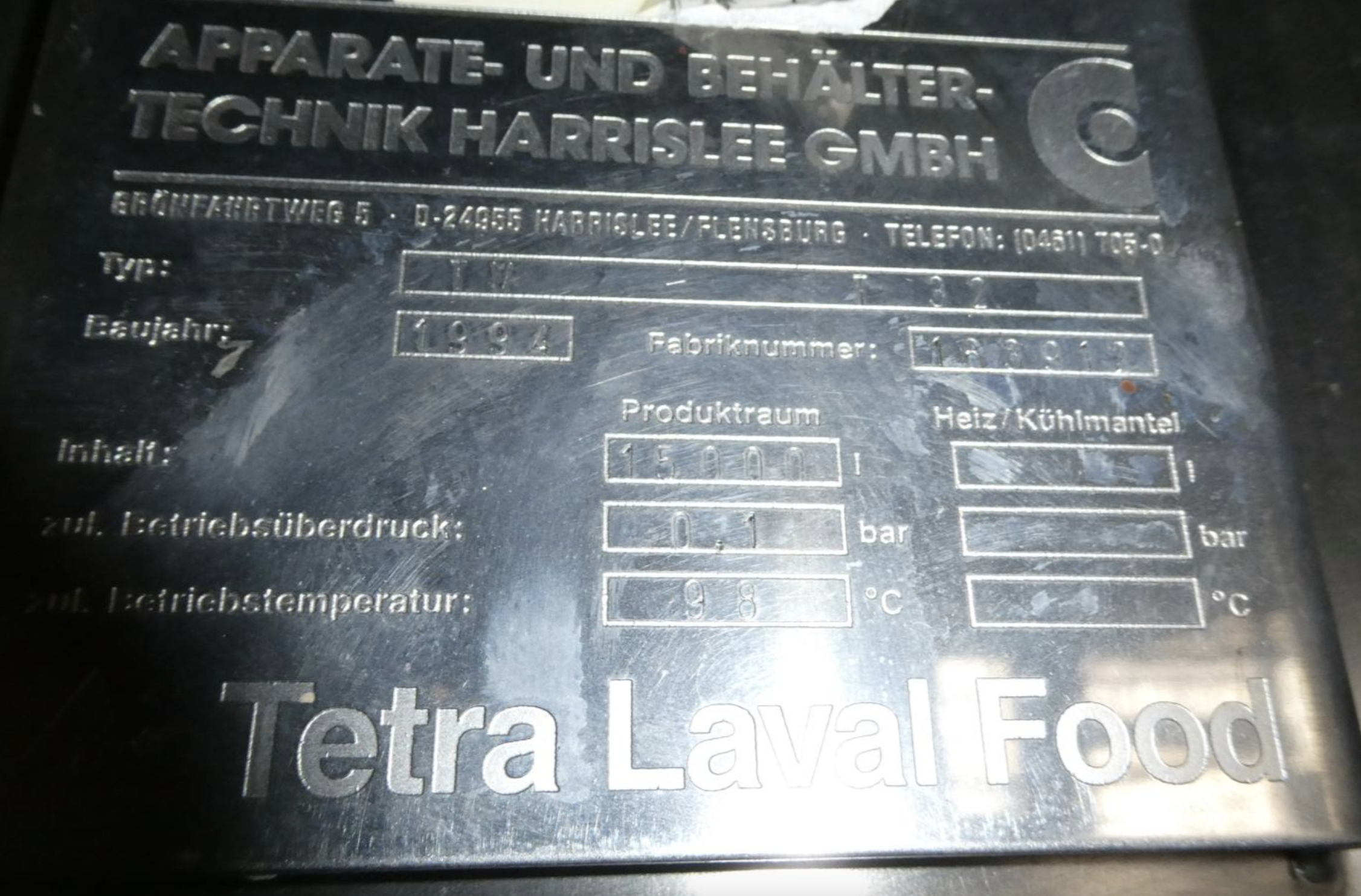

Registration plate fitted to the tank

No technical drawing or supporting documentation included

Please note: the tank is supplied as used equipment and no guarantee can be provided regarding the condition or operation of the agitator.

Dimensions

Overall Diameter: Approx. 2,500 mm

Cylinder Height: Approx. 3,000 mm

Overall Height: Approx. 5,700 mm

Internal Volume: Approx. 15,000 Litres

Empty Weight: Approx. 3,000 kg

Availability & Project Support

Available as second-hand equipment.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
