43,000 Litre 304 Stainless Steel Mixing Tank

Technical Summary

Capacity: Approx. 43,000 Litres

Type: Second-Hand Storage Tank

Condition: Used

Orientation: Vertical

Internal Material: AISI 304 Stainless Steel

Configuration: Single-Skin

Pressure: Atmospheric

Diameter: Approx. 3,000 mm

Cylinder Height: Approx. 6,000 mm

Total Height: Approx. 8,000 mm

Agitation: Yes

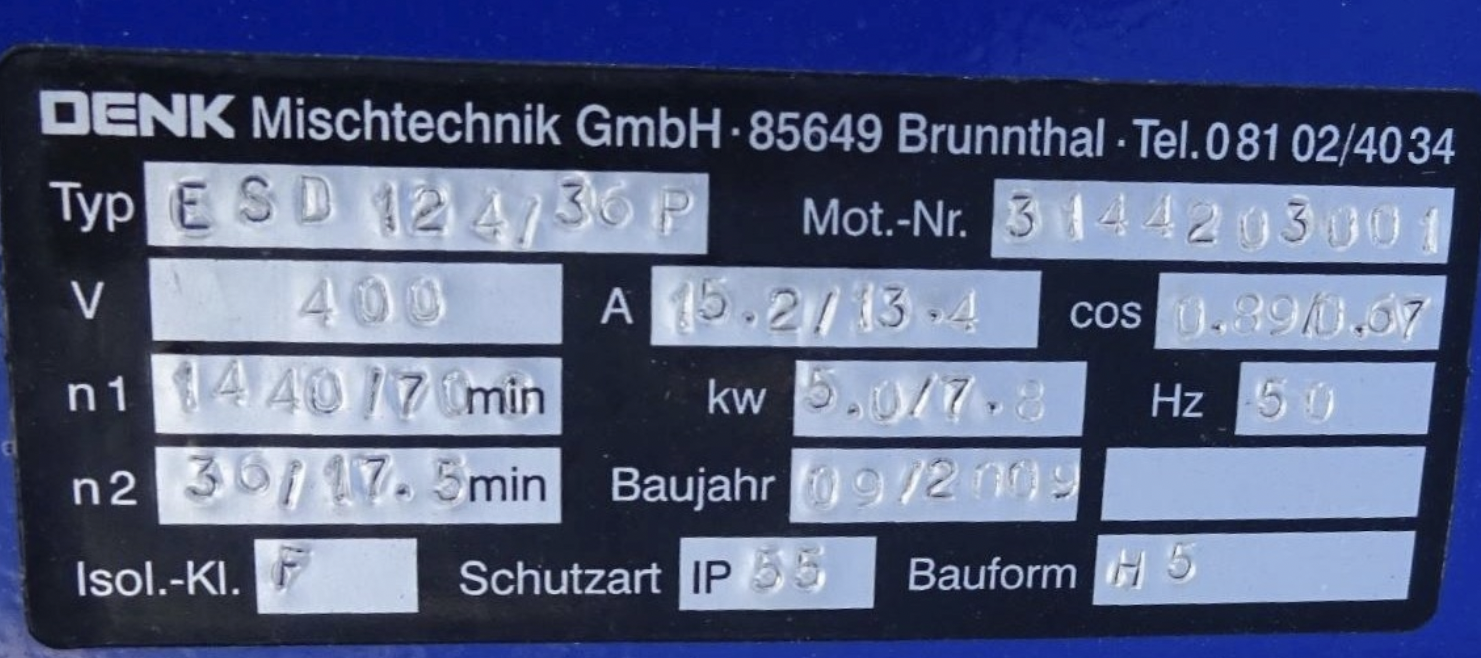

Agitator Speed: Approx. 17.5 rpm

Agitator Power: 7.5 kW

Jacket: No

Insulation: No

Outlet: Available

Empty Weight: Approx. 3,000 kg

Registration Plate: No

Specification

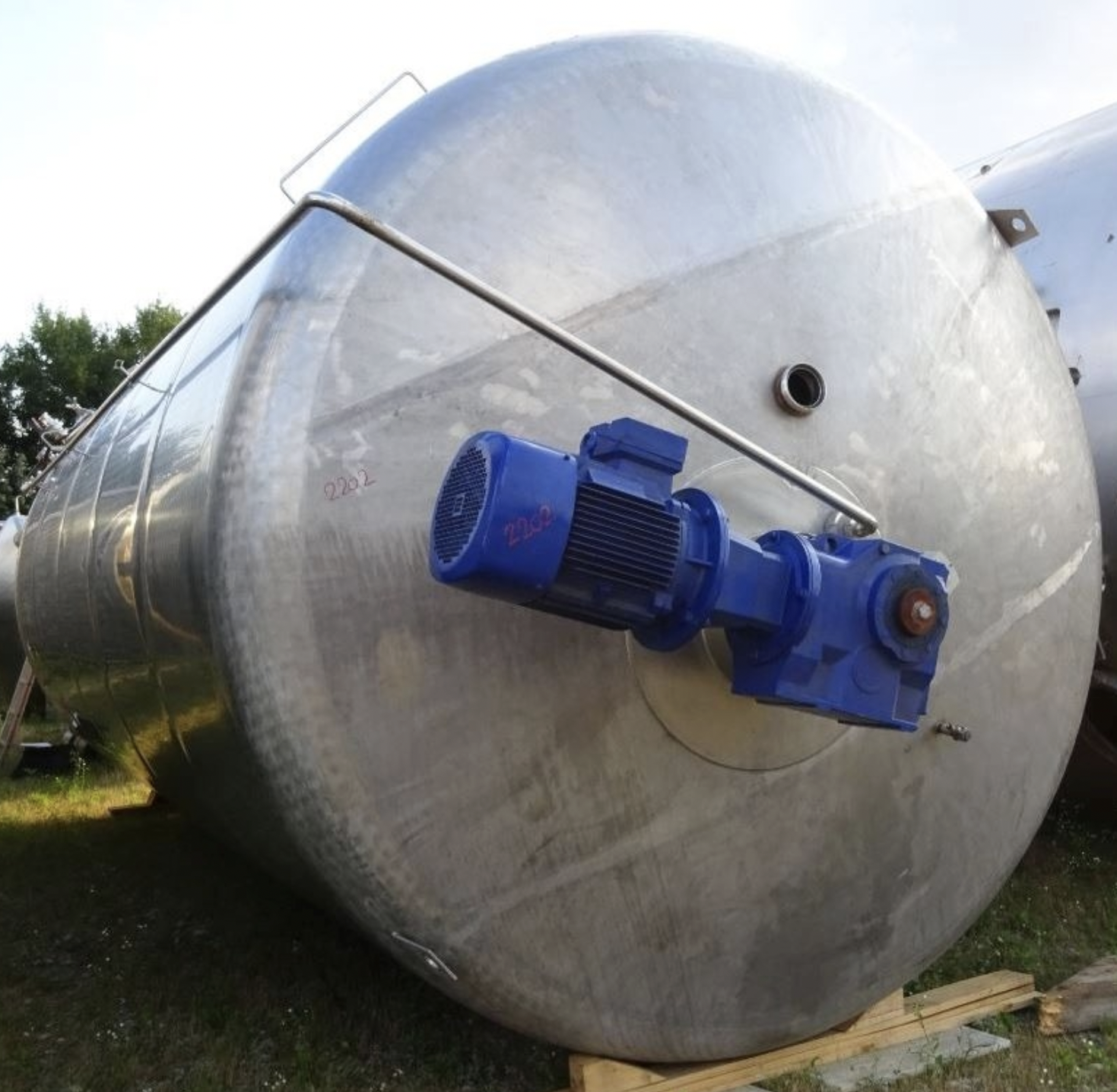

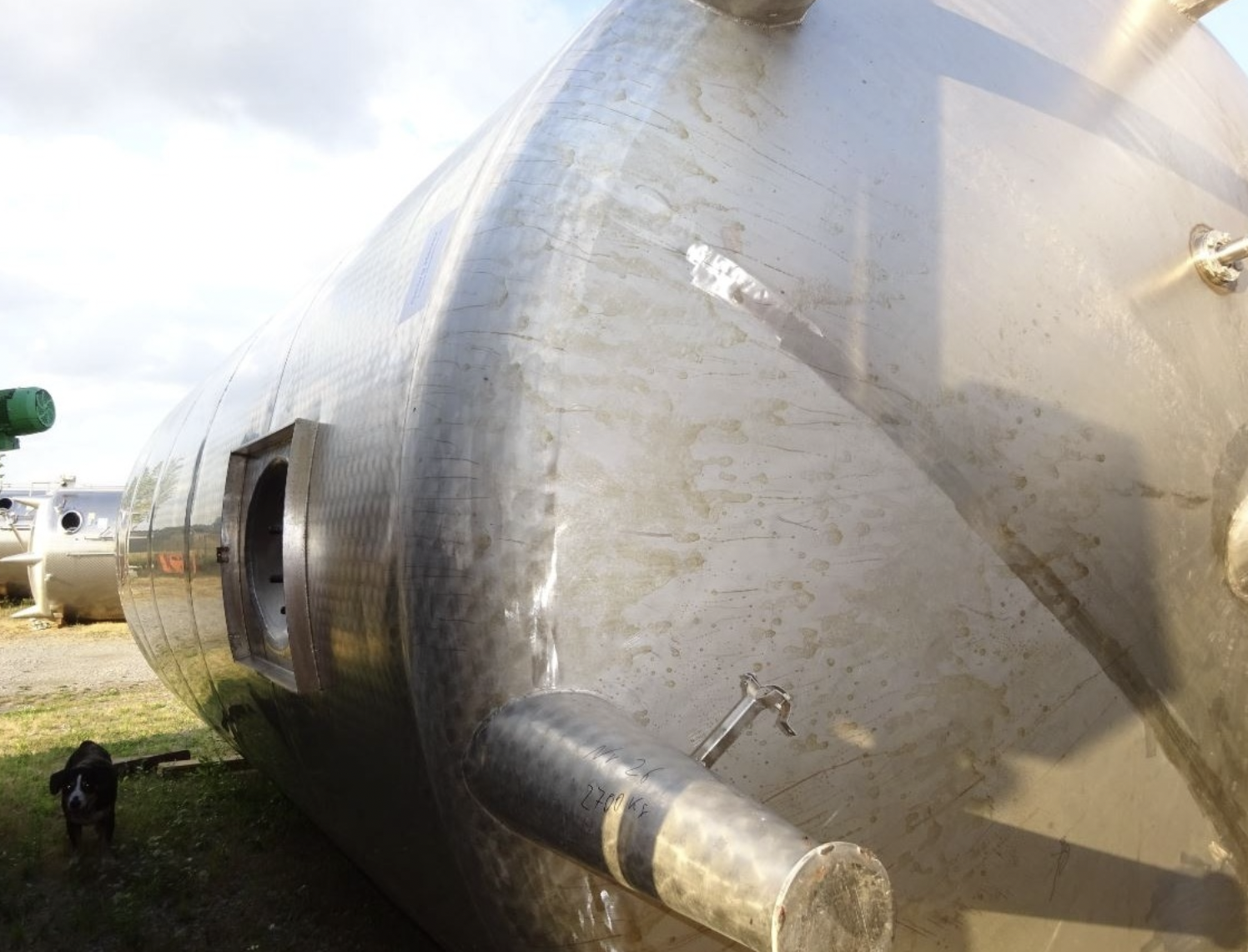

Vertical cylindrical stainless steel storage tank

Approx. 43,000 litre internal capacity

AISI 304 stainless steel product-contact surfaces

Single-skin atmospheric tank construction

Designed for total product discharge

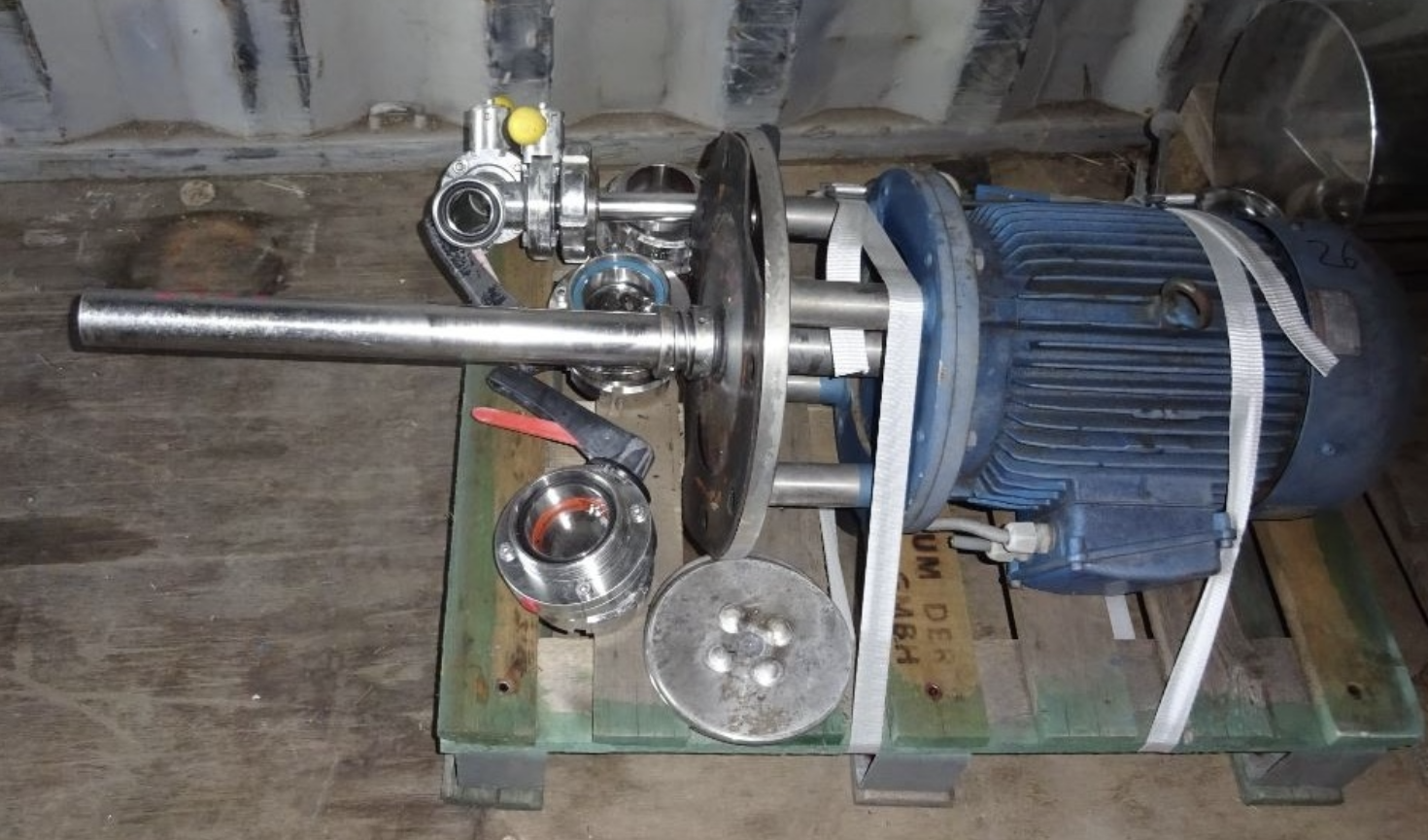

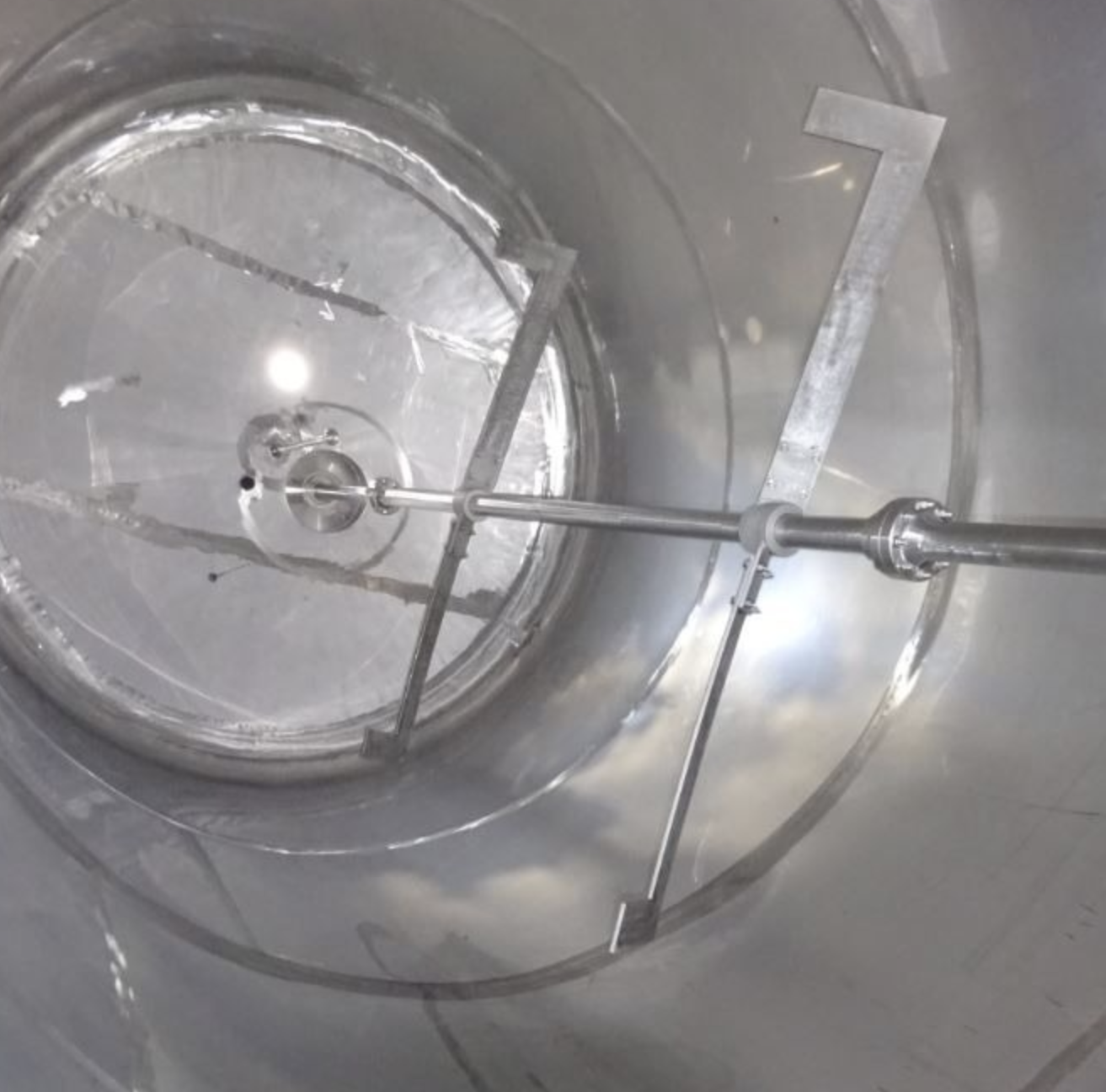

Fitted with agitator

Agitator operating at approximately 17.5 rpm

7.5 kW agitator motor

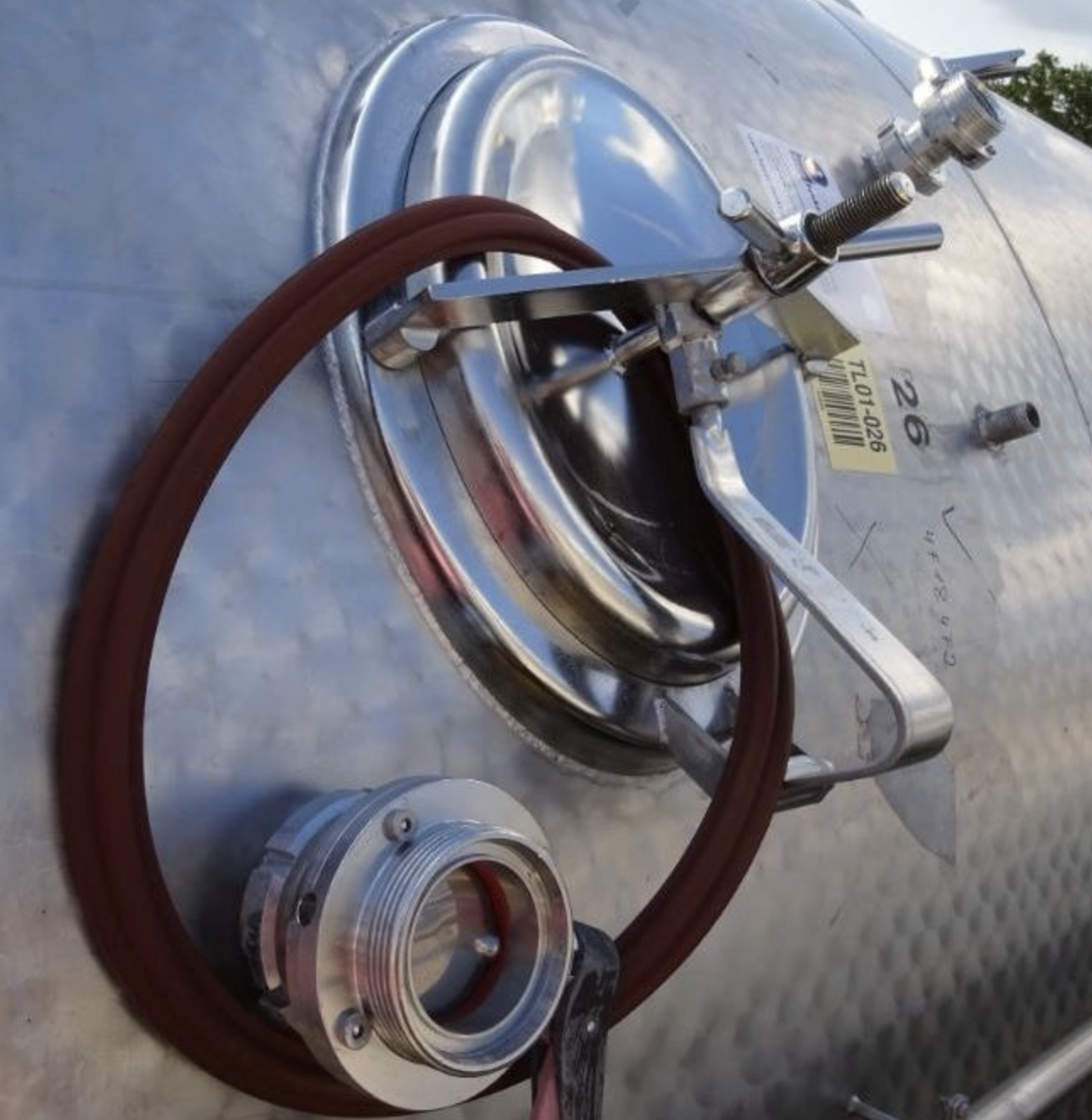

Manway positioned on the cylindrical shell

Product outlet fitted

No heating or cooling jacket

No insulation

No registration plate fitted

No technical drawing or supporting documentation included

Please note: the tank is supplied as used equipment and no guarantee can be provided regarding the condition or operation of the agitator.

Dimensions

Overall Diameter: Approx. 3,000 mm

Cylinder Height: Approx. 6,000 mm

Overall Height: Approx. 8,000 mm

Internal Volume: Approx. 43,000 Litres

Empty Weight: Approx. 3,000 kg

Availability & Project Support

Available as second-hand equipment.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
