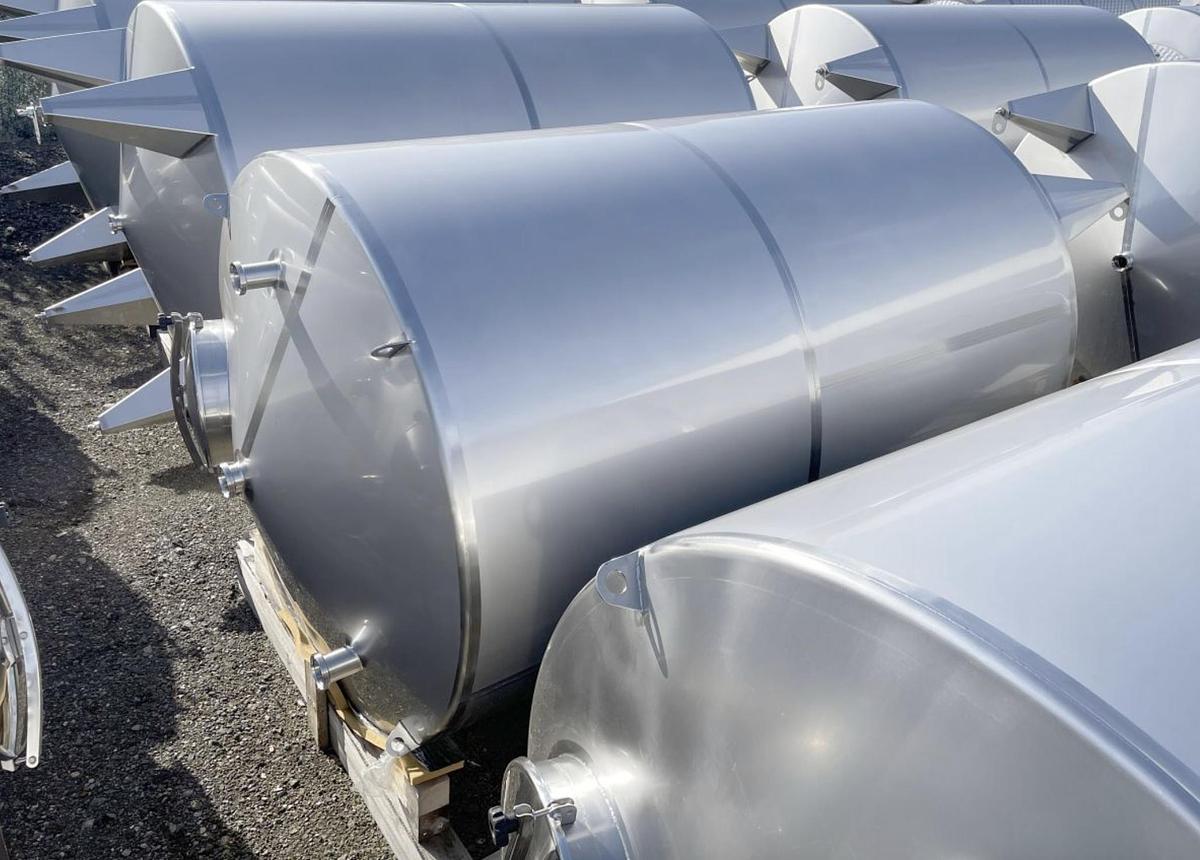

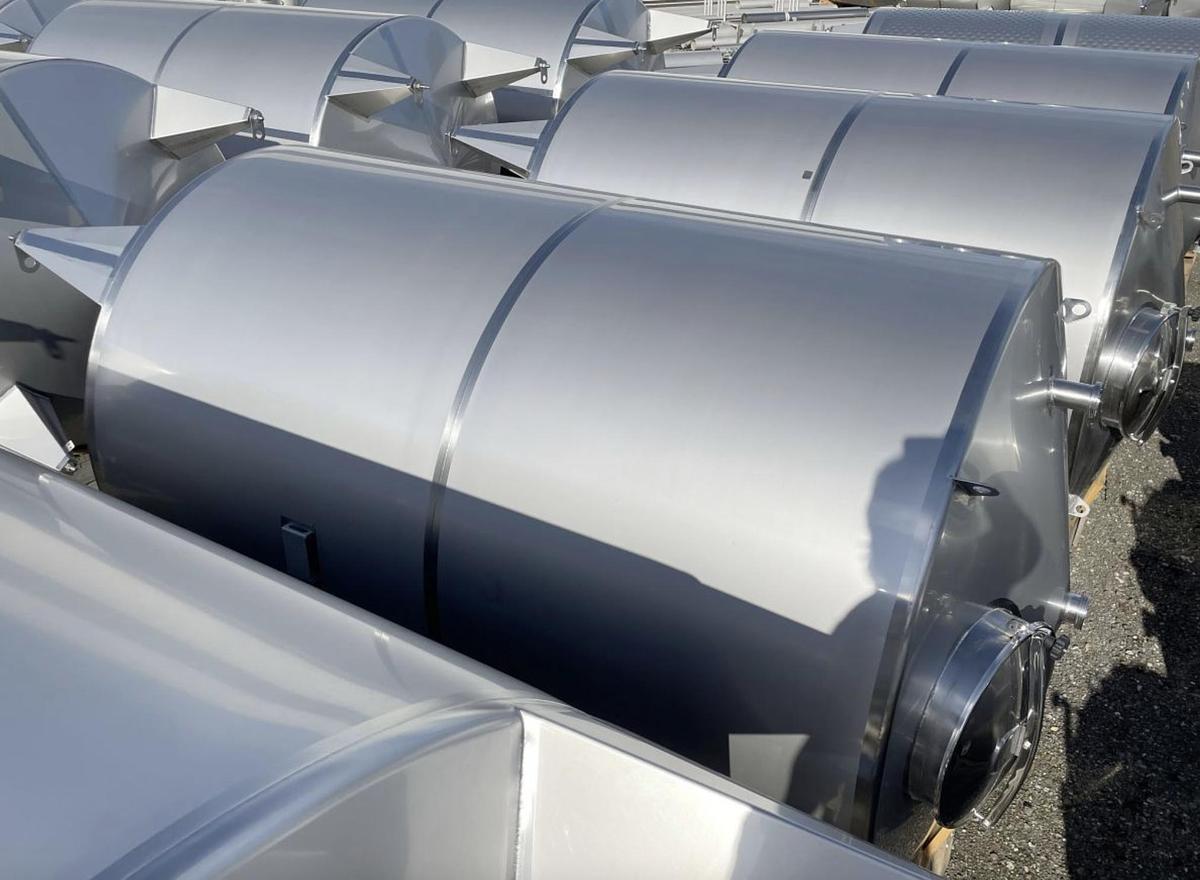

Brand New 8,000 Litre 304 Stainless Steel Tanks

Technical Summary

Capacity: Approx. 8,100 Litres

Type: Brand New Storage Tank – Type K5-SL

Condition: Brand New

Orientation: Vertical

Internal Material: AISI 304L Stainless Steel

Internal Surface Finish: Ra ≤ 0.8 µm

External Finish: 2B Stainless Steel

Configuration: Single-Skin

Pressure: Atmospheric

Maximum Product Density: Approx. 1,300 kg/m³

Minimum Temperature: -10°C

Maximum Temperature: On Request

Diameter: Approx. 1,874 mm

Cylinder Height: Approx. 2,750 mm

Total Height: Approx. 3,740 mm

Top Type: 15° Conical

Bottom Type: 15° Conical

Jacket: No

Insulation: No

Agitation: Optional

Supports: 4 Adjustable Feet

Outlet: Approx. 65 mm Internal Diameter

Outlet Connection: DIN 11851 Male

Empty Weight: Approx. 413 kg

Inspection: TÜV

Specification

Brand new vertical cylindrical stainless steel storage tank

Approx. 8,100 litre volumetric capacity

AISI 304L stainless steel product-contact surfaces

Internal surface finish of approximately Ra 0.8 µm

2B stainless steel finish

Single-skin atmospheric tank construction

Suitable for food industry applications

Maximum product density of approximately 1,300 kg/m³

Minimum operating temperature of -10°C

Maximum operating temperature available on request, subject to confirmation of product temperature and seal suitability

15° conical top

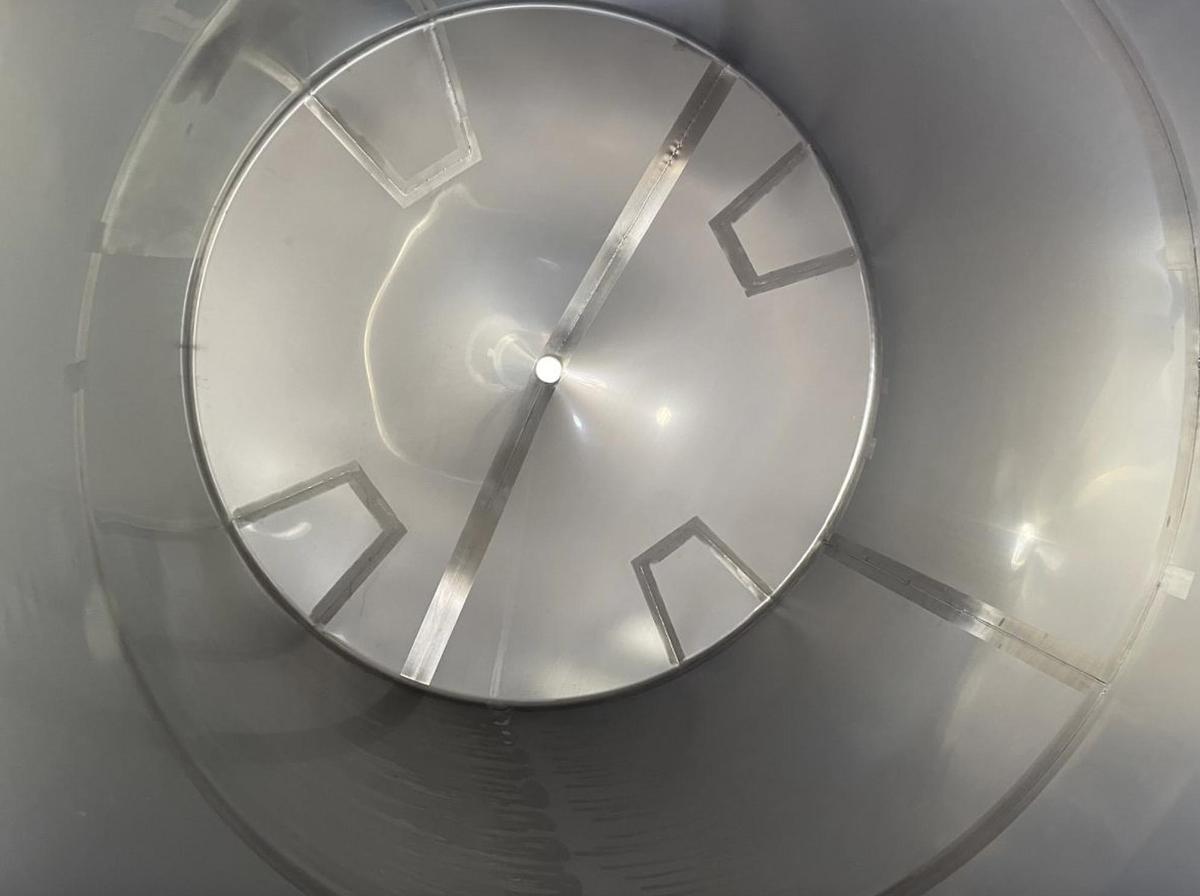

15° conical bottom for effective total product discharge

One top-mounted manway with approx. 500 mm diameter opening

AISI 304L stainless steel manway construction

EPDM manway gasket

Approx. 65 mm internal diameter tank outlet

DIN 11851 male outlet connection

Optional total outlet valve

Optional agitator

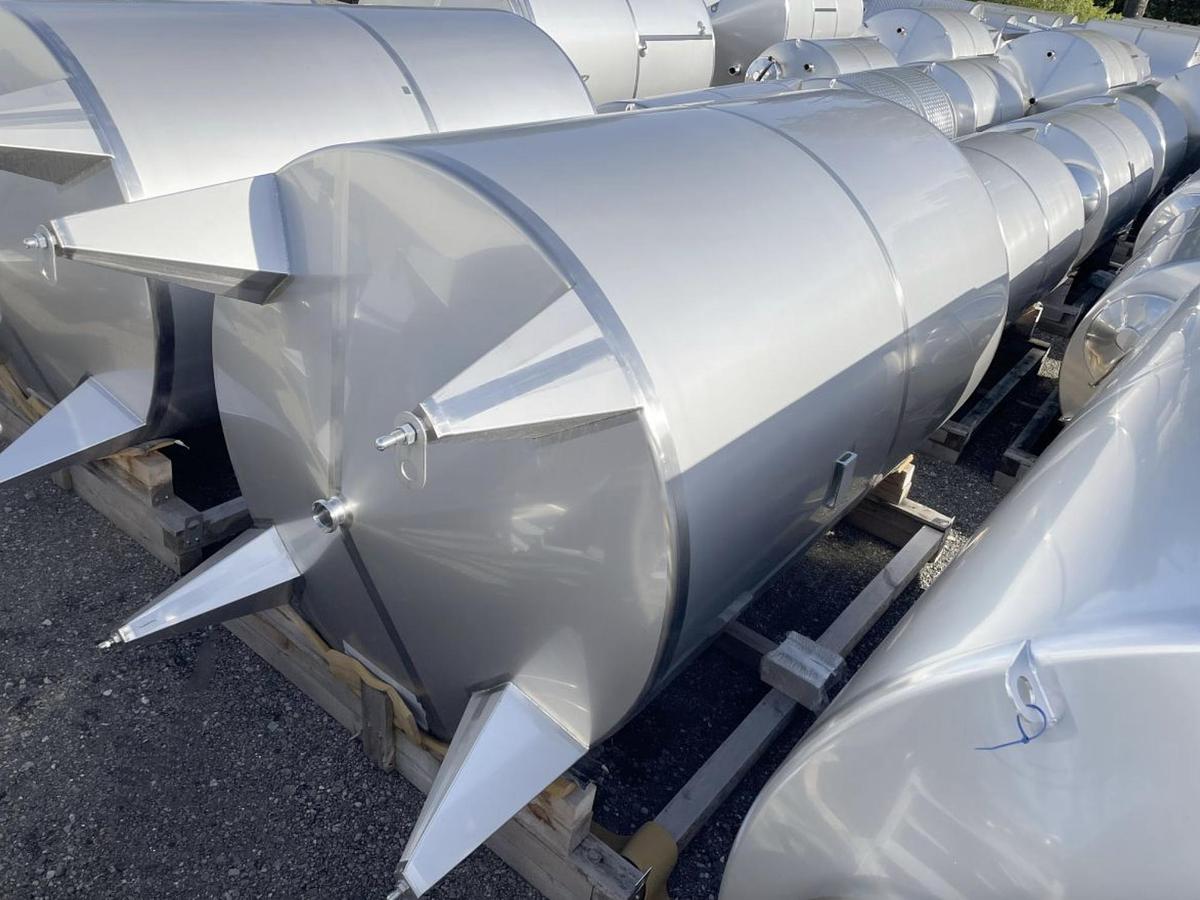

Mounted on four adjustable stainless steel feet

Set of baseplates and adjustment pieces included

No heating or cooling jacket

No insulation

Tank registration plate included

Technical drawing included

Additional documentation available as an option

TÜV inspection

Wall Thicknesses

Top: Approx. 2 mm

Cylinder: Approx. 2 mm

Bottom: Approx. 3 mm

Dimensions

Overall Diameter: Approx. 1,874 mm

Cylinder Height: Approx. 2,750 mm

Feet Height: Approx. 658 mm

Overall Height: Approx. 3,740 mm

Outlet to Ground: Approx. 306 mm

Internal Volume: Approx. 8,100 Litres

Empty Weight: Approx. 413 kg

Availability & Project Support

Available as brand new equipment.

Full support available including:

• Loading and transport coordination
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
• Optional documentation packages
• Optional outlet valve and agitator configuration
