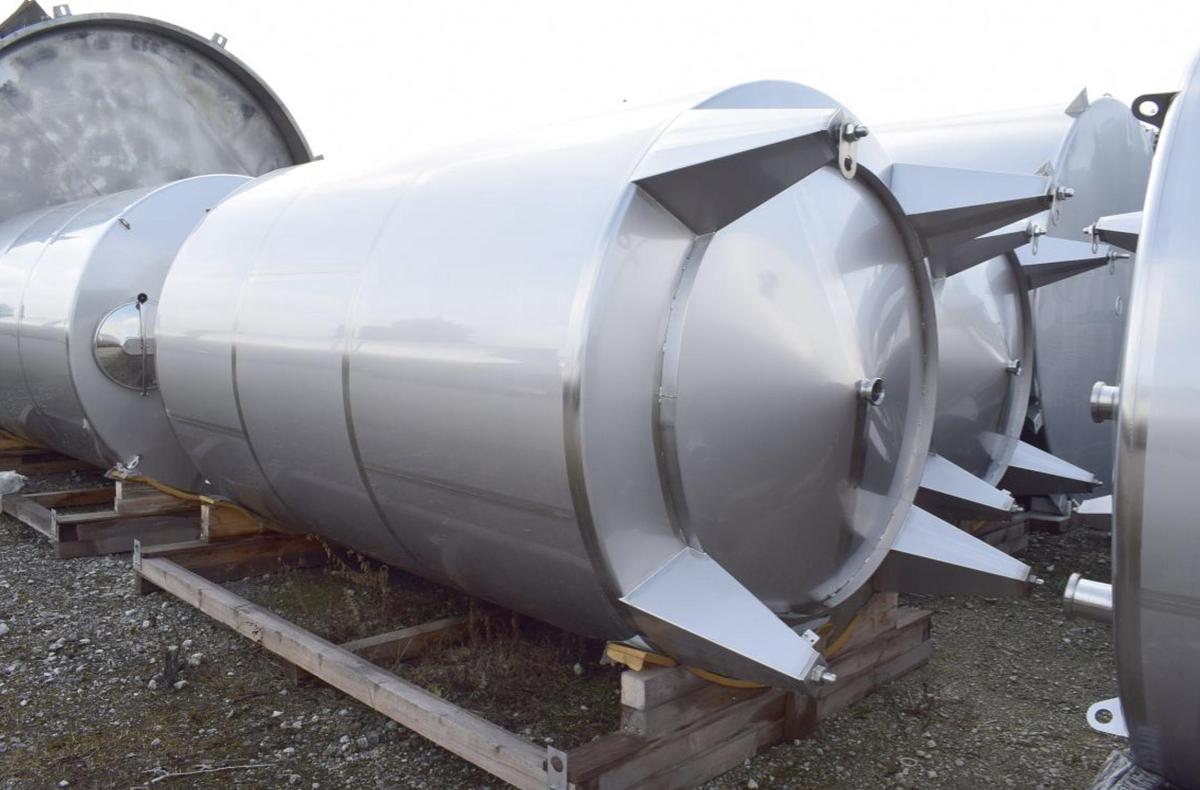

Brand New 12,000 Litre 316 Stainless Steel Tanks

Technical Summary

Capacity: Approx. 12,600 Litres

Type: Brand New Storage Tank – Type K3-SL

Condition: Brand New

Orientation: Vertical

Internal Material: AISI 316L Stainless Steel

Internal Weld Finish: Ra ≤ 1.6 µm

External Finish: 2B Stainless Steel

Configuration: Single-Skin

Pressure: Atmospheric

Maximum Product Density: Approx. 1,200 kg/m³

Minimum Temperature: -10°C

Maximum Temperature: On Request

Diameter: Approx. 2,150 mm

Cylinder Height: Approx. 3,250 mm

Total Height: Approx. 4,324 mm

Top Type: 15° Conical

Bottom Type: 15° Conical

Jacket: No

Insulation: No

Agitation: Optional

CIP Spray Ball: Optional

Supports: 4 Adjustable Feet

Outlet: Approx. 65 mm Internal Diameter

Outlet Connection: DIN 11851 Male

Empty Weight: Approx. 534 kg

Inspection: TÜV

Order Number: 11335 EW-V6LN

Specification

Brand new vertical cylindrical stainless steel storage tank

Approx. 12,600 litre volumetric capacity

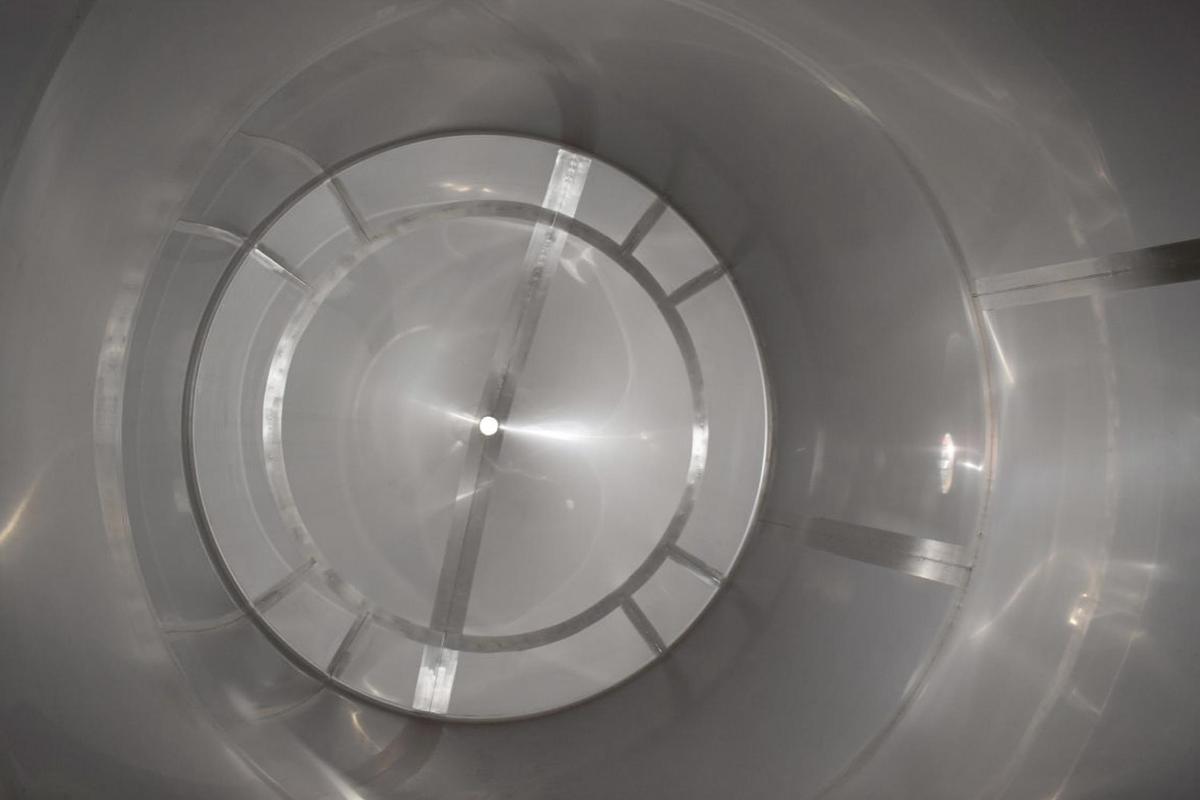

AISI 316L stainless steel product-contact surfaces

Internal weld finish of approximately Ra 1.6 µm

2B stainless steel finish

Single-skin atmospheric tank construction

Suitable for food industry applications

Maximum product density of approximately 1,200 kg/m³

Minimum operating temperature of -10°C

Maximum operating temperature available on request, subject to confirmation of product temperature and seal suitability

15° conical top

15° conical bottom for effective total product discharge

Designed for complete product drainage

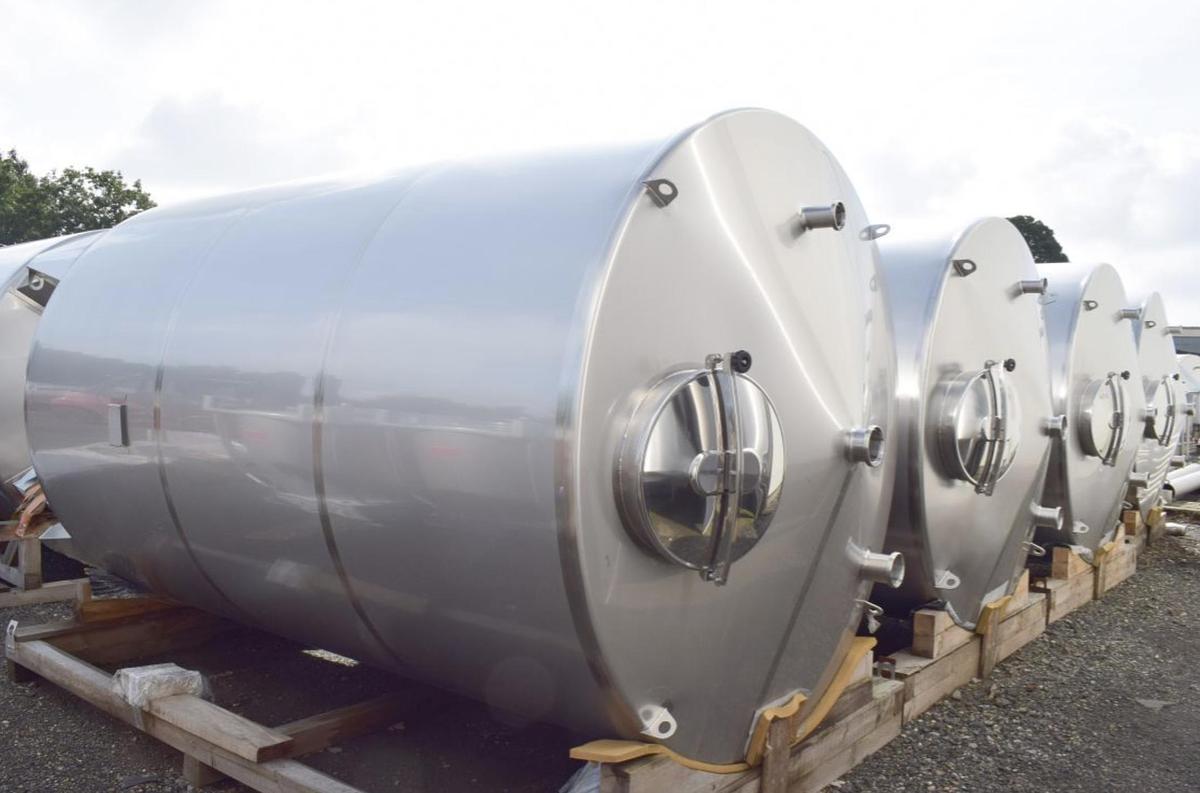

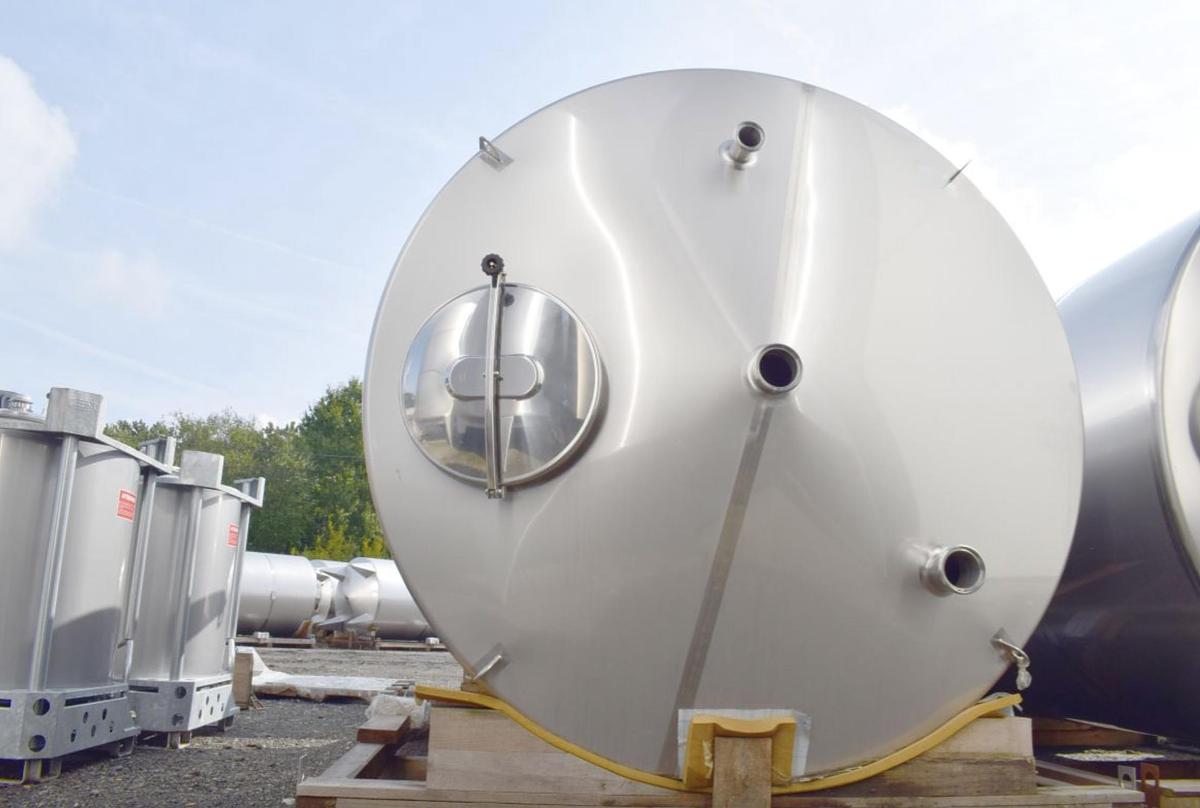

One manway with approx. 500 mm diameter opening

AISI 316 stainless steel manway construction

EPDM manway gasket

AISI 304L stainless steel fixation points

Approx. 65 mm internal diameter tank outlet

DIN 11851 male outlet connection

Optional total outlet valve

Optional CIP spray ball

Optional agitator

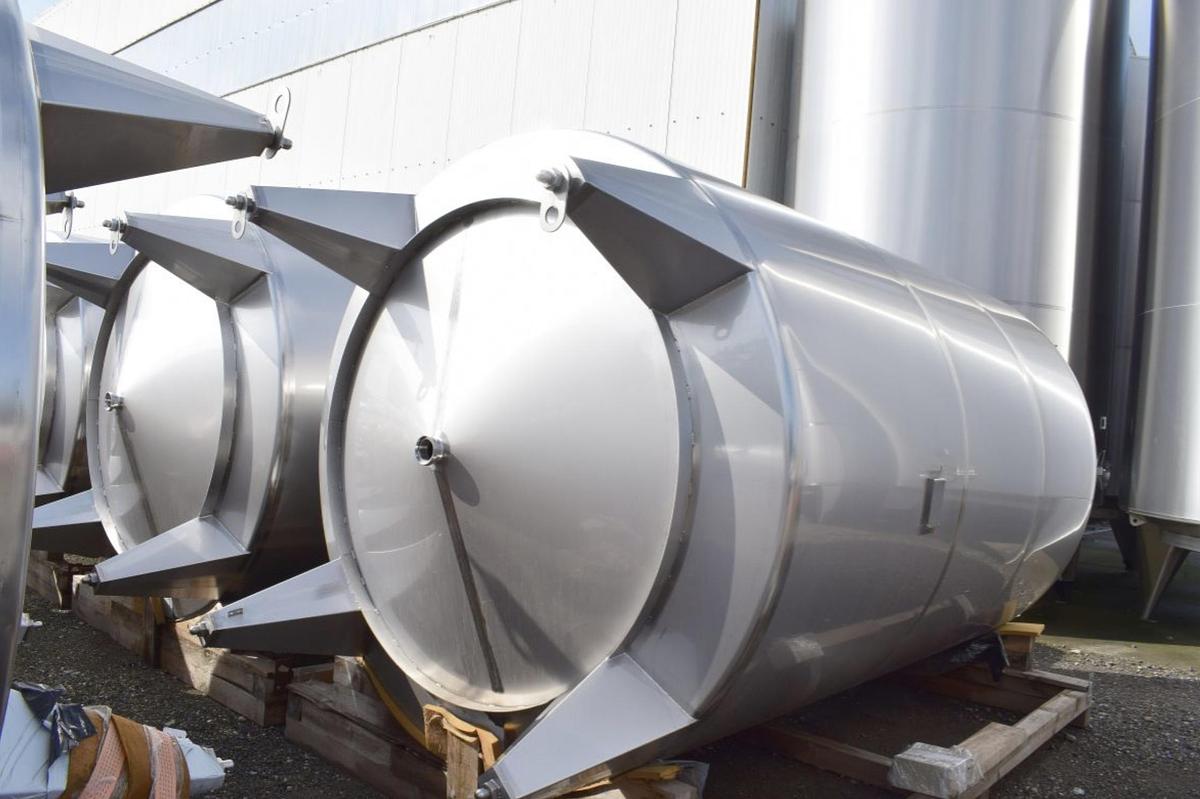

Mounted on four adjustable stainless steel feet

No heating or cooling jacket

No insulation

Tank registration plate included

Technical drawing included

Additional documentation available as an option

TÜV inspection

Wall Thicknesses

Top: Approx. 2 mm

Cylinder: Approx. 2 mm

Bottom: Approx. 2 mm

Dimensions

Overall Diameter: Approx. 2,150 mm

Cylinder Height: Approx. 3,250 mm

Feet Height: Approx. 710 mm

Overall Height: Approx. 4,324 mm

Outlet to Ground: Approx. 306 mm

Internal Volume: Approx. 12,600 Litres

Empty Weight: Approx. 534 kg

Availability & Project Support

Available as brand new equipment.

Full support available including:

• Loading and transport coordination
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
• Optional documentation packages
• Optional CIP spray ball, outlet valve and agitator configuration
