14,000 Litre 304 Stainless Steel Tanks with Coil Heating

Technical Summary

Capacity: Approx. 14,000 Litres / 140 hL

Manufacturer: STAI

Type: Temperature-Controlled Storage Tank

Condition: Used

Orientation: Vertical

Material: AISI 304 Stainless Steel

Pressure: Atmospheric

Product Density: 1

Diameter: Approx. 2,470 mm

Shell Height: Approx. 3,000 mm

Total Height: Approx. 4,300 mm

Temperature Control: Internal Coil

Manway: Rectangular Boyer Door, Approx. 420 × 530 mm

Partial Drain: DN50

Total Drain: DN50

Supports: Stainless Steel Legs, Approx. 800 mm

Compliance: CE Compliant

Warranty: 6 Months

Specification

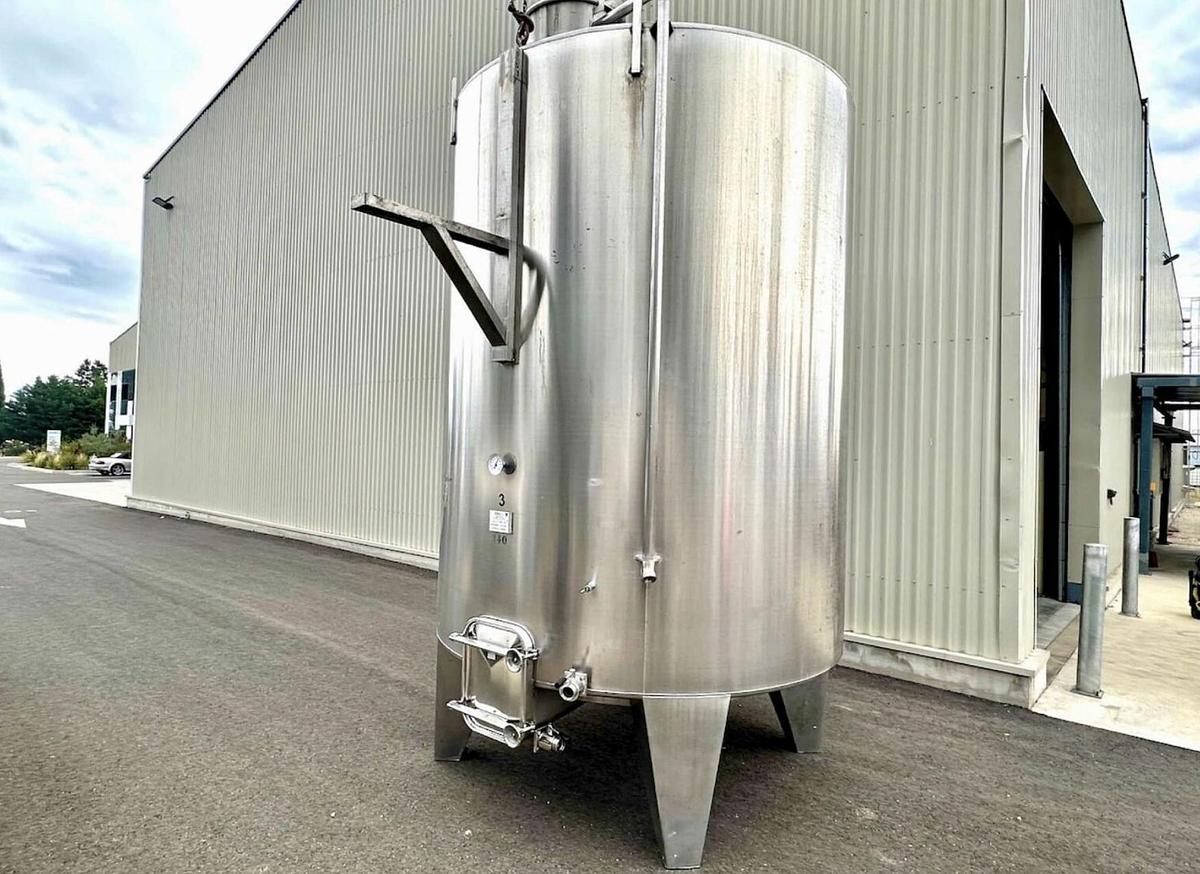

Vertical cylindrical stainless steel storage tank

Approx. 14,000 litre / 140 hL capacity

Manufactured by STAI

AISI 304 stainless steel construction

Designed for atmospheric-pressure operation

Suitable for products with a density of approximately 1

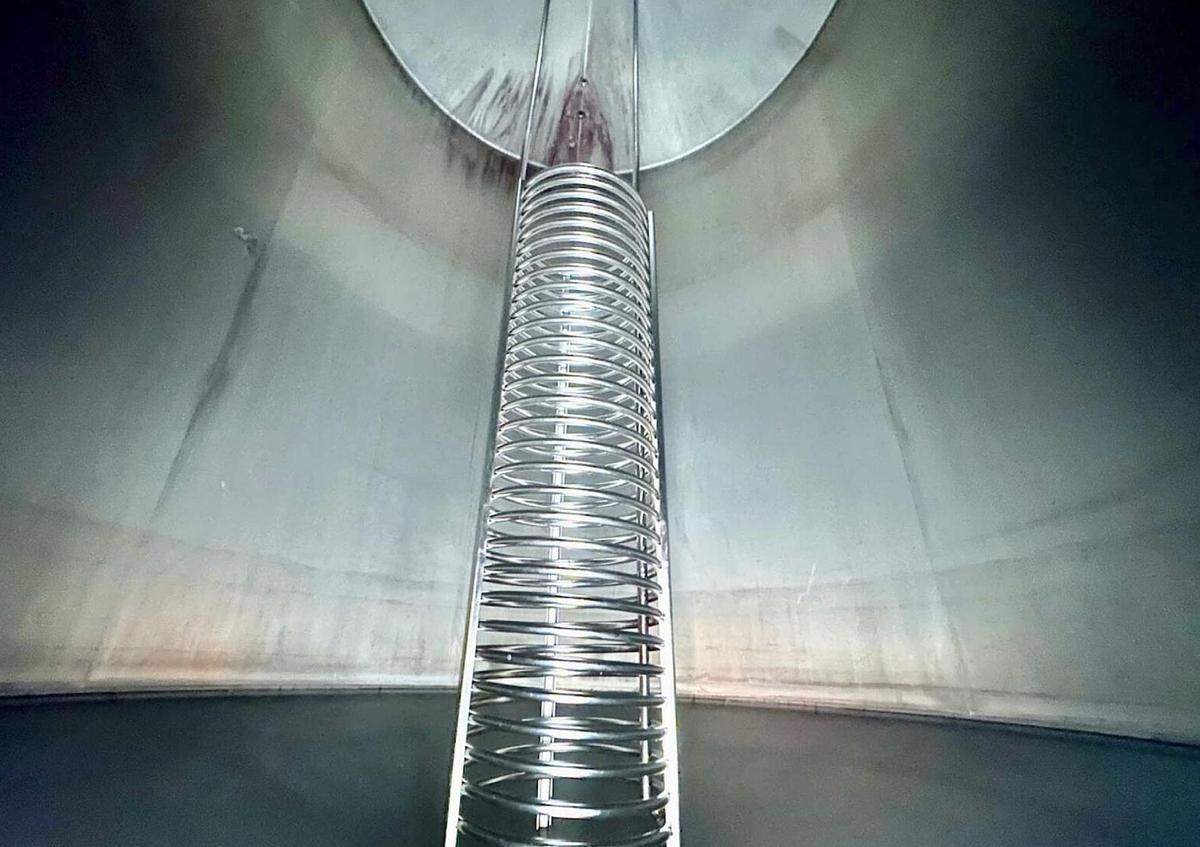

Temperature-controlled tank fitted with an internal heating / cooling coil

Suitable for maintaining controlled product temperatures during storage

Offset top chimney fitted with an approx. 500 mm stainless steel lever hatch and Bellot adapter

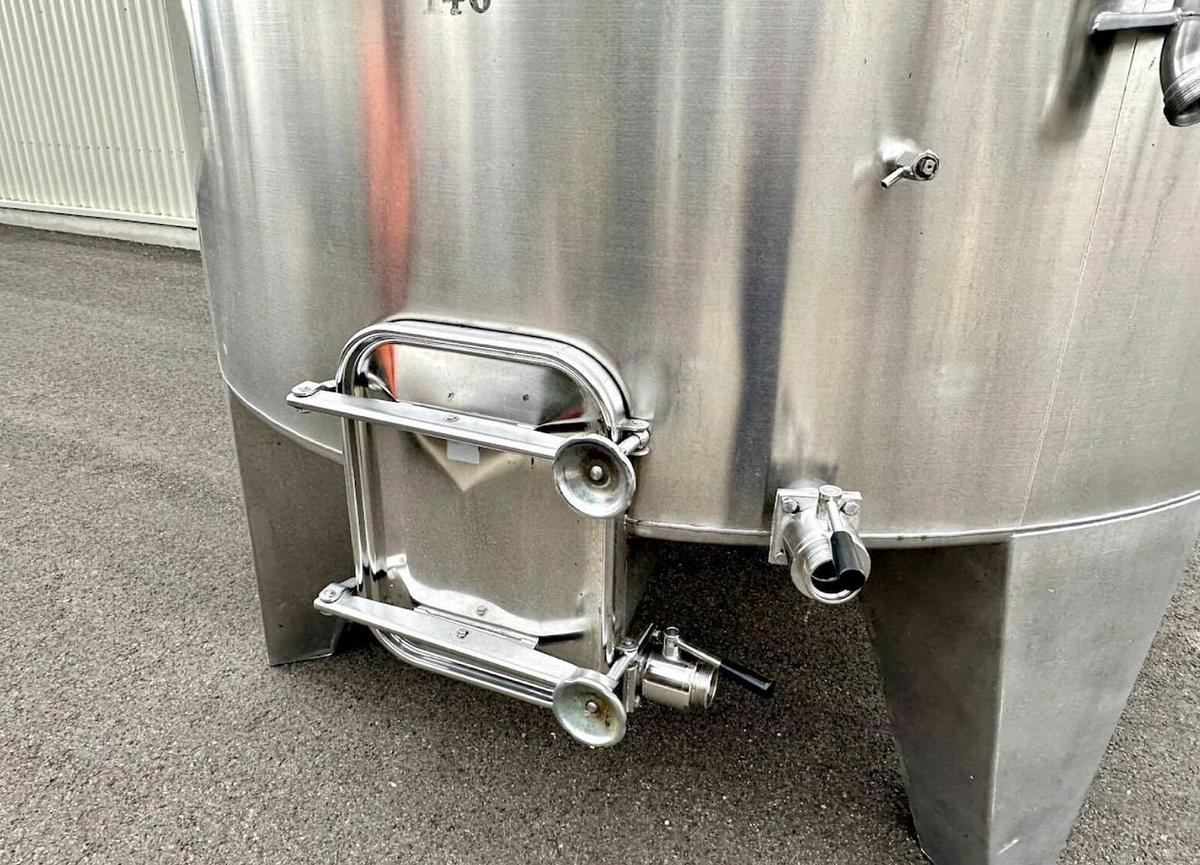

Rectangular Boyer access door, approx. 420 × 530 mm, with external opening

Fitted with tasting / sampling tap

Pump-out tube fitted

Support point for walkway integration

Partial drain valve mounted on DN50 square flange

DN50 total drain valve

Mounted on approx. 800 mm stainless steel support legs

CE compliant

Supplied with a 6-month warranty

Applications

Wine storage

Must storage

Juice storage

Temperature-controlled product storage

Winery and cellar applications

Buffer tank / process reservoir

Food and beverage processing applications

Dimensions

Overall Diameter: Approx. 2,470 mm

Shell Height: Approx. 3,000 mm

Overall Height: Approx. 4,300 mm

Leg Height: Approx. 800 mm

Internal Volume: Approx. 14,000 Litres / 140 hL

Availability & Project Support

Available as used equipment.

A practical temperature-controlled stainless steel storage solution for wineries, beverage plants and food processing facilities requiring additional tank capacity.

Full support available including:

• Loading and transport coordination
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
