60,000 Litre 304 Stainless Steel Tanks with Heating

Technical Summary

Total Capacity: Approx. 61,000 Litres / 610 hL

Compartment Capacities: Approx. 26,000 L + 17,500 L + 17,500 L

Manufacturer: Martinez Sole

Year: 2003

Type: Three-Compartment Vertical Stainless Steel Tank

Condition: Used

Orientation: Vertical

Material: AISI 304 Stainless Steel

Internal Finish: Cold-Rolled

External Finish: 2B Stainless Steel

Bottom Type: Flat / Sloping, Self-Draining Configuration

Diameter: Approx. 3,600 mm

Total Height: Approx. 9,100 mm

Temperature Control: Channel Cooling / Heating Circuits

Supports: Adjustable Stainless Steel Legs with Base Plates

Supply Condition: Sold Without Accessories, Valves or Doors

Specification

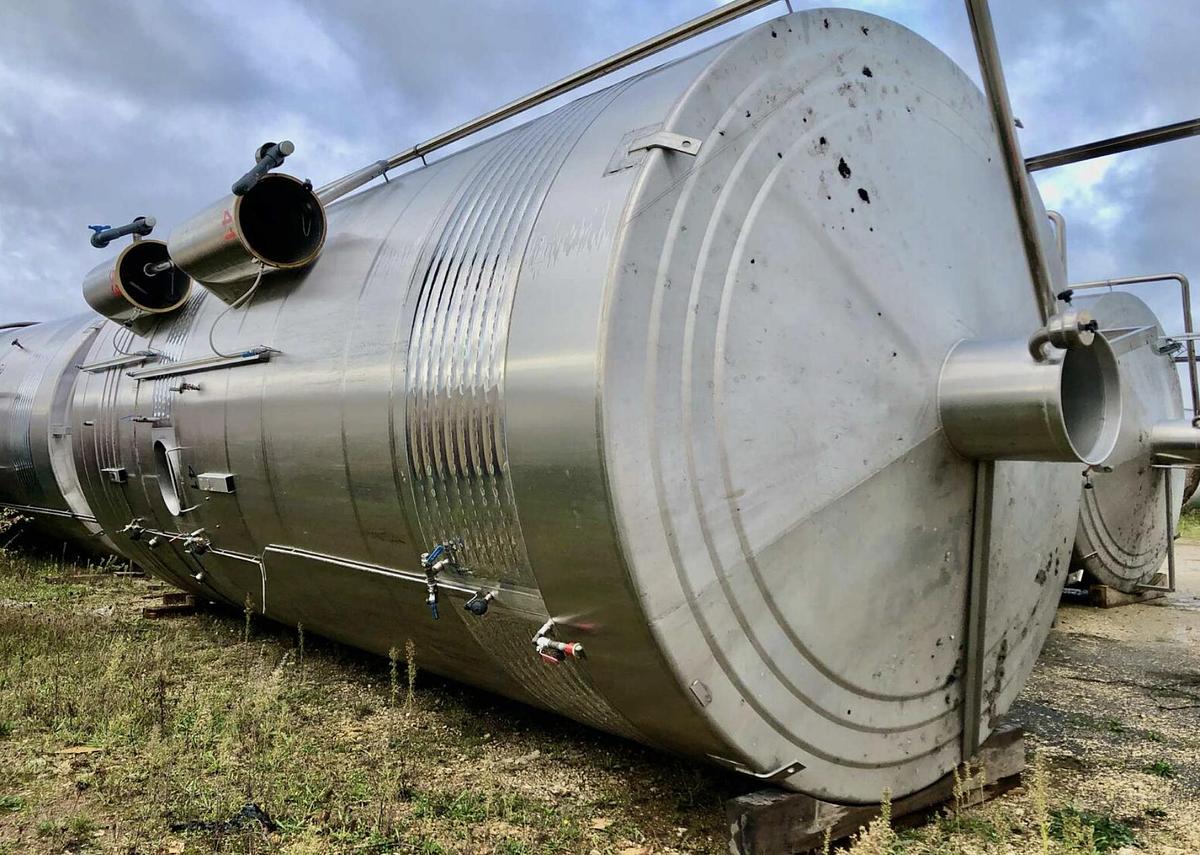

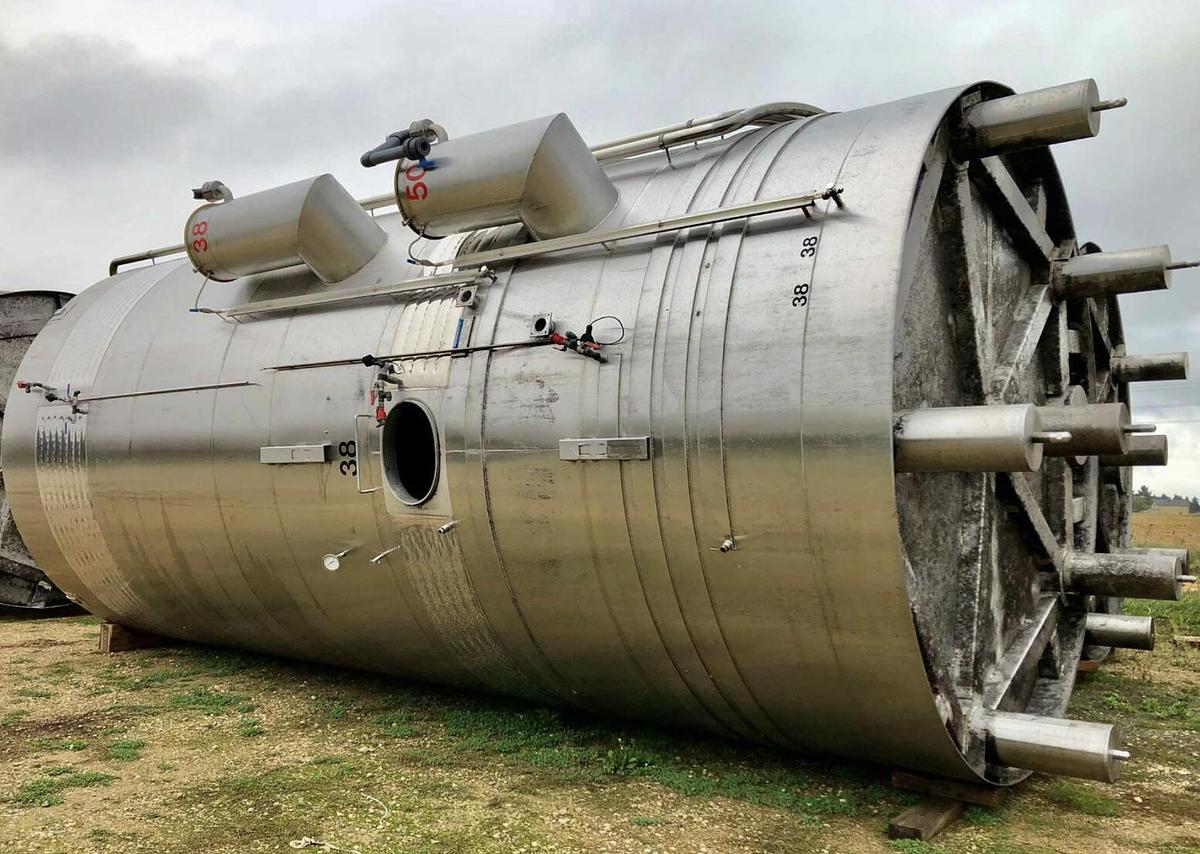

Vertical cylindrical three-compartment stainless steel storage tank

Approx. 61,000 litre total capacity

Three separate compartments with capacities of approximately 26,000 litres, 17,500 litres and 17,500 litres

Manufactured by Martinez Sole

Year of manufacture: 2003

AISI 304 stainless steel construction

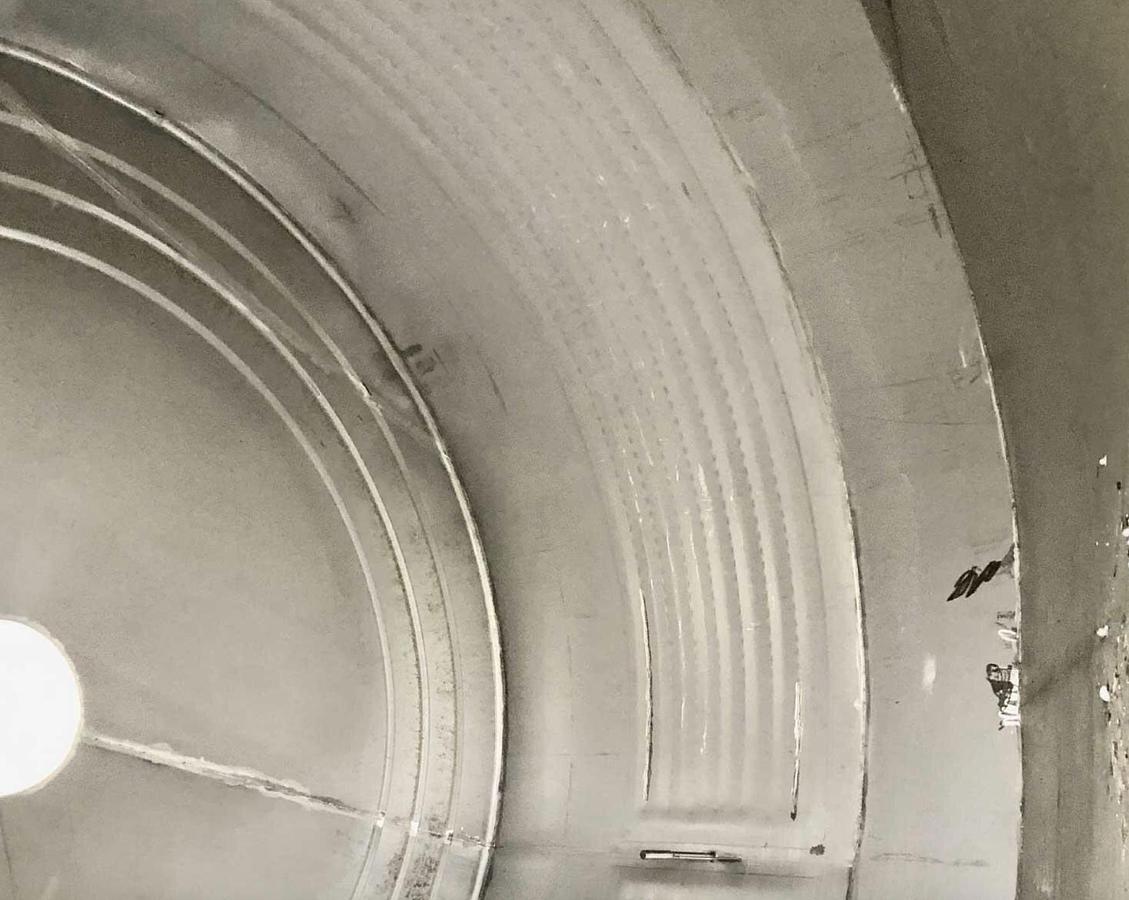

Cold-rolled internal finish

2B external stainless steel finish

Mounted on stainless steel legs with adjustment screws and base plates

Each compartment designed with separate access, product connections and drainage points

Integrated temperature-control channel circuits to each compartment

Suitable for wine, must, juice and other food or beverage liquid storage applications

Please note: the tank is sold without accessories, valves or doors

Top Compartment – Approx. 26,000 Litres

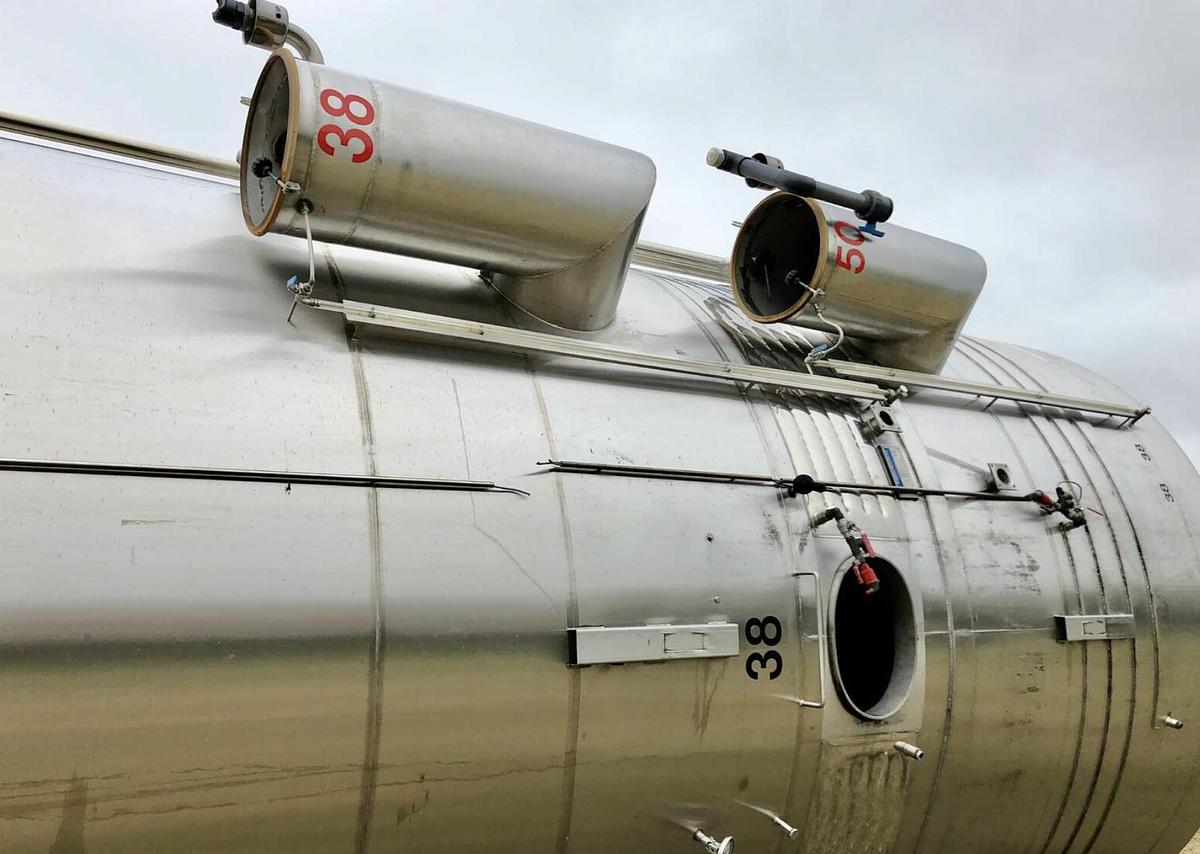

Central roof chimney

Approx. Ø500 mm top hatch with clamping clips

Pump-out pipe

Walkway support

Approx. 1,000 × 800 mm stainless steel guillotine-style access door with splash guard

Connection for racking / partial discharge

Tasting / sampling point

Approx. 8 m² channel temperature-control circuit

Level gauge provision

Self-draining bottom configuration

Total drainage provision

Middle Compartment – Approx. 17,500 Litres

Off-centre roof chimney

Approx. Ø500 mm top hatch

Approx. 310 × 420 mm oval stainless steel autoclave door with inward opening

Connection for partial discharge / racking

Decanting elbow provision

Tasting / sampling point

Approx. 5.5 m² channel temperature-control circuit

Total drainage provision

Lower Compartment – Approx. 17,500 Litres

Off-centre roof chimney

Approx. Ø500 mm top hatch

Approx. 410 × 530 mm stainless steel access door with inward opening

Connection for partial discharge / racking

Decanting elbow provision

Tasting / sampling point

Approx. 5.5 m² channel temperature-control circuit

Total drainage provision

Mounted on adjustable stainless steel legs with base plates

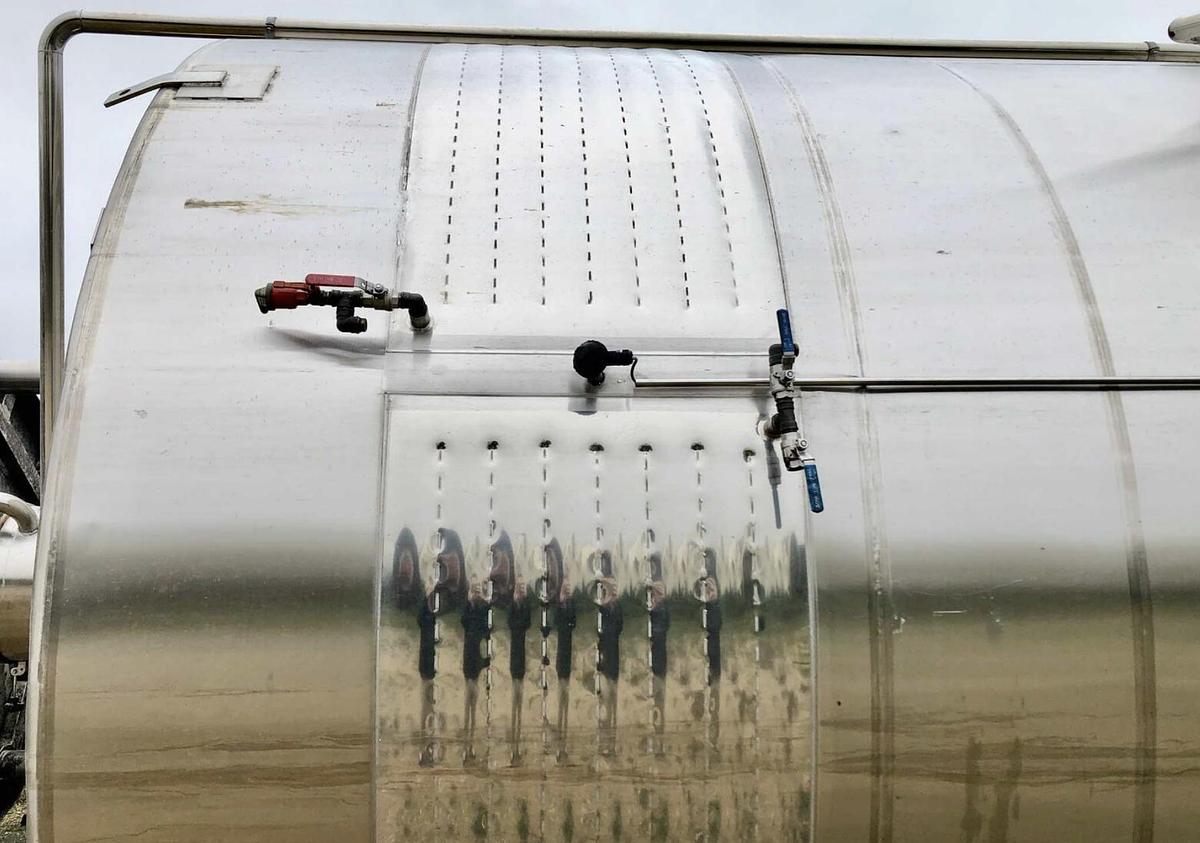

Temperature Control

Top Compartment: Approx. 8 m² channel circuit

Middle Compartment: Approx. 5.5 m² channel circuit

Lower Compartment: Approx. 5.5 m² channel circuit

Total Heat Exchange Area: Approx. 19 m²

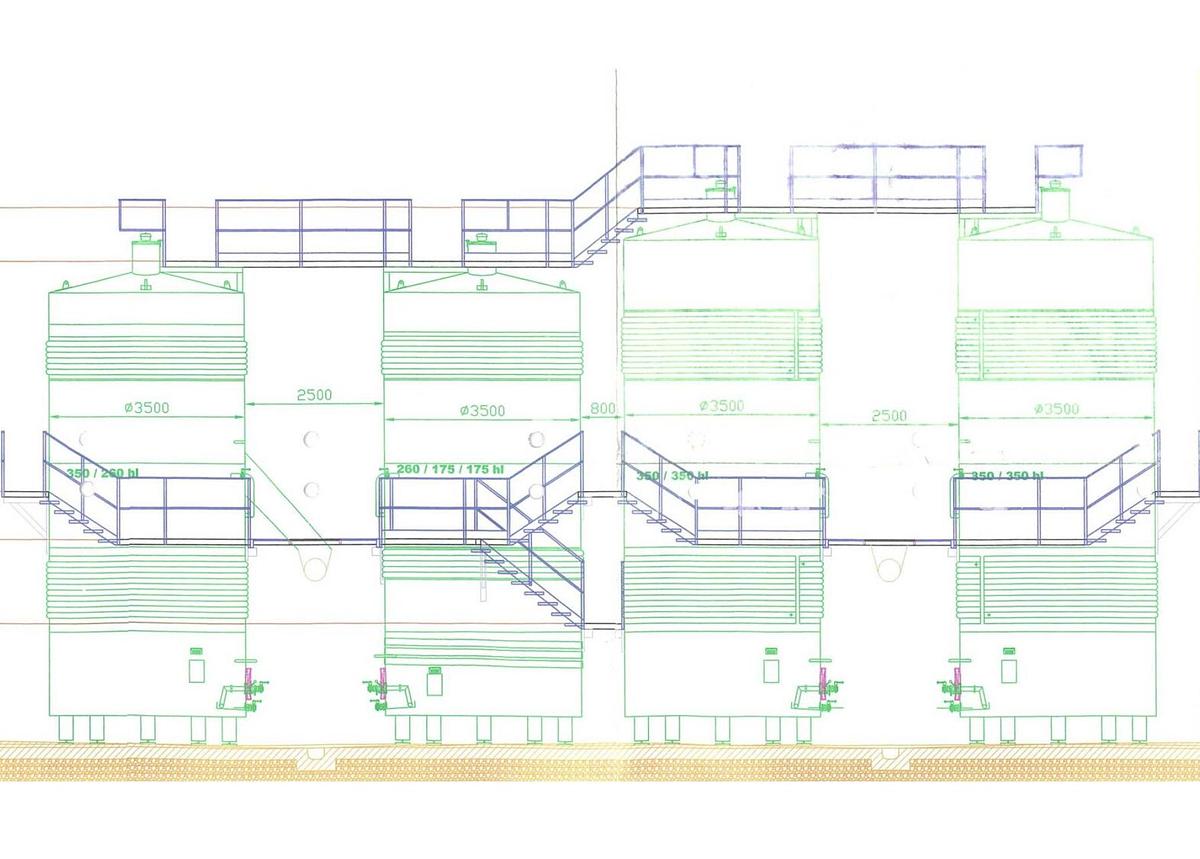

Dimensions

Overall Diameter: Approx. 3,600 mm

Overall Height: Approx. 9,100 mm

Total Internal Volume: Approx. 61,000 Litres / 610 hL

Top Compartment: Approx. 26,000 Litres / 260 hL

Middle Compartment: Approx. 17,500 Litres / 175 hL

Lower Compartment: Approx. 17,500 Litres / 175 hL

Availability & Project Support

Available as used equipment.

This multi-compartment configuration provides significant storage capacity within a relatively compact footprint and allows three different products or batches to be stored independently within one vertical vessel.

Full support available including:

• Dismantling and loading
• Export packing and logistics
• Delivery coordination
• Installation and integration support if required
